Product Introduction

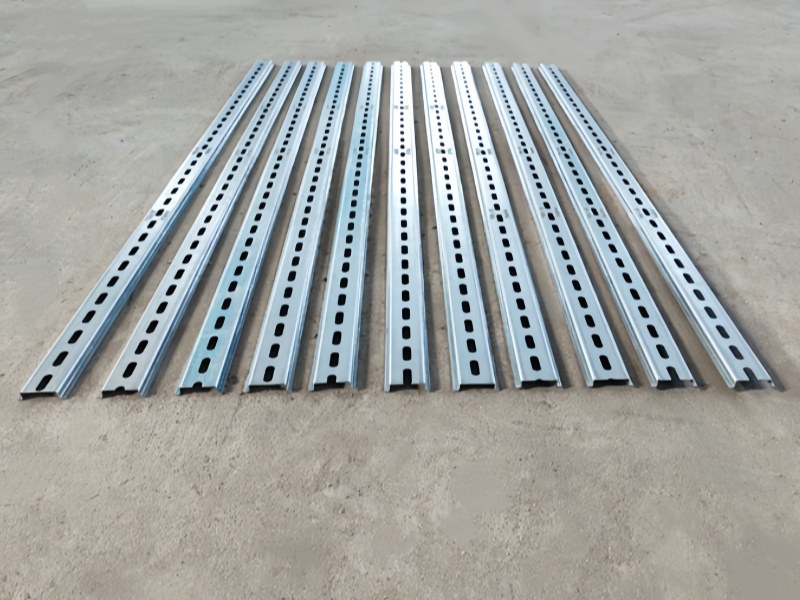

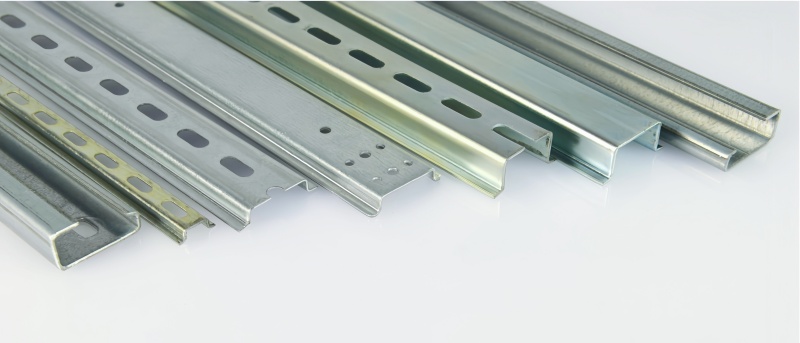

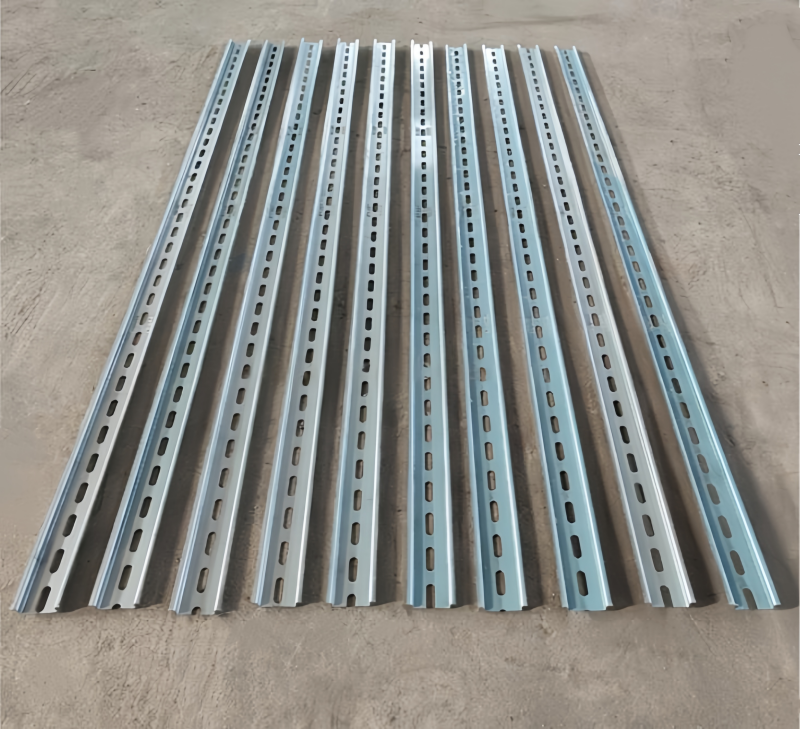

Our Automatic Slotted DIN Rail Roll Forming Machine is a high-efficiency, fully automated production line designed to manufacture standard steel/aluminum DIN rails with precise punching slots. Widely used in the electrical and automation industries. We support customization for both international standard and non-standard sizes.

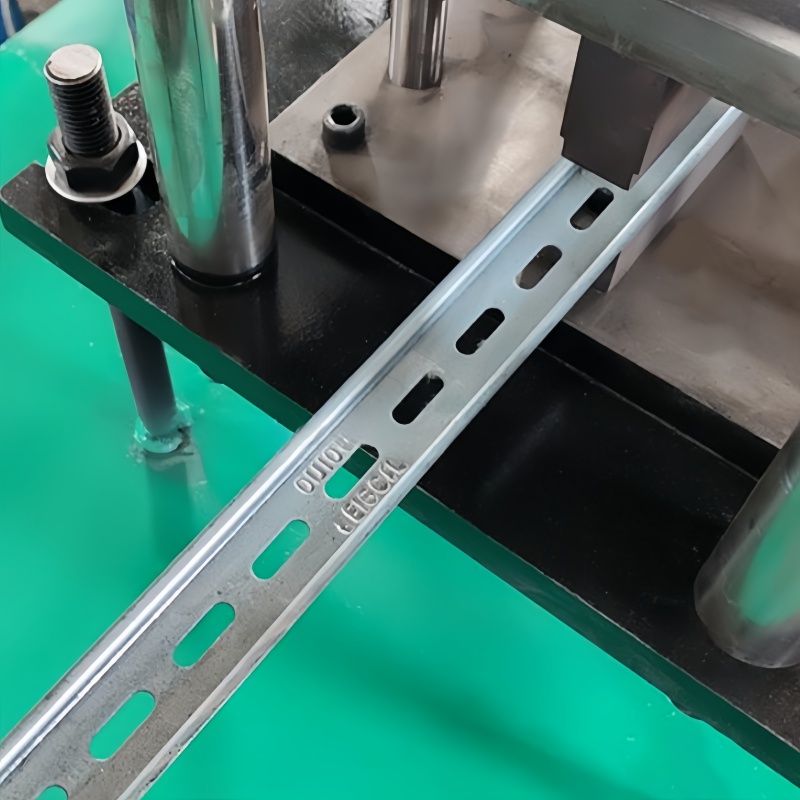

- High Precision Online Punching: The hydraulic punching press creates perfect slots with highly accurate spacing, ensuring hassle-free snapping of electrical components.
- Superior Rollers & Long Lifespan: Rollers are made of premium GCr12 steel, treated with hard chrome plating to prevent surface scratches on galvanized or aluminum sheets.
- Stable Heavy-Duty Frame: Robust welded steel base plate minimizes vibration during high-speed operations, guaranteeing long-term manufacturing stability.
- Fully Automated Control: Features multi-language PLC touch screen control . Simply set the length and quantity, and the machine runs automatically.
- Zero Material Waste Cutting: Equipped with an optimized hydraulic shear that cuts cleanly with zero scrap, saving material costs.
Production Workflow

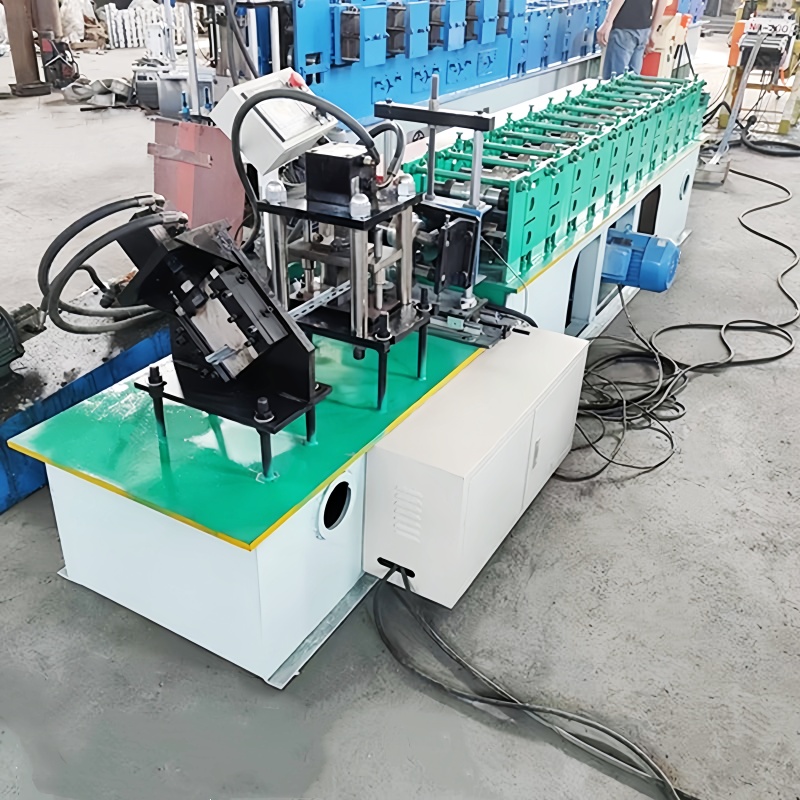

Decoiler ➡️ Hydraulic Punching ➡️ Feeding unit ➡️ Roll Forming ➡️ Hydraulic Cutting ➡️ Output Racks
Detailed description
1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

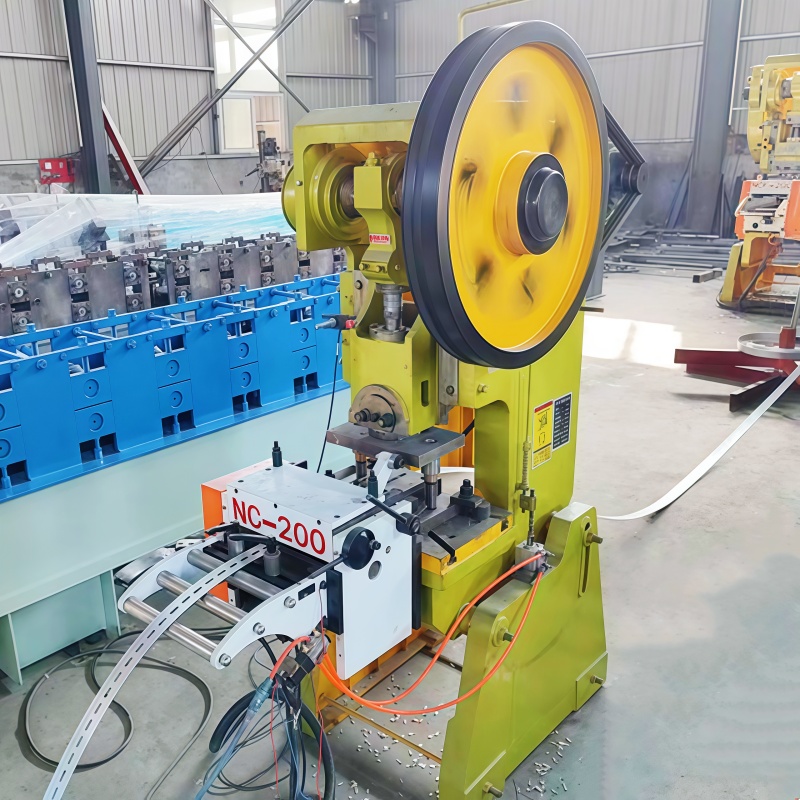

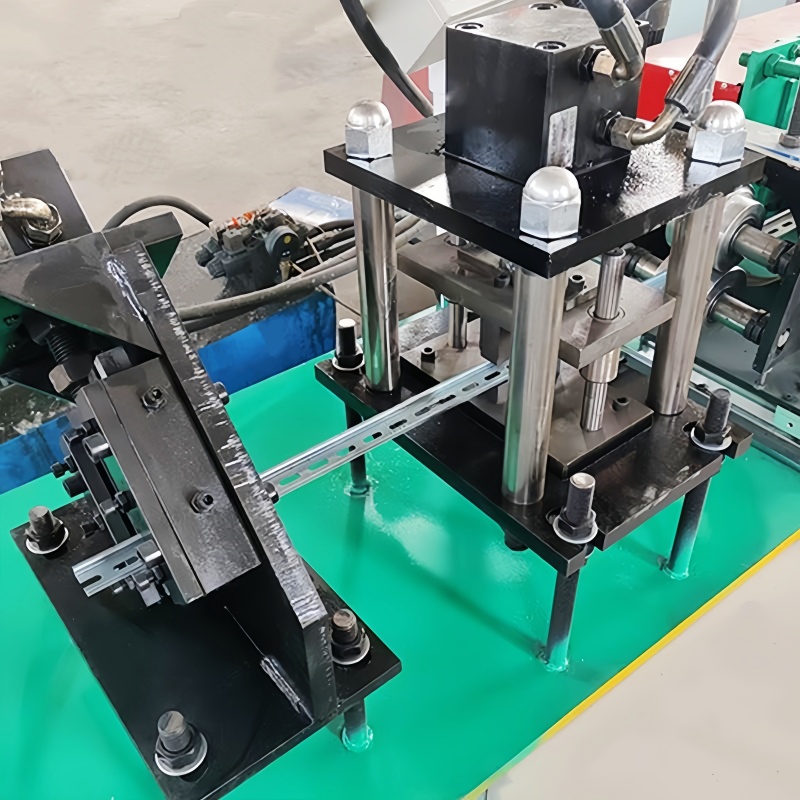

2.Pre-punch:Customized according to product punching requirements

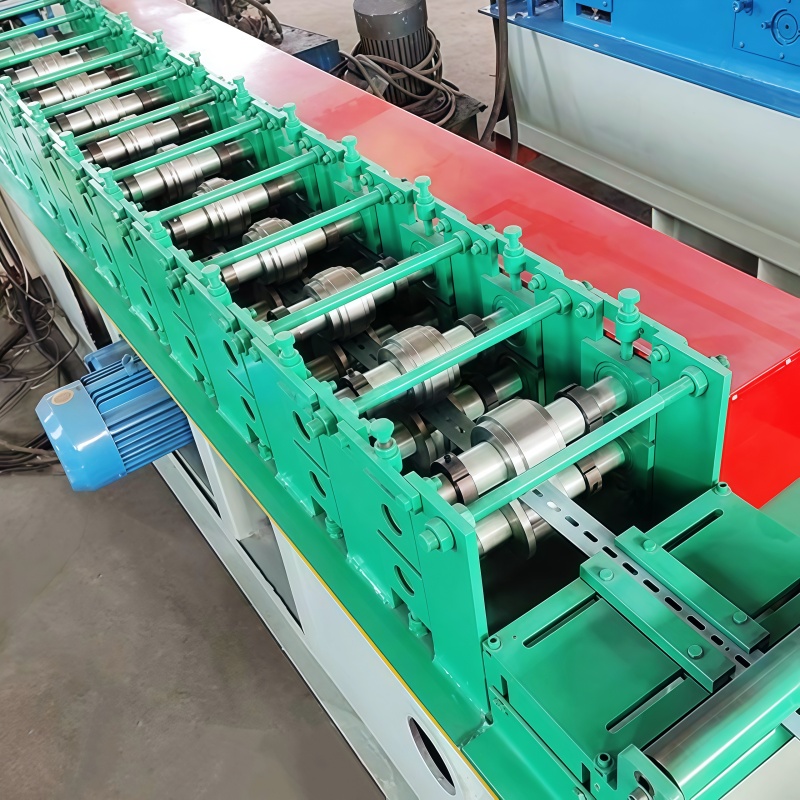

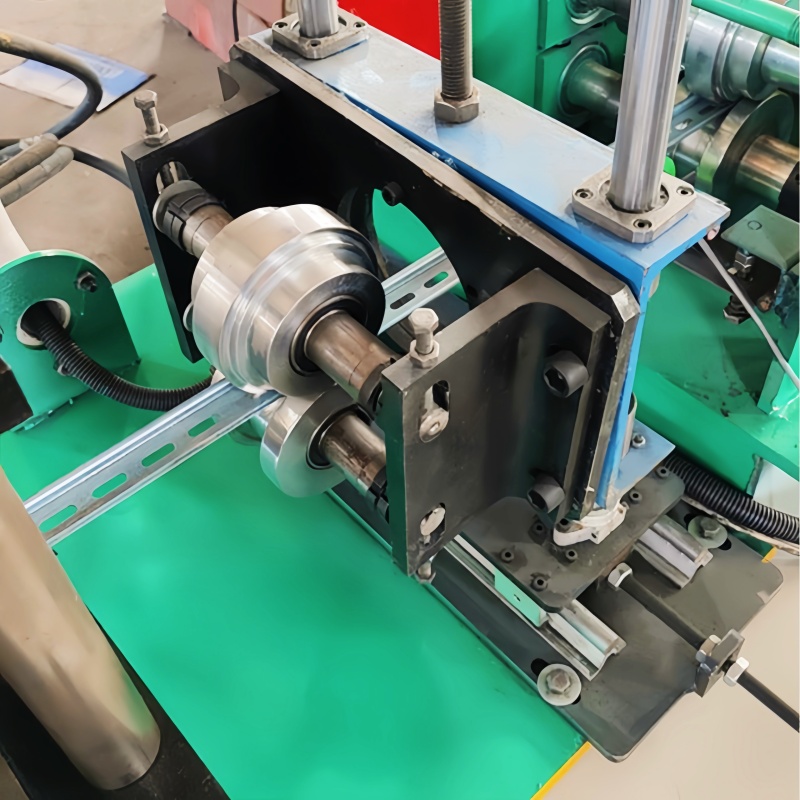

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

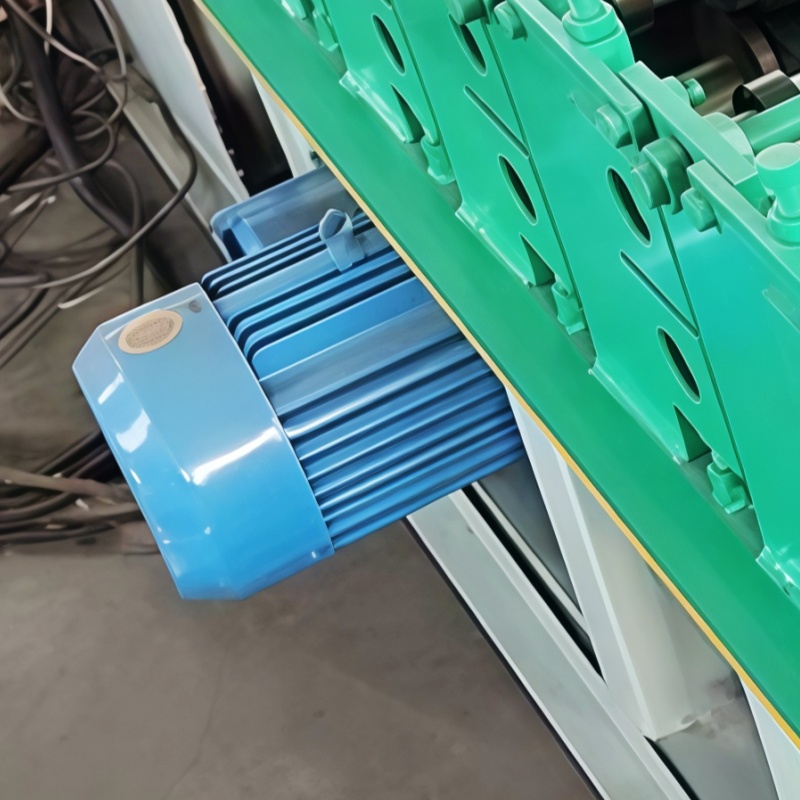

4.Main motor:The main motor provides power to the forming rollers through chains or gears
5.Embossing device：Hydraulic embossing is performed after flattening with leveling rollers.

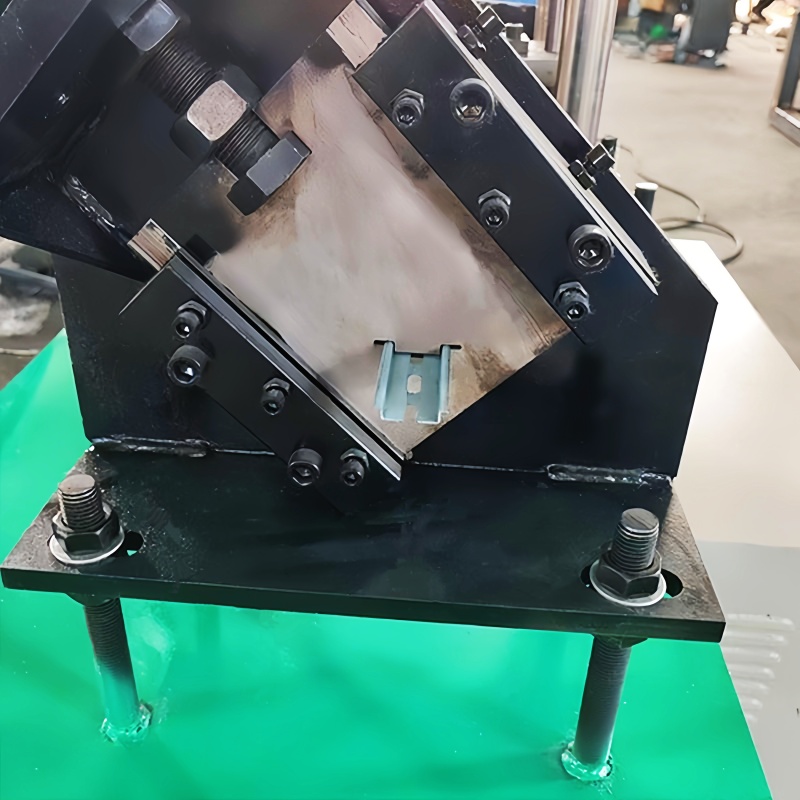

6.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available
7.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
8.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.

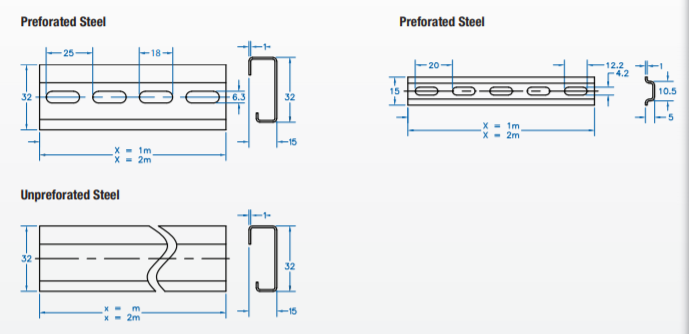

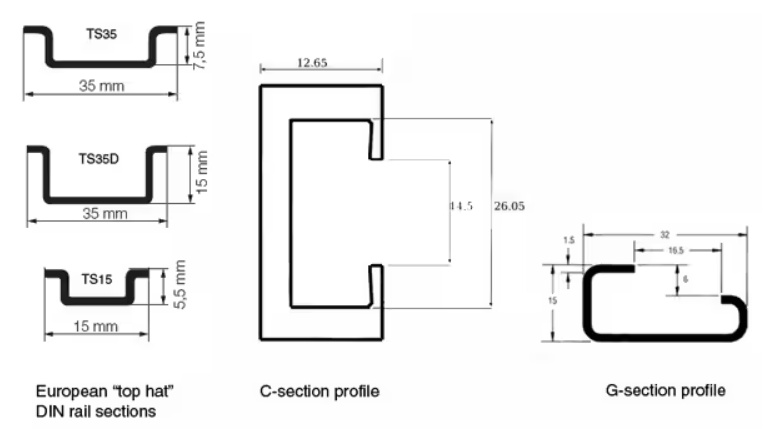

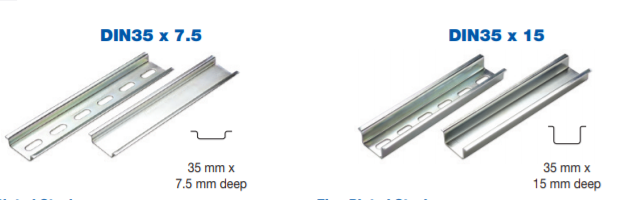

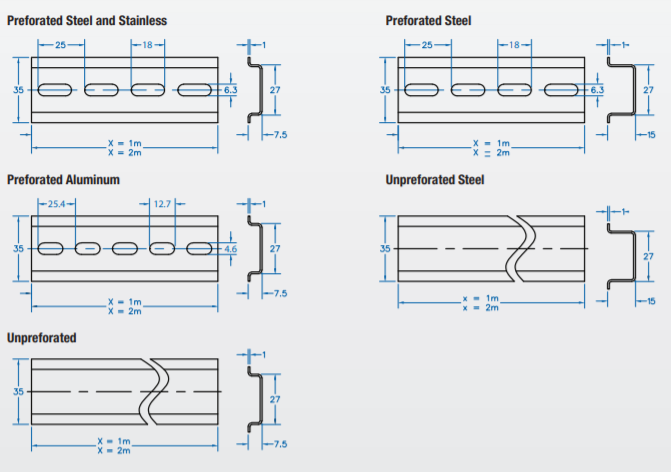

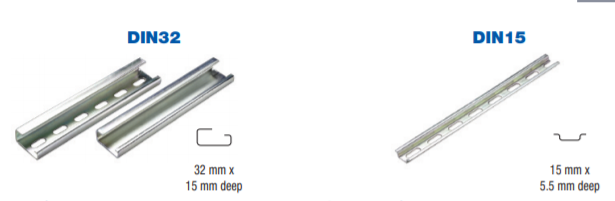

Below is product customization information for reference.
