Product Introduction

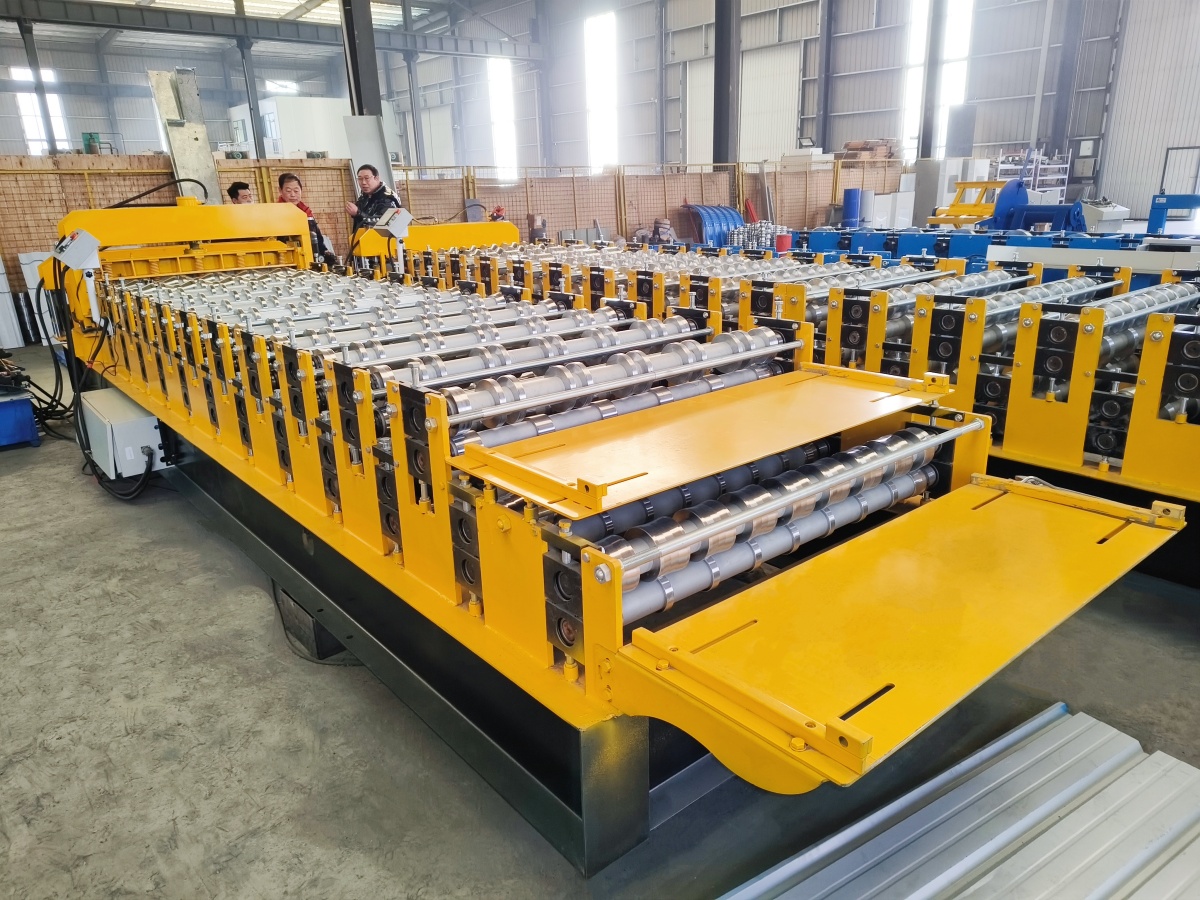

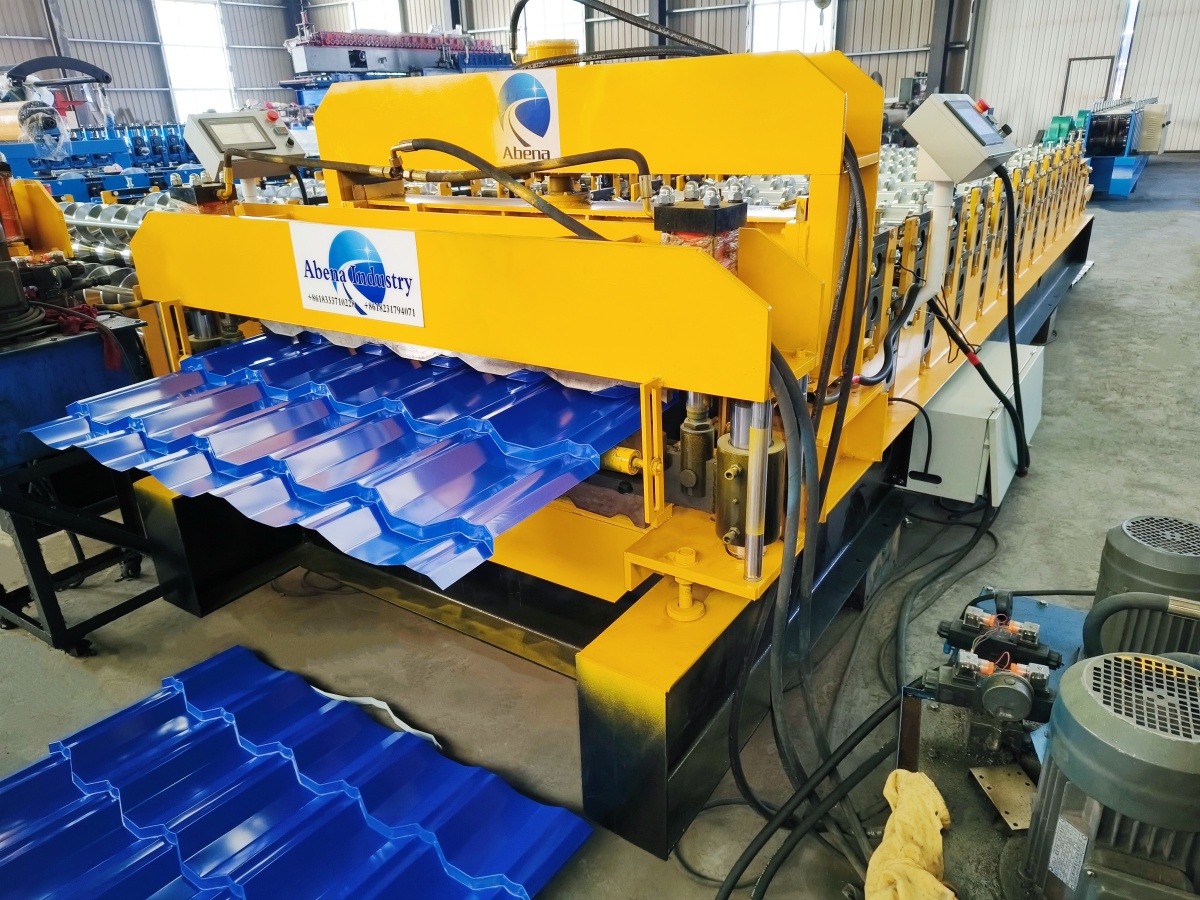

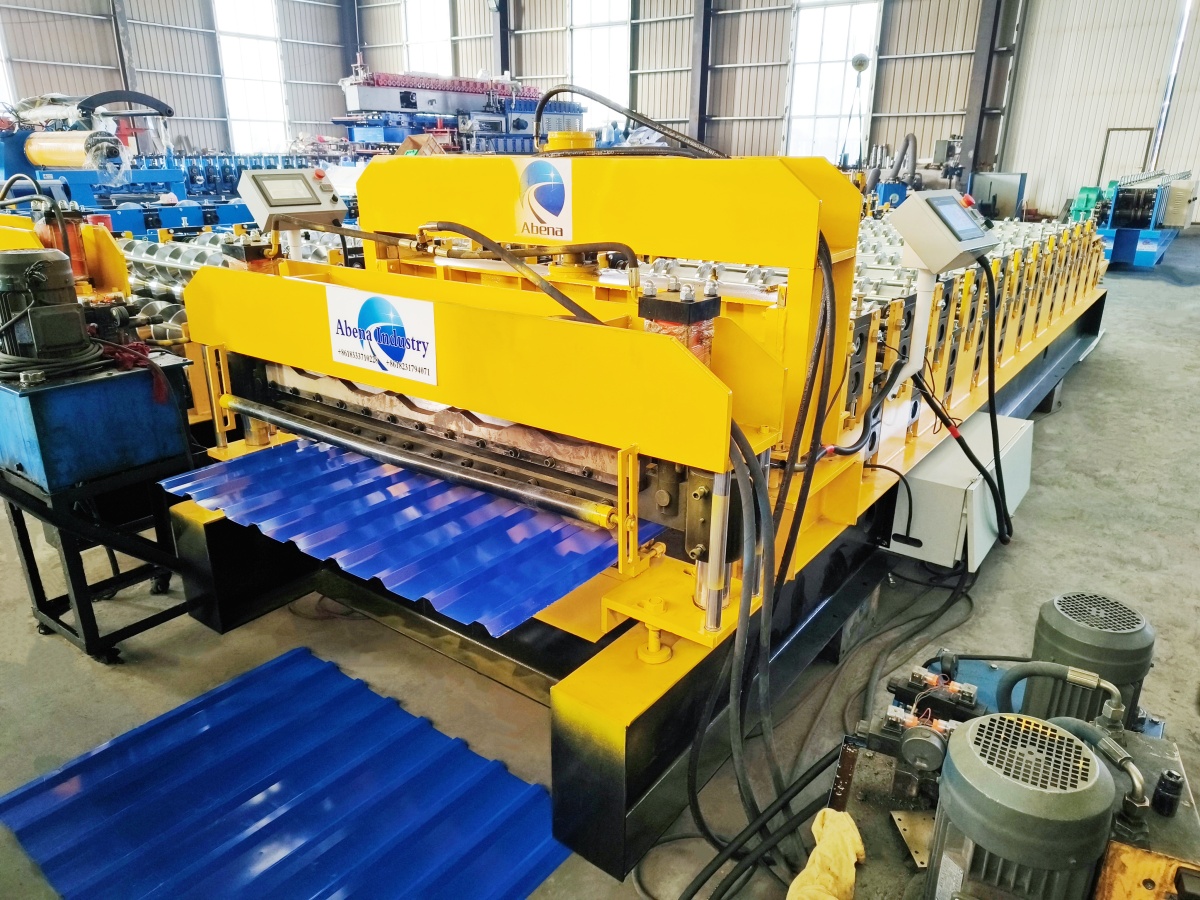

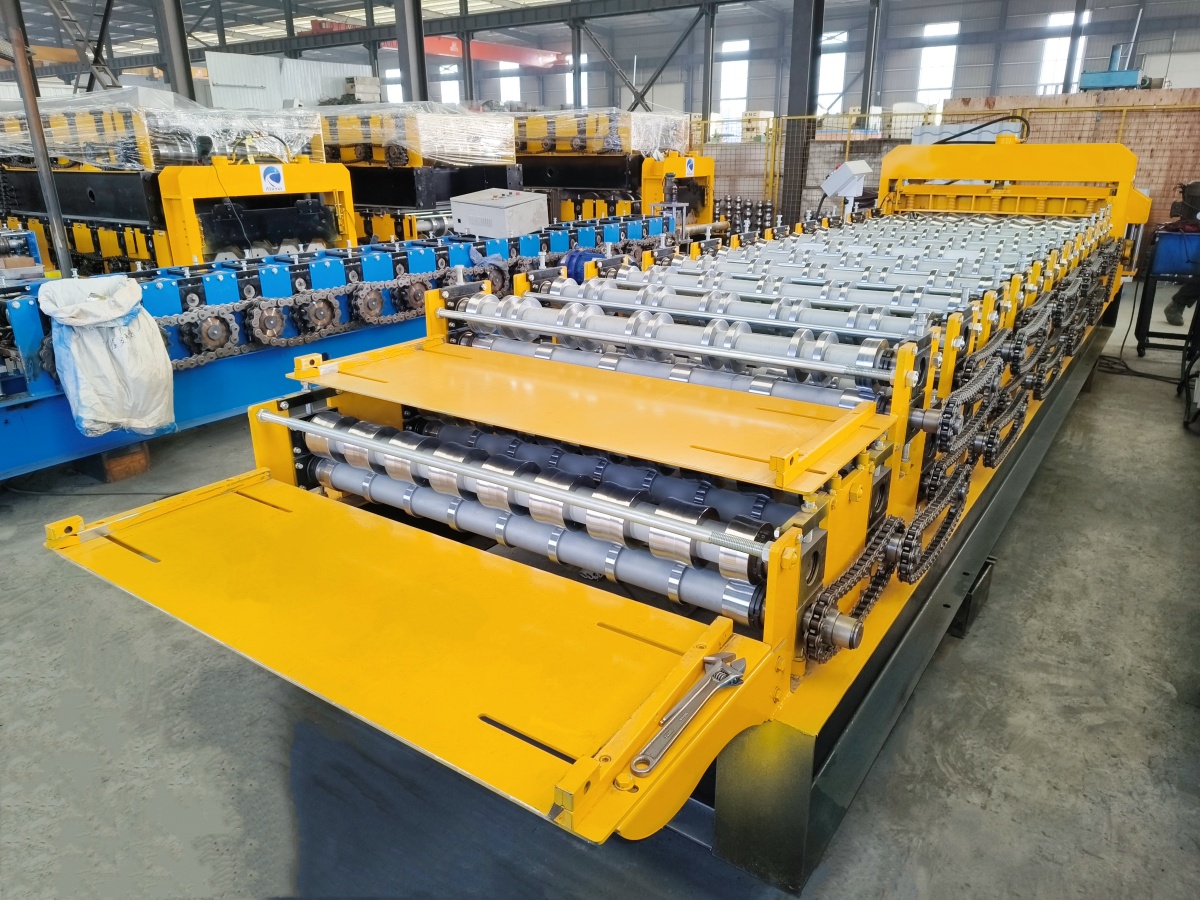

The Double-Layer Roofing Sheet Roll Forming Machine is an industrial-grade manufacturing solution engineered to produce two distinct metal roofing profiles on a single machine footprint. By stacking two independent forming decks (typically an architectural glazed step tile profile on the upper deck and a trapezoidal/corrugated profile on the lower deck), this system enables panel manufacturers to double their product capability while optimizing factory floor space and reducing capital expenditure.
Key Technical Advantages
-

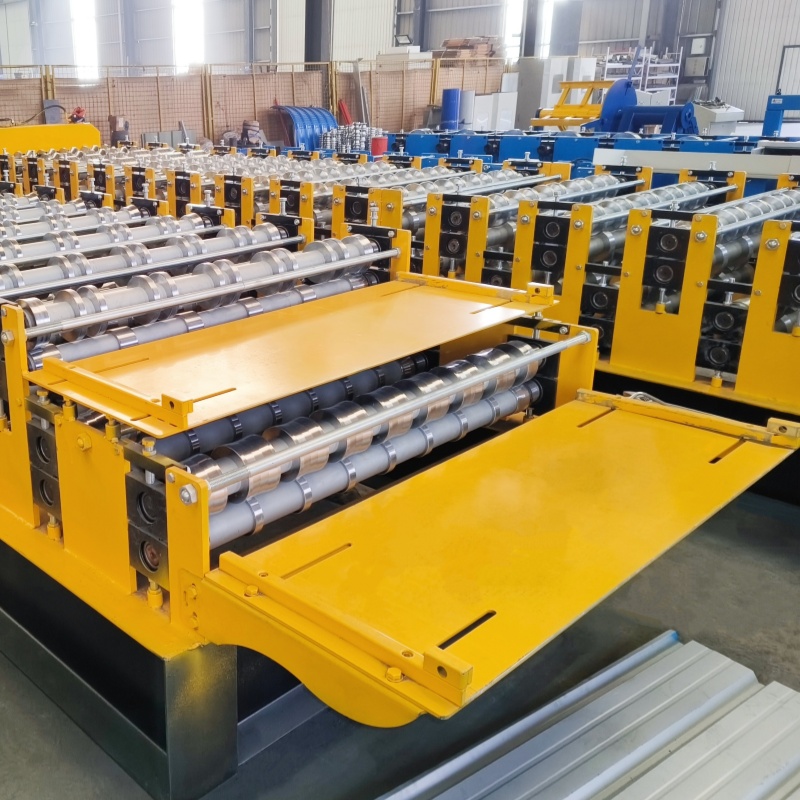

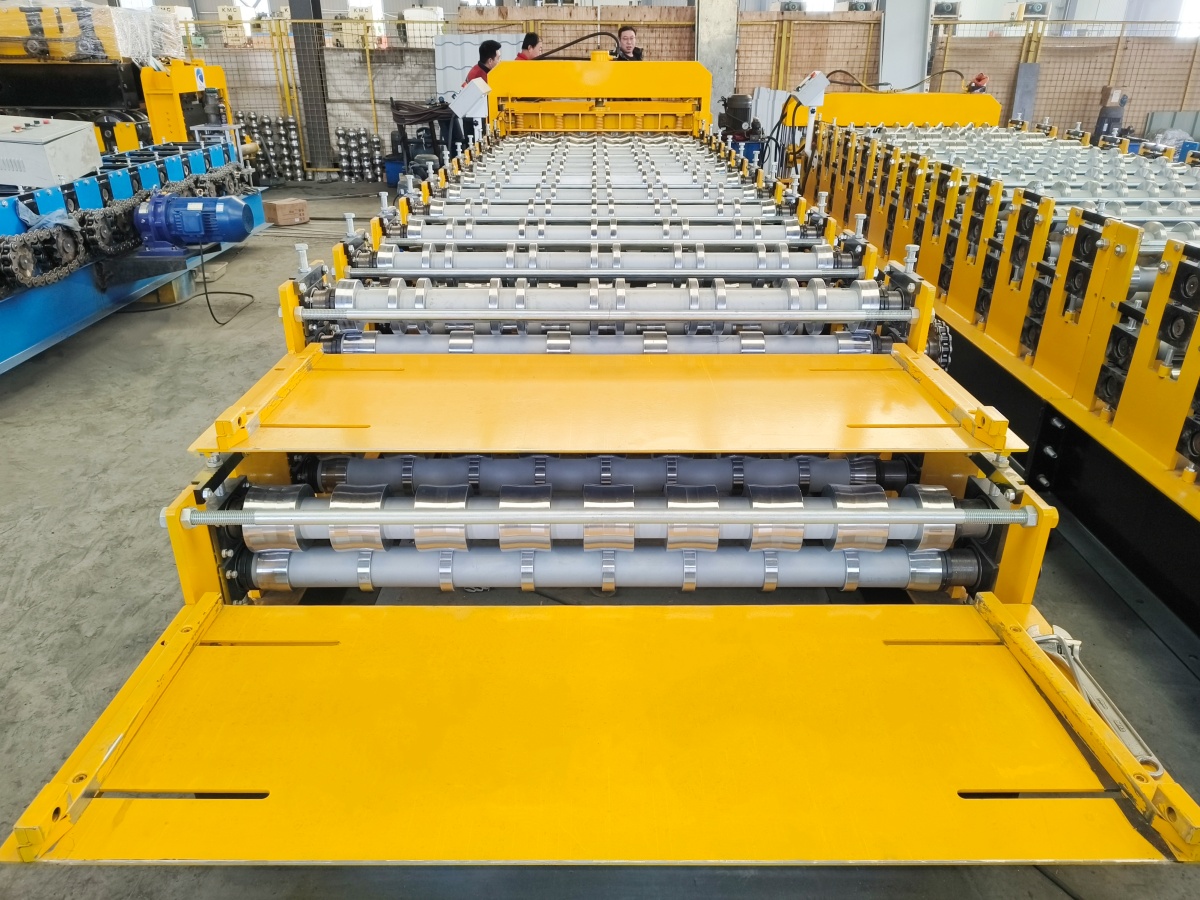

Dual-Profile Space-Saving Architecture: Integrates two complete roll forming lines into a single sturdy chassis. Switch between upper and lower deck production simply by feeding the coil into the designated deck.
-

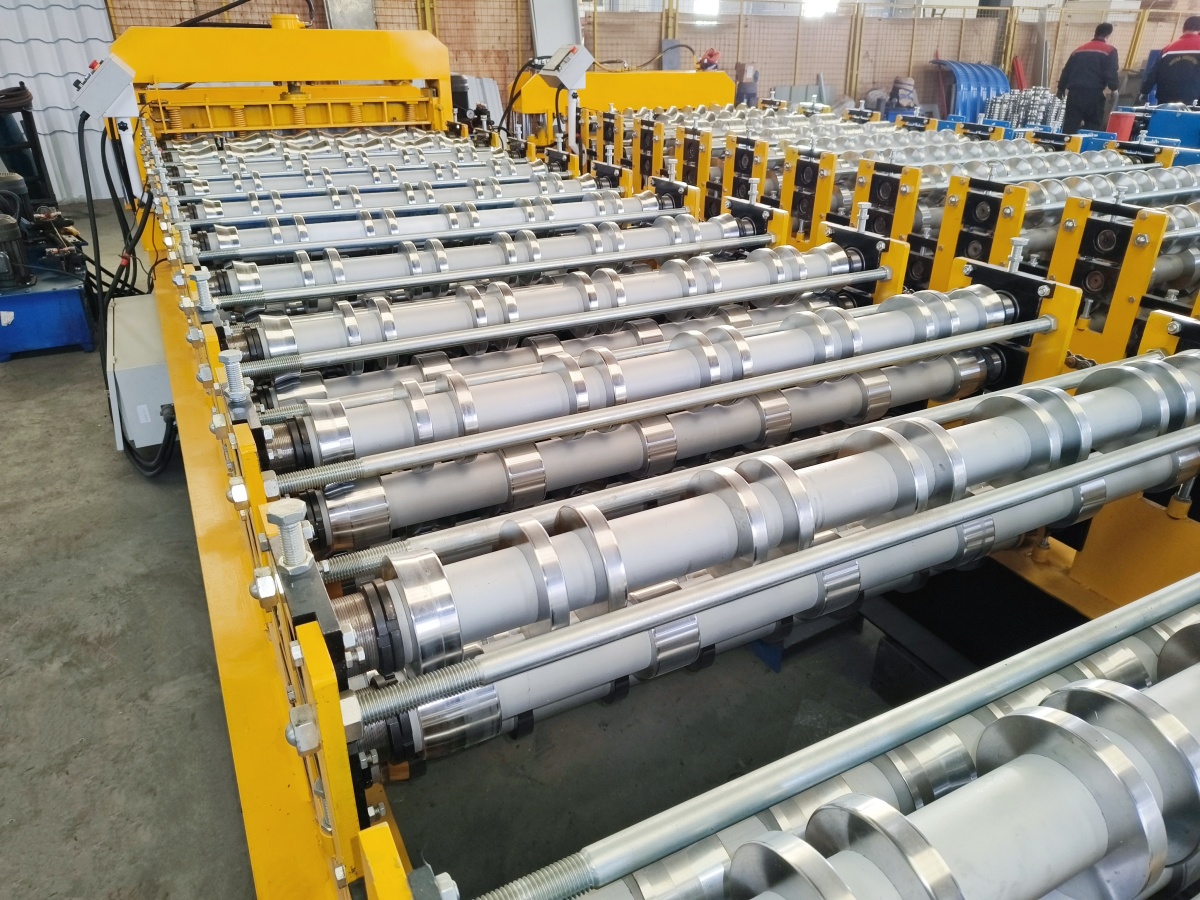

Precision-Engineered Forming Rollers: Manufactured from forged 45# high-grade steel, CNC-machined, and hard-chrome plated (0.05 mm thickness) to prevent surface scratches on pre-painted steel (PPGI) and enhance roller longevity.
-

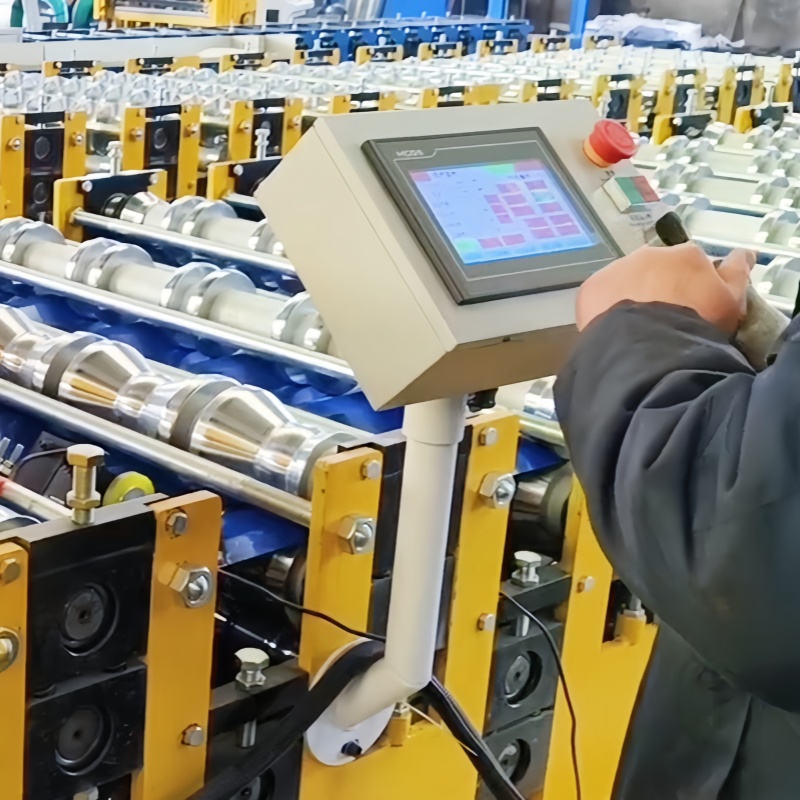

Automated Smart PLC Control System: Equipped with a multi-language touchscreen HMI (Delta) for precise control over panel length, production quantity, and cycle timing, featuring built-in error diagnostics and emergency safety stops.
-

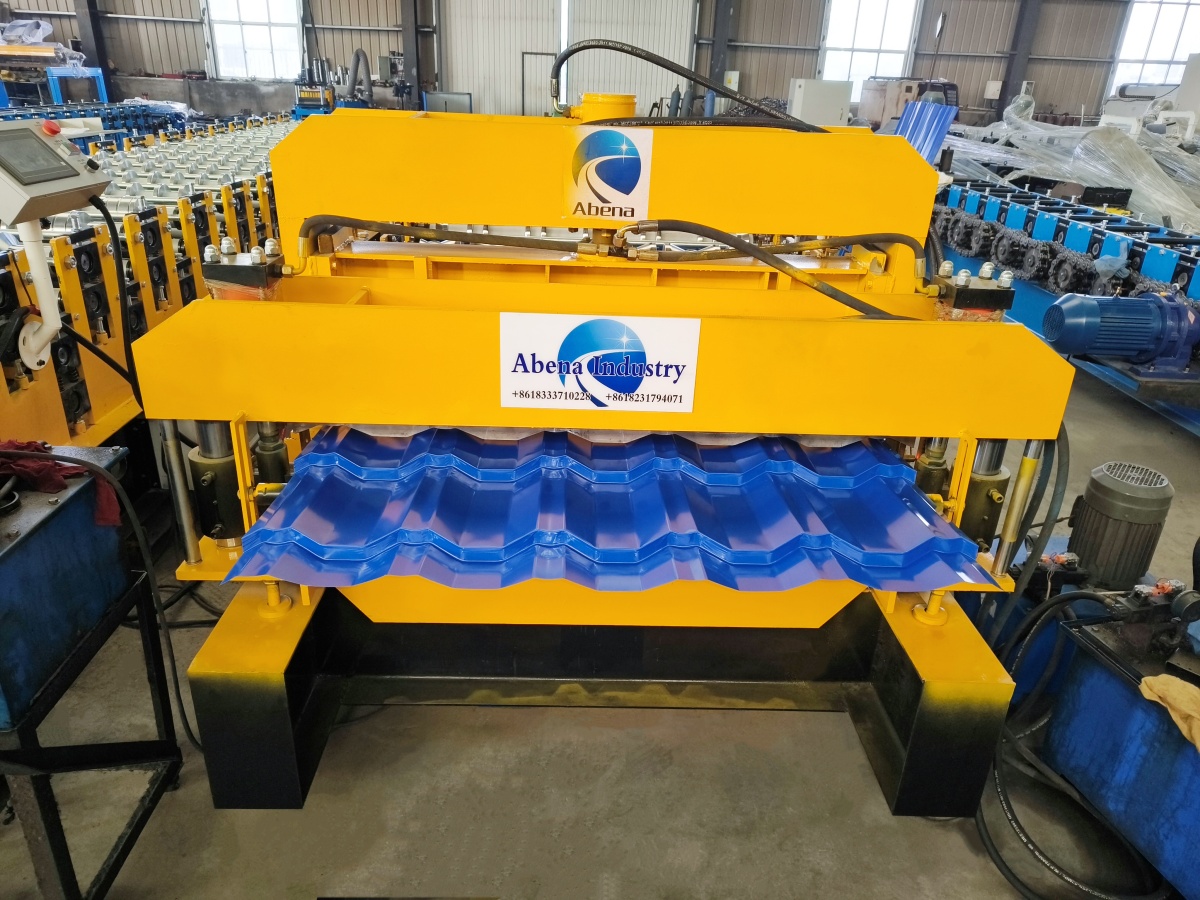

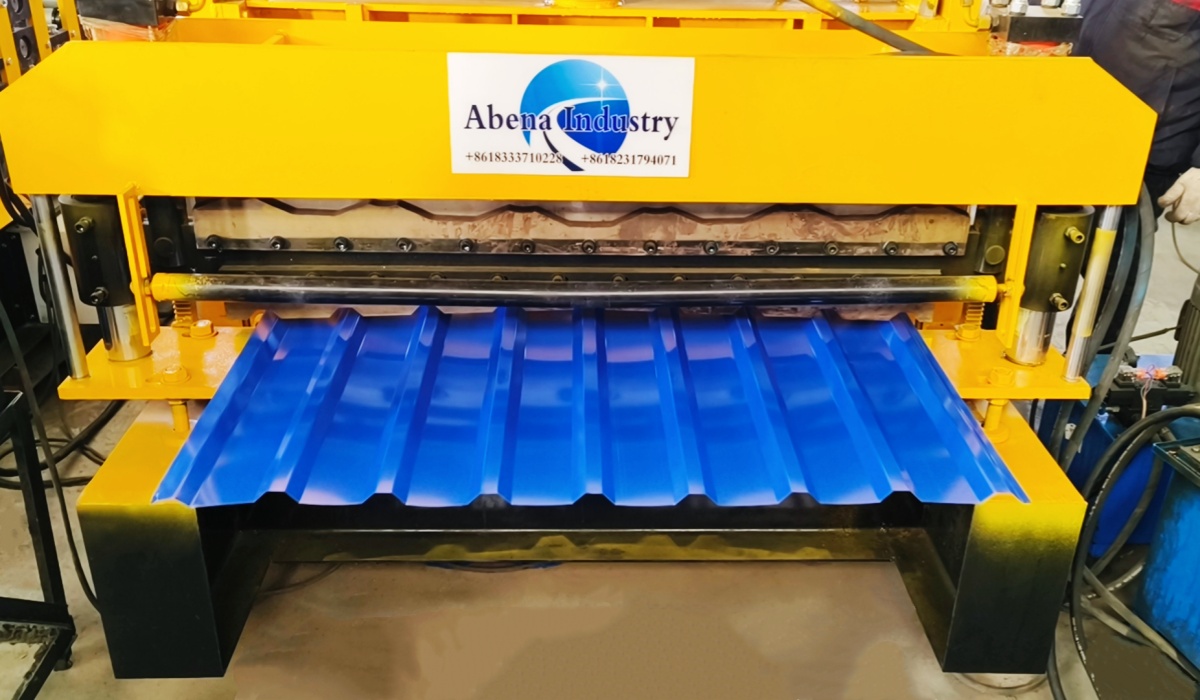

Hydraulic Profile Shearing & Stepping: Features high-precision hydraulic cutting dies crafted from Cr12/SKD11 die steel. The system performs clean, burr-free post-cutting and step-stamping without thermal deformation.
-
Heavy-Duty Structural Frame: Constructed with welded H-beam steel and solid guidance plates to ensure minimal operational vibration and high stability under maximum load conditions.
Production Workflow
Hydraulic Decoiler ➡️ Feeding table ➡️ Roll Forming ➡️ Hydraulic Cutting ➡️ Output Racks
Detailed description
1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available
2.Sheet guide device:Leveling machine ensures the flatness of the raw material
3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
4.Main motor:The main motor provides power to the forming rollers through chains or gears
5.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available
6.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
7.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
