High-Efficiency quick change CZ purlin roll forming machine/steel frame purlin machine

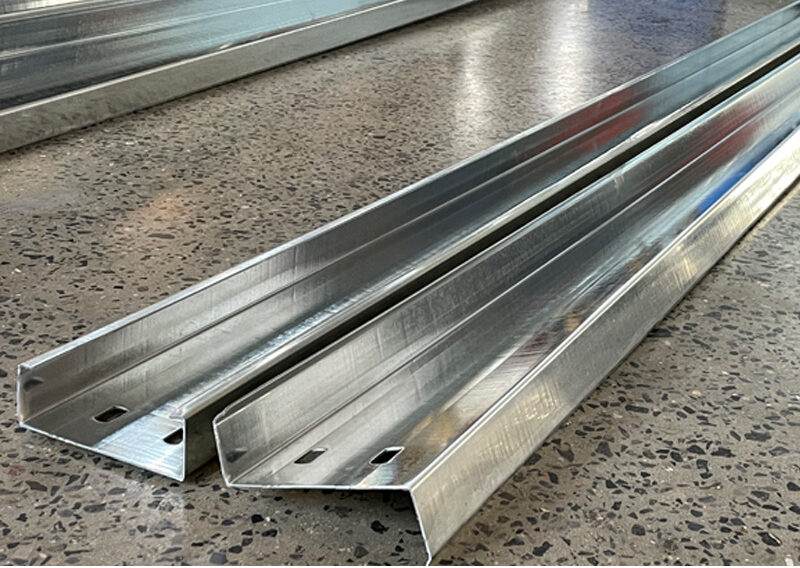

This Heavy-Duty Quick-Change C/Z Purlin Roll Forming Machine represents an advanced, fully automated industrial production system engineered for rapid transformation between C-section and Z-section steel purlins.

Featuring an innovative 180° rotational roll-station cassette assembly and PLC-driven stepless motor size adjustment, this machine eliminates tedious manual roller re-stacking and spacer repositioning. Complete profile and dimension changes can be accomplished in minutes rather than hours, making it an ideal solution for structural steel frame profiles production.

• • Rapid C/Z Profile & Size Changeover: Integrated stepless adjustment system controlled via PLC. Convert between C and Z profiles or alter dimensions (width, height, lip) quickly without changing rollers manually.

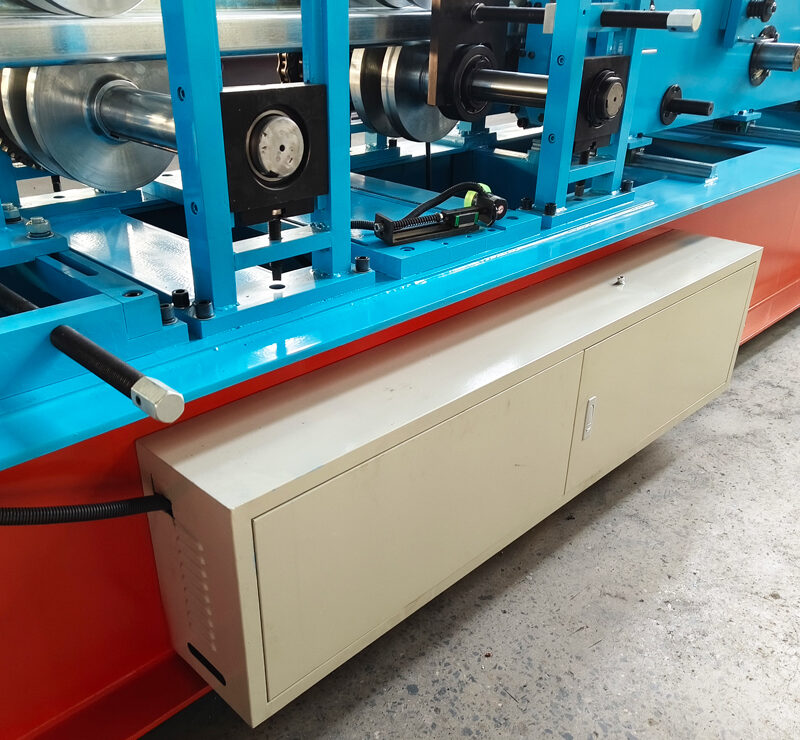

  • Heavy-Duty Welded Frame Structure: Constructed with a high-rigidity, stress-relieved steel base frame to eliminate machine vibration, ensure smooth high-speed performance, and extend equipment service life.

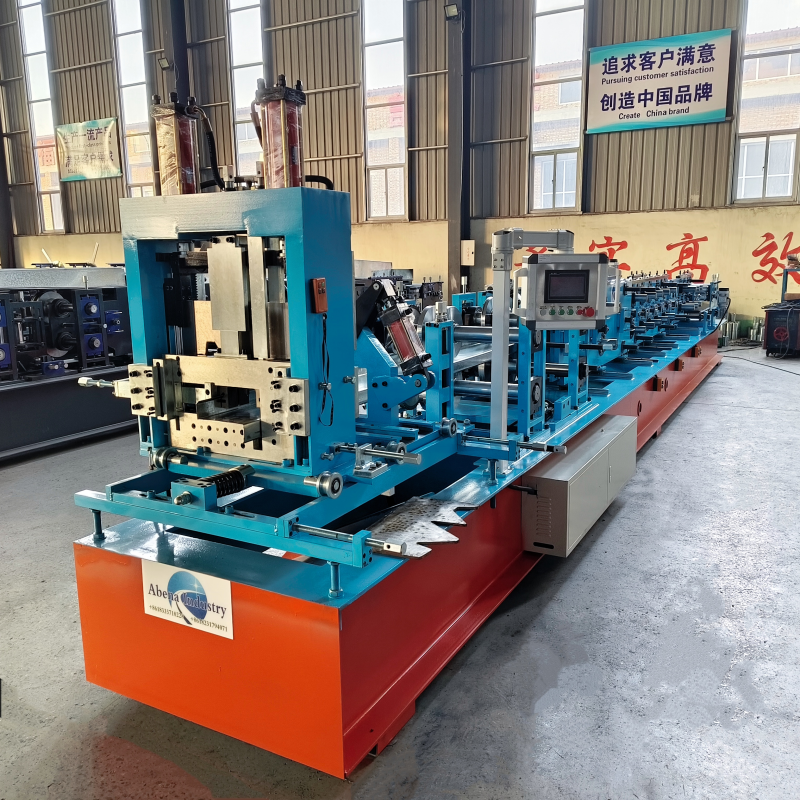

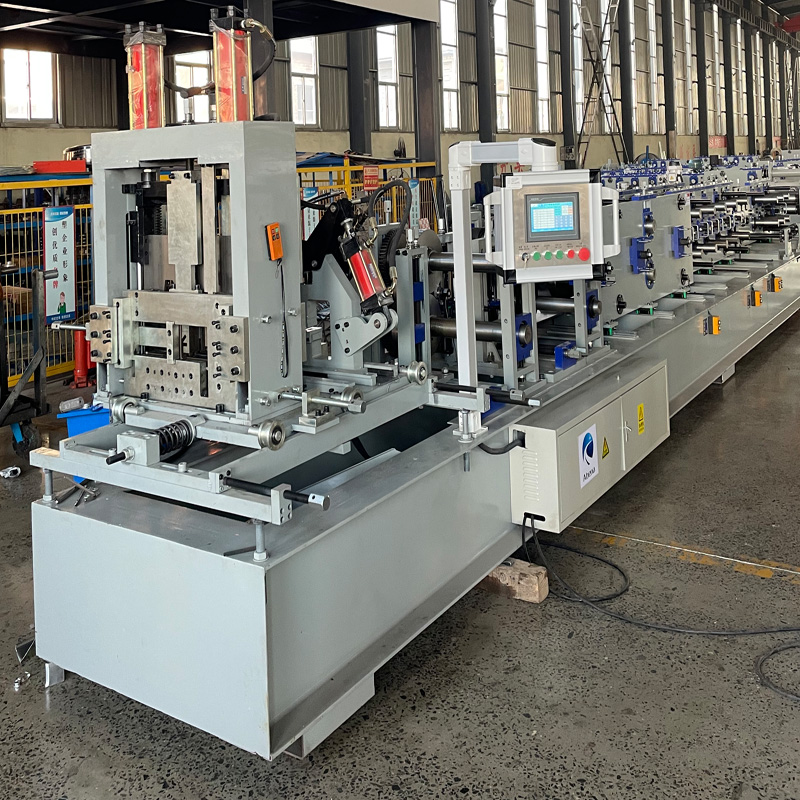

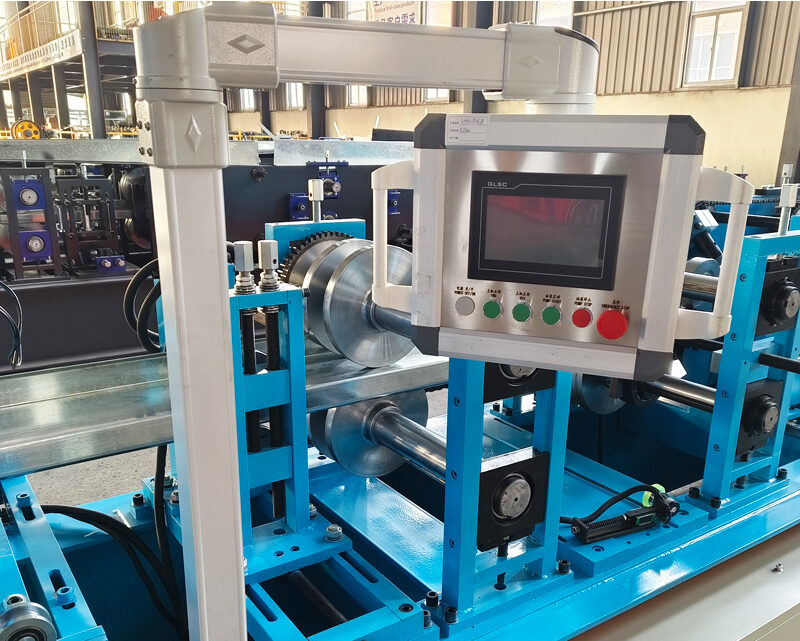

  • Intelligent PLC Touchscreen Interface: Mounted on a flexible swivel arm for ergonomic operation. Supports multi-language settings, batch management, automatic length measurement, and real-time diagnostic tracking.

  • Precision Hydraulic Punching & Cutting: Equipped with heavy-duty hydraulic post-cutting and punching stations for clean, burr-free cuts and exact hole positioning.

  • High-Grade Roller Technology: Rollers are precision-machined from premium alloy steel (Cr12 / GCr15), vacuum heat-treated, and hard-chrome plated for superior wear resistance and surface finish on formed profiles.

  •

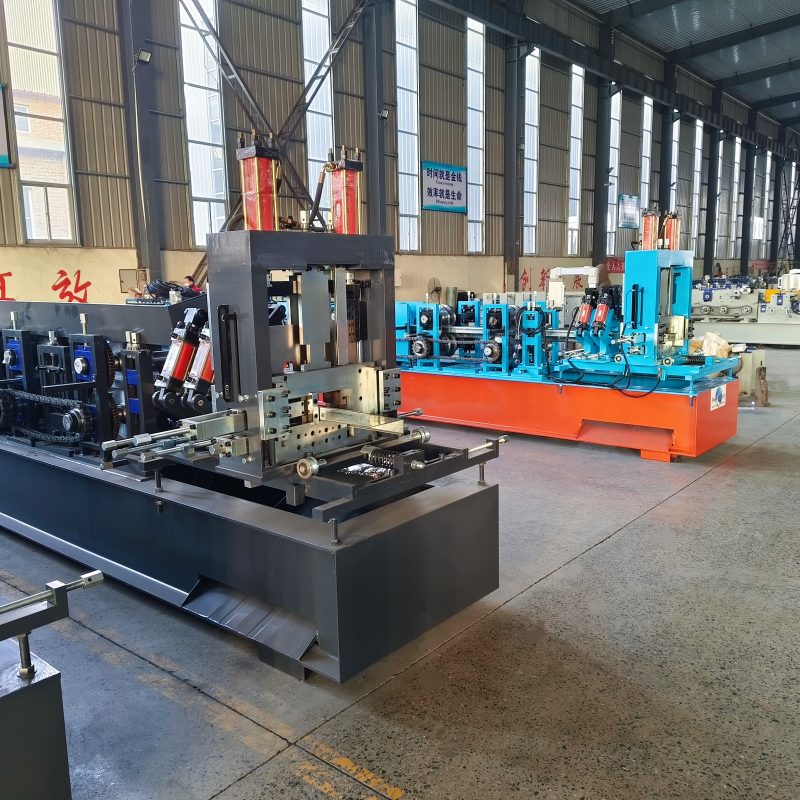

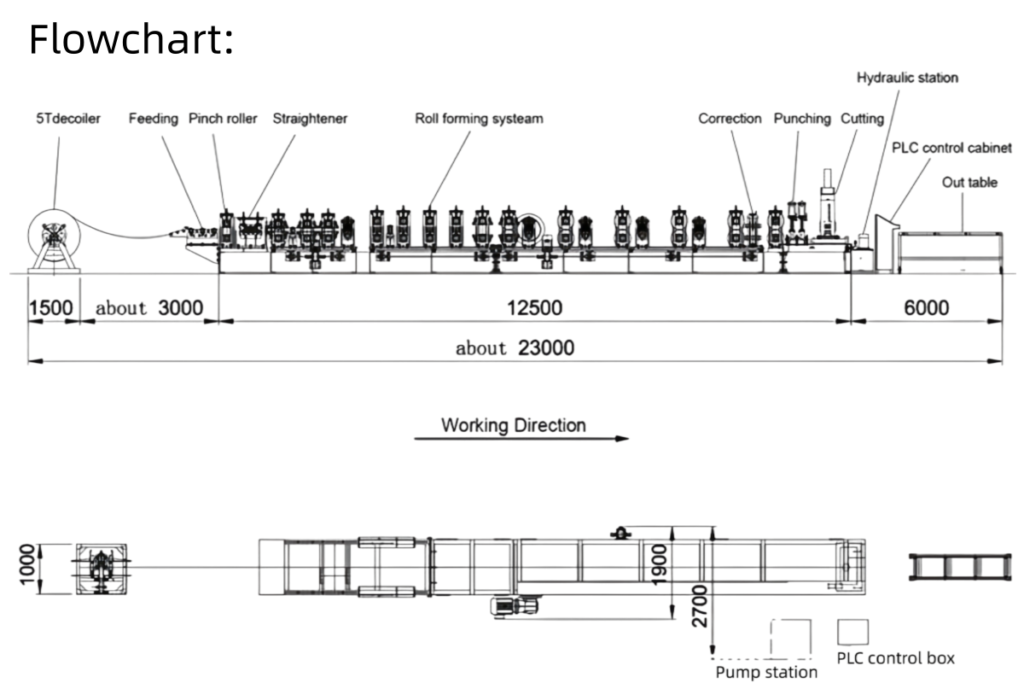

Detailed description

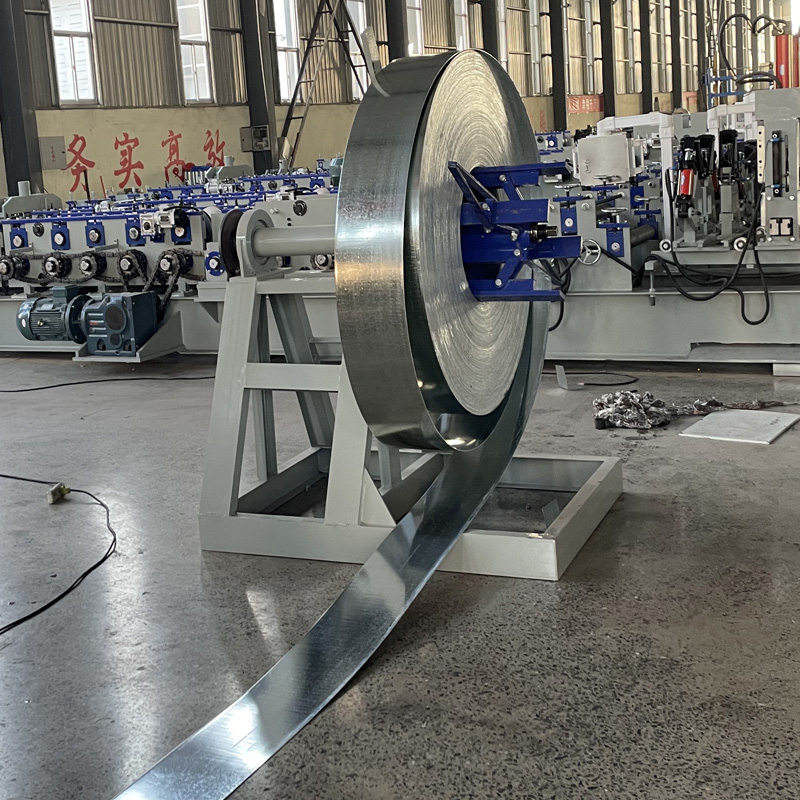

1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

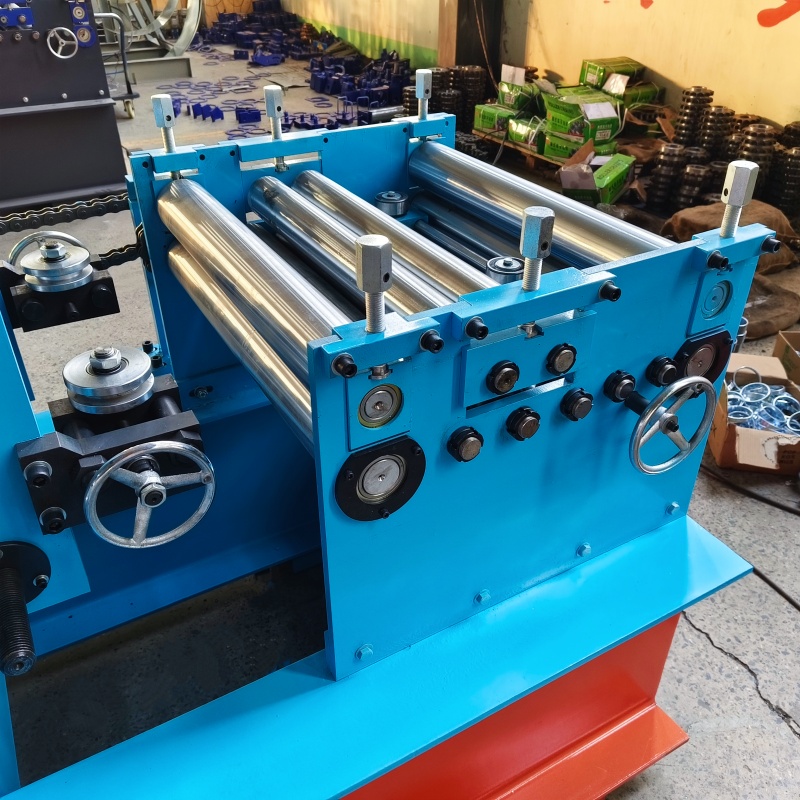

2.Sheet guide device:Leveling machine ensures the flatness of the raw material

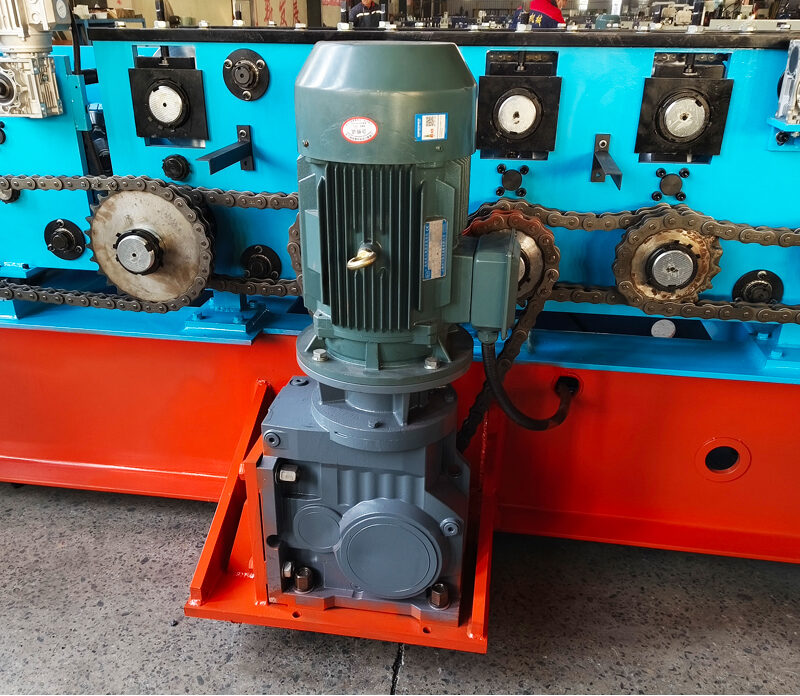

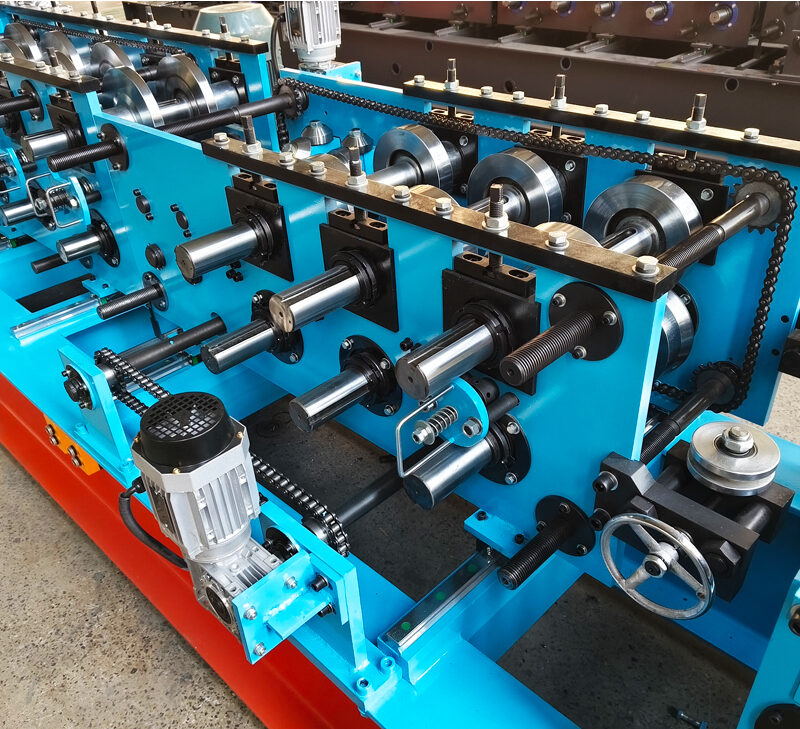

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped4.Main motor:The main motor provides power to the forming rollers through chains or gears

5.Punching device：Customized according to product punching requirements

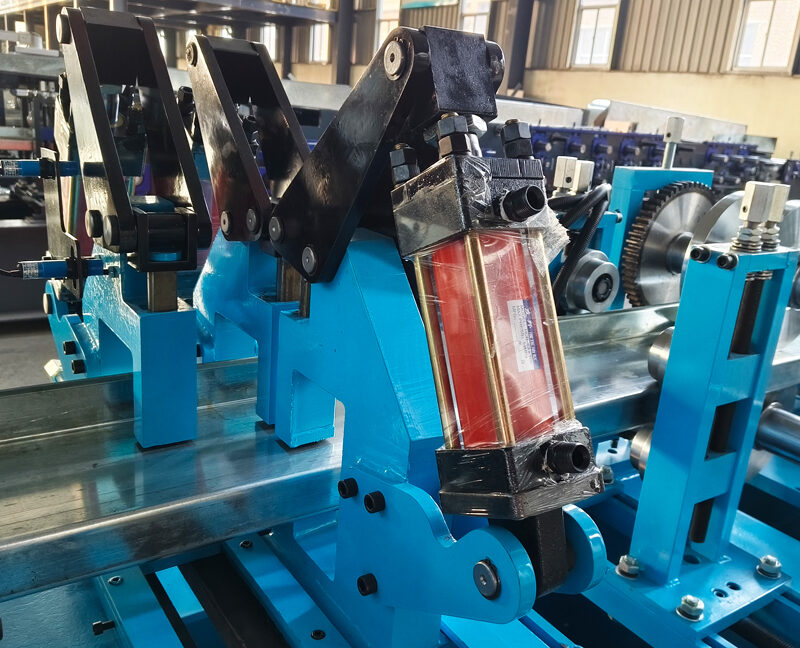

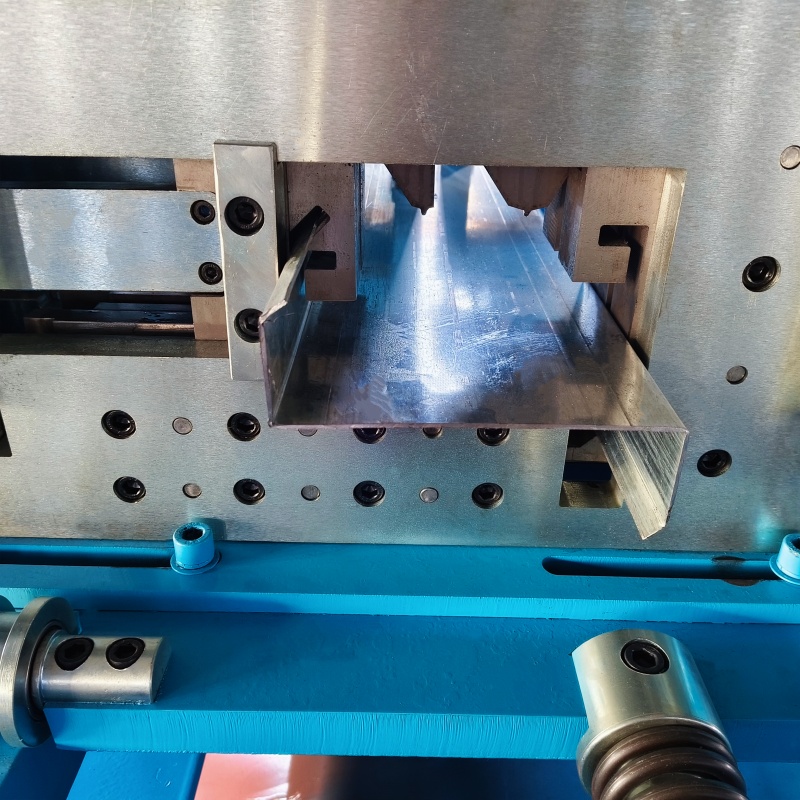

6.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available

7.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily

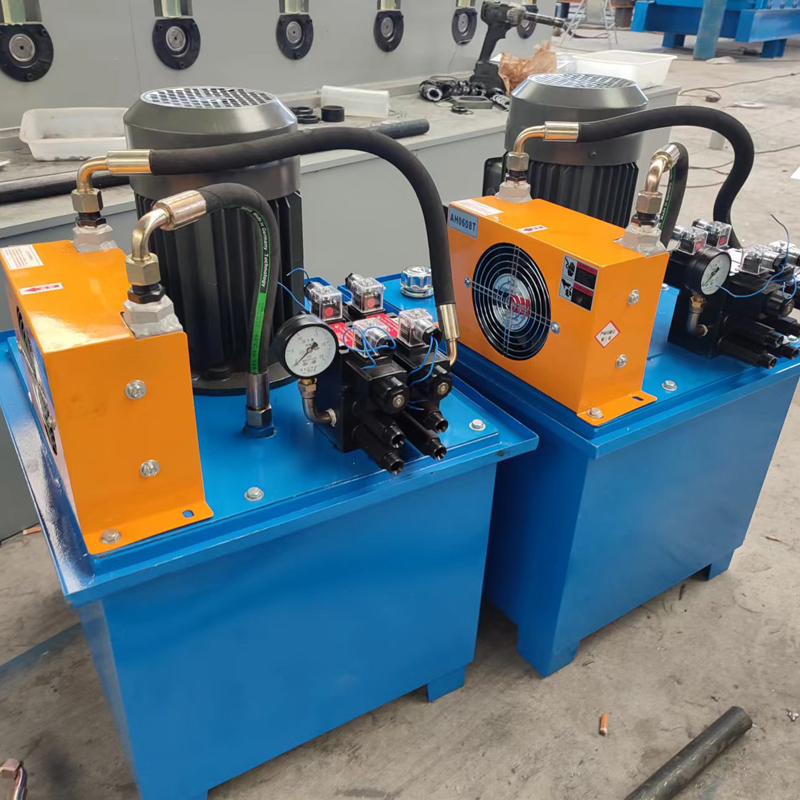

8.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.

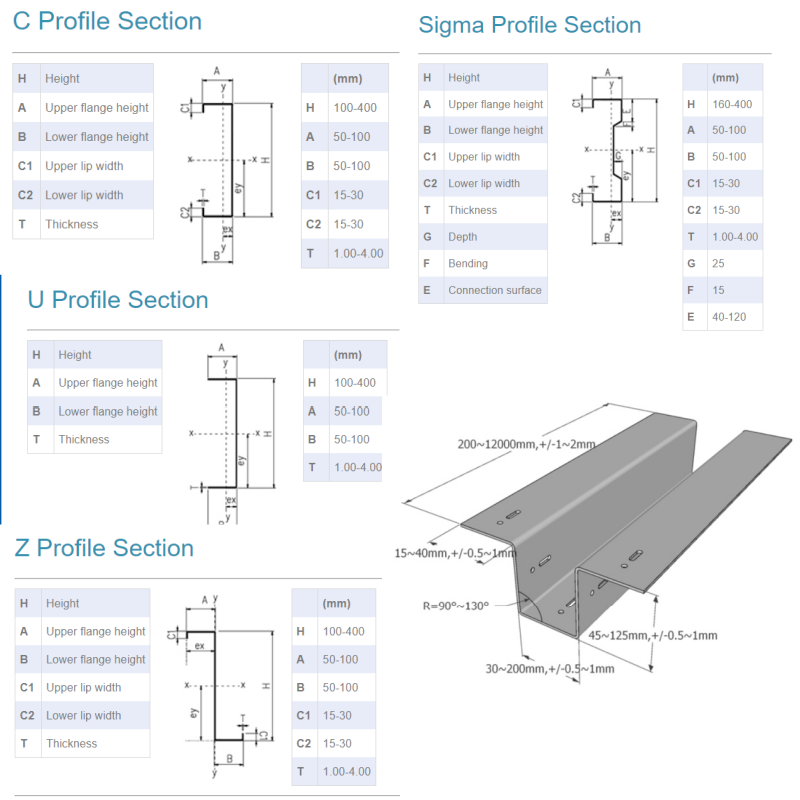

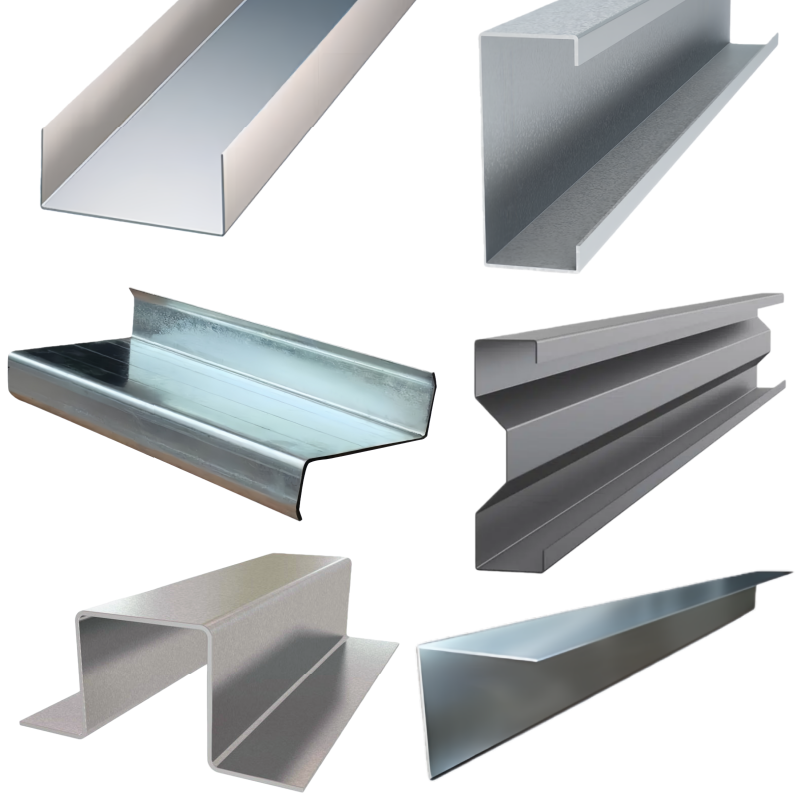

We offer customization services for our clients’ various designs.

Below is product customization information for reference.
