Product Description
This fully‑automatic garden raised bed roll forming line is specially engineered for manufacturing corrugated metal panels for modular metal planter boxes. The complete production workflow covers decoiling, feeding, continuous roll forming, corrugated roller bending, hydraulic cutting and finished‑product output.

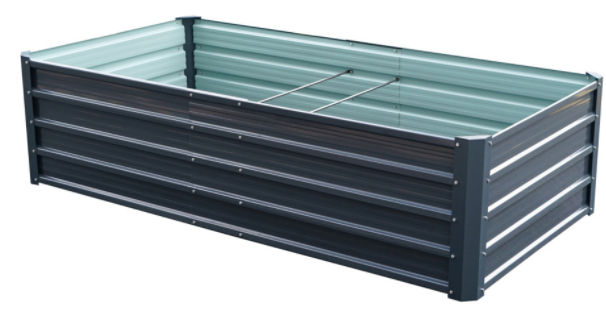

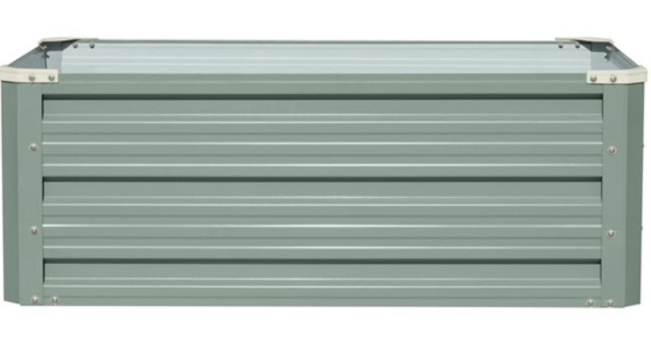

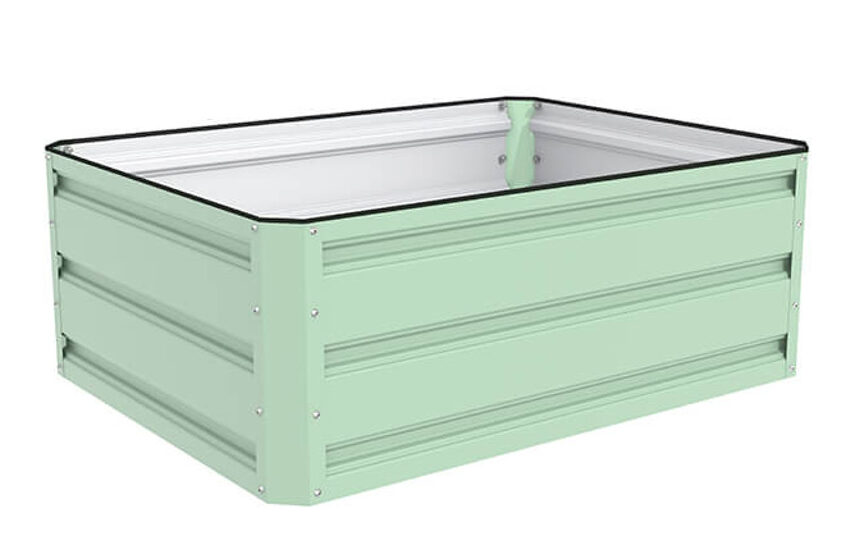

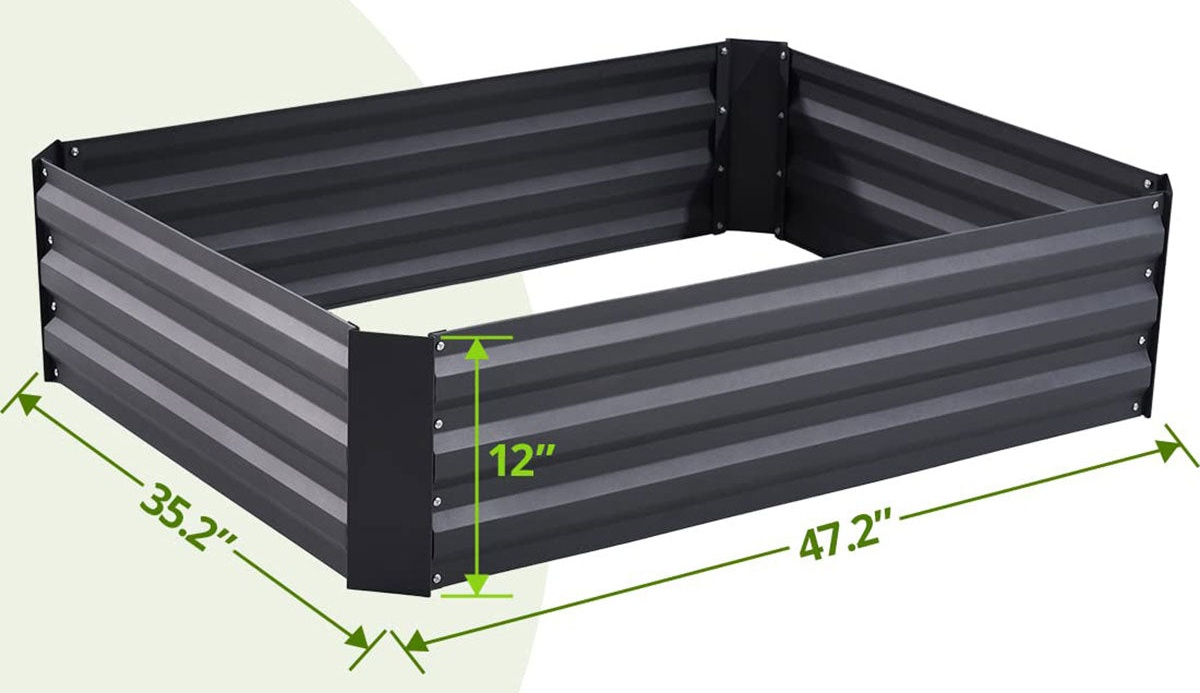

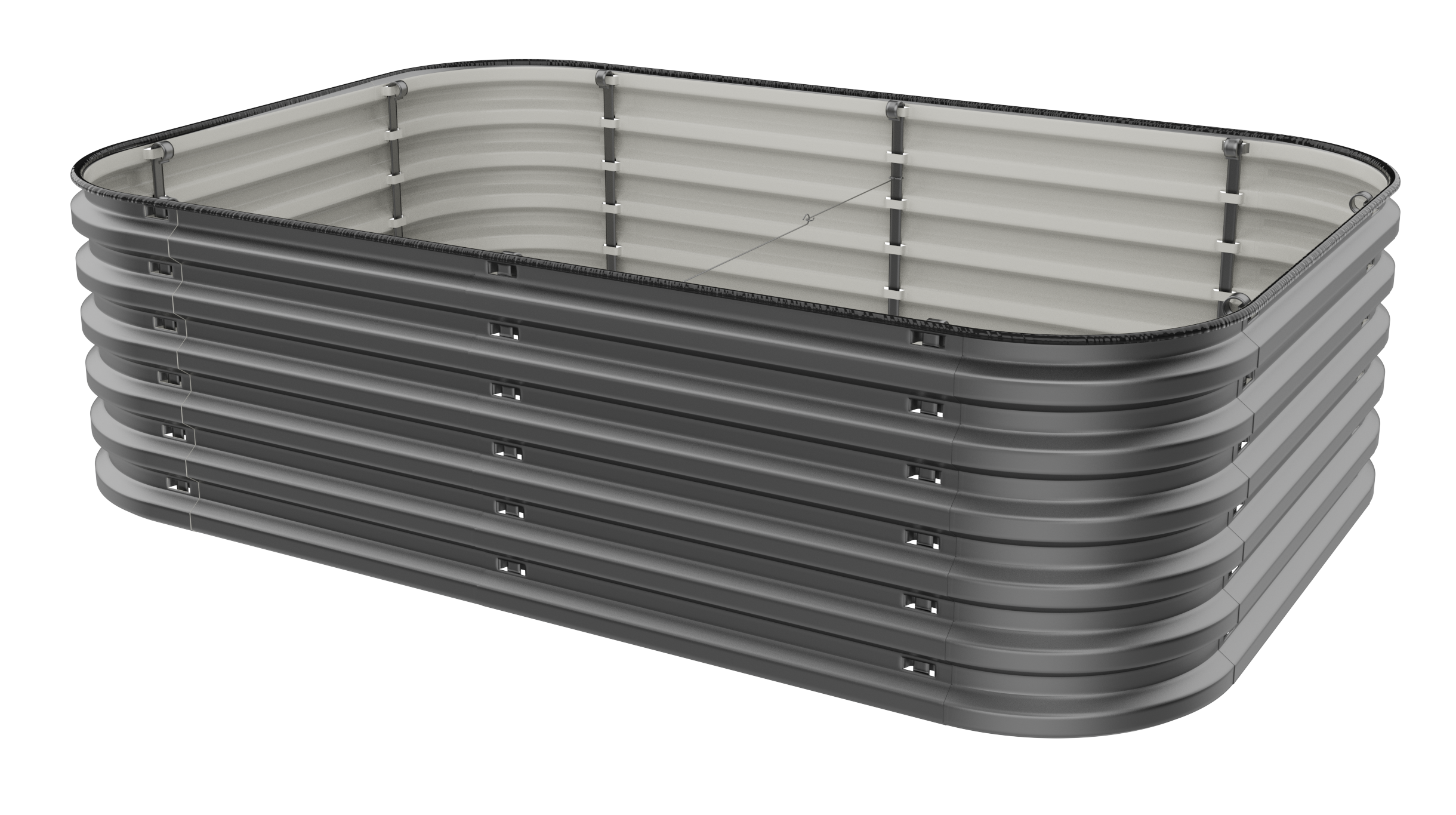

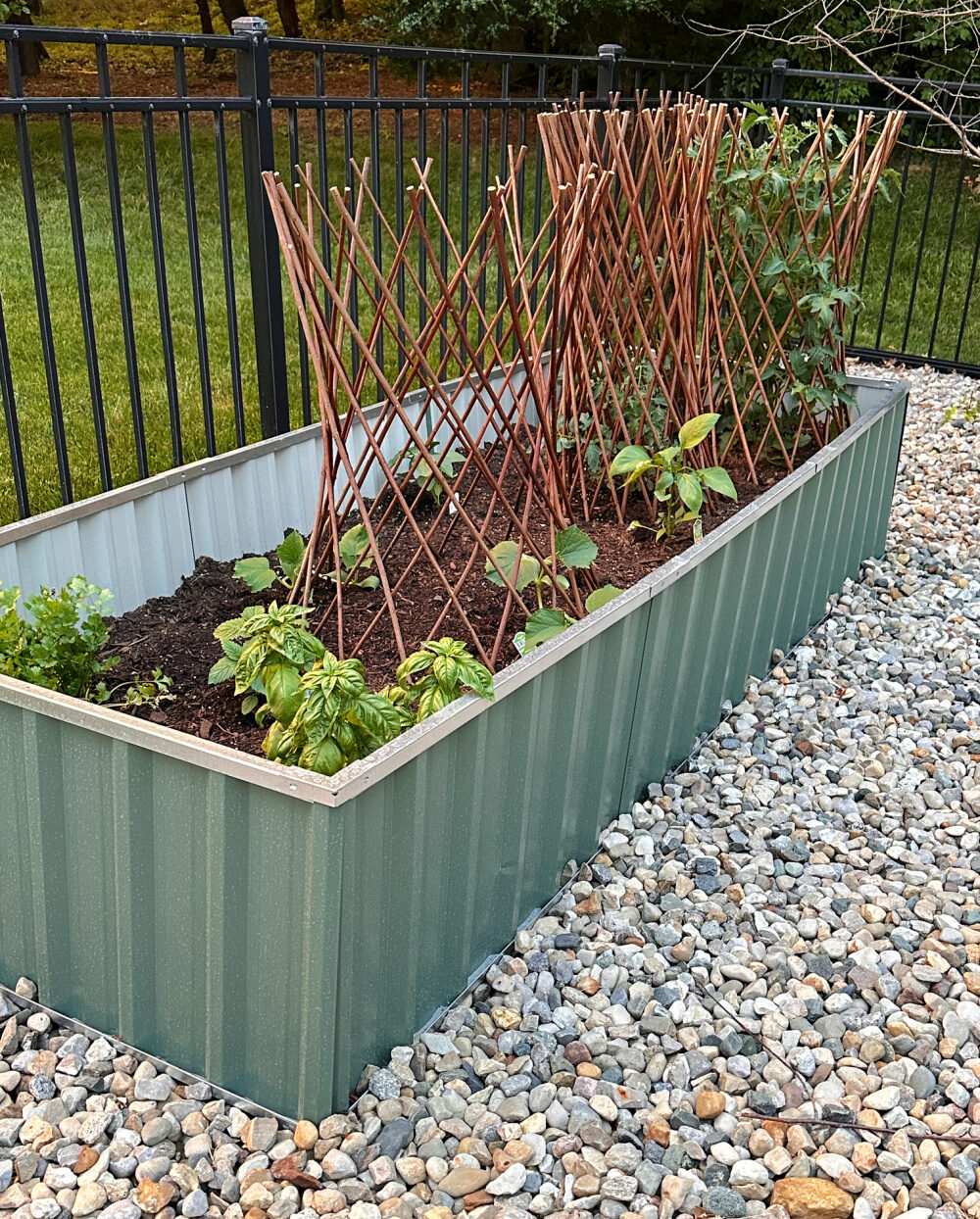

High‑flexibility design supports custom‑made profiles according to project requirements. Different panel depths, heights and corrugation patterns can be achieved by replacing forming rollers, to produce garden bed panels in various sizes widely used for home gardening and landscape applications.

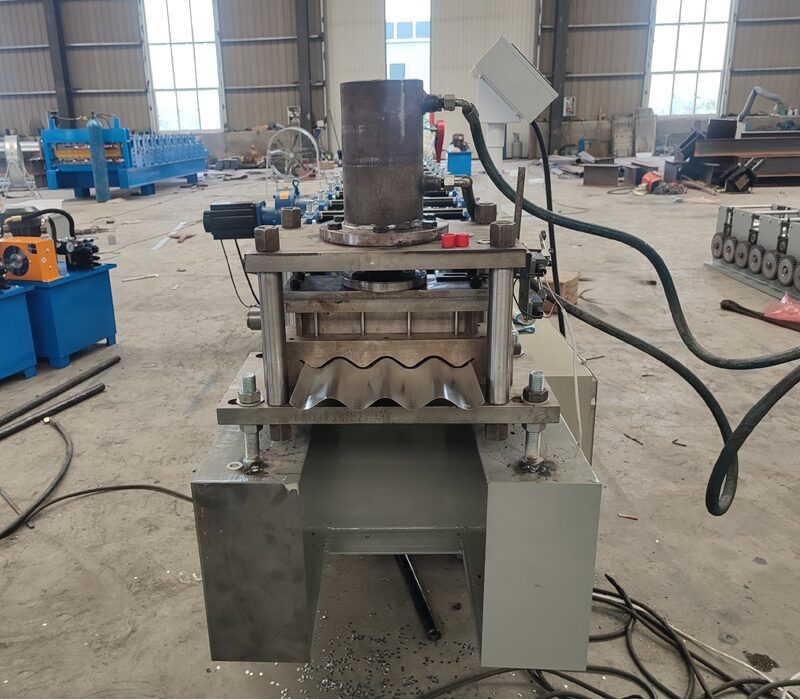

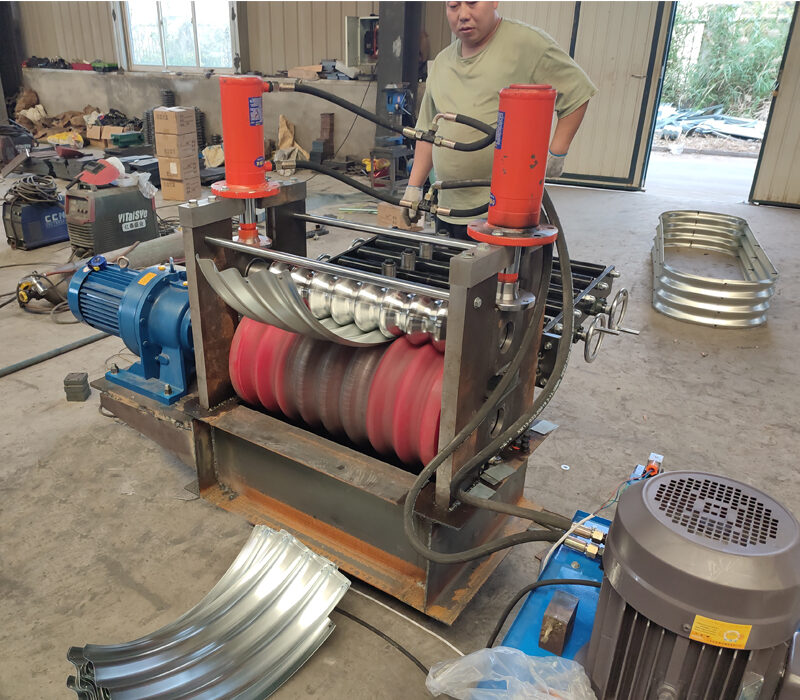

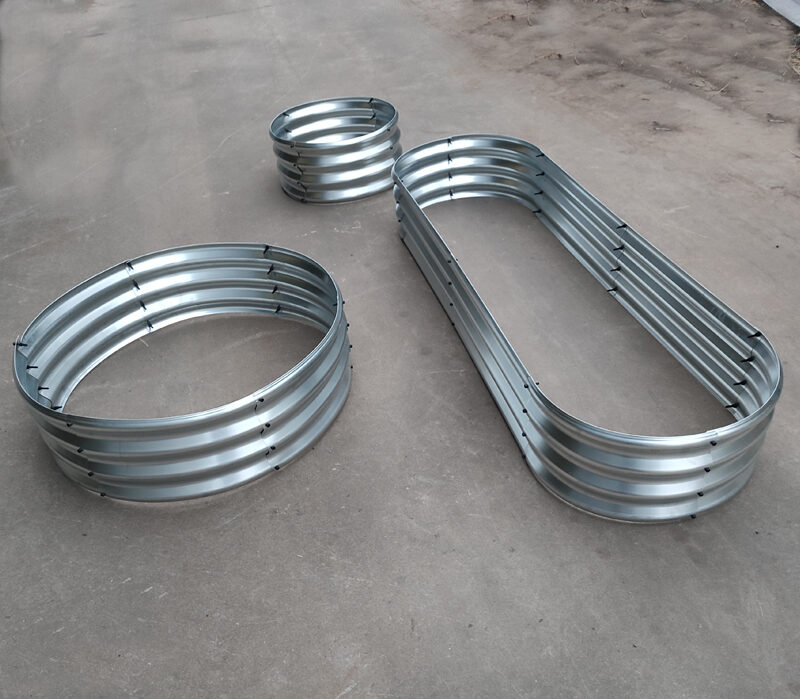

Equipped with an integrated corrugated curving machine, the machine precisely forms the curved corrugated profile for garden bed side panels. After roll forming, the panel is shaped by the corrugated roller bending station, delivering consistent bending quality and uniform corrugation across each workpiece.

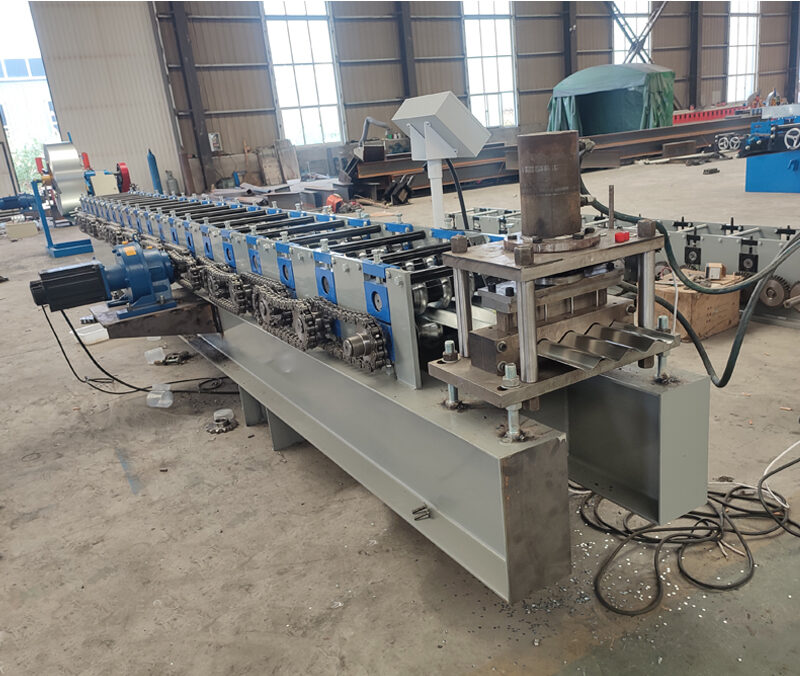

Adopting heavy‑duty chain‑driven forming stations, high‑hardness forming rollers and PLC touch‑screen control system. Operators set length and production quantity on the HMI. The line automatically finishes decoiling, feeding, continuous roll forming and hydraulic cutting. The separate corrugated roller bender performs precise curved shaping for garden‑bed panels, delivering uniform bending effect and stable product quality.
Main Features

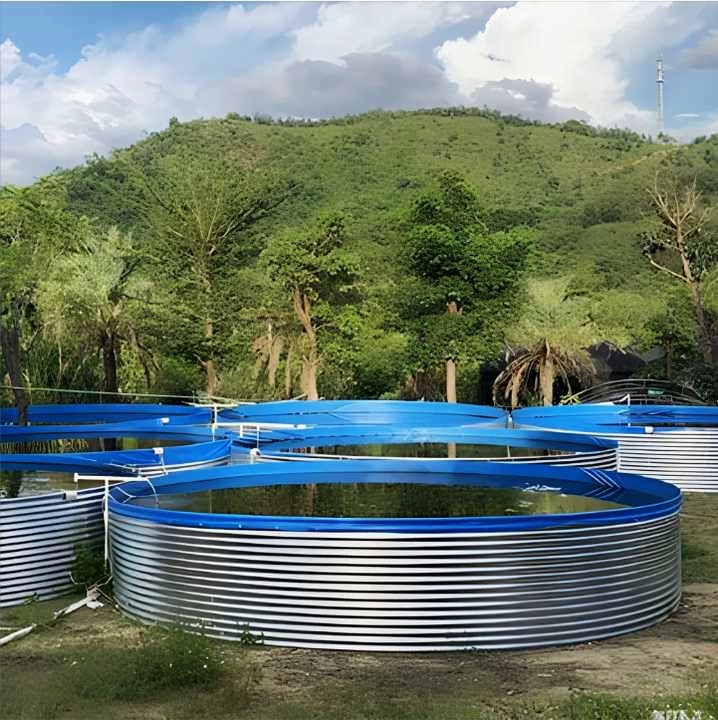

- Flexible profile customization: We can customize different patterns according to customer needs.This machine can be customized to produce corrugated metal pool and fish farming tanks.
- Separate processing of sheet metal production and curving: enables flexible and efficient production of straight and bent sheets.
- Heavy‑duty frame & chain transmission: Stable running for long‑time continuous production, suitable for GI and PPGI steel sheets.
- PLC touch‑screen control: Easy parameter setting, automatic length tracking & hydraulic cutting, high dimensional accuracy.
- Wide material adaptability: Works for galvanized steel, powder‑coated color steel, matching raw‑material specs for metal raised garden beds.
Production Workflow
Decoiler ➡️ Feeding table ➡️ Roll Forming ➡️ Hydraulic Cutting ➡️ Output Rack
Detailed description

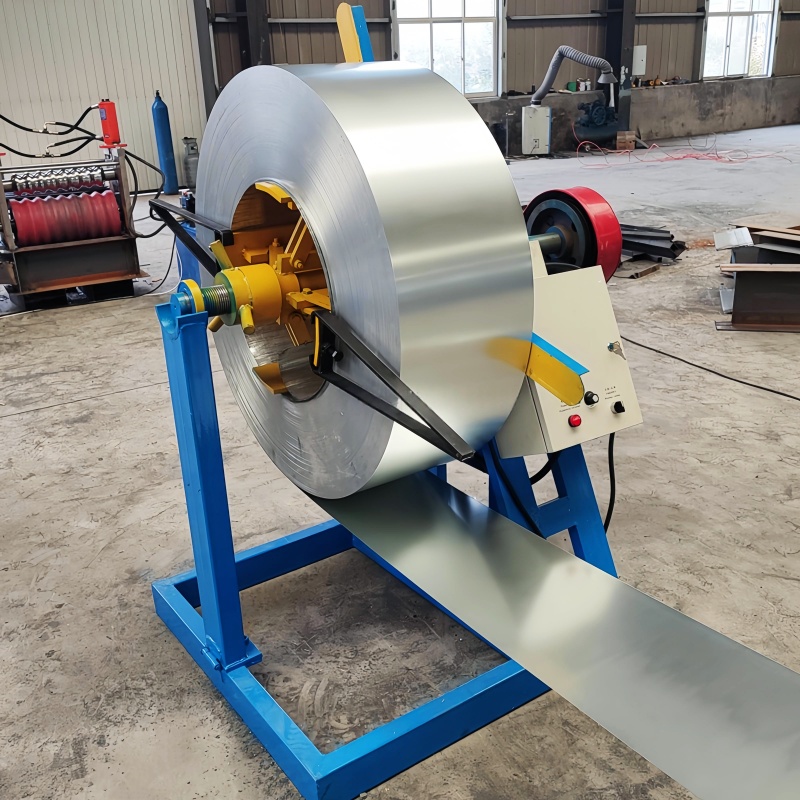

1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

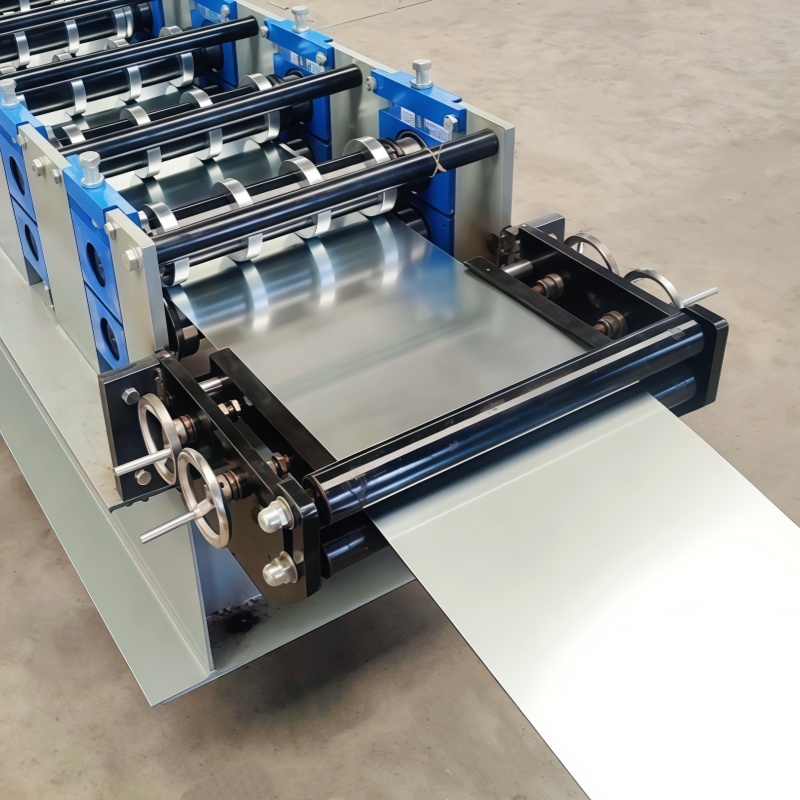

2.Sheet guide device:Leveling machine ensures the flatness of the raw material

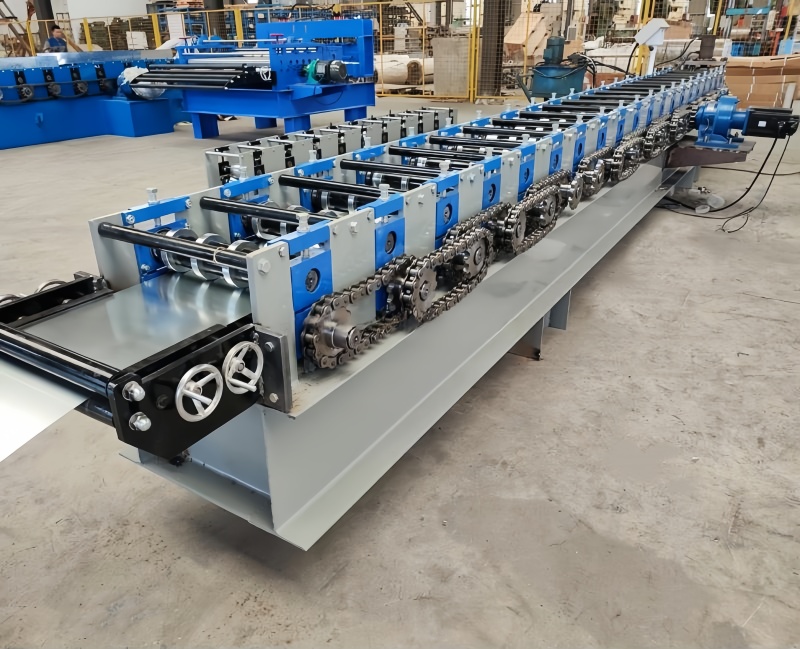

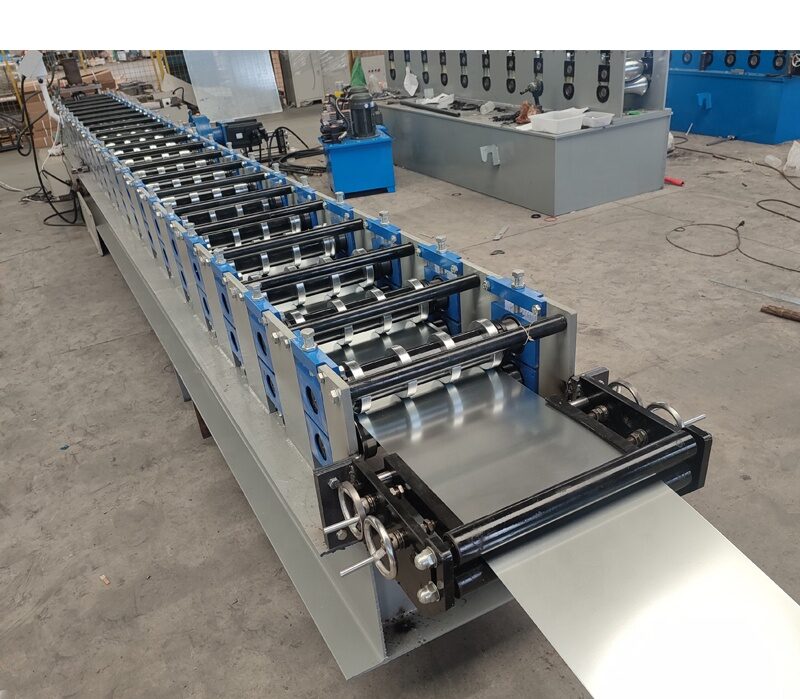

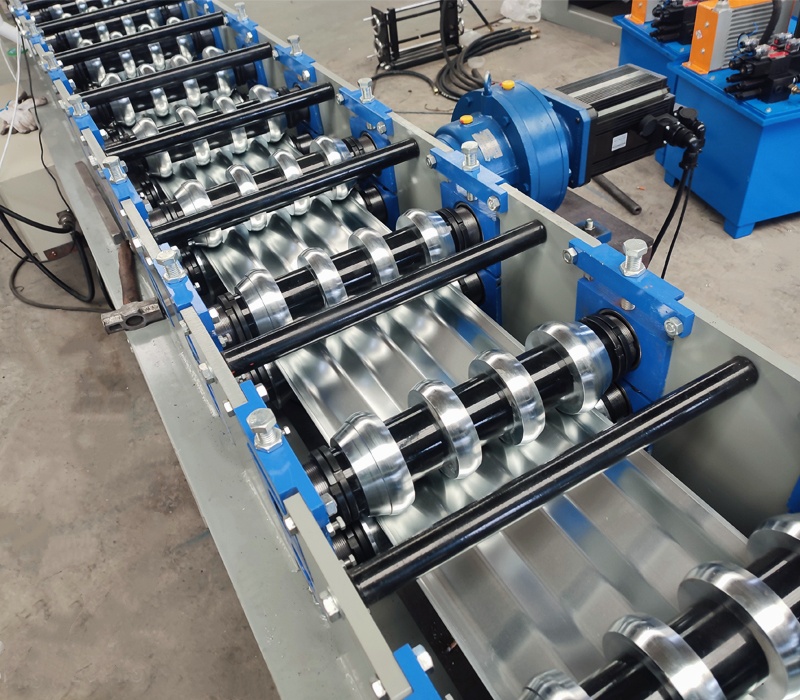

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

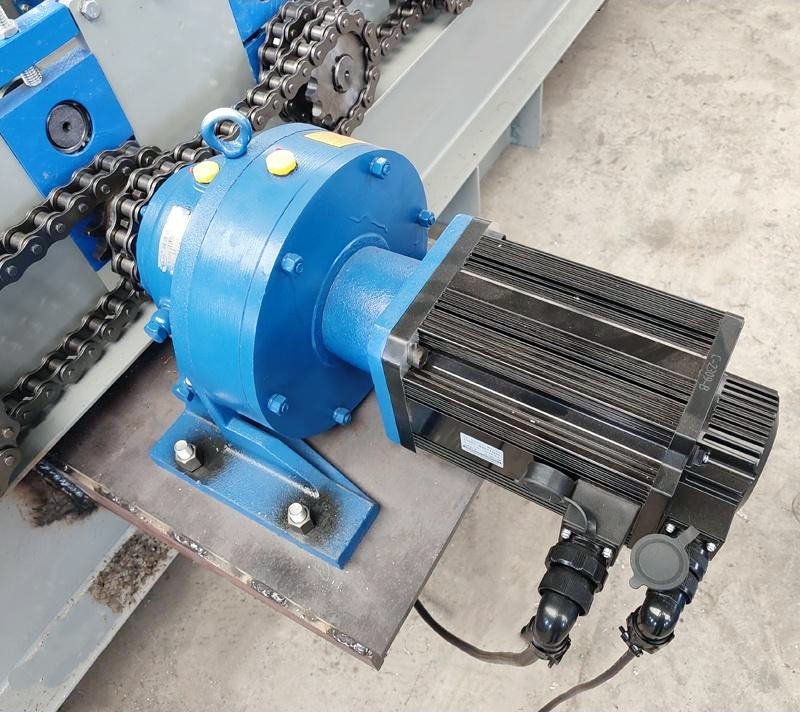

4.Main motor:The main motor provides power to the forming rollers through chains or gears

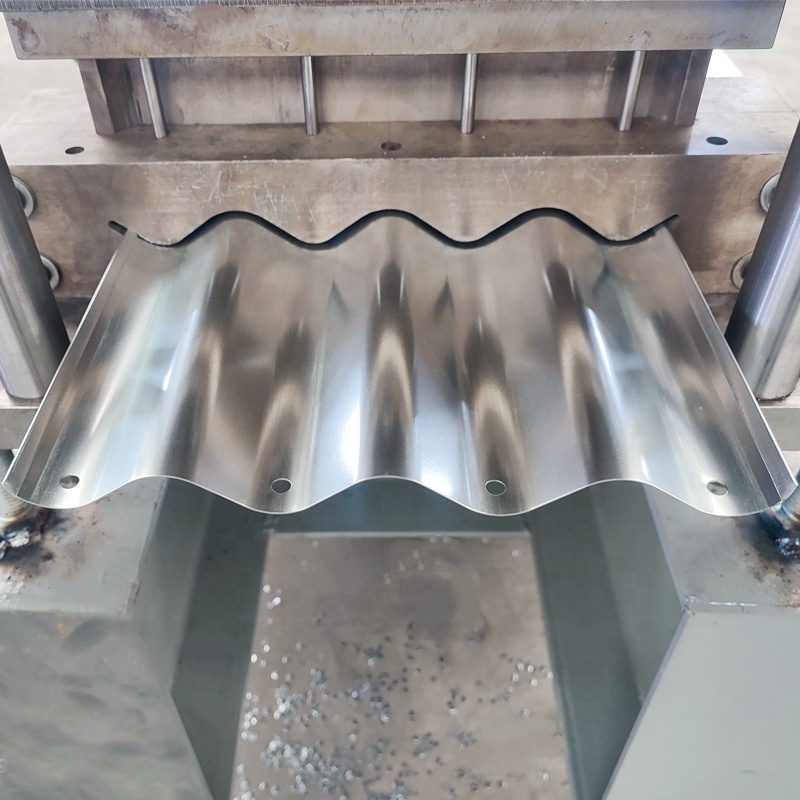

5.Hydraulic cutting & punching : Automatic cutting as target products length Blade material: Cr12, quenching treatment Fixed-distance punching design for cutting positions, integrating punching and cutting.
6.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
7.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.
Below is product customization information for reference.
