Product Introduction

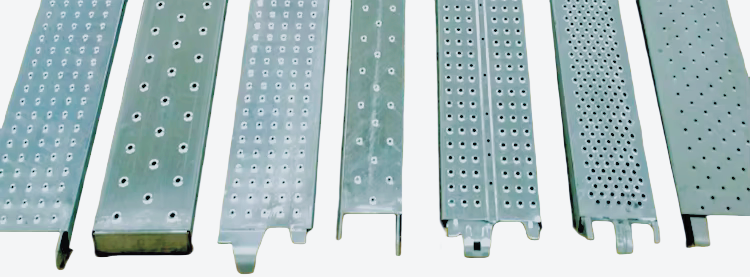

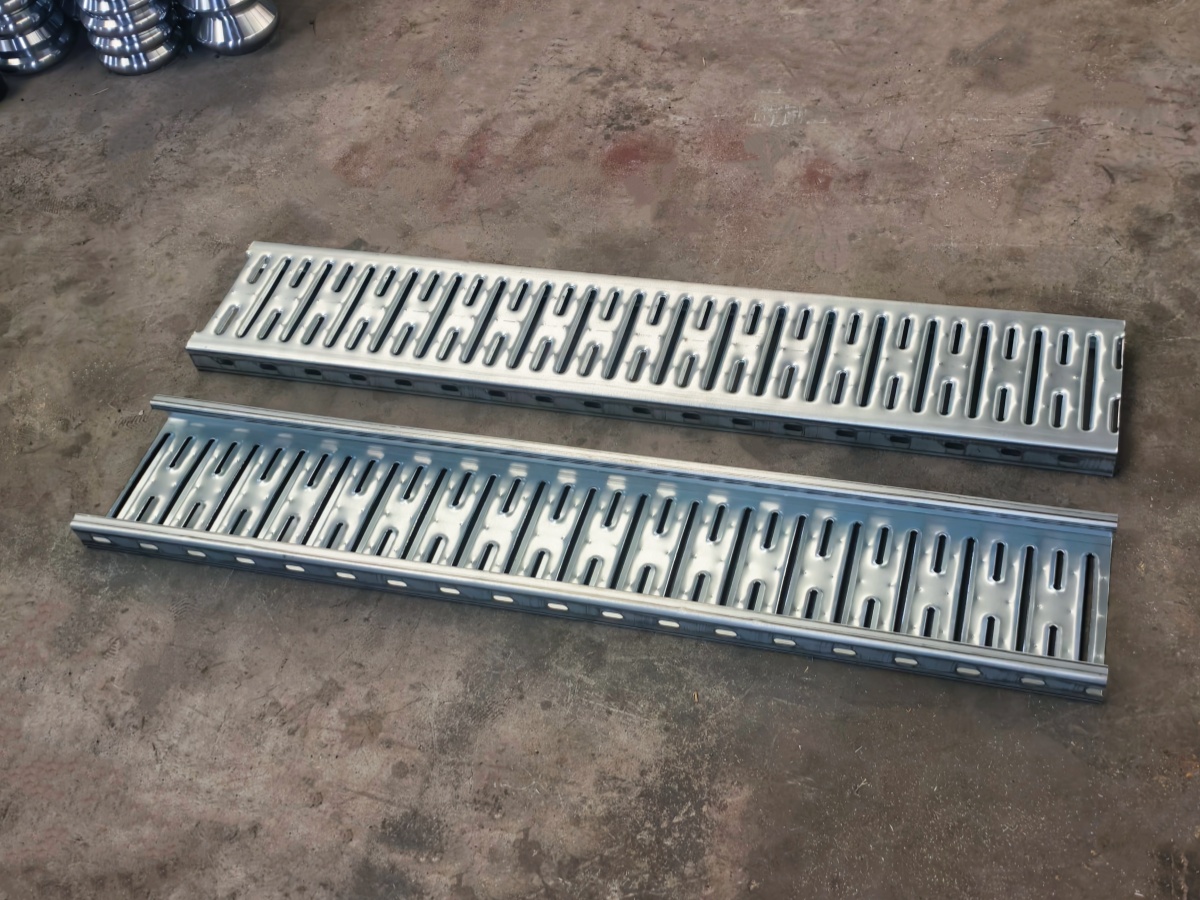

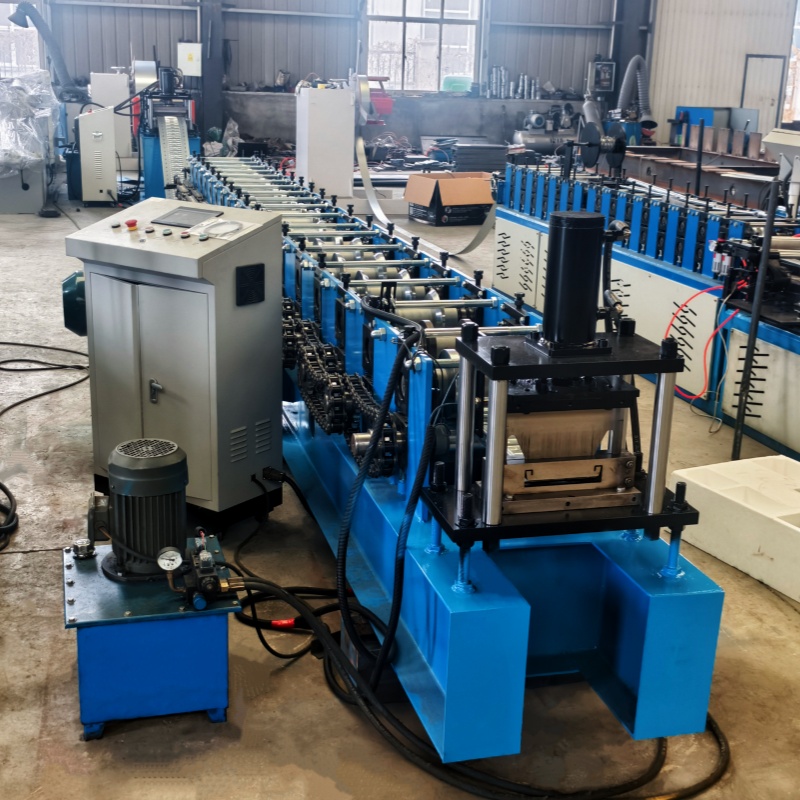

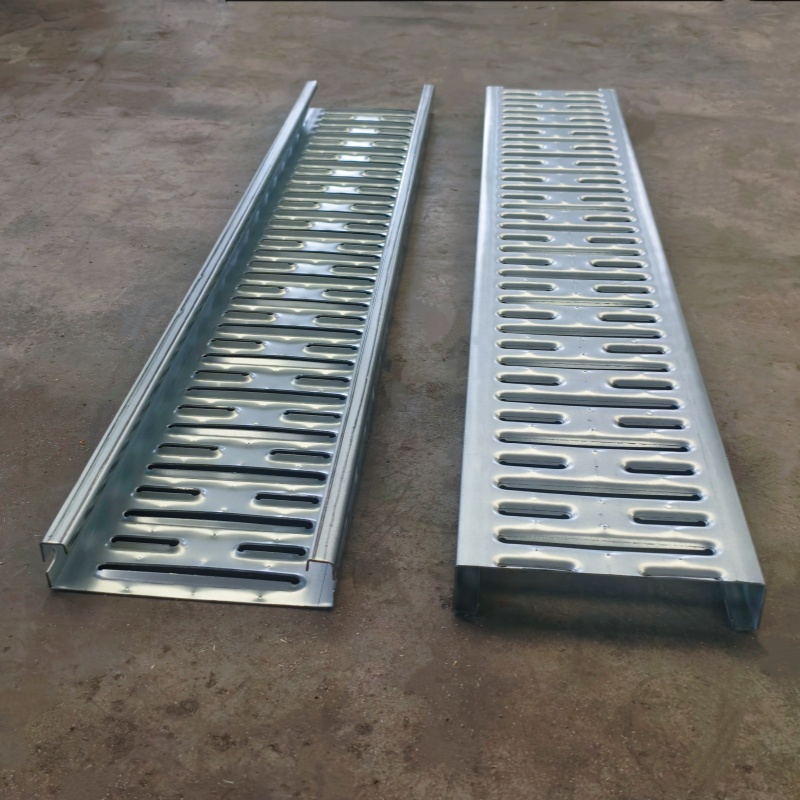

Our Scaffolding Plank Roll Forming Machine is engineered for the high-efficiency production of heavy-duty steel walkways and metal decks used in construction. It automatically processes steel coils through feeding, leveling, punching, continuous roll forming, and hydraulic cutting to deliver precise, durable scaffolding planks.
Key Features
- Fully Automatic Operation: Seamless integration from decoiling to final product cutting.
- High Precision Rollers: Cr12/GCr15 steel rollers ensure scratch-free surfaces and uniform profile shape.
- Heavy-Duty Structure: Robust welded steel base frame provides maximum stability during high-speed production.
- Flexible Punching System: Hydraulic punching unit creates uniform anti-slip holes and drainage slots.
- Smart PLC Control: User-friendly touch screen interface allows easy adjustment of lengths and quantities.
Production Workflow
Decoiler ➡️ Feeding table ➡️ Punching device ➡️Roll Forming ➡️ Hydraulic Cutting ➡️ Output Racks
Detailed description
1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

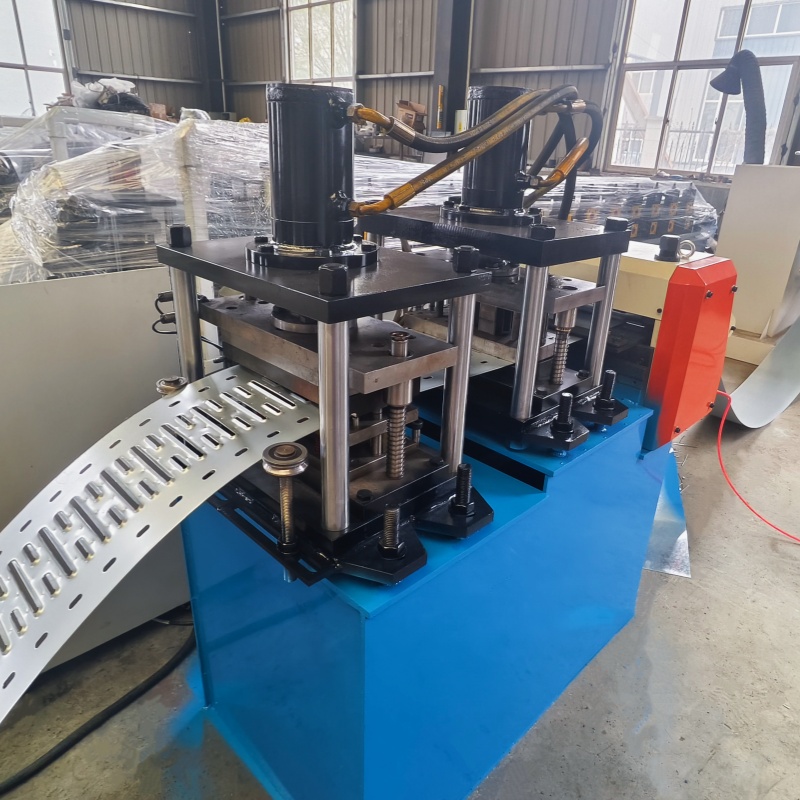

2.Punching device:Hydraulic punching,customized according to product punching requirements

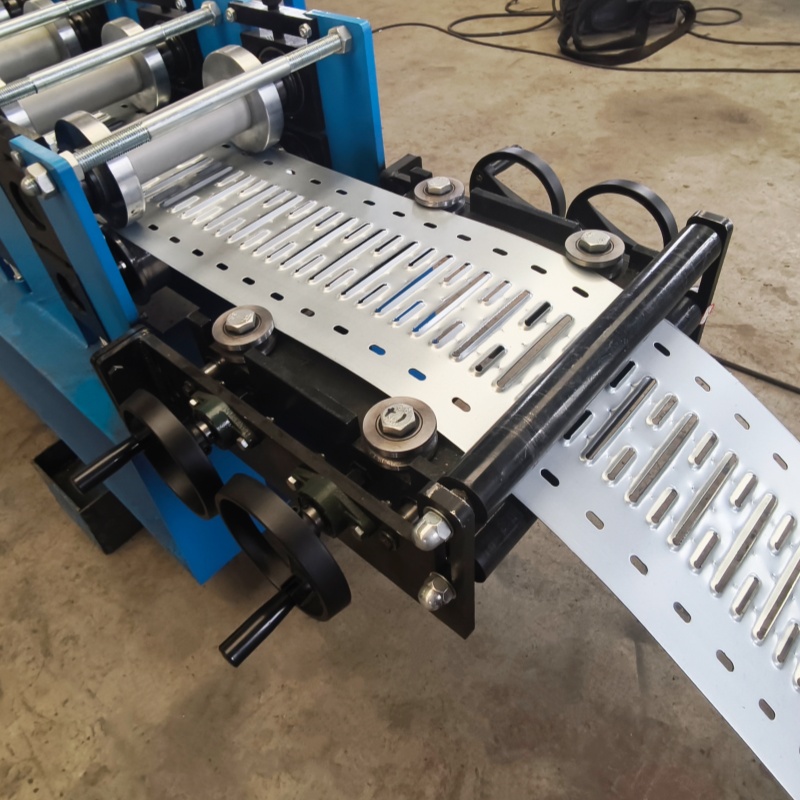

3.Sheet guide device:Leveling machine ensures the flatness of the raw material

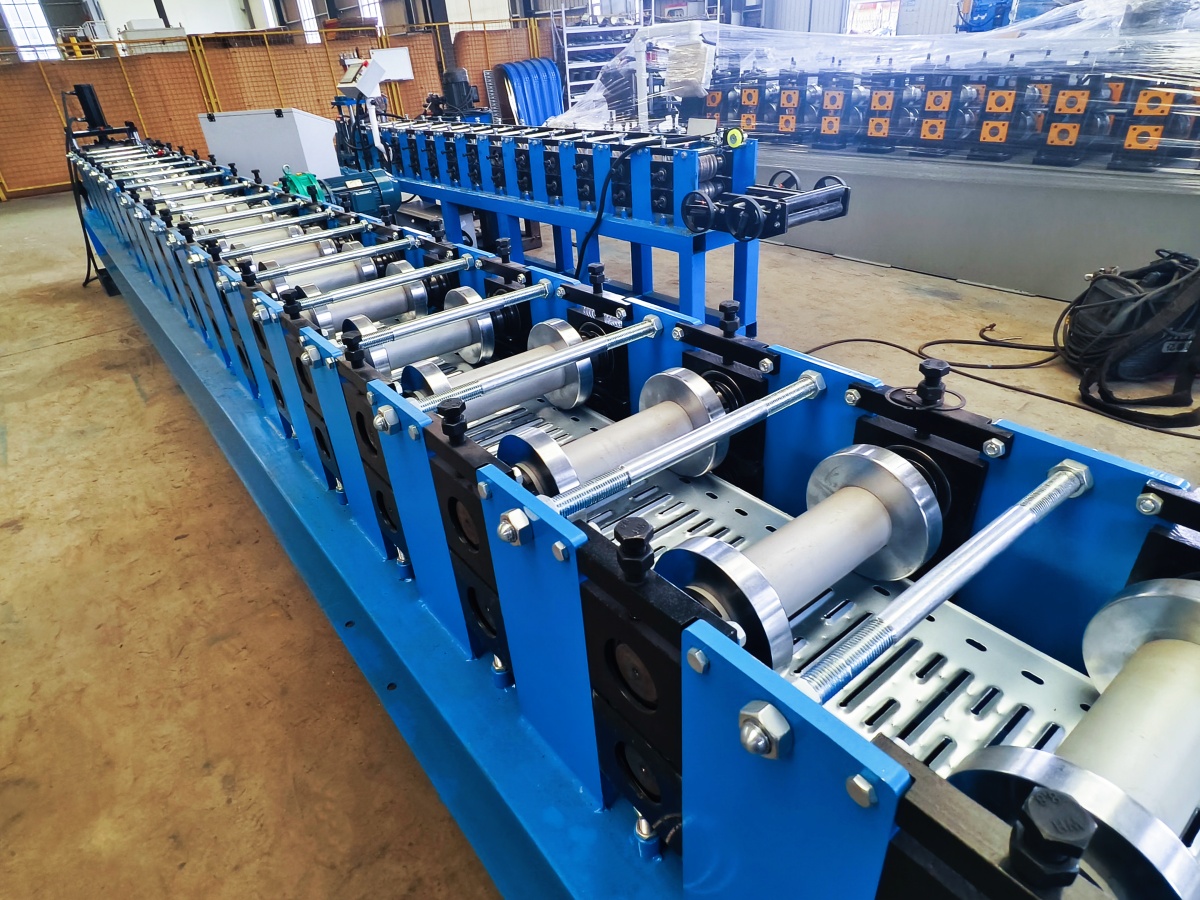

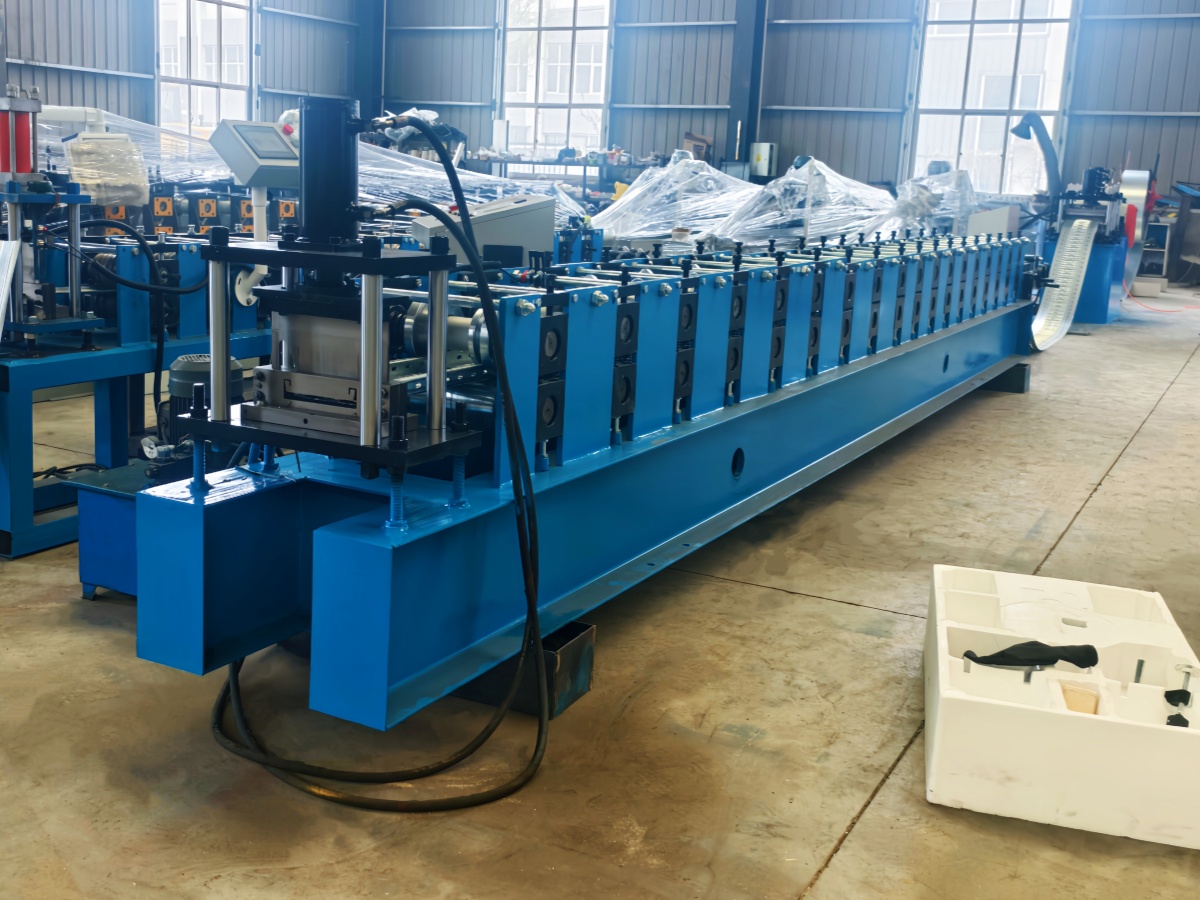

4.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

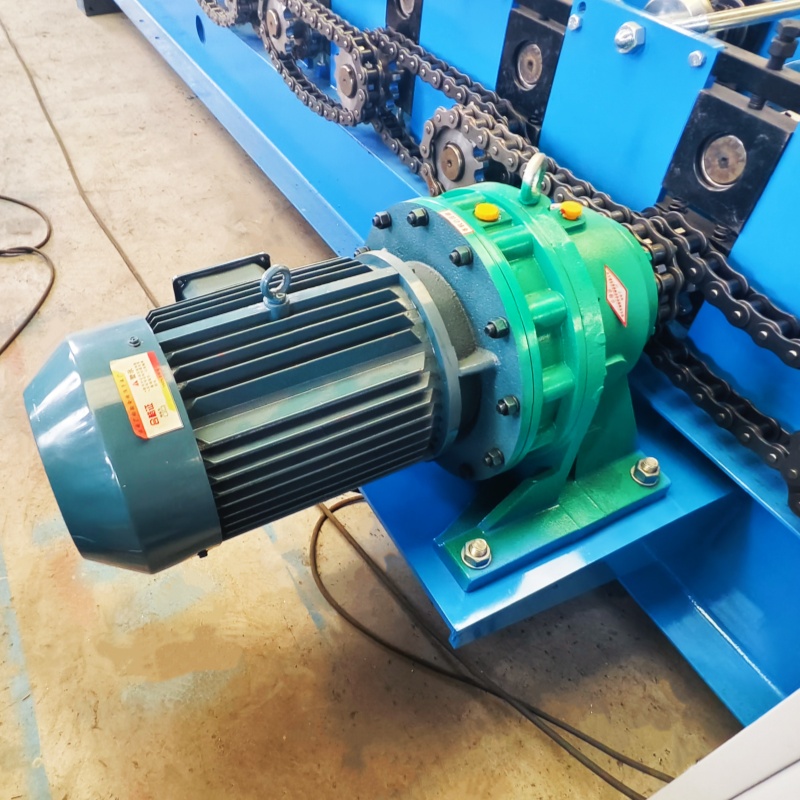

5.Main motor:The main motor provides power to the forming rollers through chains or gears

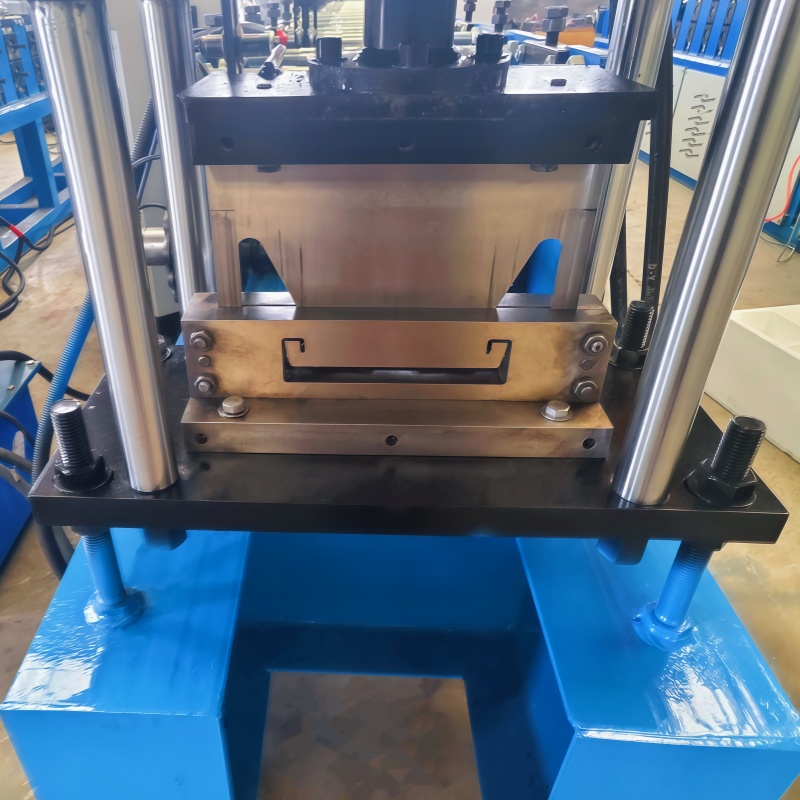

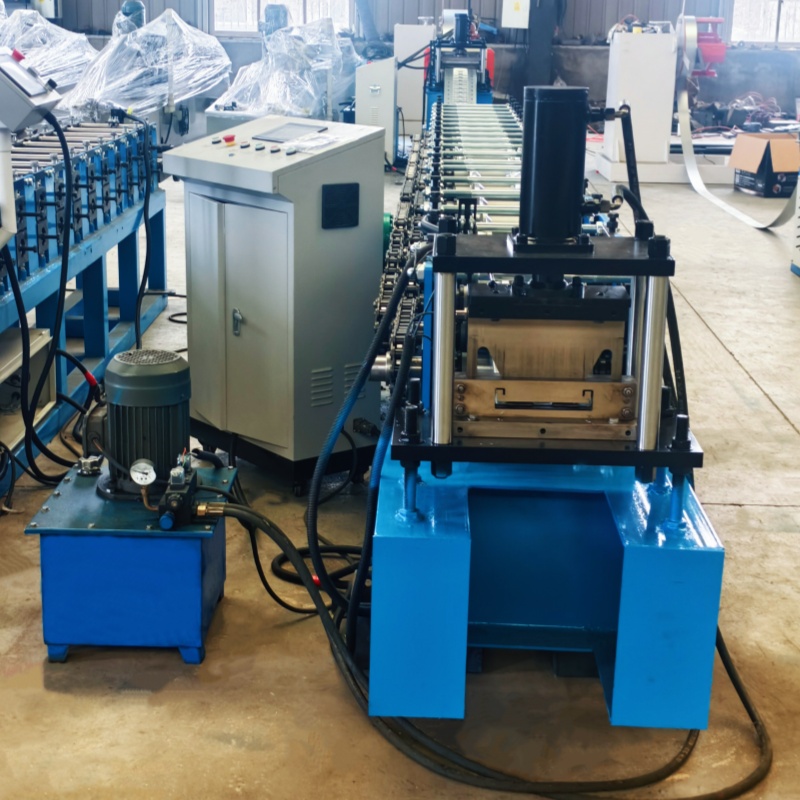

6.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available

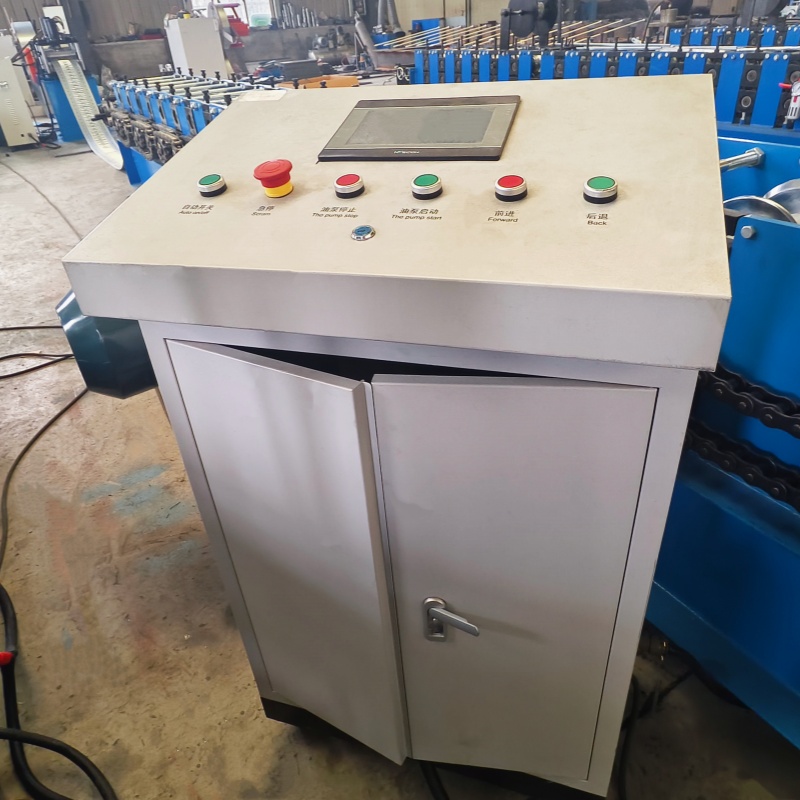

7.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
8.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.
Below is product customization information for reference.
