Product Introduction

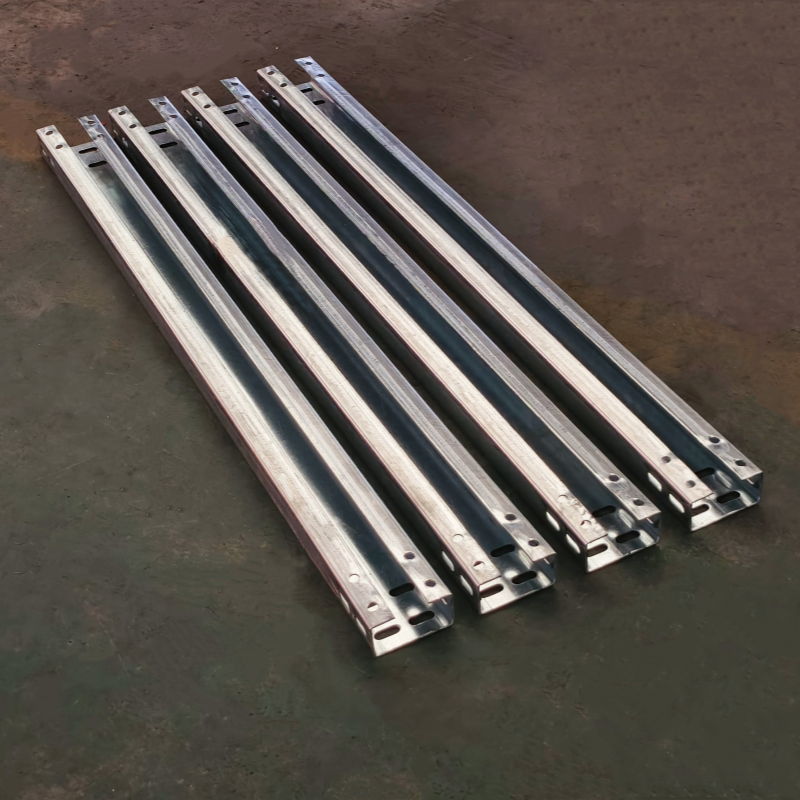

Our Pre-punching C Purlin Roll Forming Machine is a high-efficiency, fully automated production line designed for manufacturing high-quality C-shaped steel channels. Equipped with an advanced hydraulic pre-punching system, this machine delivers precise punching and cutting before the profile is formed, significantly reducing material deformation and maximizing production speed. It is an ideal solution for modern steel structure buildings, warehouses, and industrial workshops.

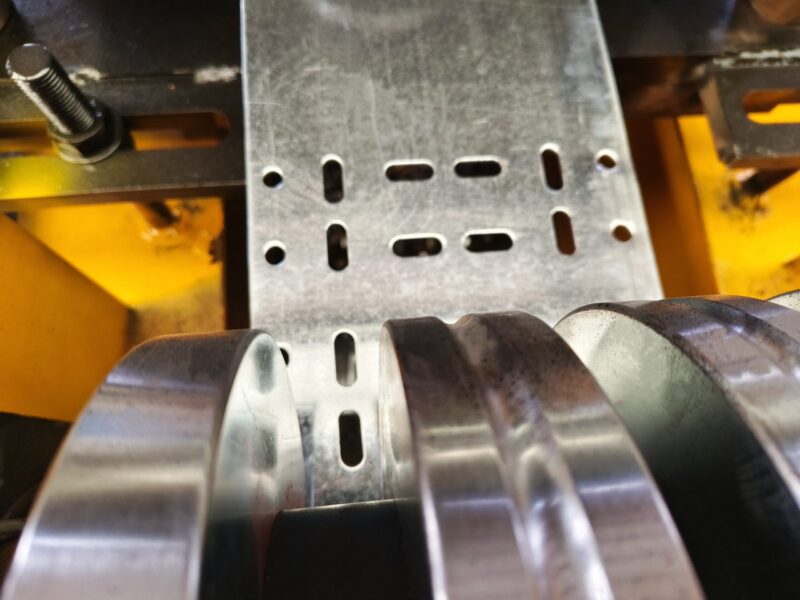

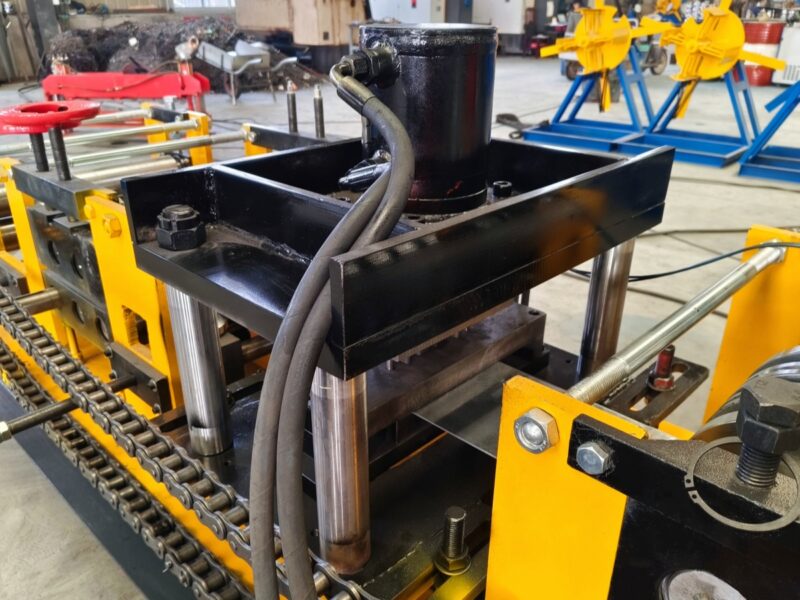

- Integrated Pre-Punching System: Punching holes before roll forming ensures high accuracy, clean edges, and eliminates hole deformation.
- Fully Automated Operation: Seamlessly integrated with PLC control systems for precise length measurement, automated punching, and hydraulic cutting.
- Heavy-Duty Structural Design: Engineered with a high-rigidity welded steel frame and reinforced roller stations to ensure long-term stability under heavy loads.

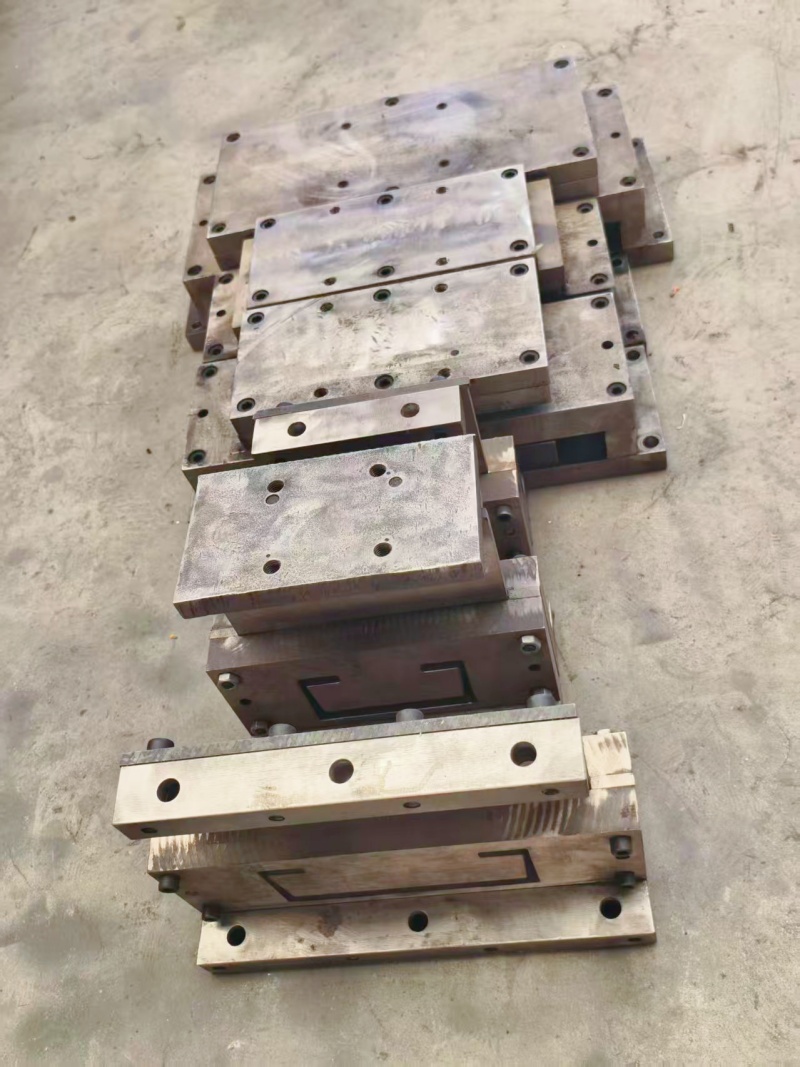

- Flexible Customization: This machine is equipped with multiple sets of punching and shearing dies to meet various production requirements.
- Premium Roller Material: High-grade forged steel rollers with heat treatment and chrome plating for exceptional wear resistance and smooth surface finish.
Detailed description
1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

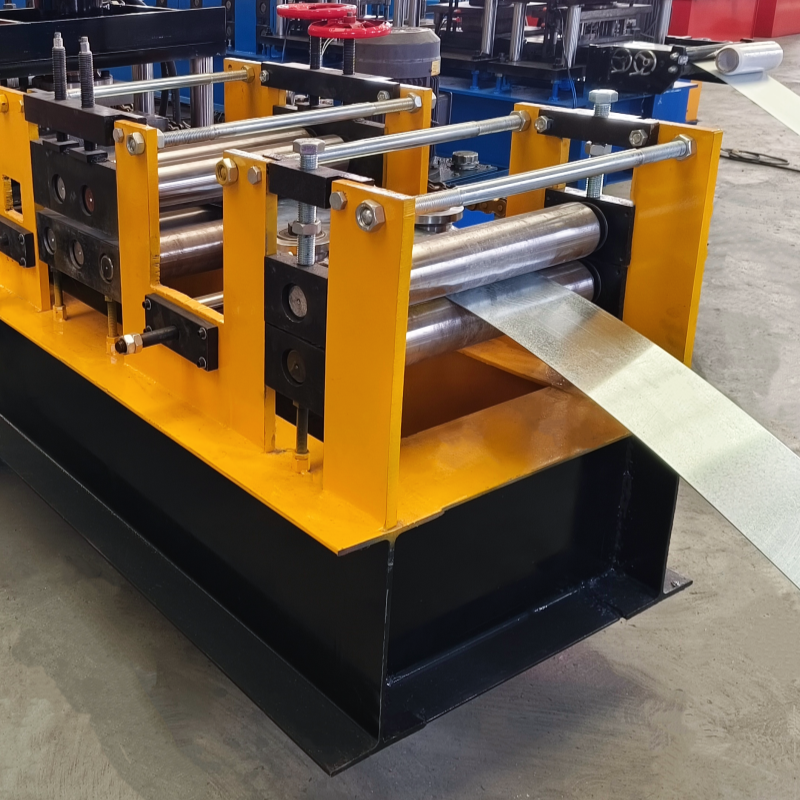

2..Sheet guide device:Leveling machine ensures the flatness of the raw material

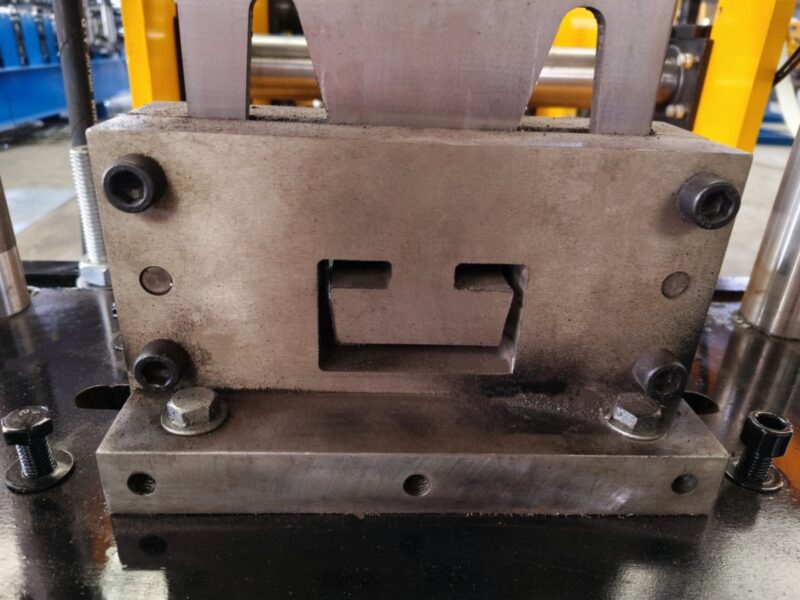

3.Pre-punch:Customized according to product punching requirements

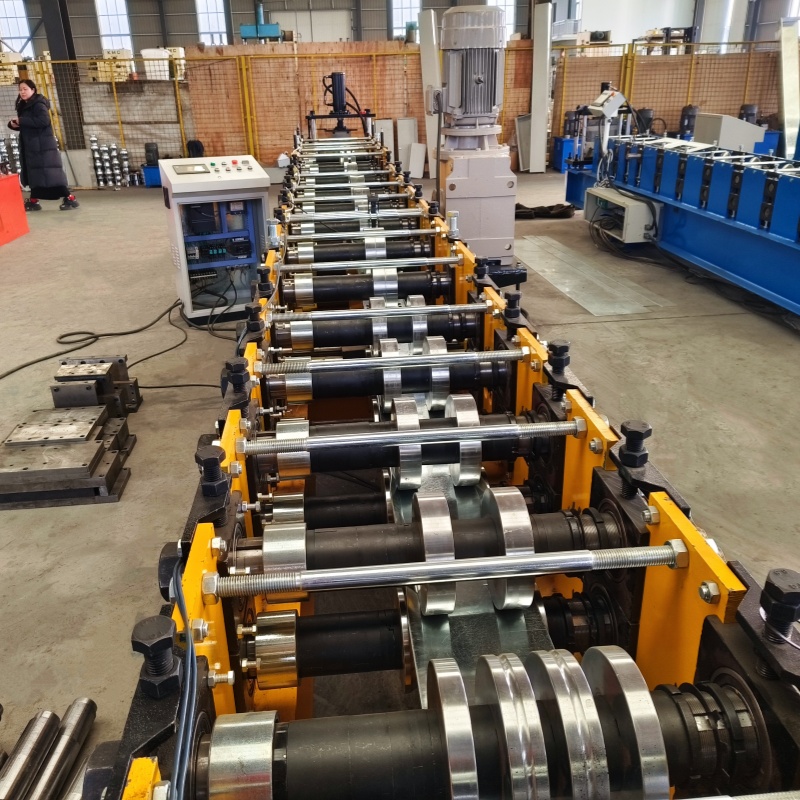

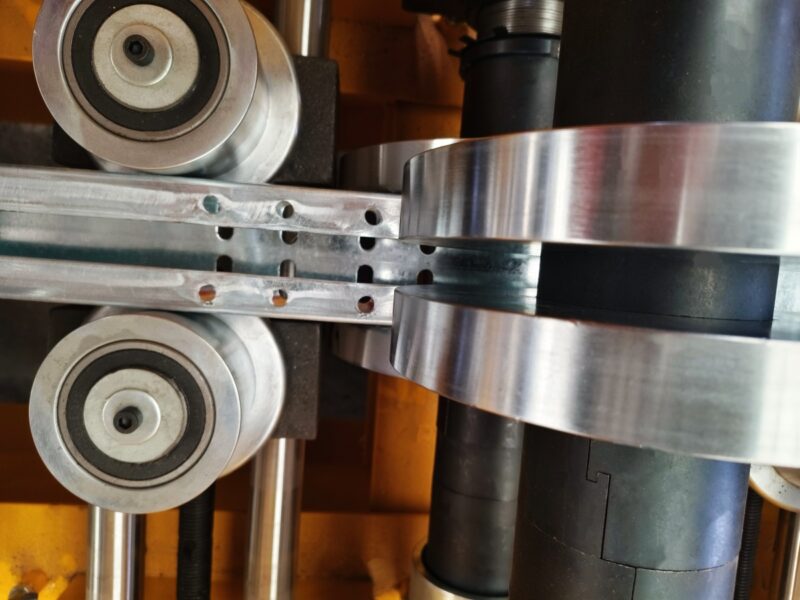

4.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

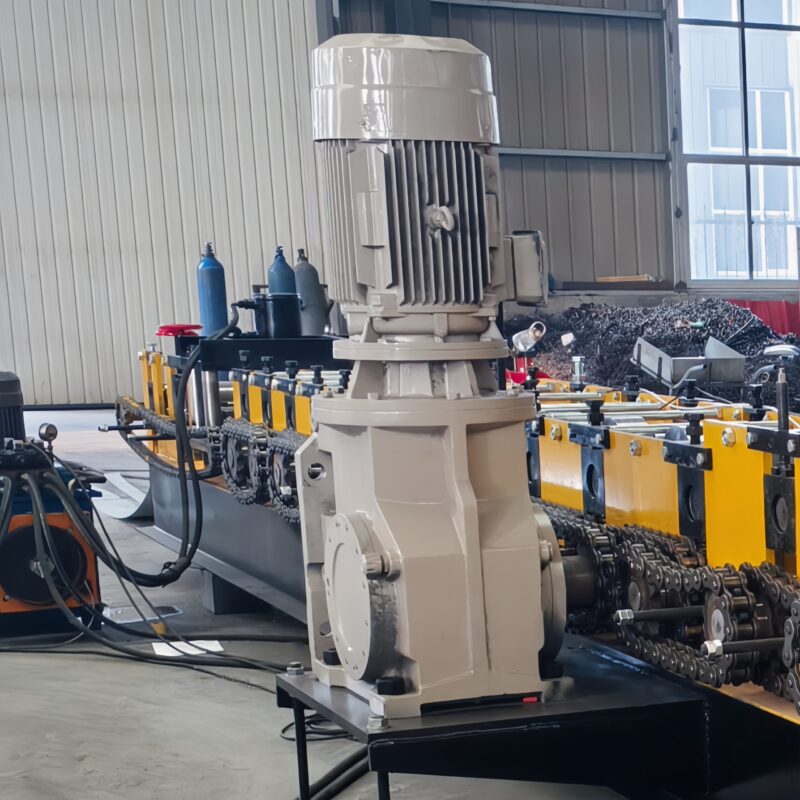

5.Main motor:The main motor provides power to the forming rollers through chains or gears
6.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available

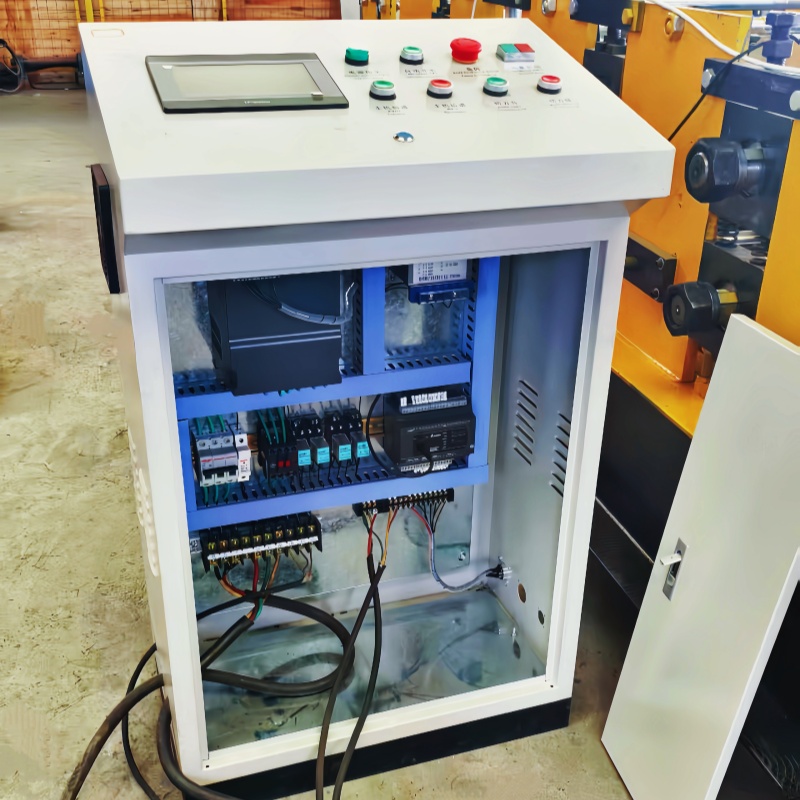

7.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
8.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
