Racking System Upright Roll Forming Machine/Pallet Racking Post Roll Former

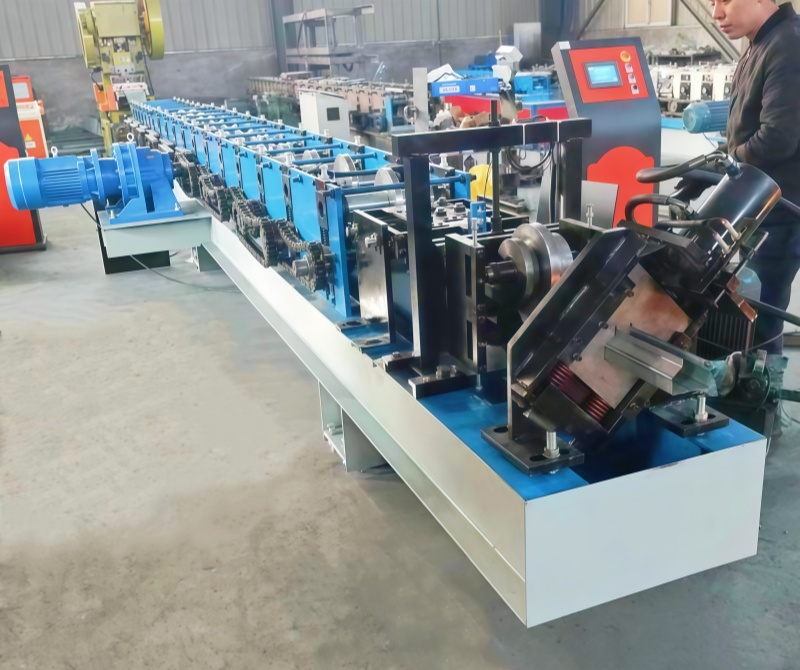

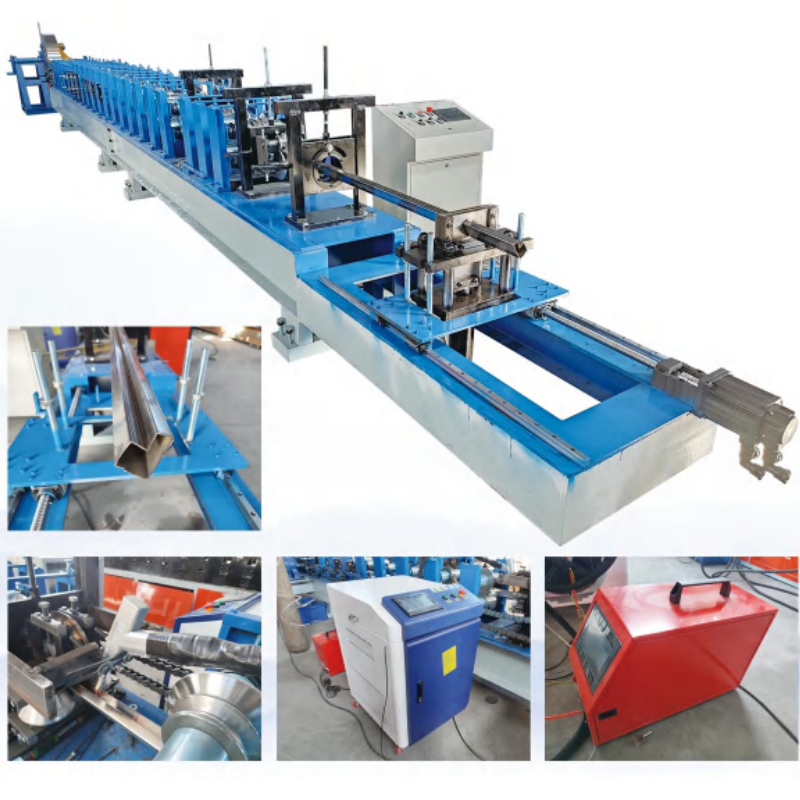

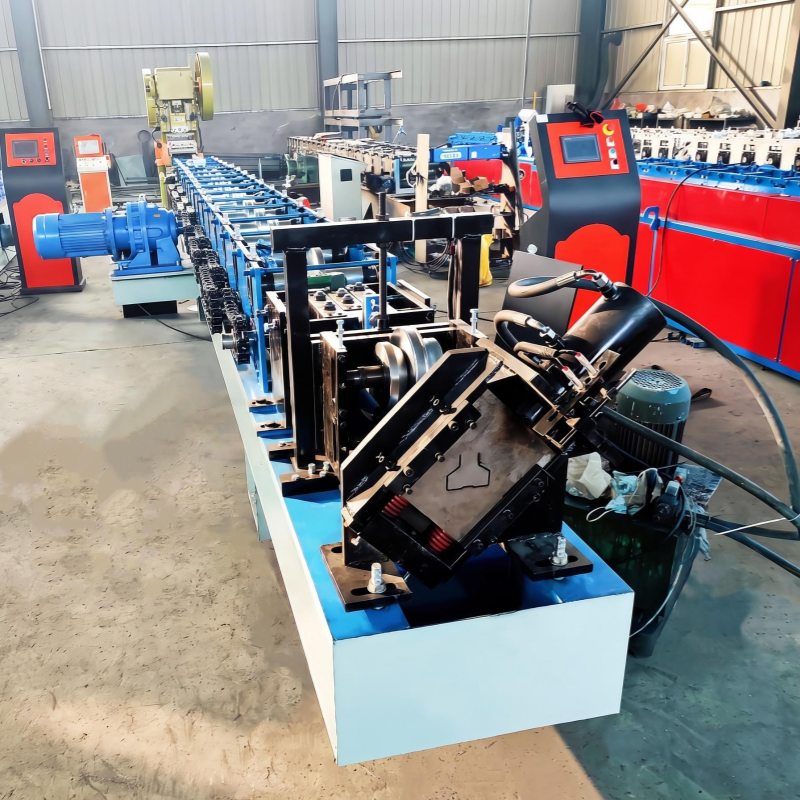

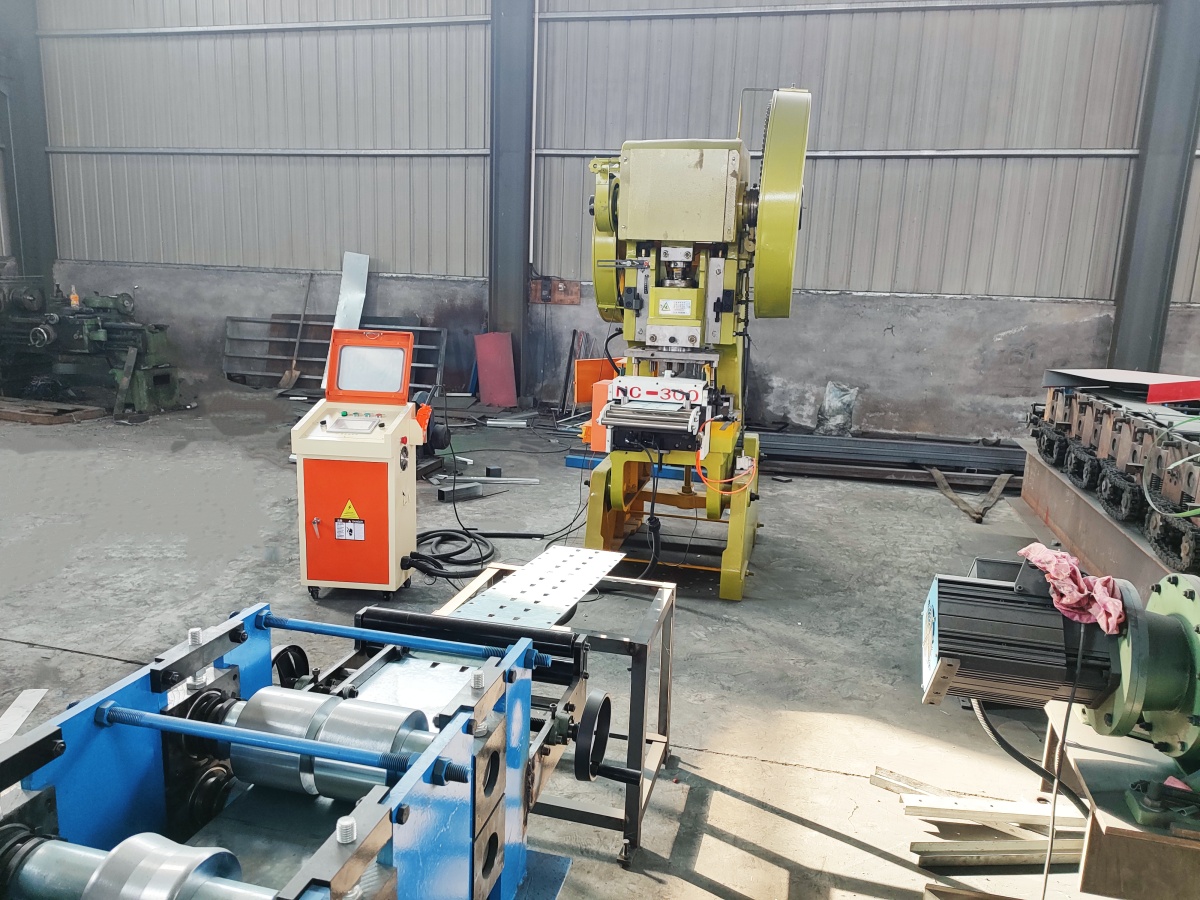

This forming machine is specifically designed for the efficient production of shelving uprights.The whole line completes uncoiling, feeding, high‑precision inline punching, continuous roll forming and hydraulic cutting in one continuous workflow, producing finished rack upright profiles directly from steel coils without secondary processing.

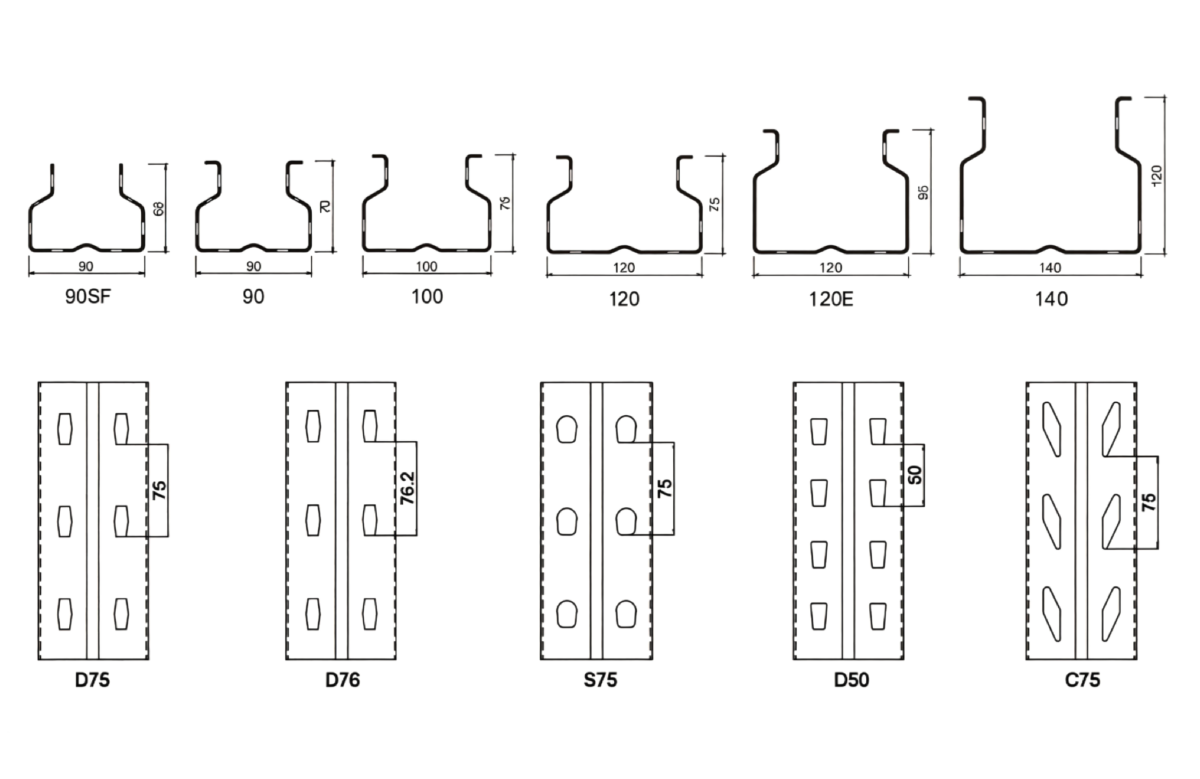

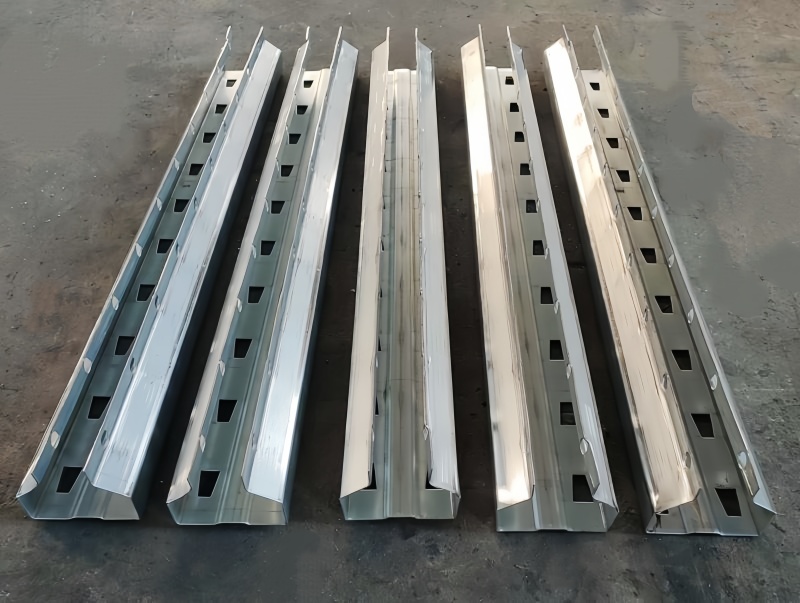

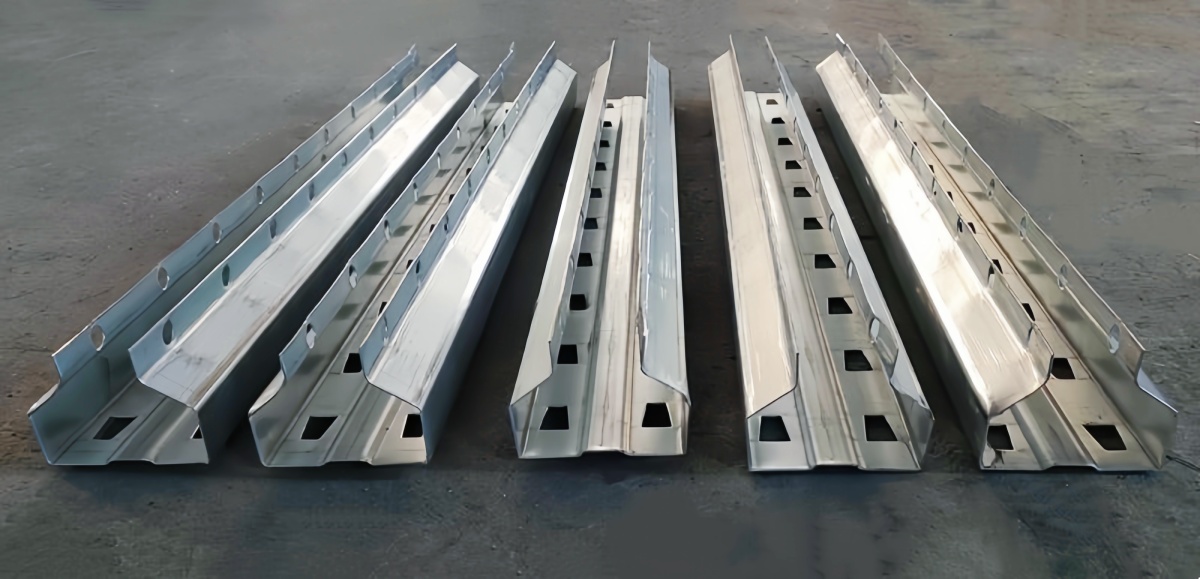

Built for heavy‑duty continuous operation, the equipment delivers outstanding dimensional accuracy, stable forming quality and high production efficiency. It supports customized hole patterns (teardrop holes, diamond holes, butterfly holes etc.) and multiple upright profile specifications, widely applied in logistics warehouses, distribution centers and storage equipment manufacturing plantsPATECH.

✅ All‑in‑one Integrated Production

Combines punching, multi‑station progressive cold forming and hydraulic cutting. One‑step production of complete rack upright profiles, drastically cuts manual work and secondary processing cost.

✅ High‑precision Forming & Punching

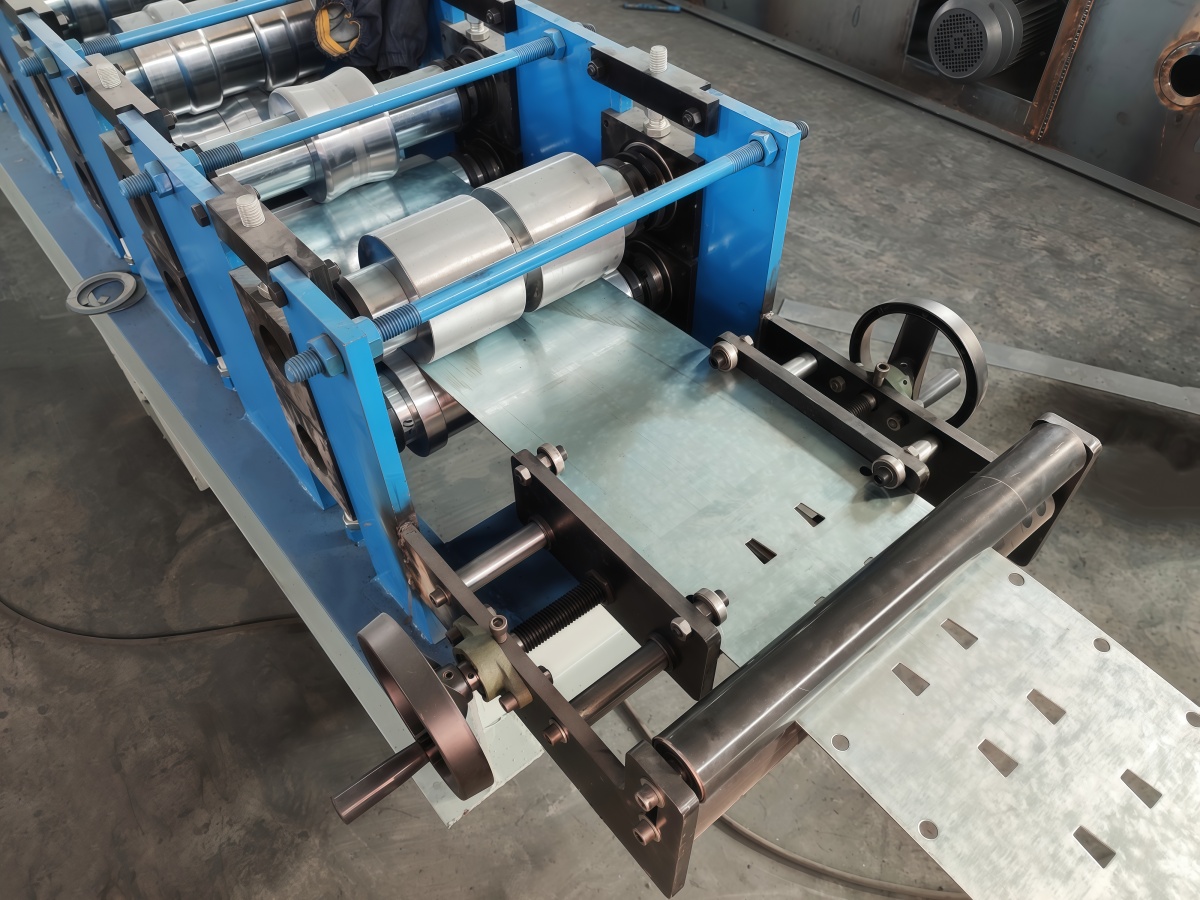

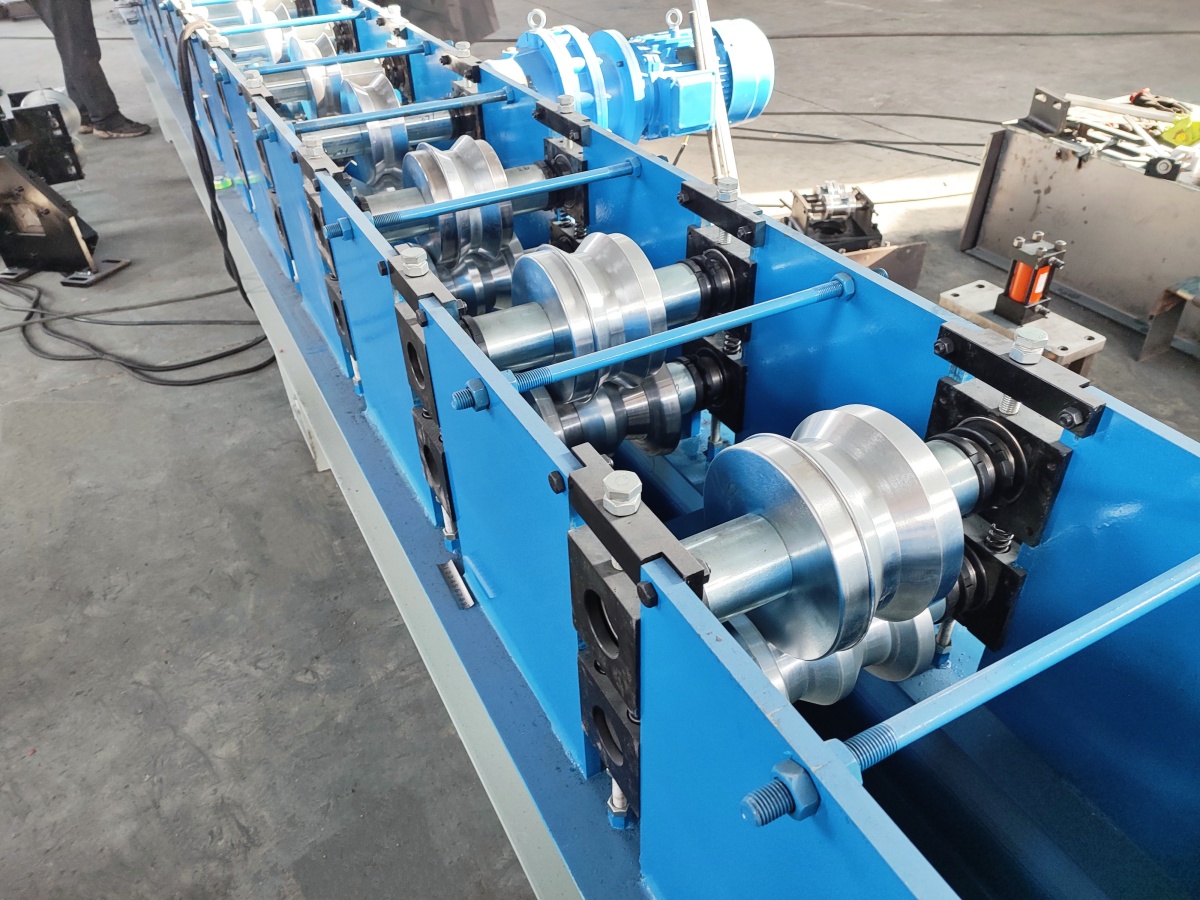

High‑hardness alloy forming rollers with heat‑treatment guarantee consistent profile geometry. In‑line punching system ensures precise hole position, enabling smooth shelf beam assembly and height adjustment for finished racks.

✅ Heavy‑duty Hydraulic Cutting Unit

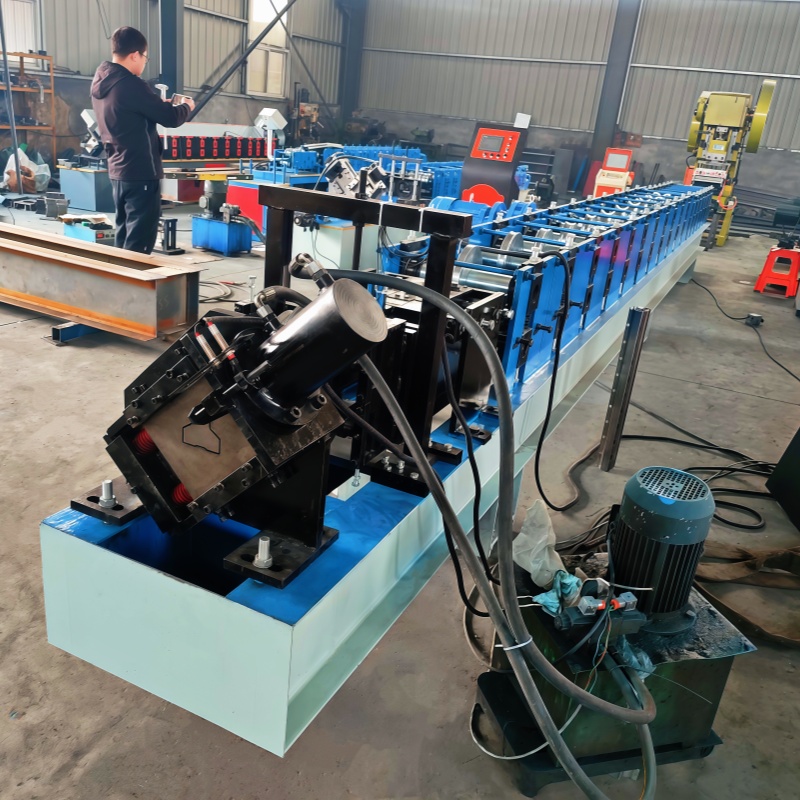

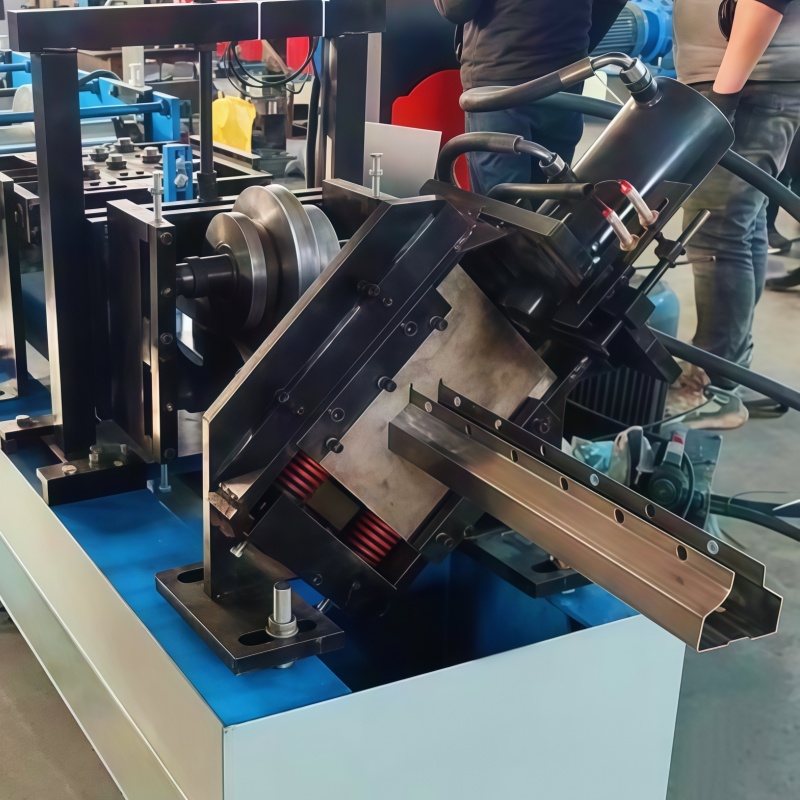

Adopts heavy‑duty hydraulic post‑cutting structure as shown in the picture. High‑strength die blade provides clean, burr‑free cross‑section for cut‑to‑length upright profiles, adapting to different material thickness.

✅ Intelligent PLC Control System

Equipped with industrial PLC + touch‑screen HMI, supports multi‑language operation. Users set profile size, punching pitch and production length on screen; encoder real‑time tracking ensures length accuracy. Easy parameter switching for different upright specifications.

✅ Robust Mechanical Structure

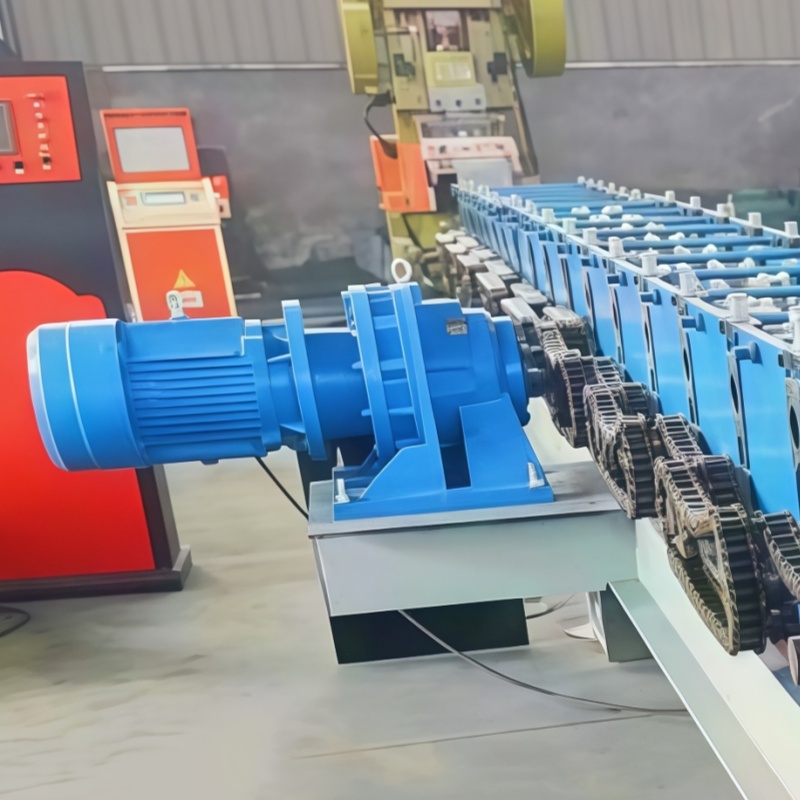

Thickened machine base, solid main shafts and heavy‑duty transmission system ensure long‑time non‑stop running. Wear‑resistant roller components extend service life, lower maintenance frequency.

✅ Flexible Customization Available

We tailor the line according to customers’ profile drawings: adjustable forming stations, punching stations, production speed and material thickness range to match light‑duty, medium‑duty and heavy‑duty rack upright manufacturing demands.
