Product Introduction

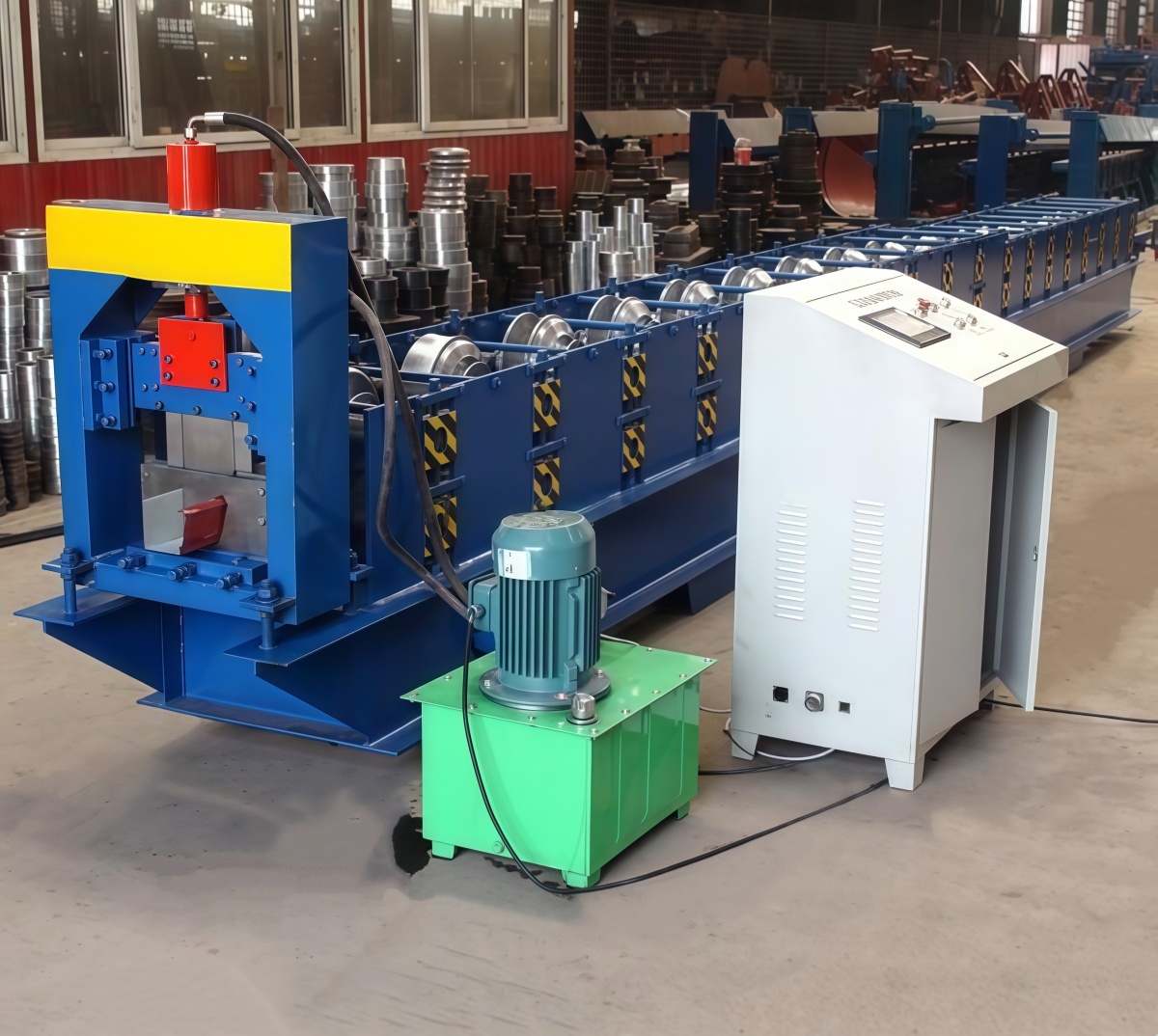

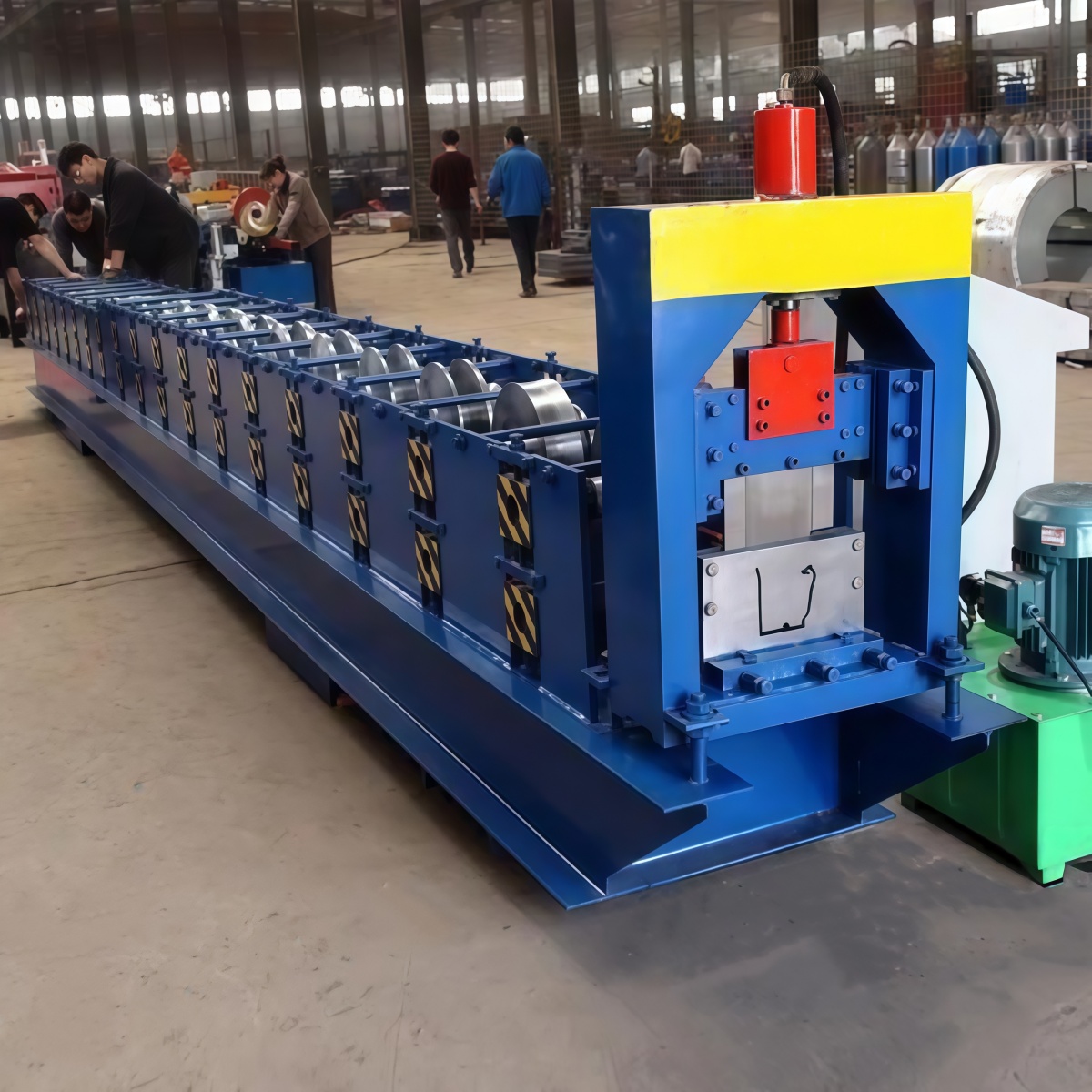

Our K‑Style Gutter Roll Forming Machine is a high‑performance cold roll forming equipment specially engineered for manufacturing K‑style metal rain gutters. Adopting advanced continuous roll‑forming technology, it automatically completes feeding, leveling, multi‑pass rolling forming, hydraulic cutting and product output in one workflow. This machine produces precise K‑profile gutters widely applied for roof drainage systems on residential, commercial and industrial buildings.
Main Features
- High‑precision Forming Multiple sets of hardened forming rollers ensure stable profile shape, consistent dimension, smooth surface without scratches. The finished K‑gutter fits standard installation requirements perfectly.
- Fully‑automatic PLC Control System Equipped with independent electrical control cabinet with touch‑screen operation. Users can set production length and quantity directly on screen. Automatic counting, fixed‑length cutting and fault‑alarm functions reduce manual operation error.
- Heavy‑duty Machine Frame Integral welded thick steel frame, stress‑relieved treatment, long‑term running stability, low vibration. Suitable for long‑time continuous industrial production.
- Hydraulic Cutting Unit High‑speed hydraulic shearing device, clean cutting edge without burrs. No secondary trimming required for finished gutters. Independent hydraulic power station provides stable cutting force.
- Wide Material Compatibility Works with galvanized steel, color coated steel, aluminum coil. Suitable material thickness ranges from 0.4‑0.8 mm. Easy adjustment for standard K‑gutter sizes.
Production Workflow
Decoiler ➡️ Feeding table ➡️ Roll Forming ➡️ Hydraulic Cutting ➡️ Output Racks
Application

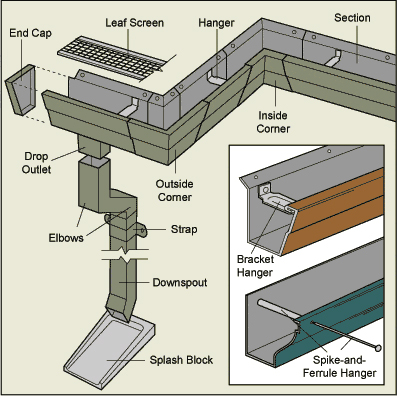

Finished K‑style gutters are extensively used for roof water drainage of villas, warehouses, workshops, shopping malls and other construction projects. This machine is an ideal solution for metal roofing component manufacturers.
Advantages for Customers
- High output, lower labor cost
- Stable running, low failure rate
- Easy operation & simple maintenance

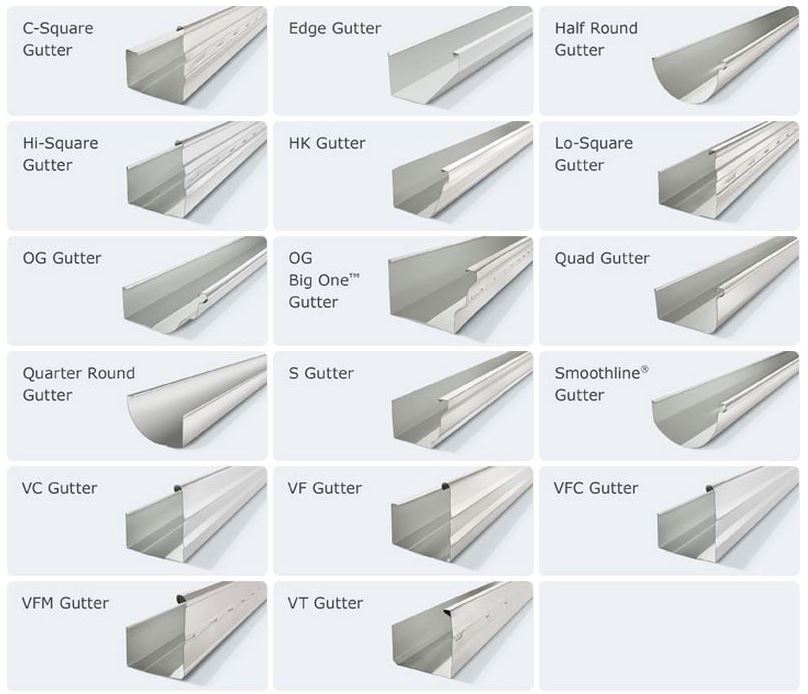

- Customized profile sizes are available upon customer request
Detailed description
1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

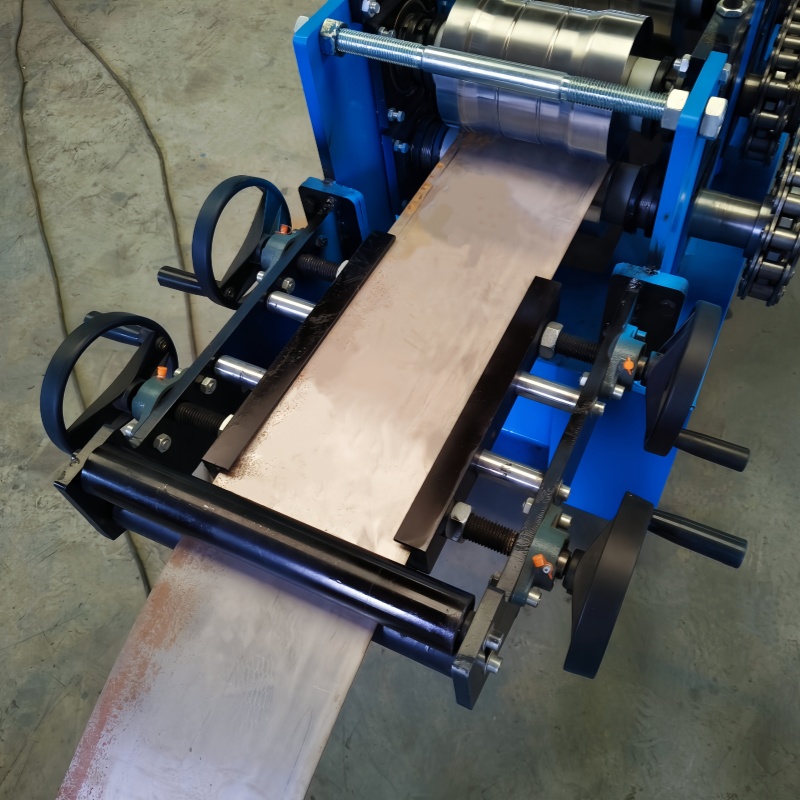

2.Sheet guide device:Leveling machine ensures the flatness of the raw material

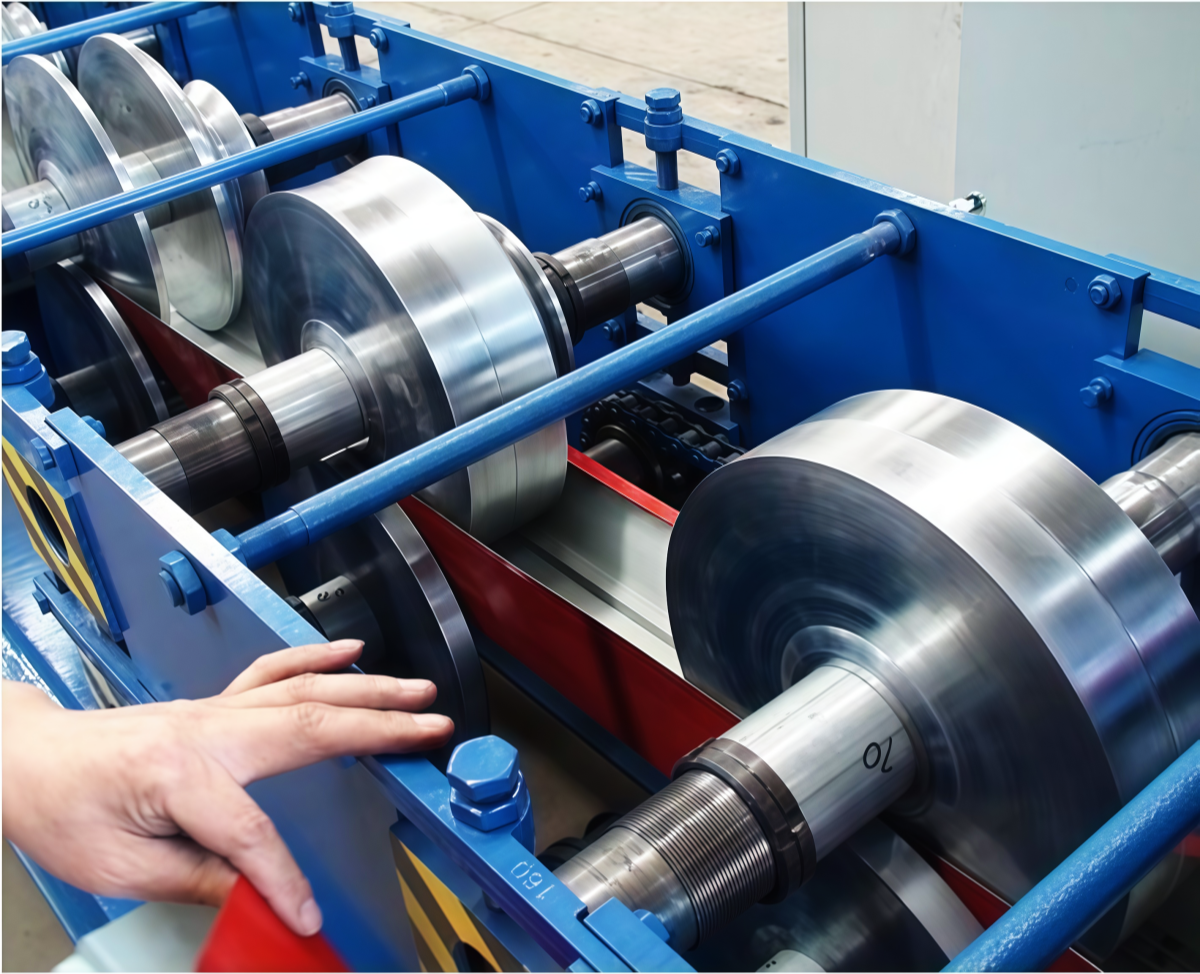

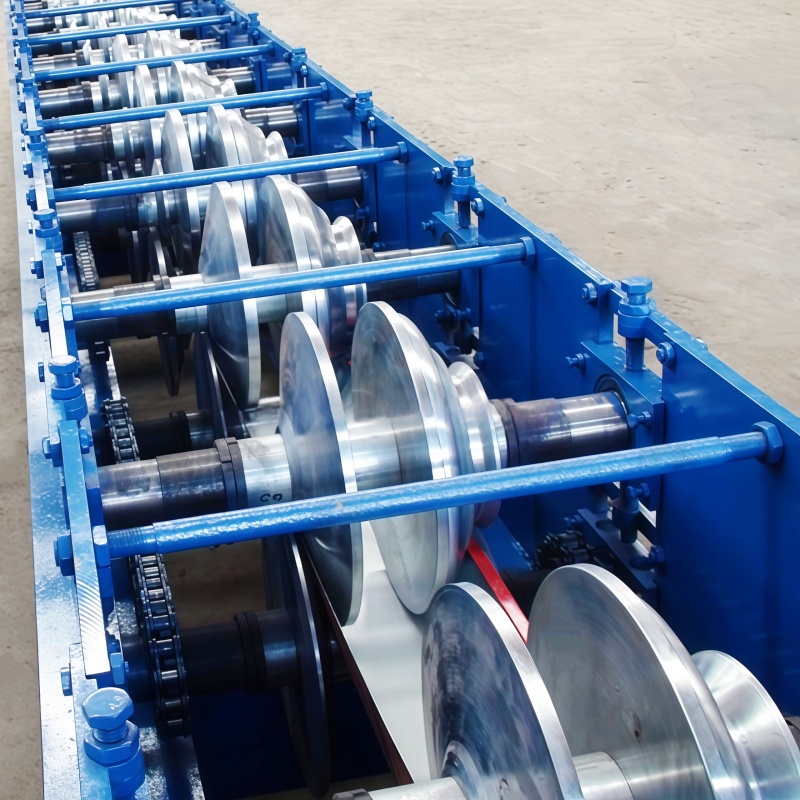

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
4.Main motor:The main motor provides power to the forming rollers through chains or gears

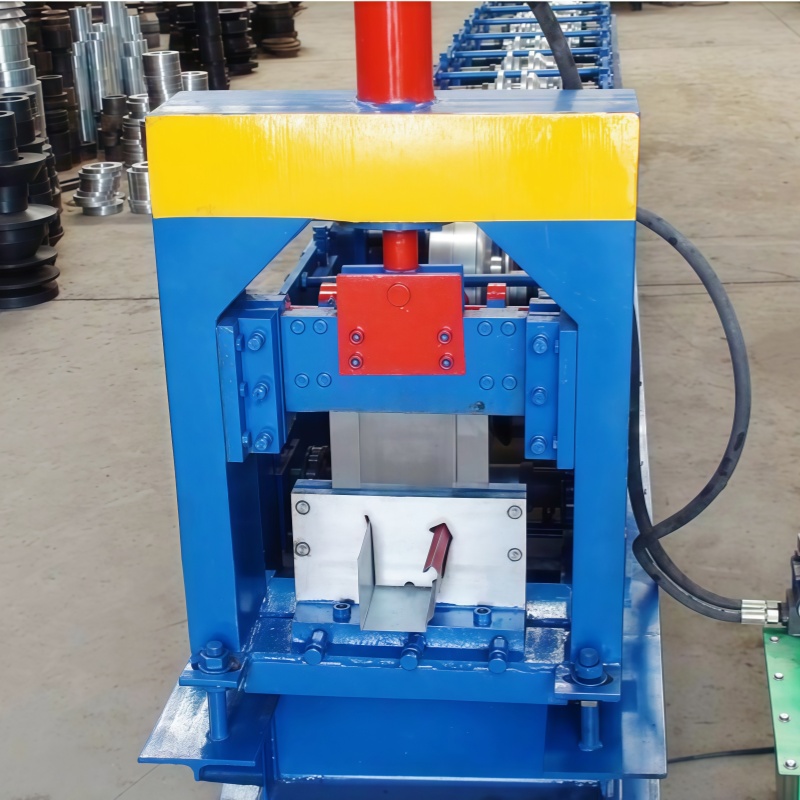

5.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available
6.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
7.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.
Below is product customization information for reference.
