Product Introduction

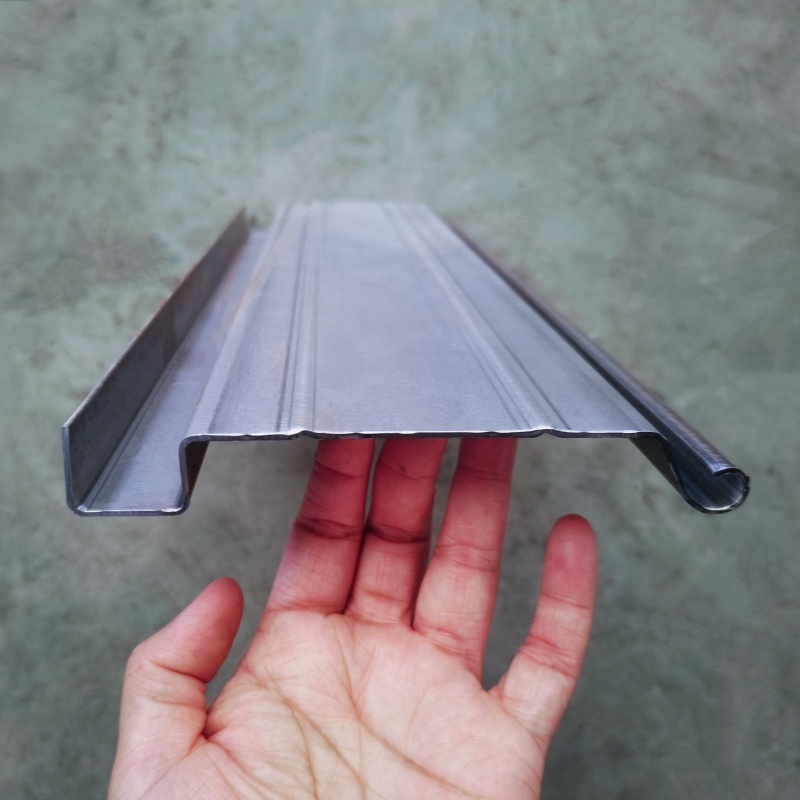

Designed for high-precision and continuous production, our Automatic Shutter Door End Slat Roll Forming Machine produces durable, perfectly formed bottom rails and end slats for roller shutter door systems. Built with a heavy-duty structural steel frame, precision-machined alloy steel rollers, and an advanced PLC control system, this machine ensures exceptional profile accuracy, smooth operation, and reliable long-term performance.
Key Features
-
High Precision Forming: Multi-stage engineered rollers gradually shape the strip to prevent stress deformation, delivering flat, crisp profiles with tight tolerances.
-

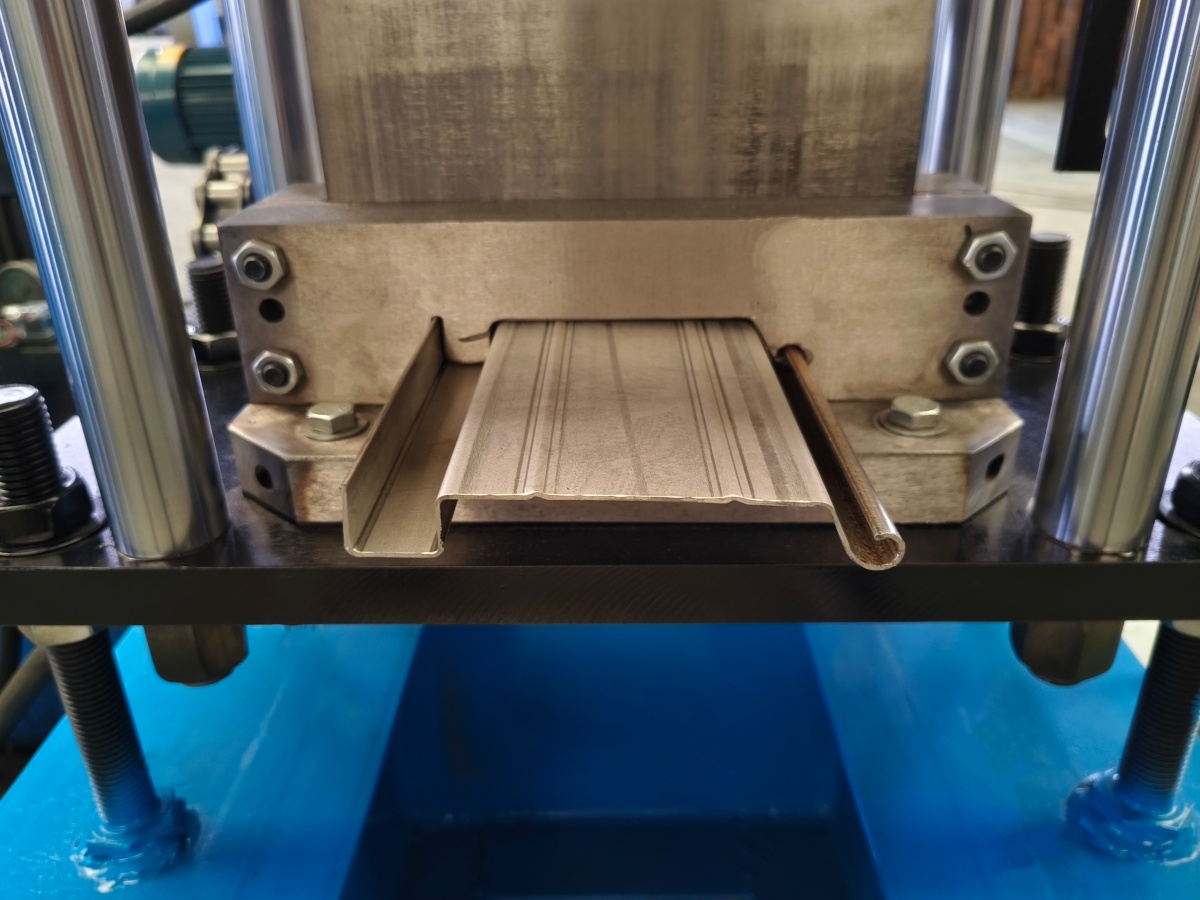

Burr-Free Hydraulic Cutting: Features a heavy-duty post-hydraulic shear unit that cuts profiles cleanly to precise lengths without warping or damaging edges.
-
Smart PLC Automation: Equipped with an intuitive touch-screen interface for simple parameters setting, automatic length measurement, and batch batching management.
-

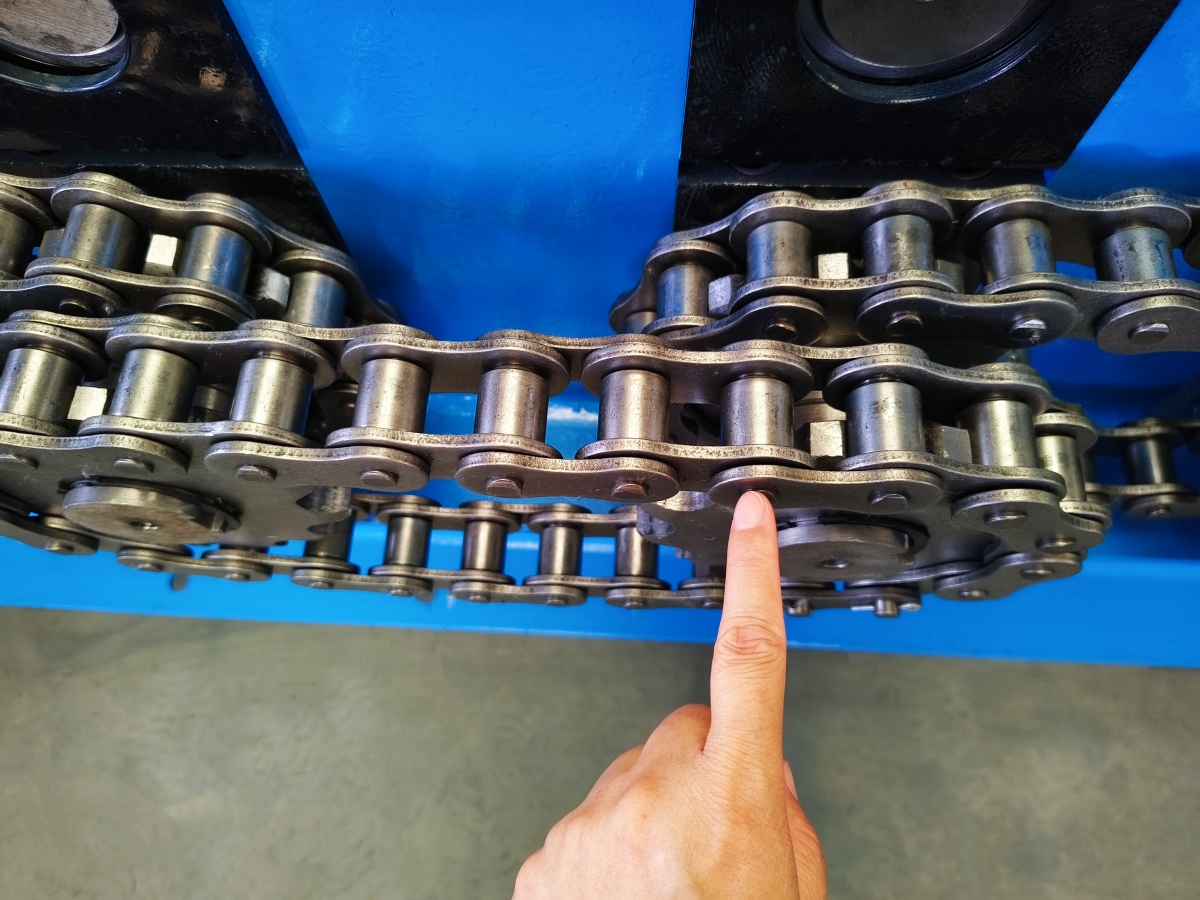

Heavy-Duty Transmission: Powered by an industrial motor and a robust chain drive mechanism to deliver smooth, consistent torque through all forming stations.
-
Durable Component Construction: Rollers are treated and hard-chrome plated for maximum resistance against wear, extending machine longevity even under heavy daily operation.
Production Workflow

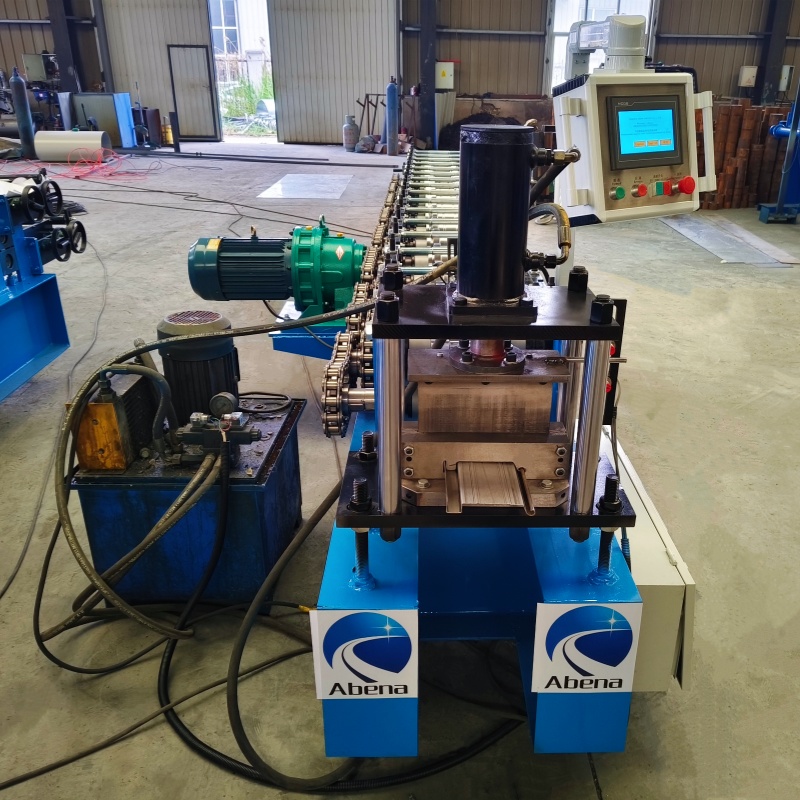

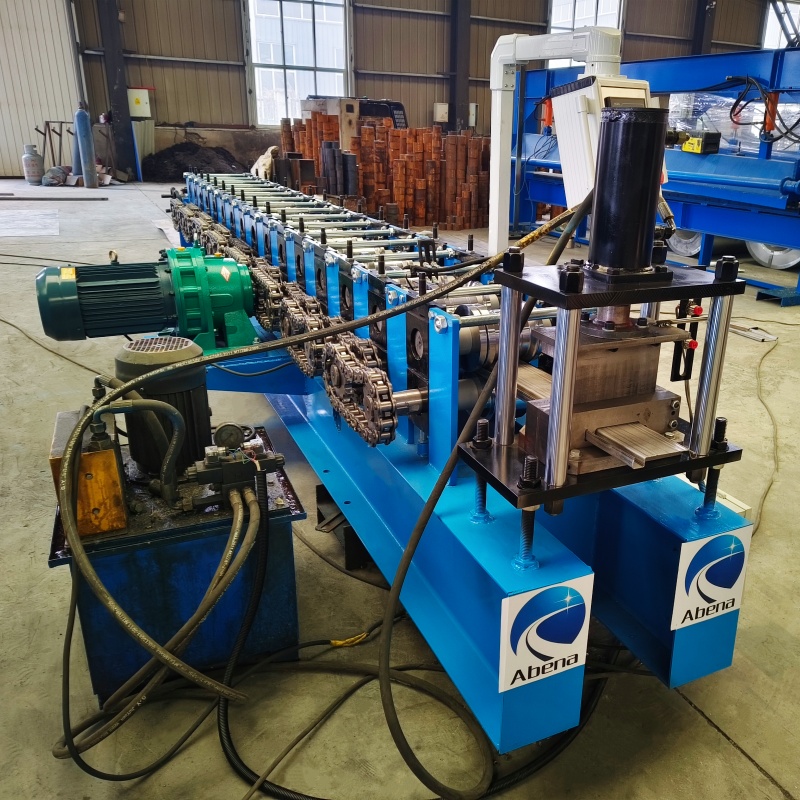

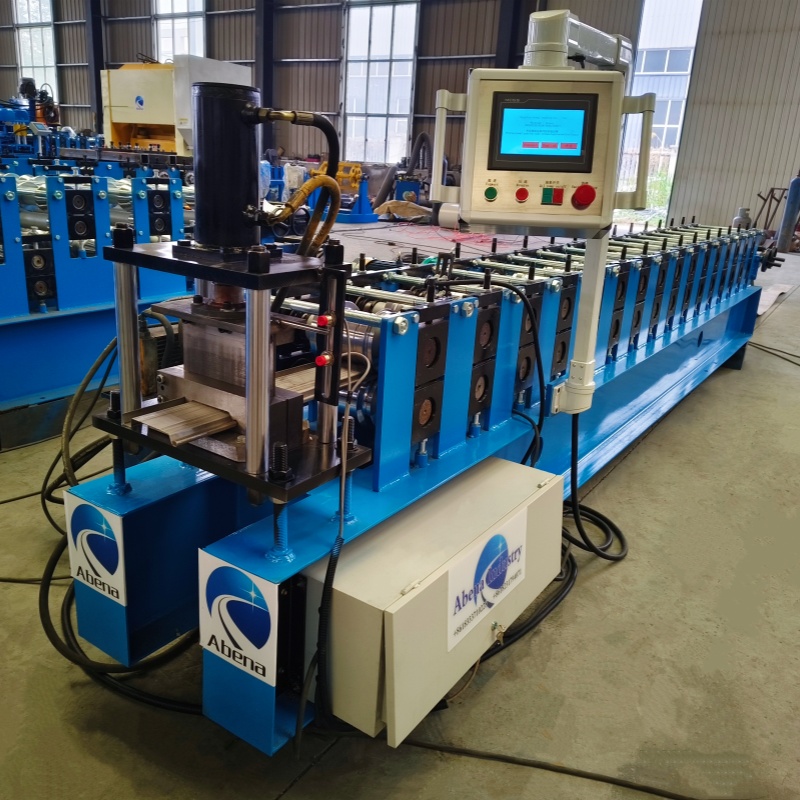

Decoiler ➡️ Feeding table ➡️ Roll Forming ➡️ Hydraulic Cutting ➡️ Output Racks
Detailed description
1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available
2.Sheet guide device:Leveling machine ensures the flatness of the raw material

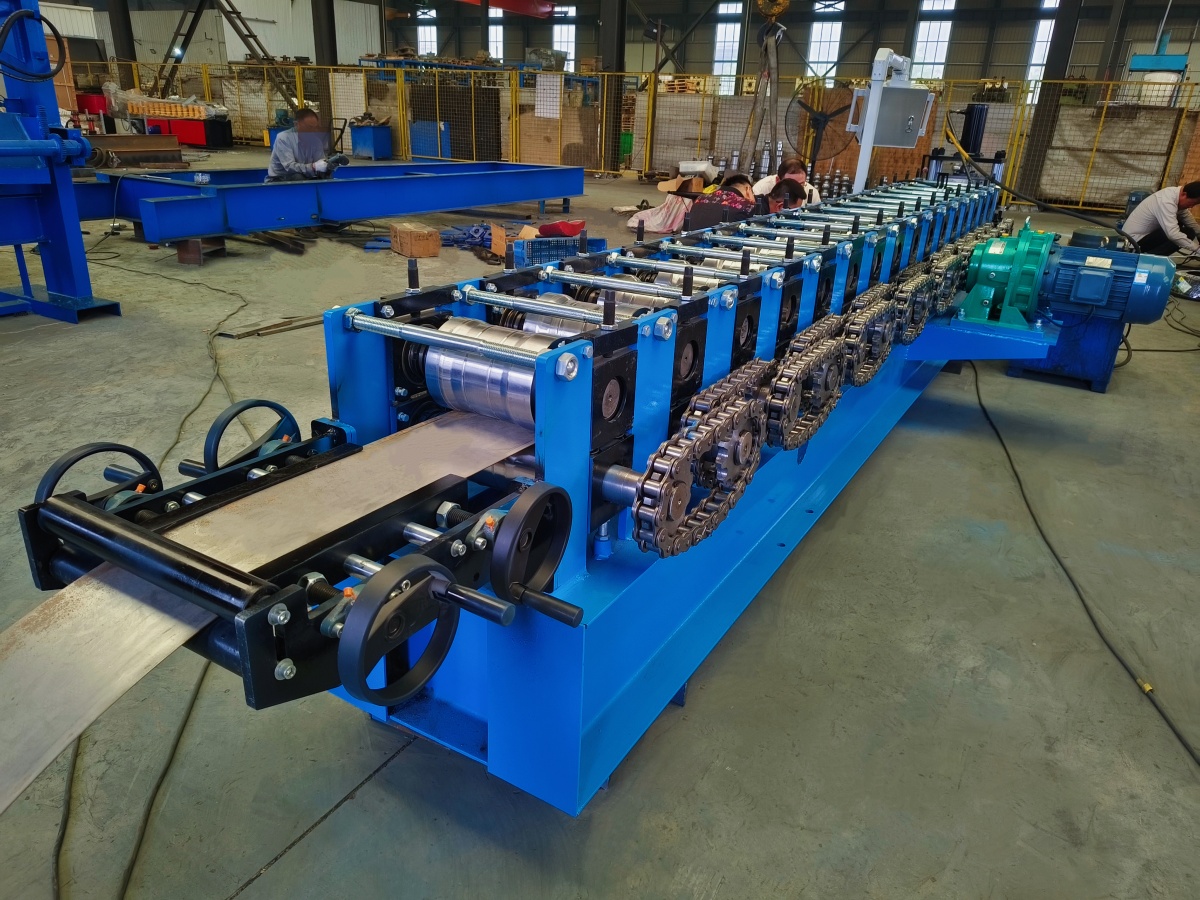

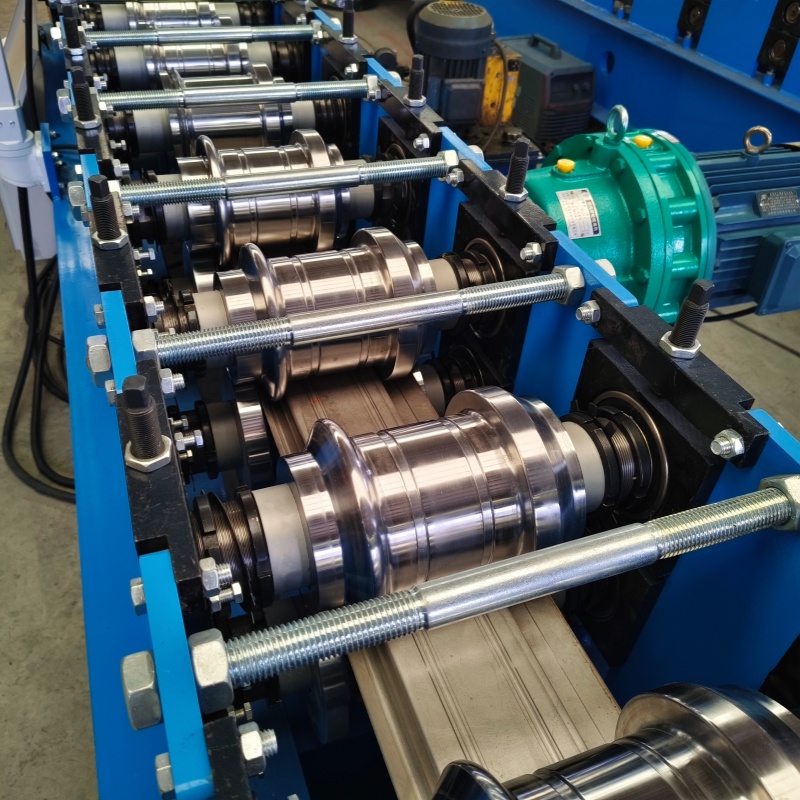

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
4.Main motor:The main motor provides power to the forming rollers through chains or gears
5.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available

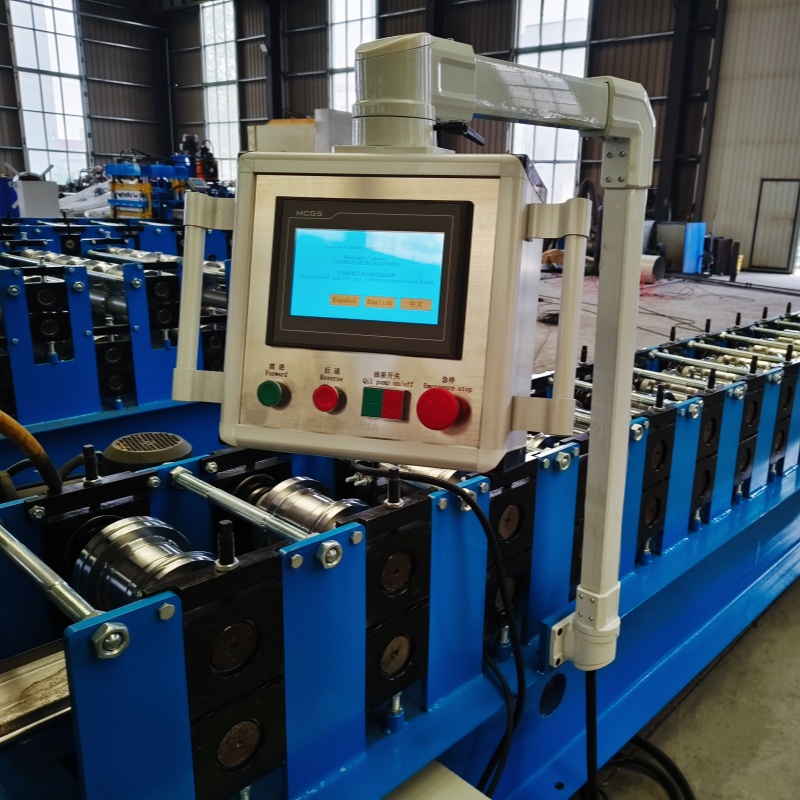

6.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
7.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.
Below is product customization information for reference.
