Product Introduction
This glazed tile roll forming machine is an automatic cold roll forming equipment for manufacturing classic glazed metal roof tiles. It processes color steel coil, galvanized steel and aluminum coil into beautiful, antique-style glazed roofing panels widely used for villas, churches, scenic buildings, residential houses and renovation projects.
Key Advantages

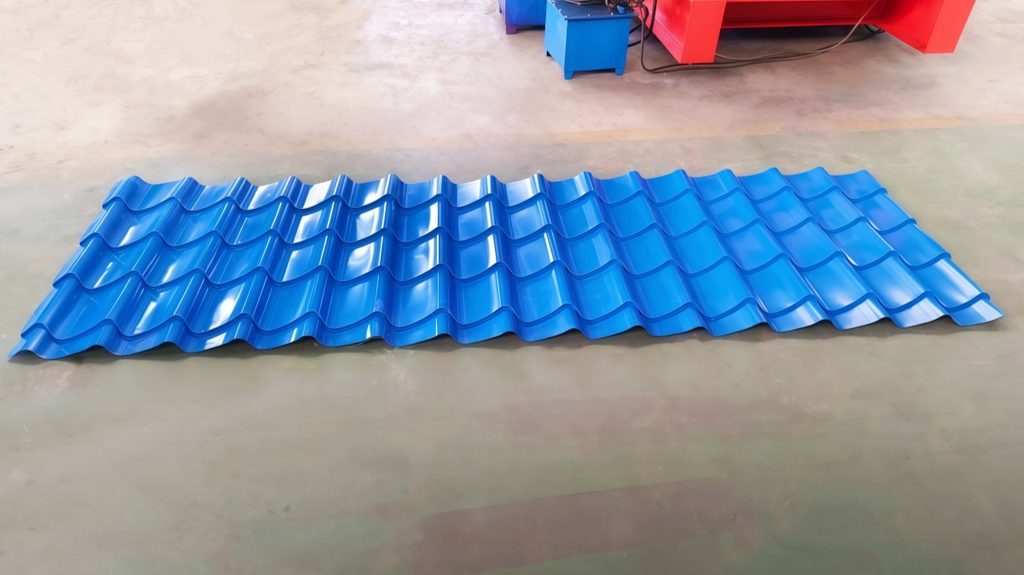

✅ Beautiful Antique Profile The finished tile features elegant curved lines, simulating traditional clay glazed tiles, with excellent visual effect while retaining the lightweight, waterproof and long-life merits of metal roofing.
✅ Stable & High Precision Forming Solid heavy-duty frame, high-grade chromium-plated forming rollers and PLC control system guarantee consistent tile shape, smooth surface and stable running with low failure rate.
✅ Fully Automatic Operation Integrated feeding, roll forming, hydraulic cutting and counting. Operated by only one worker, it greatly saves labor cost and boosts production efficiency.
✅ Wide Material Compatibility Suitable for 0.3–0.8 mm PPGI, GI and aluminum sheets. Customized profile and working width are available to match local market tile sizes.
✅ Durable & Low Maintenance Reasonable hydraulic cutting structure, reliable transmission parts and easy access for daily maintenance, supporting long-time continuous production.
Main Technical Features
- Control system: PLC + touch screen
- Driving type: Chain / gear drive
- Cutting system: Hydraulic post-cutting
- Forming speed: 8–15 m/min (depends on material and profile)
- Material: Color coated steel, galvanized steel, aluminum
- Voltage: Customizable as local requirement
Production Workflow
Decoiler ➡️ Feeding table ➡️ Roll Forming ➡️ Pressing device ➡️ Hydraulic Cutting ➡️ Output Racks
Detailed description
1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available
2.Sheet guide device:Leveling deensures the flatness of the raw material

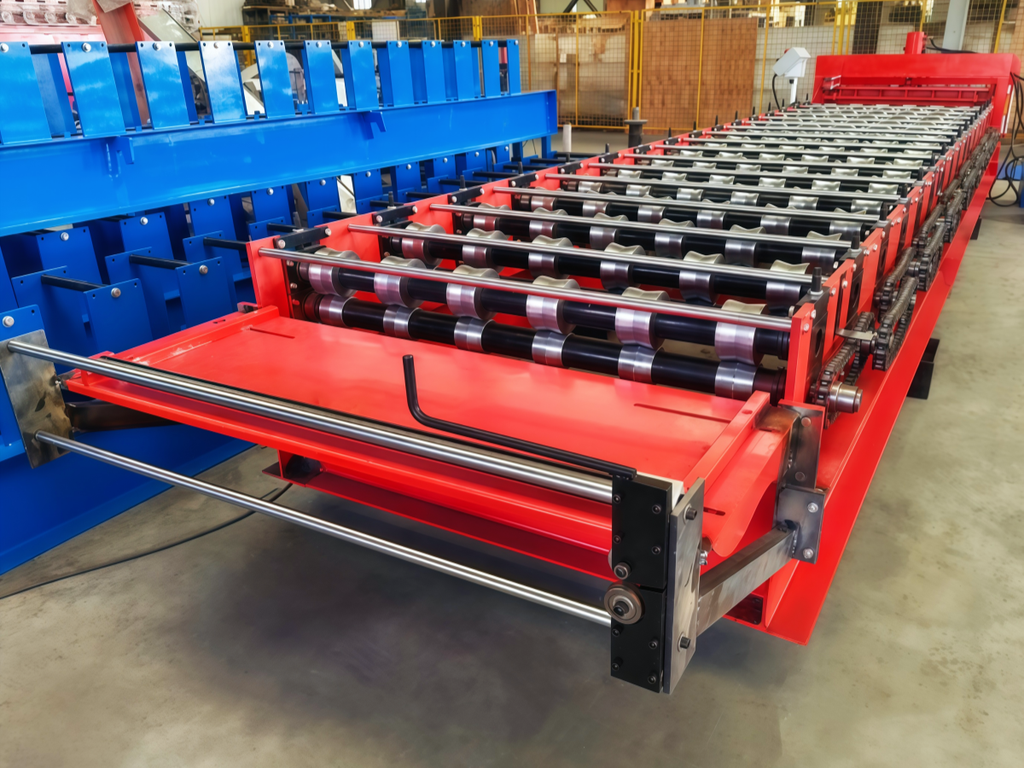

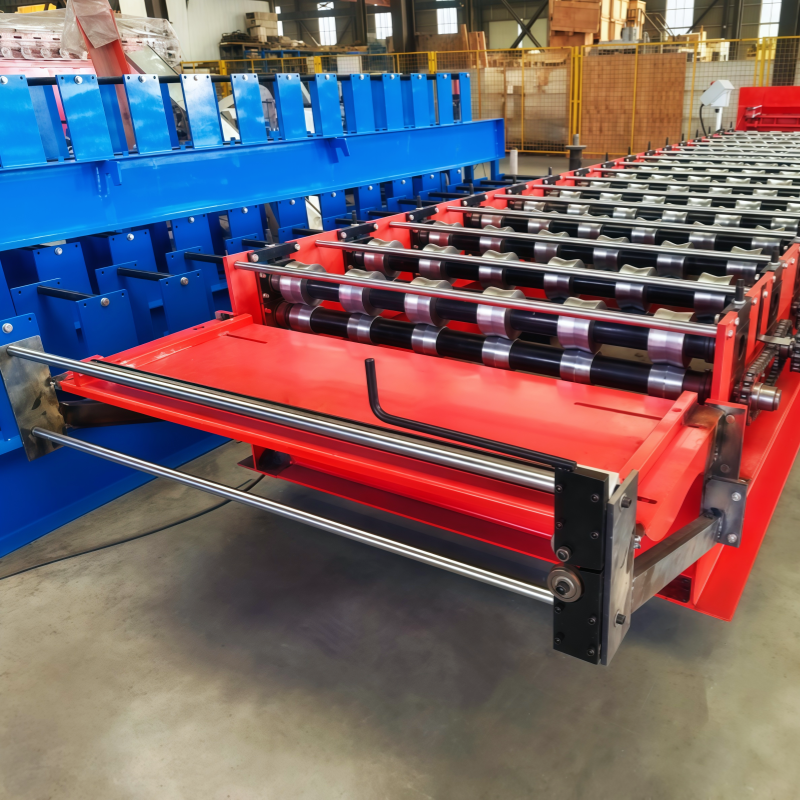

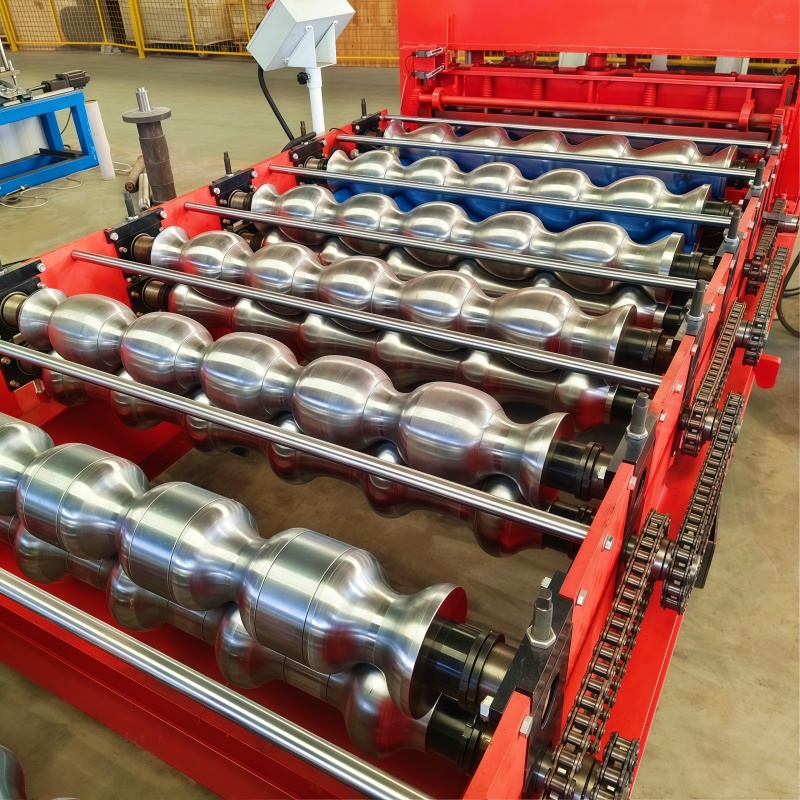

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
4.Main motor:The main motor provides power to the forming rollers through chains or gears

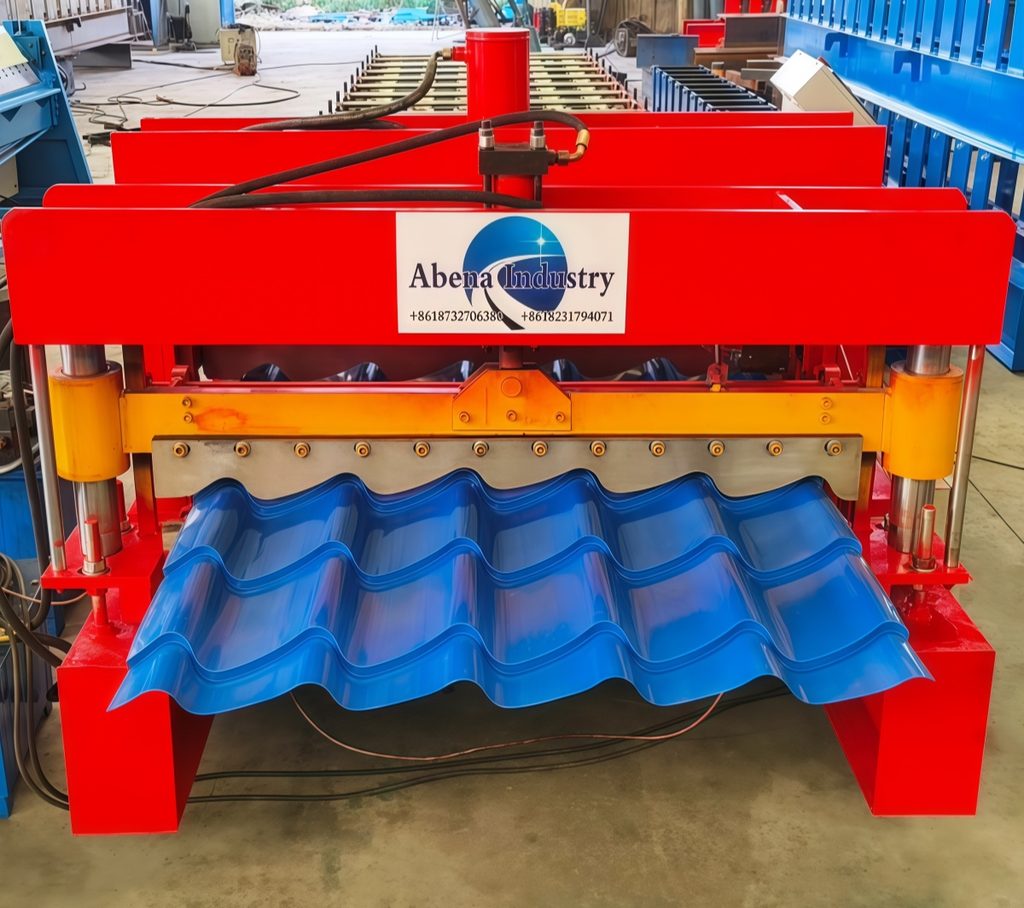

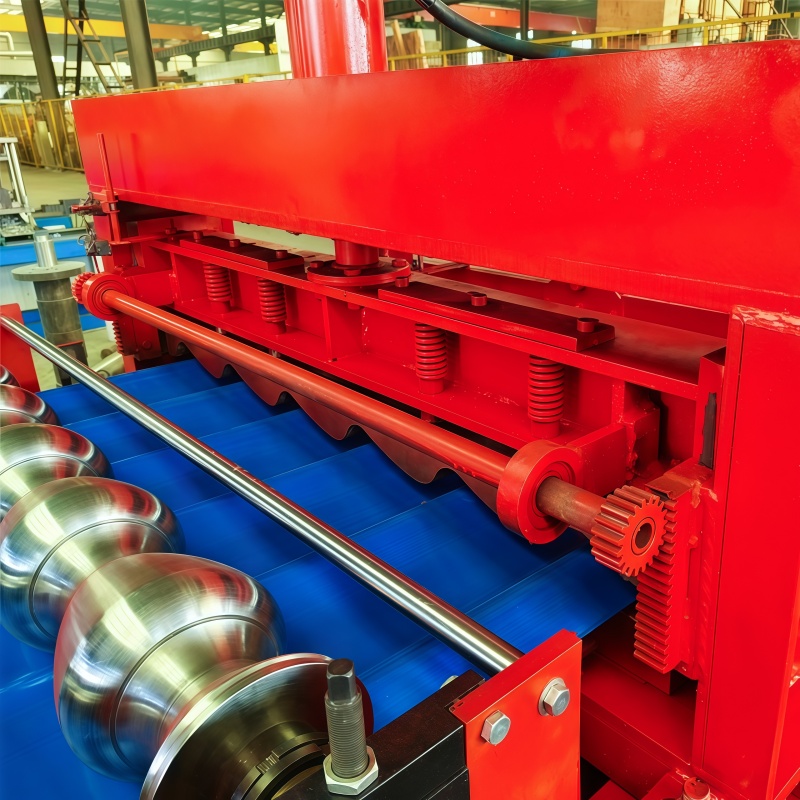

5.Press device:Used for making steps，the press performs a final shaping on the formed ridge tiles

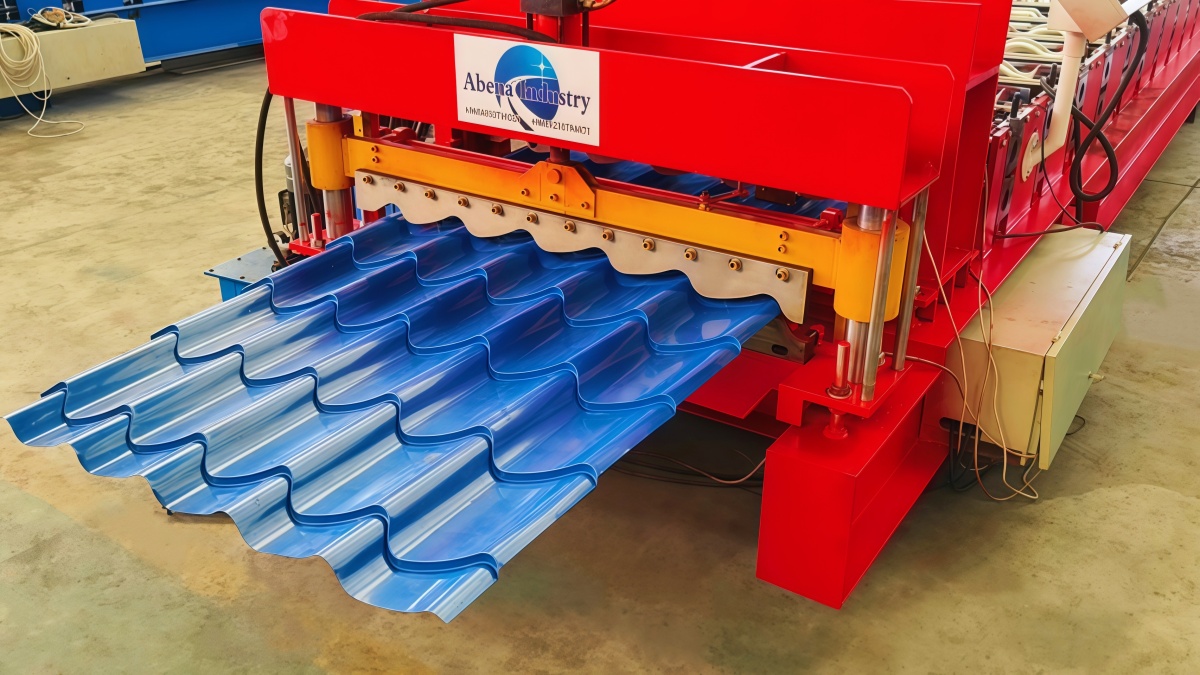

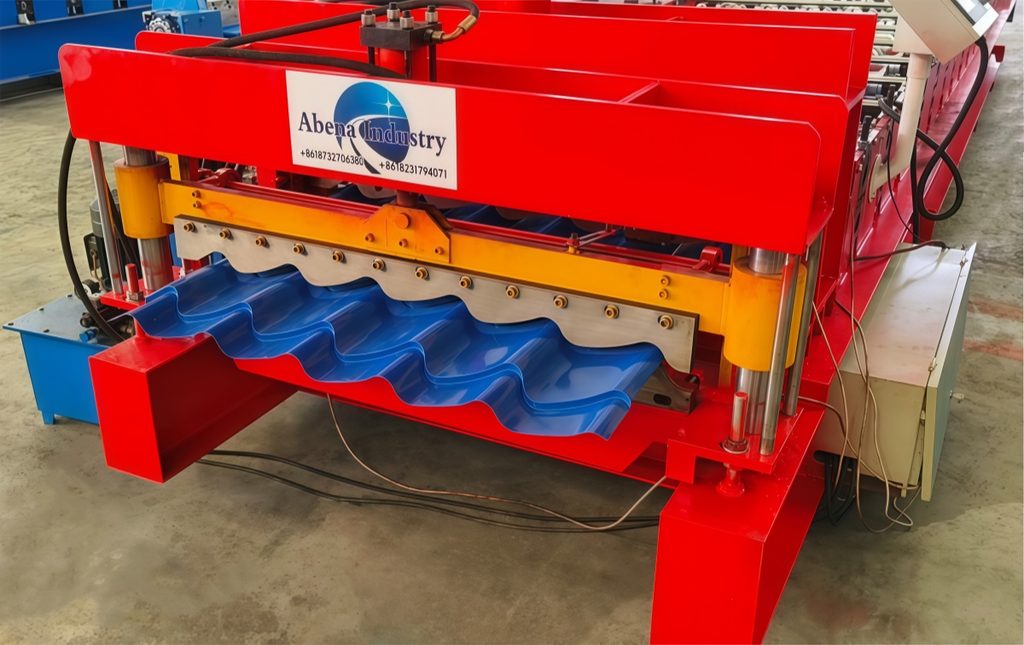

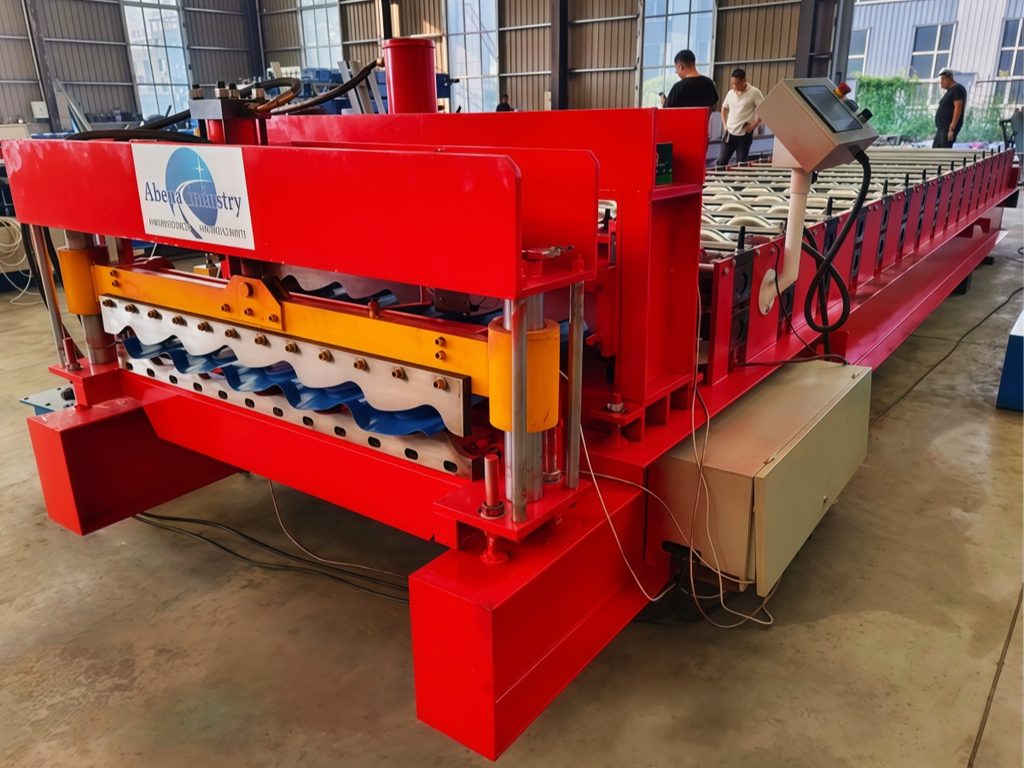

6.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment

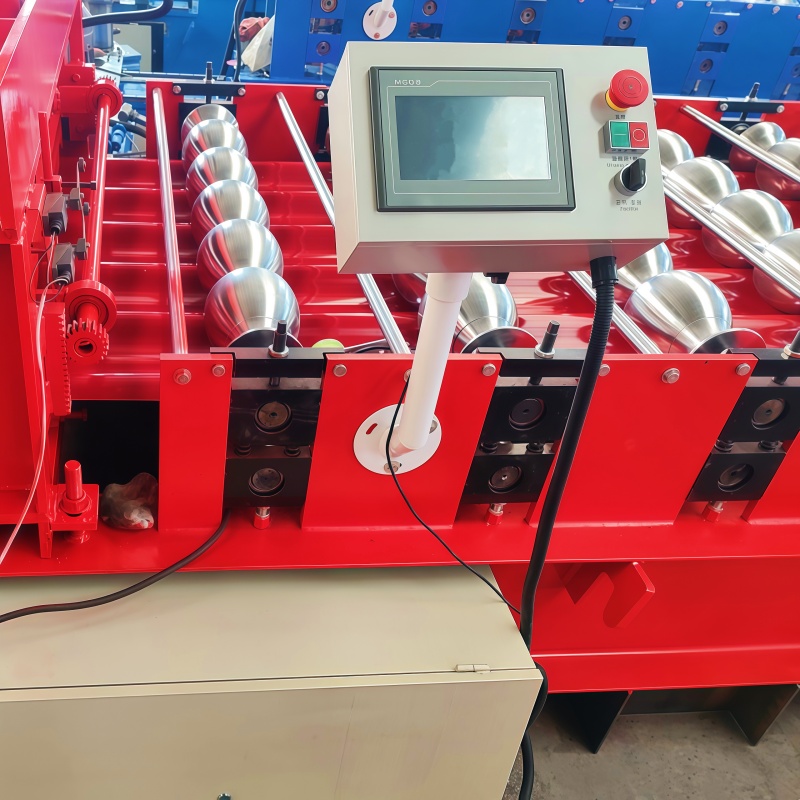

7.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily

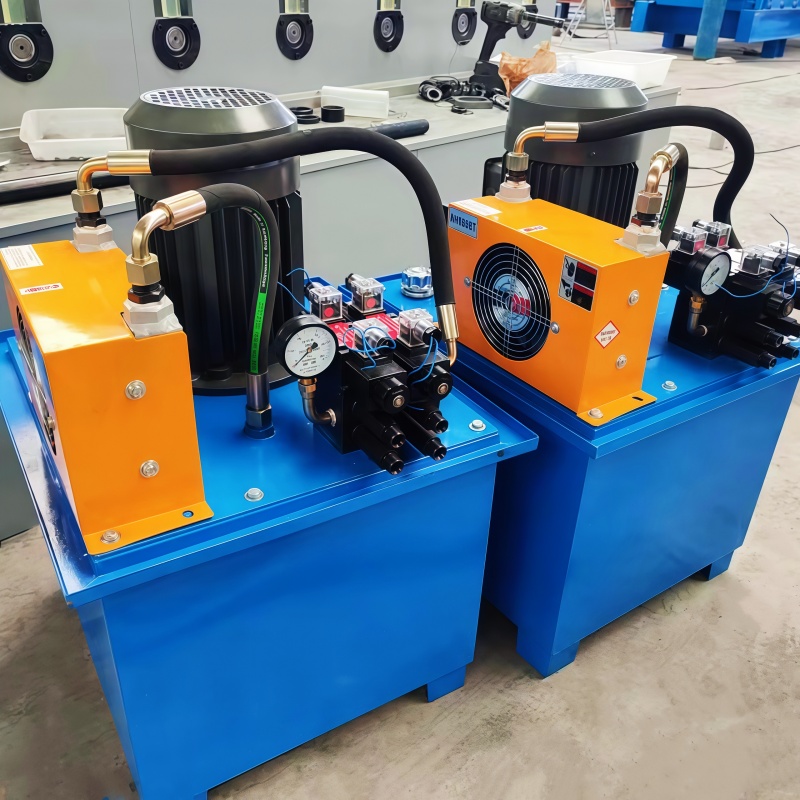

8.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.
Below is product customization information for reference.
