Product Introduction

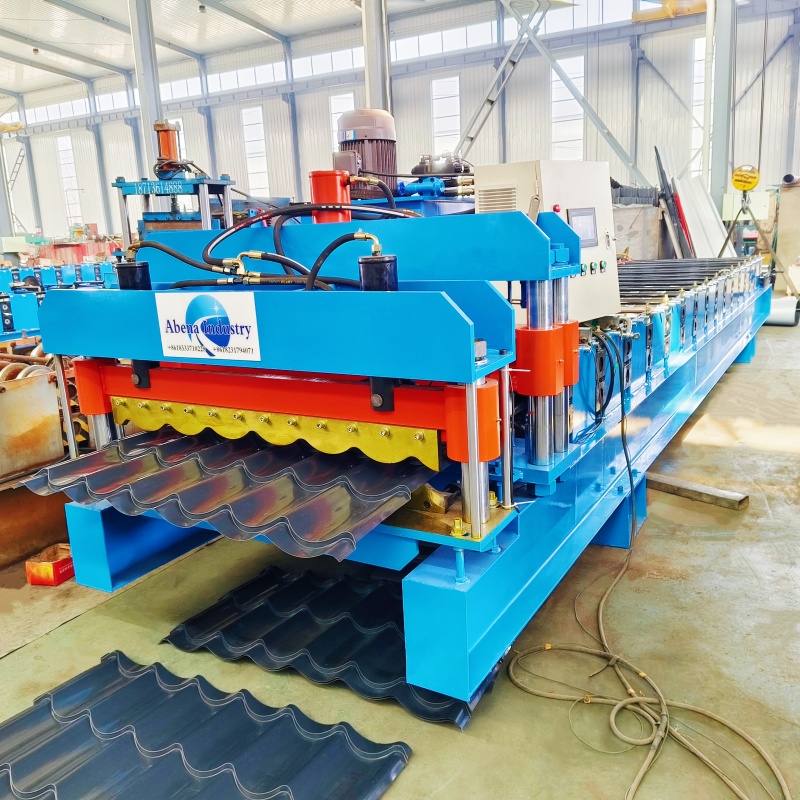

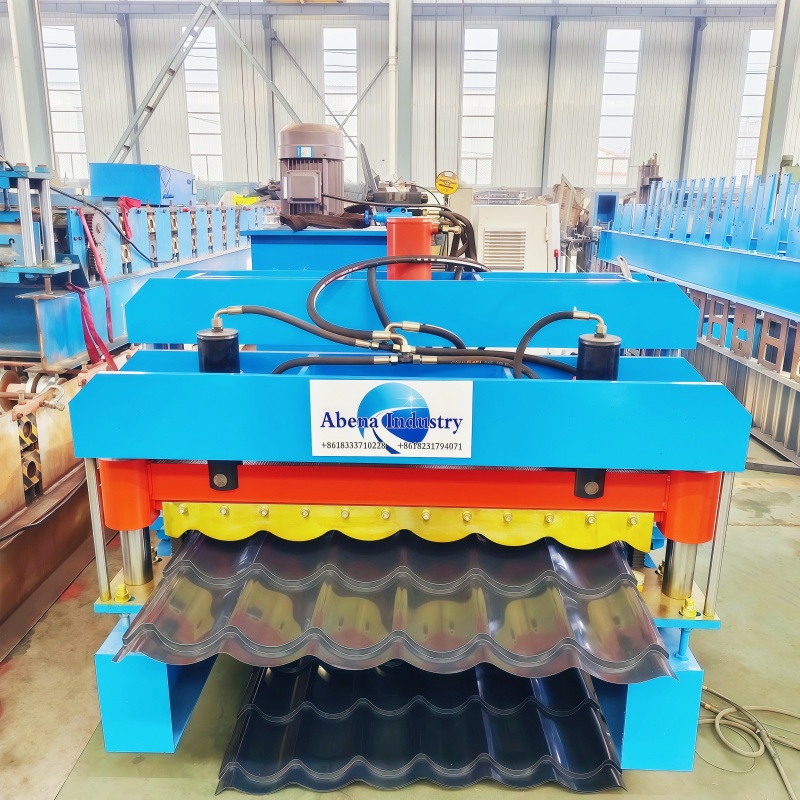

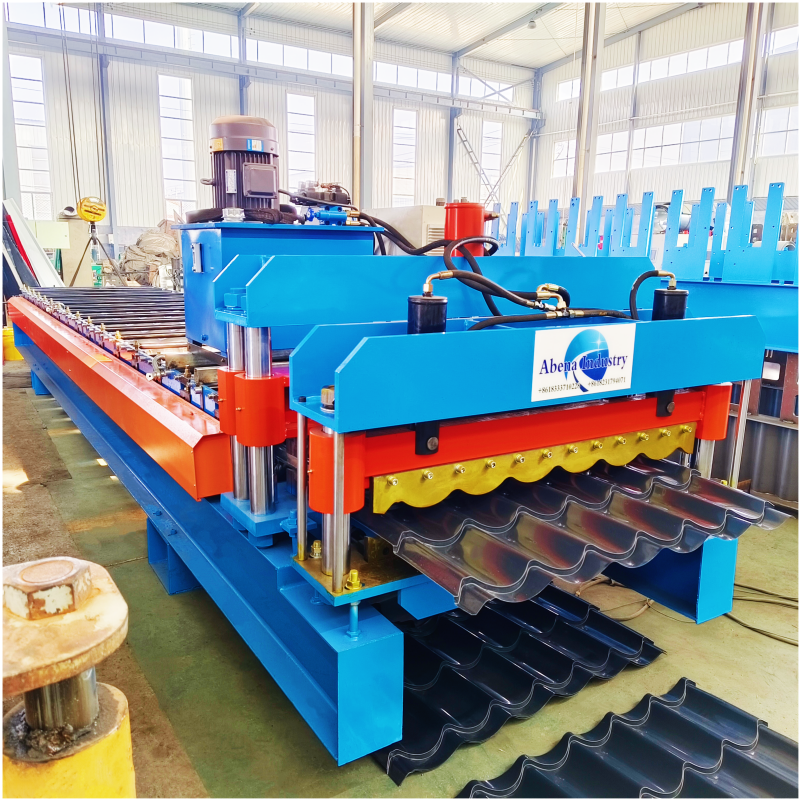

The Automatic Step Tile Roll Forming Machine is engineered to produce high-end modular metal roof tiles with classic stepped architectural aesthetics. By integrating multi-pass continuous cold roll forming with a heavy-duty hydraulic step-stamping press, this line converts pre-painted steel (PPGI), galvalume, and aluminum coils into durable, lightweight, and weather-resistant roofing panels.
Key Highlights
-

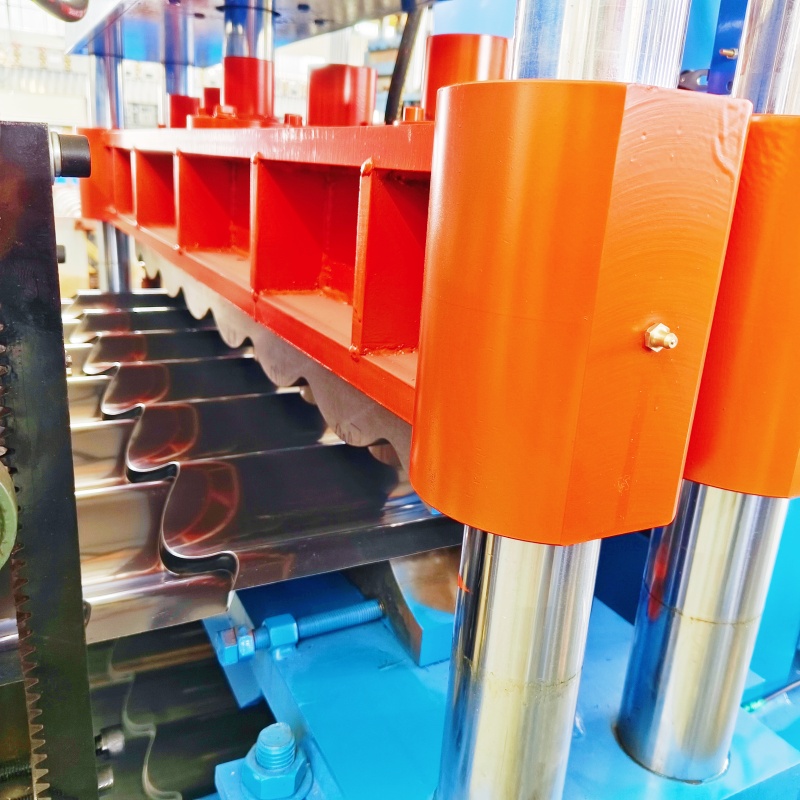

Guided Four-Pillar Hydraulic Pressing: Ensures uniform, crisp step depths (15–28mm) across the profile with excellent dimensional consistency and tight lap joints.
-
Scratch-Free Rollers: CNC-machined 45# forged steel rollers with 0.05mm hard chrome plating prevent surface paint damage on color-coated coils.
-
3D Contour-Matched Shear Blade: Heat-treated Cr12MoV cutting die contoured to the exact tile profile for clean, burr-free post-cutting without material waste.
-
PLC Precision Automation: Smart touchscreen (Siemens,Delta etc) allows quick adjustments for step distance, sheet length, and batch counting with optical encoder tracking.
Production Workflow
Decoiler ➡️ Feeding table ➡️ Roll Forming ➡️ Pressing device ➡️ Hydraulic Cutting ➡️ Output Racks
Detailed description

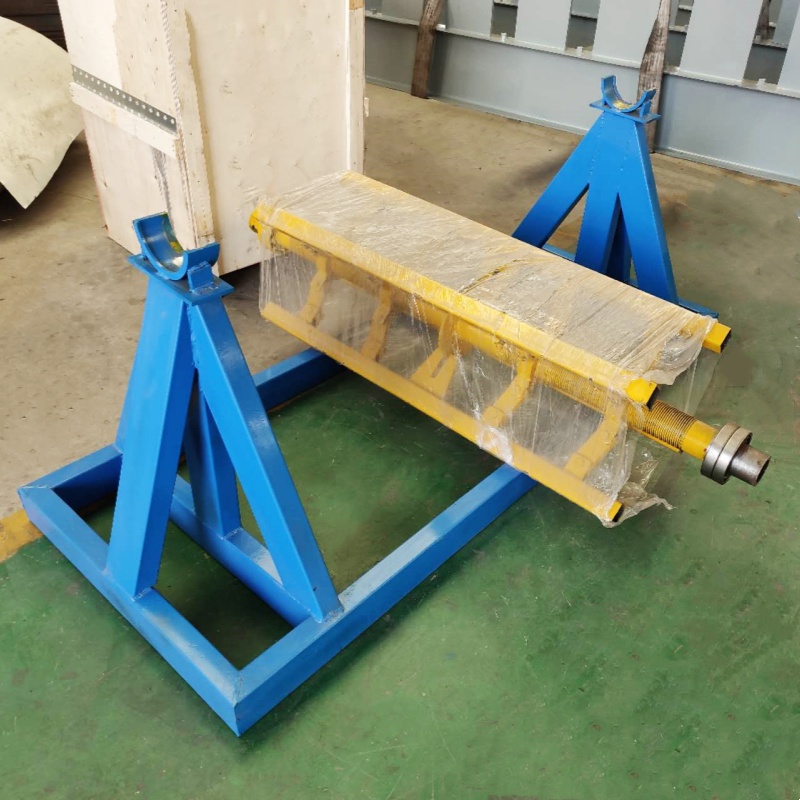

1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

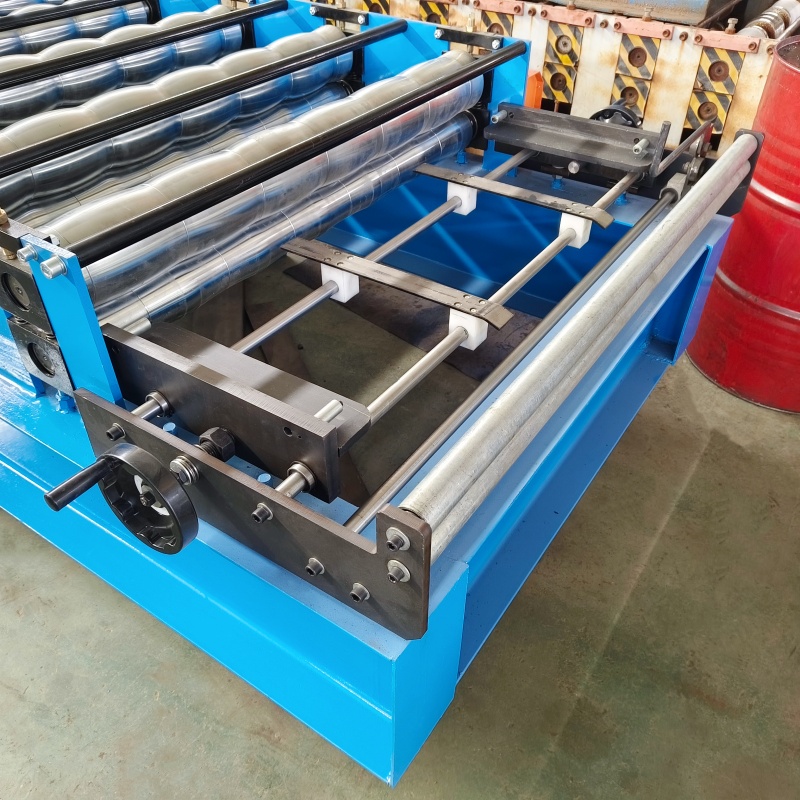

2.Sheet guide device:Leveling machine ensures the flatness of the raw material

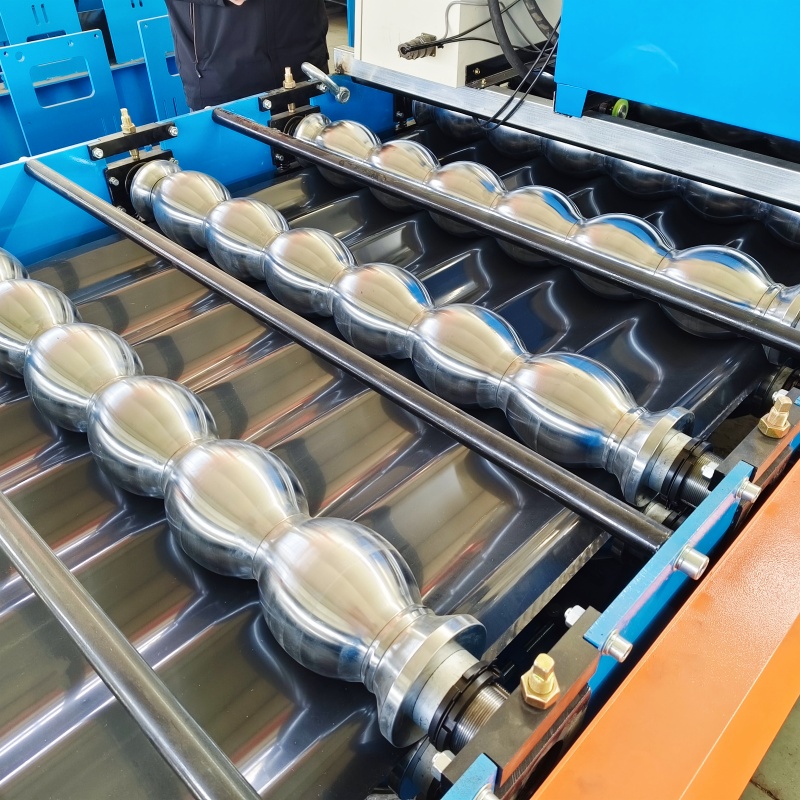

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
4.Main motor:The main motor provides power to the forming rollers through chains or gears

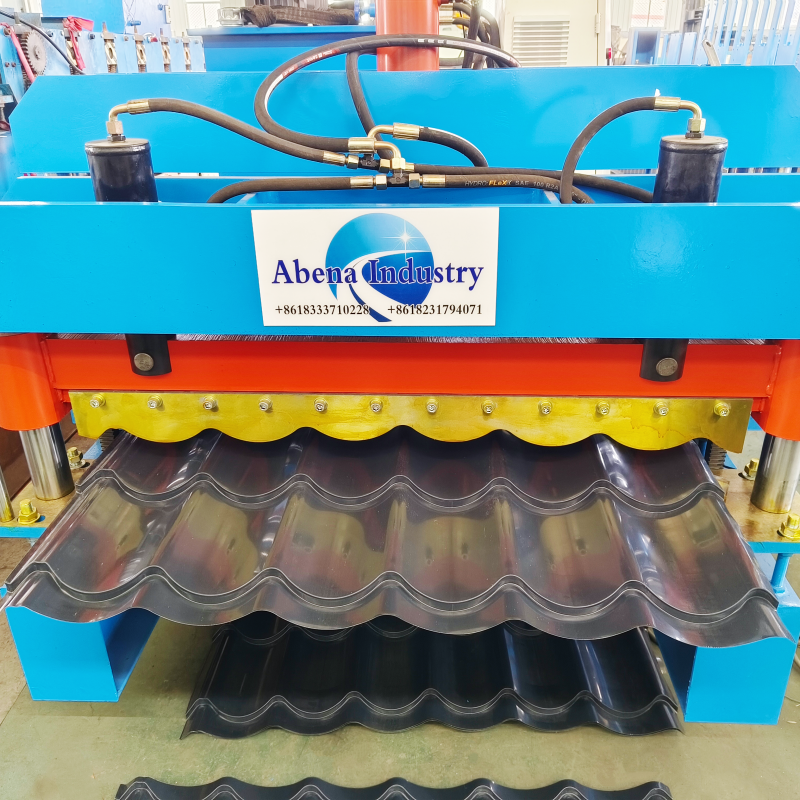

5.Press device:Used for making steps，the press performs a final shaping on the formed ridge tiles
6.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment

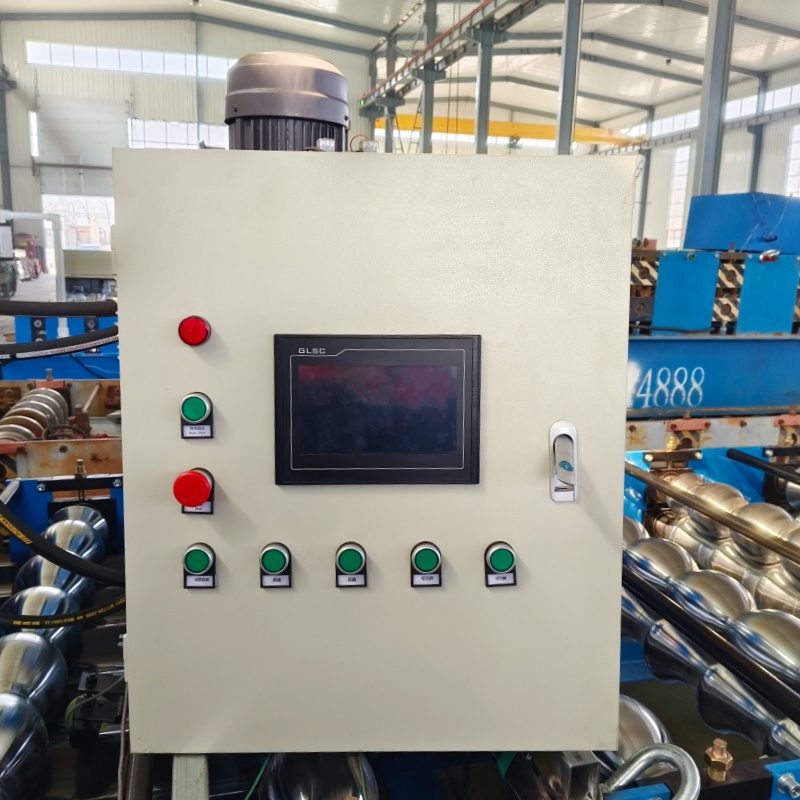

7.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
8.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.
Below is product customization information for reference.
