Product Overview

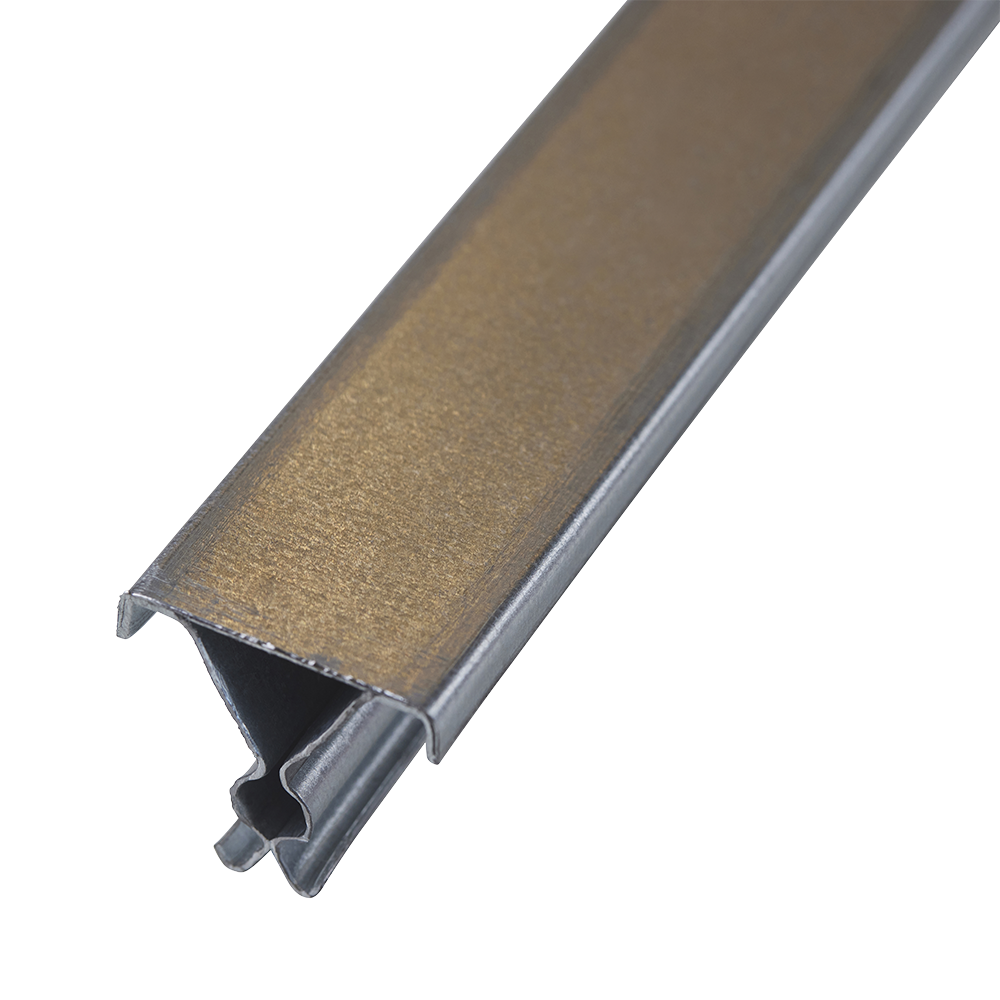

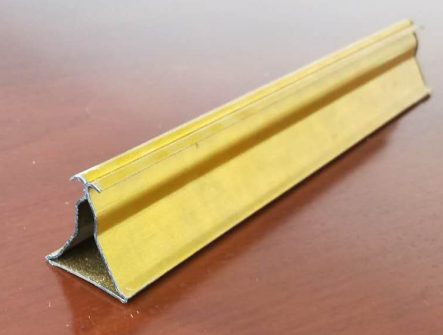

This spring tee roll forming machine is specially engineered for high‑volume production of ceiling spring tee profiles (triangle keel / V‑type furring channel), which are widely used for concealed metal ceiling grid systems. Adopting continuous cold roll forming technology, the machine automatically completes feeding, roll forming, sizing, flying cutting and finished‑product output, delivering dimension‑accurate ceiling keels with stable performance for ceiling component manufacturers.
Main Features
- Fully‑automatic production workflow Equipped with PLC touch‑screen control cabinet, operators can set target length and production quantity directly on HMI. The machine realizes automatic feeding, profile shaping, tracking‑flying cut‑off and discharging, minimizing manual intervention and improving production efficiency.
- High‑precision roll forming system High‑strength alloy forming rollers ensure precise V‑section profile shaping. The finished spring tee maintains uniform section dimension, flat surface and stable mechanical property, perfectly matching installation requirements for metal ceiling panels.
- Flying saw cutting system Flying‑saw non‑stop cutting realizes cutting while material running, no need to stop the line. It guarantees smooth cut‑end, high cutting accuracy and continuous running for high‑speed mass production.
- Solid machine structure & long service life Heavy‑duty welded machine frame, hardened forming rollers and reliable transmission components reduce failure rate, suitable for long‑time continuous industrial operation.
Production Workflow
Decoiler ➡️ Feeding table ➡️ Roll Forming ➡️ Hydraulic Cutting ➡️ Output Rack
Detailed description
1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available
2.Sheet guide device:Leveling machine ensures the flatness of the raw material

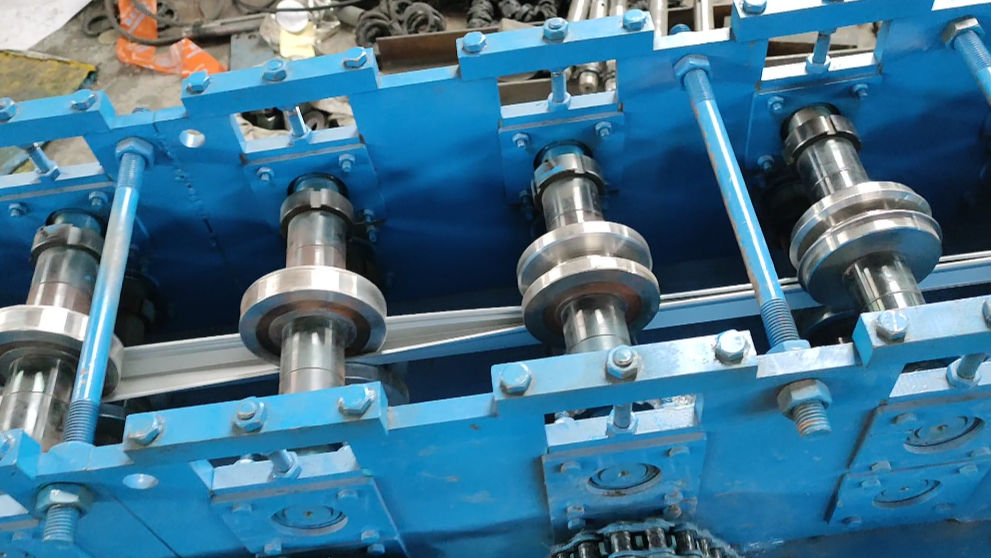

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
4.Main motor:The main motor provides power to the forming rollers through chains or gears

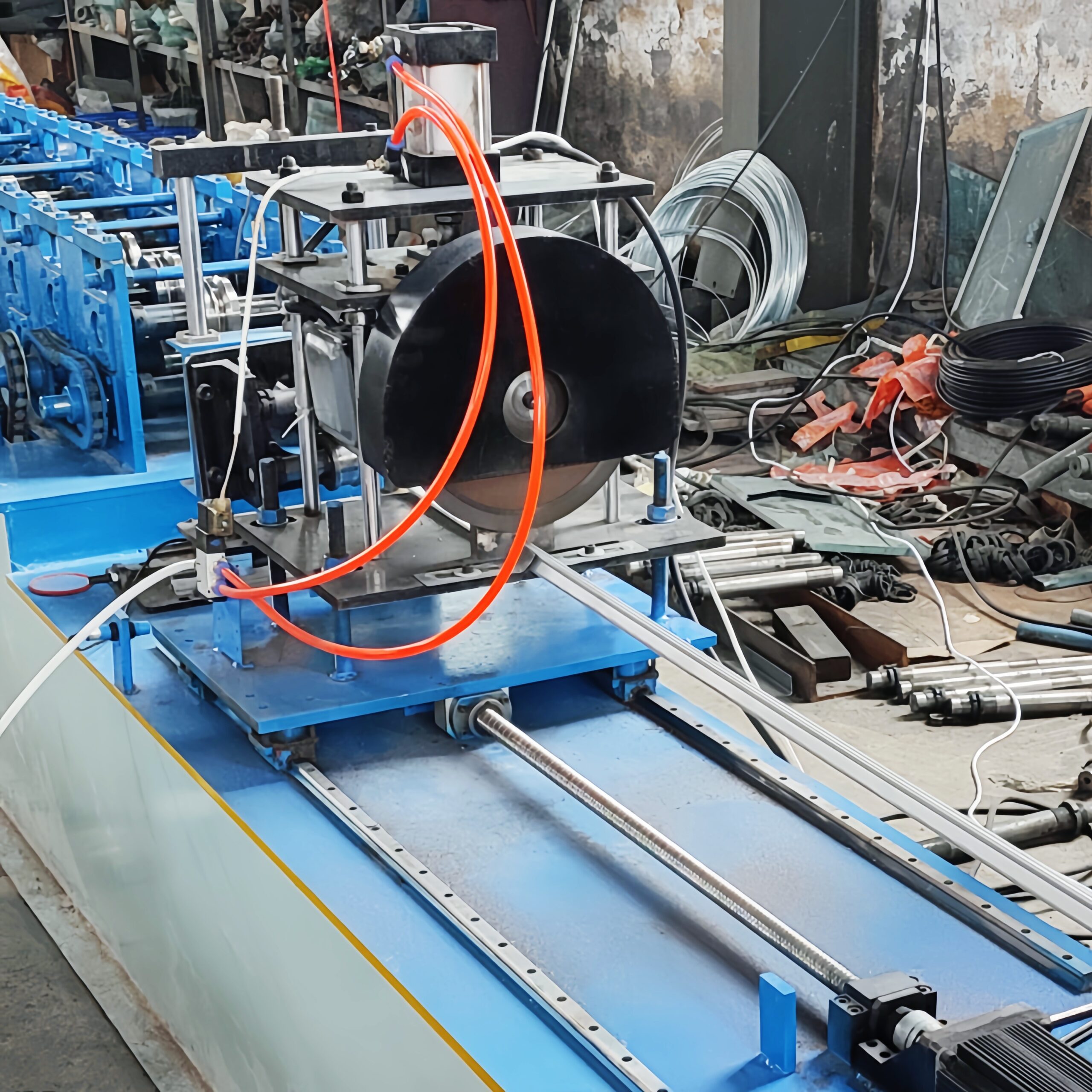

5.Fly saw cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available

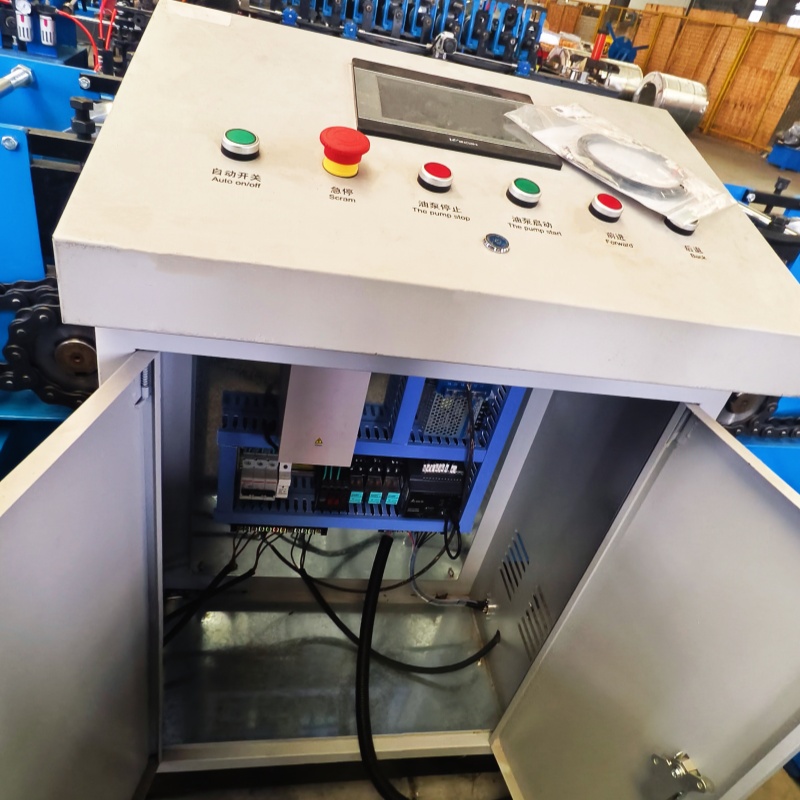

6.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily

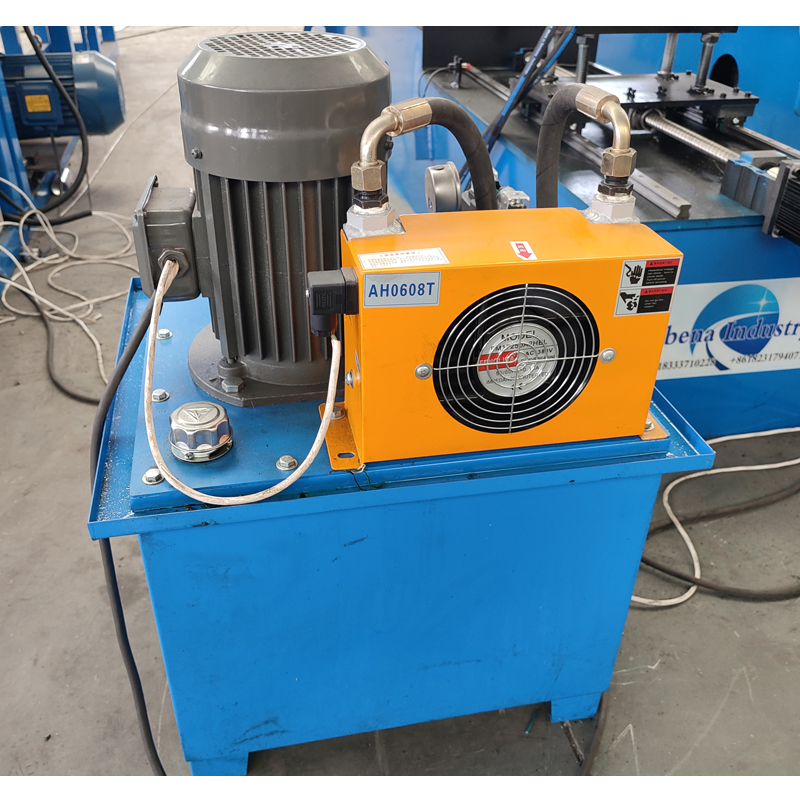

7.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.

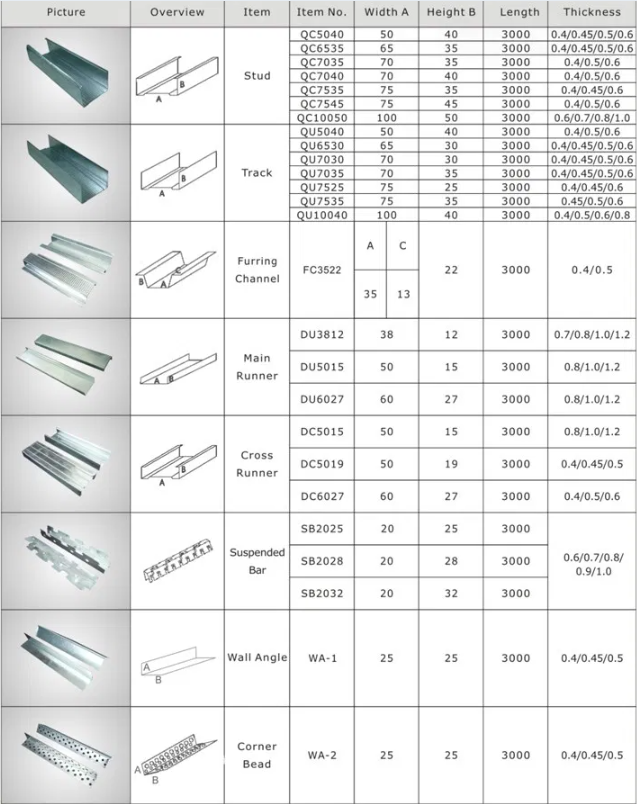

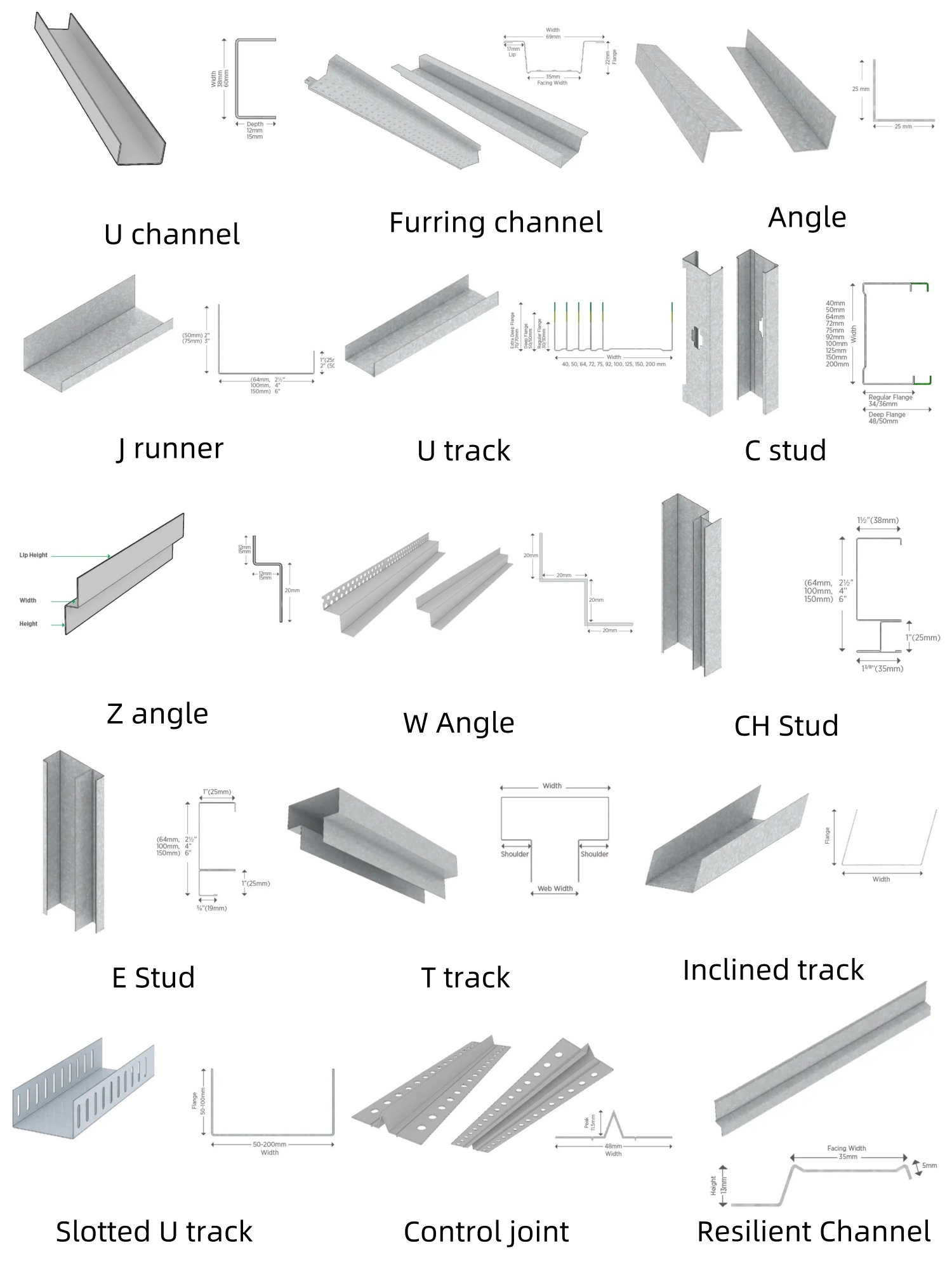

Below is product customization information for reference.
