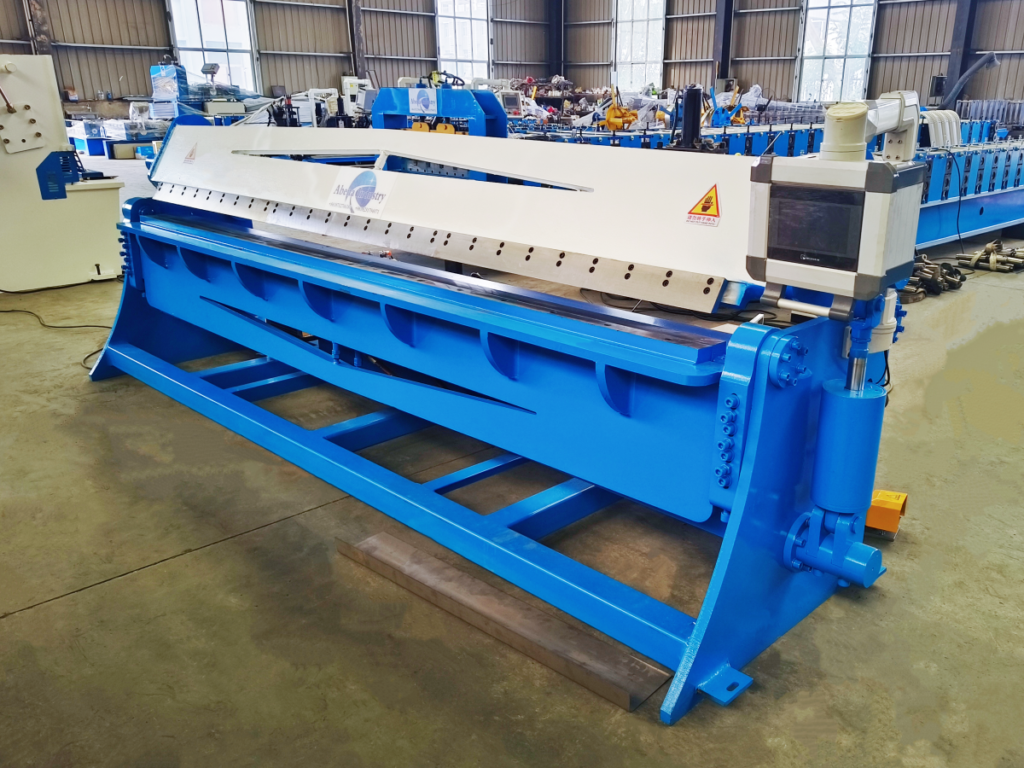

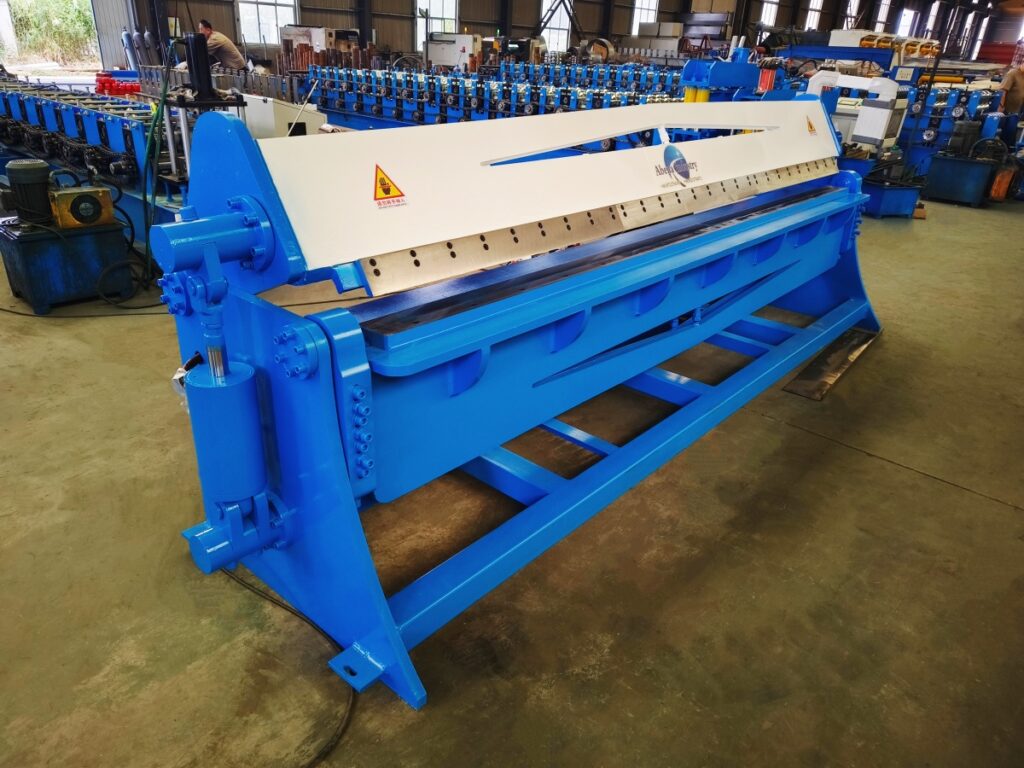

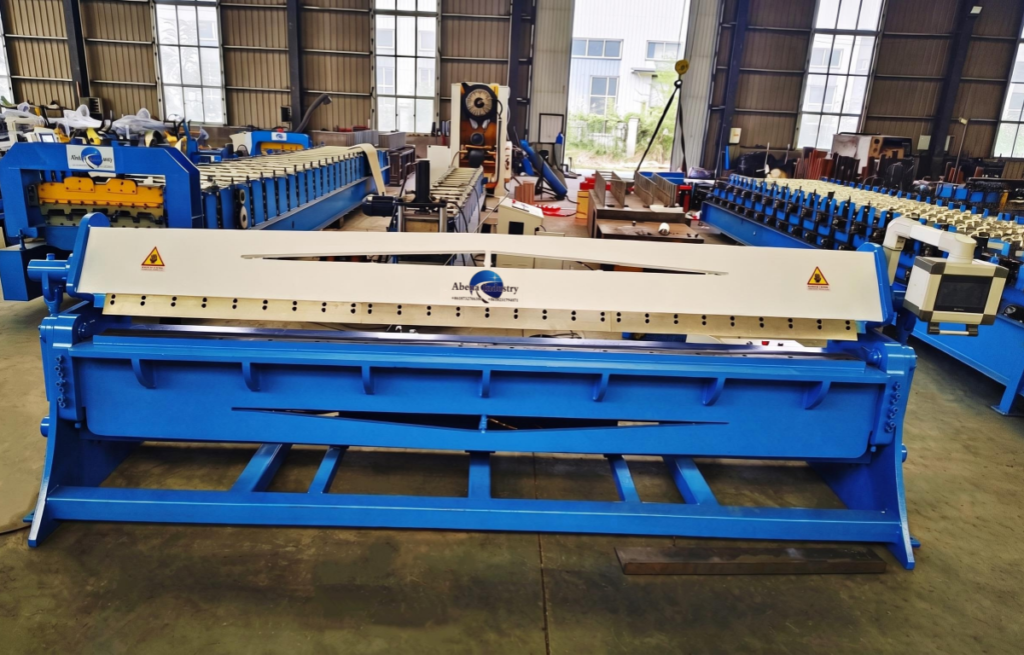

This 2500mm hydraulic sheet metal folding machine (pan folder) is a heavy-duty hydraulic powered sheet metal forming equipment, widely used for bending and folding flat metal sheets into box, pan, duct profiles. Adopting full welded steel frame with vibration aging treatment, the machine delivers stable structure and minimal long-term deformation, ideal for HVAC ductwork, metal cabinet, roofing panel, door frame and general sheet metal fabrication workshops.
Unlike conventional press brakes that stamp sheet by upper and lower dies, this hydraulic pan folder lifts the folding beam to bend the workpiece, producing clean, sharp fold lines without scratching coated metal surfaces such as PPGI, GI, aluminum and stainless steel sheets. It is the preferred solution for thin gauge sheet metal box & pan fabrication .
Core Features

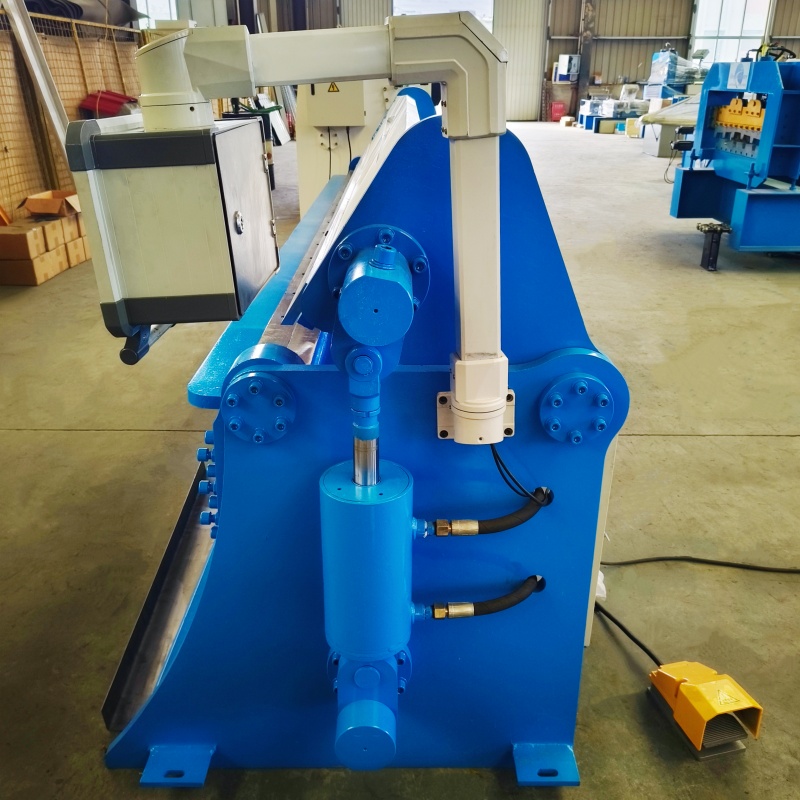

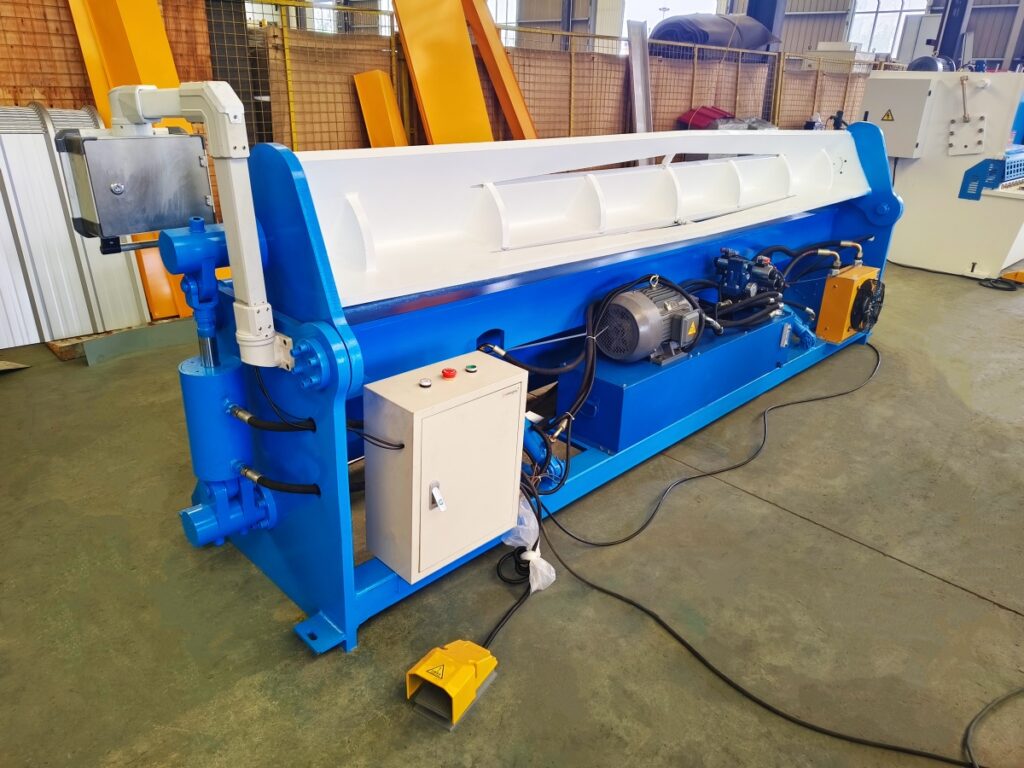

- Hydraulic Driving System Dual hydraulic cylinders provide stable folding force, consistent bending pressure along full 2500mm working length. Hydraulic system runs smoothly with low noise, better power output than pneumatic folding machines, capable of handling thicker metal sheets.
- CNC Programmable Control Equipped with digital touchscreen controller. Operators can set bending angle, back gauge position and folding sequence. The back gauge automatically positions sheet material, reduces manual measuring error and improves repeat bending precision.
- Robust Welded Frame Whole machine body is welded by thick steel plates and processed by vibration aging to eliminate internal stress. Long term operation maintains high rigidity, reduces frame deformation and guarantees stable bending accuracy year after year.

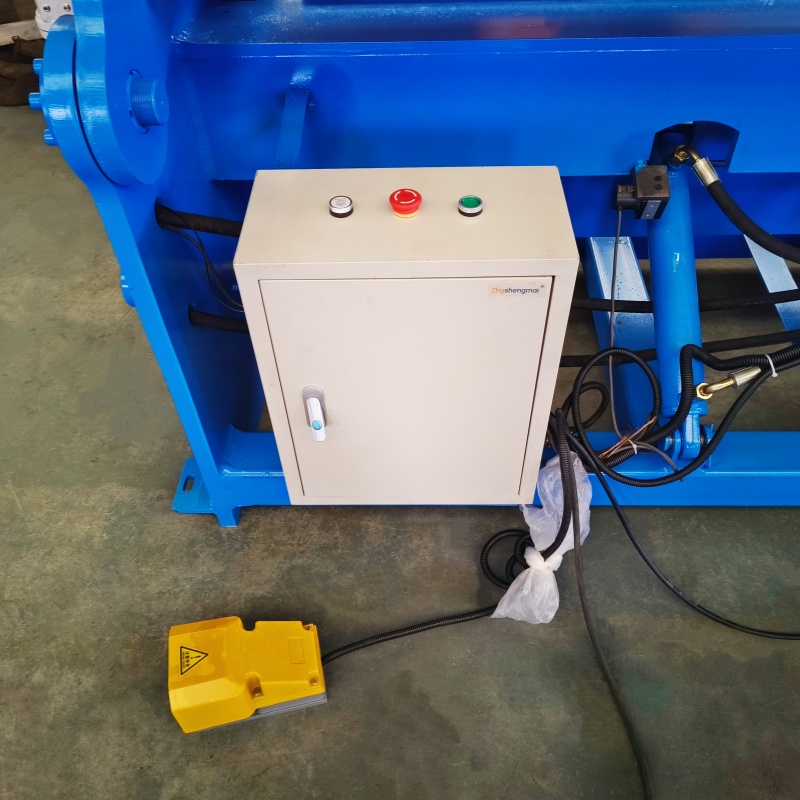

- User Friendly & Safe Operation Separate electrical cabinet with start / stop / emergency stop buttons. Yellow foot pedal controller enables hands-free operation. Emergency stop function instantly halts machine movement for operator safety, meeting CE safety standards for metalworking machinery.

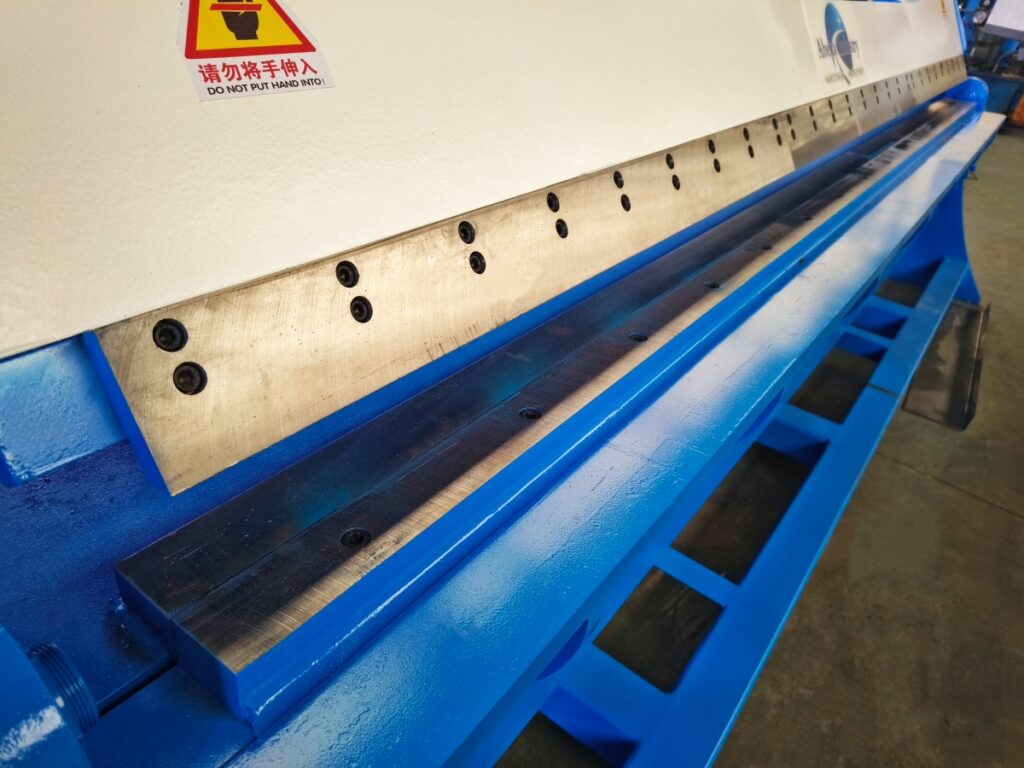

- Surface Protection for Coated Sheets The folding beam design avoids hard die stamping on sheet surface. It keeps PPGI, painted and galvanized sheet coating intact, no scratch marks on finished panels, which is critical for roofing and decorative metal products.
Application Industries
- HVAC rectangular duct and TDF flange fabrication
- Metal roofing, wall cladding, color steel panel production
- Electrical cabinets, enclosures, control box manufacturing
- Stainless steel kitchen equipment, metal furniture
- Door frames, window profiles, metal trays and pans
- General custom sheet metal fabrication shops
We provide customized services for client designs
