Product Introduction

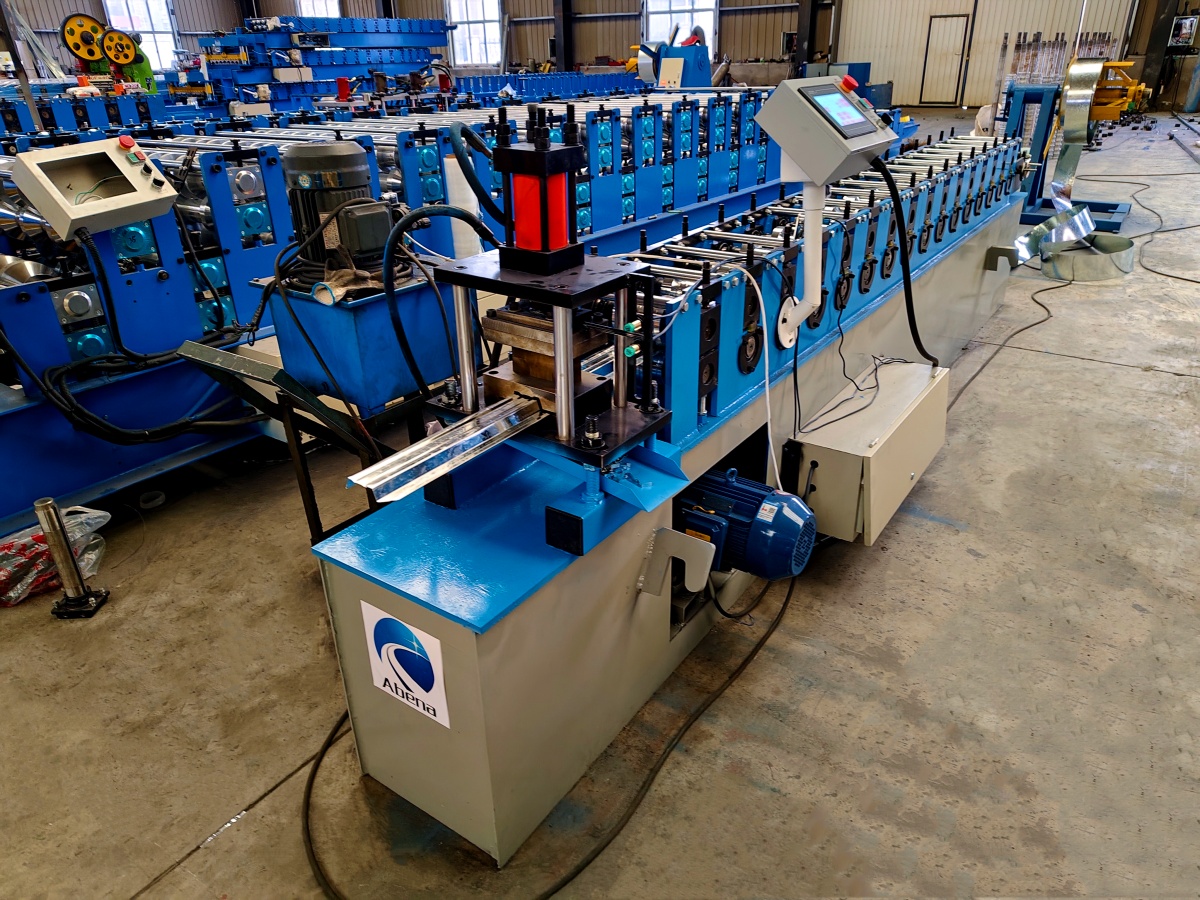

The Dura Fence Making Machine is a high‑efficiency cold roll‑forming equipment specially designed for manufacturing durable metal fence profiles. It adopts integrated PLC touch‑screen control, realizing fully‑automatic production from coil feeding, continuous roll forming to final fixed‑length cutting.
Key Features
- Stable Forming Performance: Multi‑stage forming rollers ensure precise profile dimensions and smooth surface finish, compatible with galvanized steel, colored steel and other metal coils.
- Integrated Hydraulic Cutting: Built‑in hydraulic station completes fixed‑length cutting in one process, no secondary processing required.
- User‑friendly PLC Control System: Touch‑screen operation, adjustable product length and production speed。
- Robust Machine Structure: Heavy‑duty frame and high‑quality roller assemblies deliver long‑term stable operation with low maintenance cost.

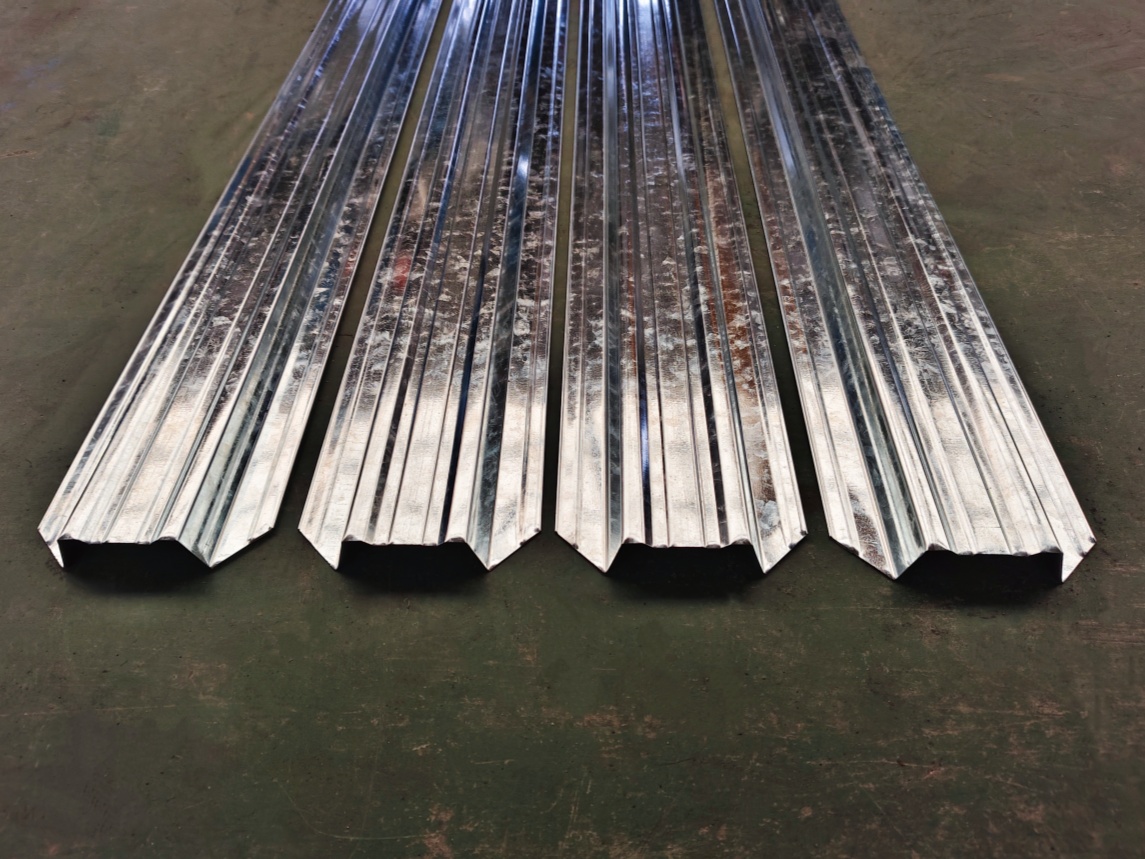

- Wide Application: Produces various dura fence panels and decorative fence profiles for residential, commercial and industrial fencing projects.
Production Workflow
Decoiler ➡️ Feeding device ➡️ Roll Forming line ➡️ Hydraulic Cutting ➡️ Output Racks
Detailed description

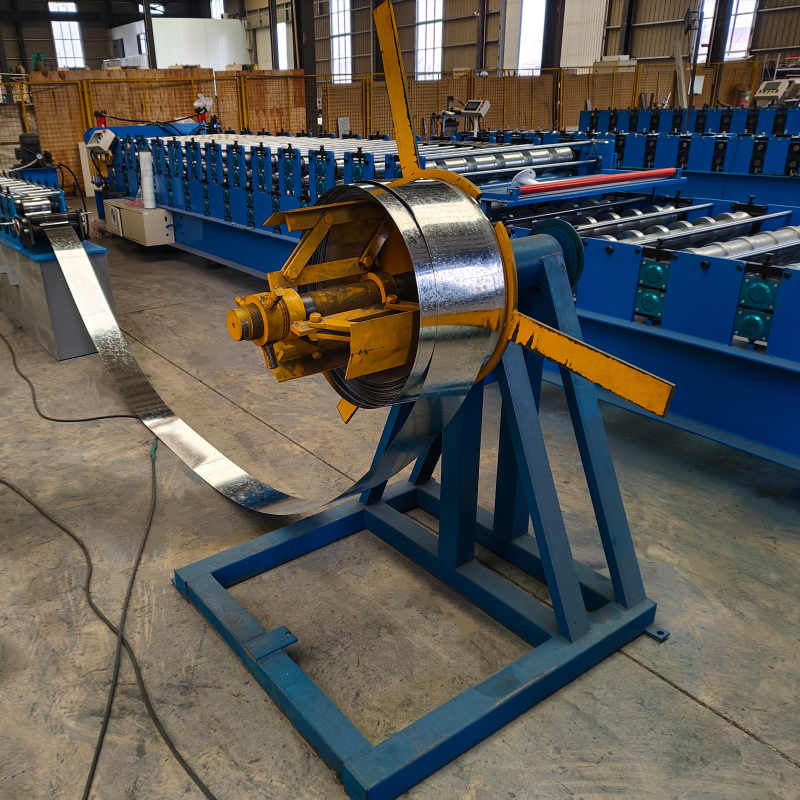

1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

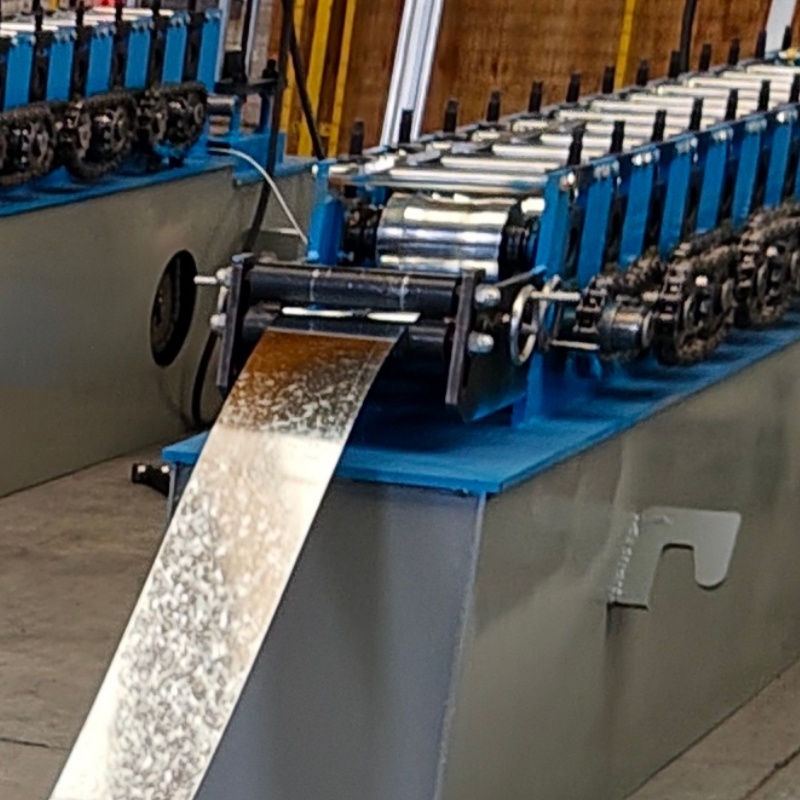

2.Sheet guide device:Leveling machine ensures the flatness of the raw material

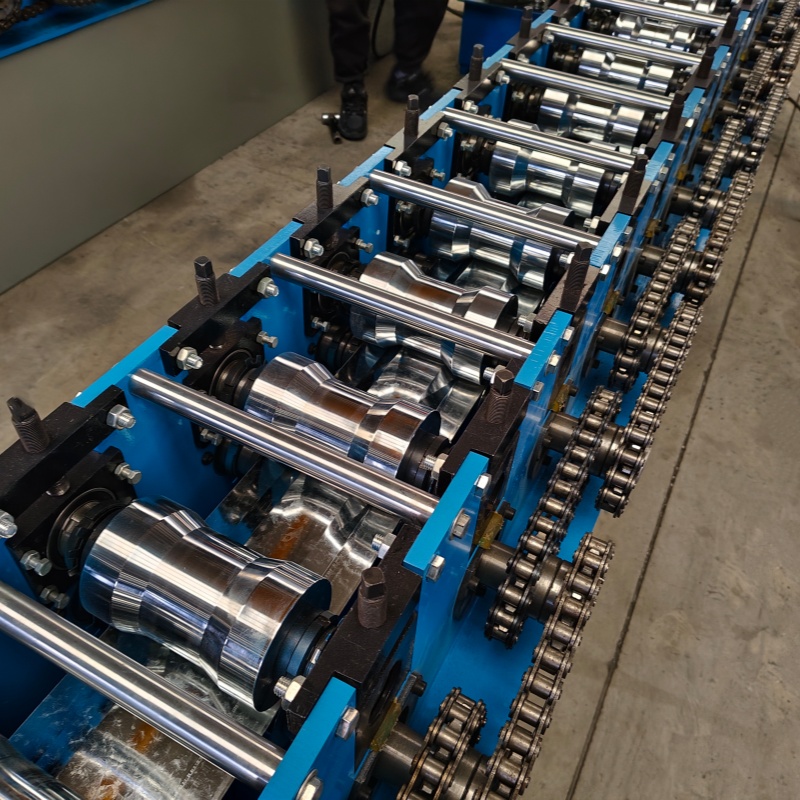

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

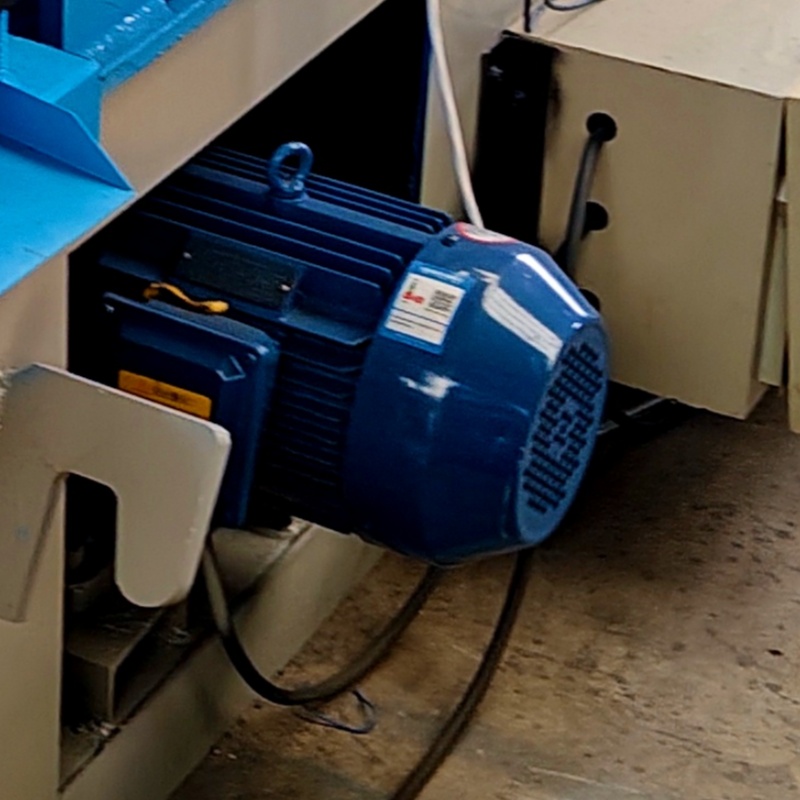

4.Main motor:The main motor provides power to the forming rollers through chains or gears

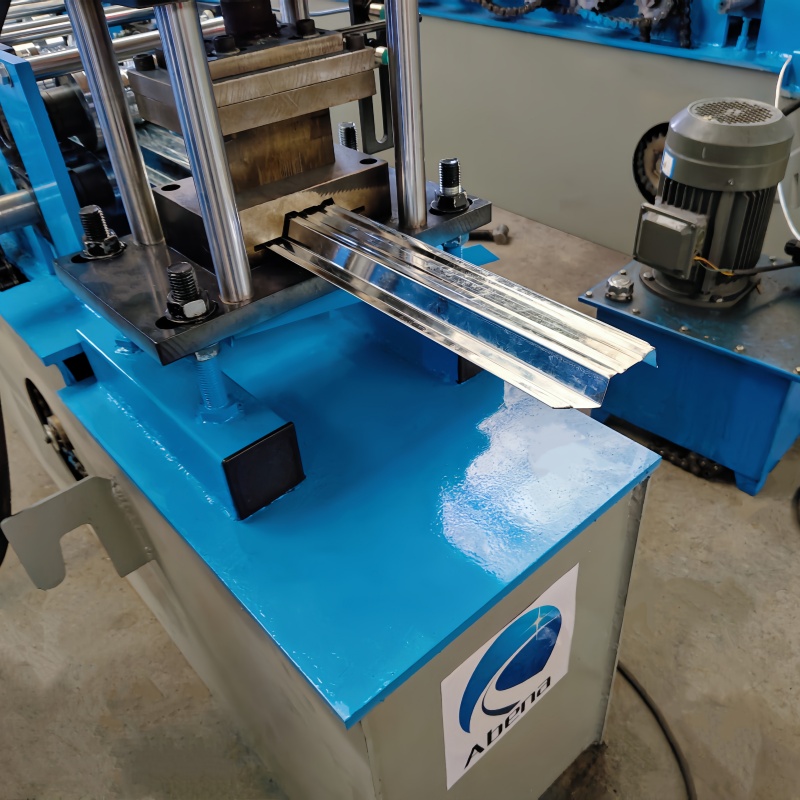

5.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment .Double shearing mode

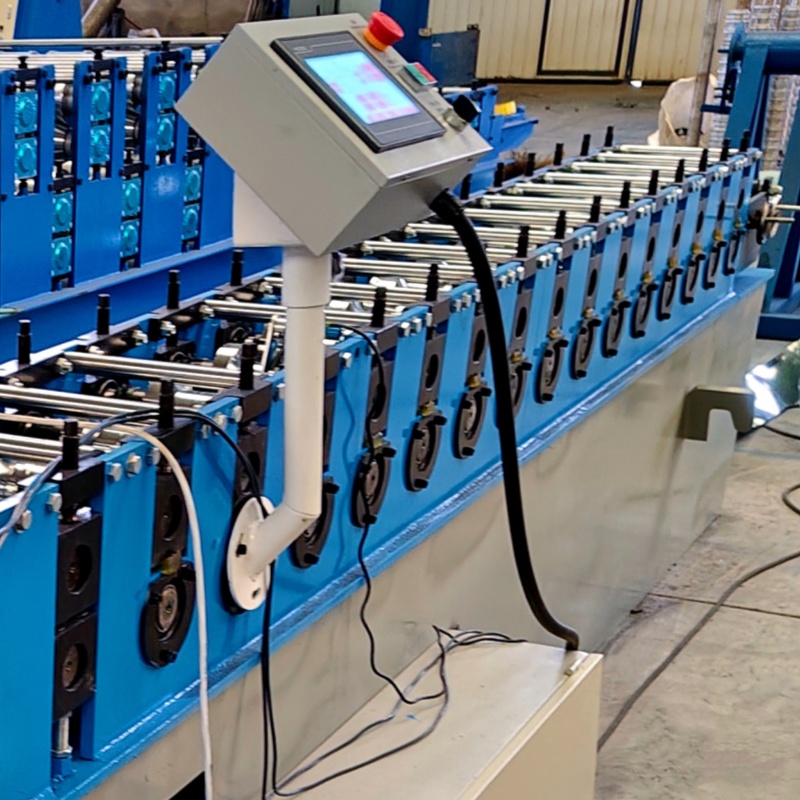

6.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
7.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.
Below is product customization information for reference
