Overview

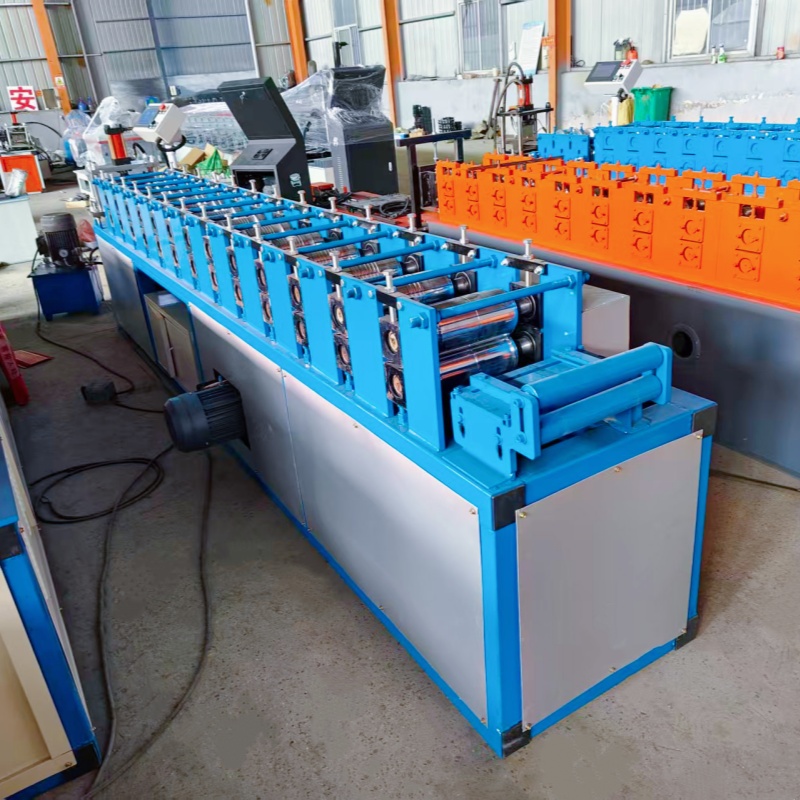

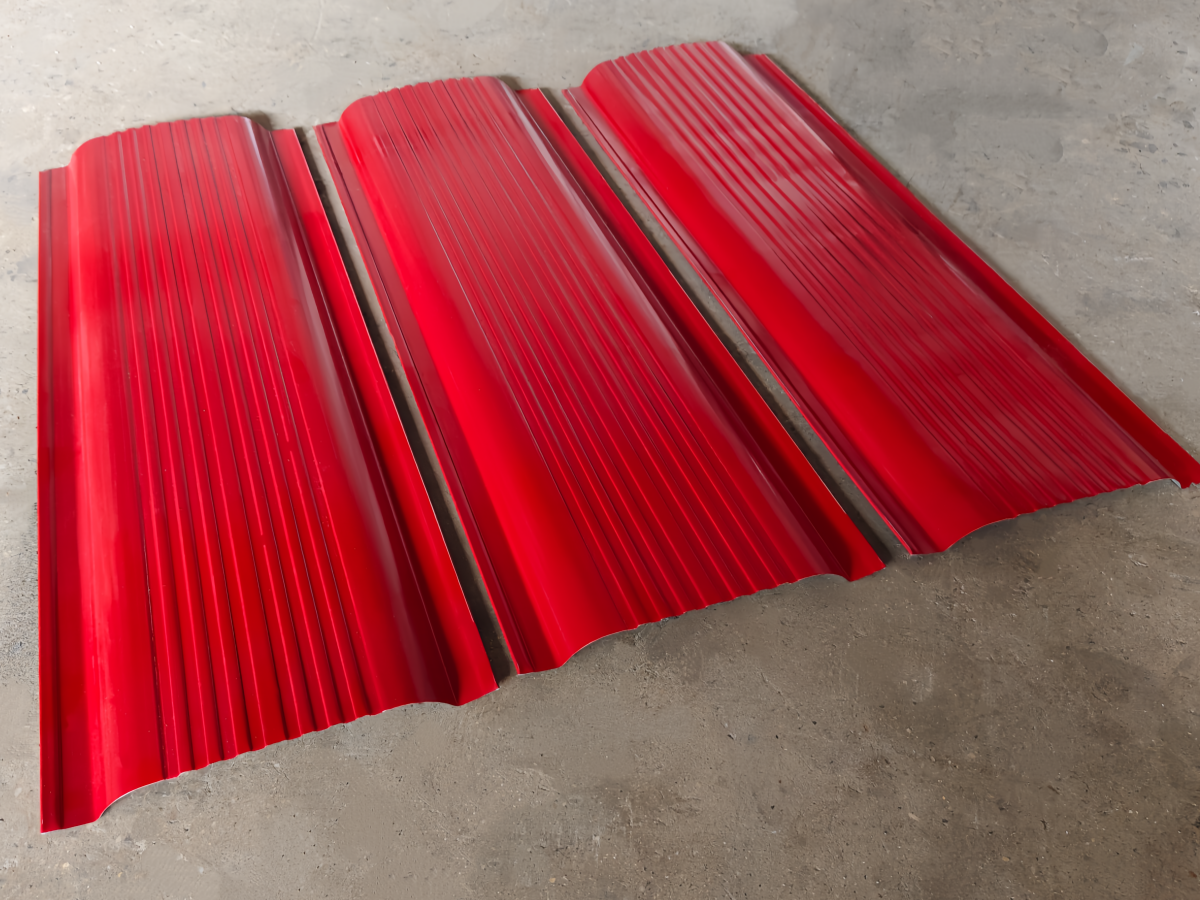

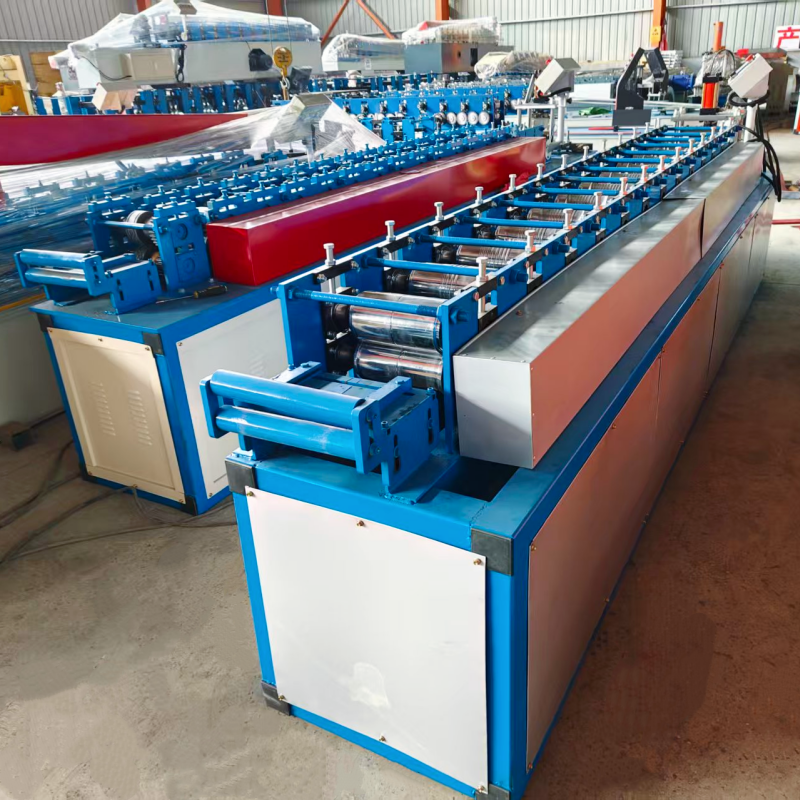

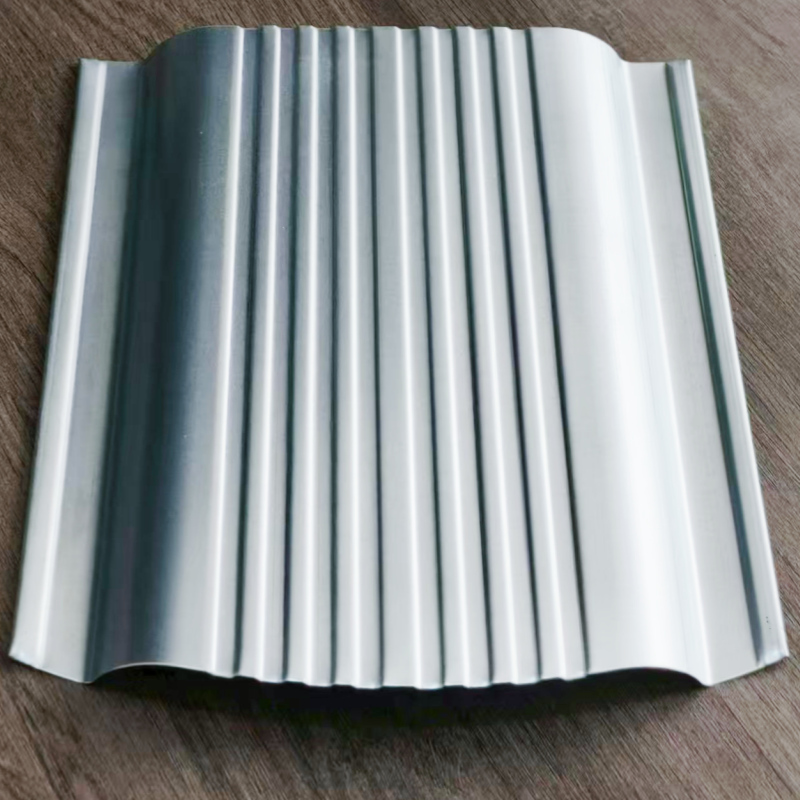

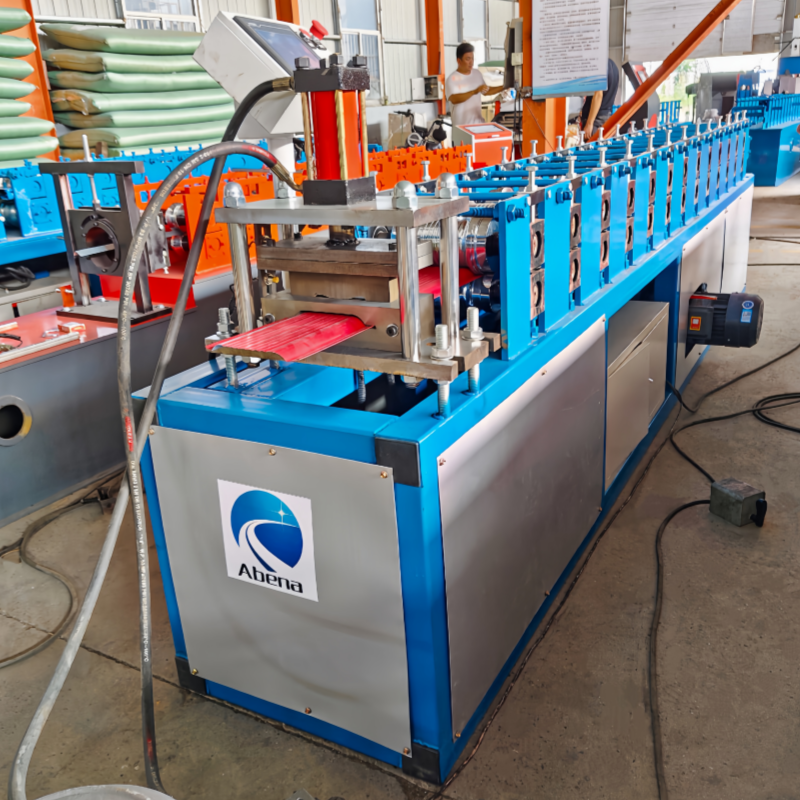

The Dura Fence Making Machine is a high‑precision continuous roll‑forming equipment specially designed for manufacturing metal dura fence panels. It adopts an integrated roll‑forming and hydraulic cutting system. It can process color‑coated steel coils into finished dura fence profiles in one‑stop production, widely applied to garden fencing, residential boundary fences, decorative metal fencing and other construction projects.
Key Features
- Stable Roll‑Forming System: Multiple sets of forming rollers deliver consistent profile shape, smooth surface and precise dimensions for finished fence panels.
- Hydraulic Flying Cutting Unit: Equipped with hydraulic cutting station, automatic length setting and flying cut‑off, to produce panels of required length. No punching function.
- PLC Intelligent Control: Touch‑screen human‑machine interface, easy to set production parameters and panel length, realizing fully‑automatic continuous production.
- High‑Efficiency Production: Continuous feeding, forming and cutting, high output with low labor cost.
- Heavy‑Duty Machine Frame: Robust welded frame structure, high rigidity, low vibration during long‑time operation, long service life.
- Wide Material Compatibility: Suitable for galvanized steel, color‑coated steel coils and aluminum coils, with adjustable material thickness range.
Production Workflow
Decoiler ➡️ Feeding table ➡️ Roll Forming ➡️ Hydraulic Cutting ➡️ Output Rack
Detailed description

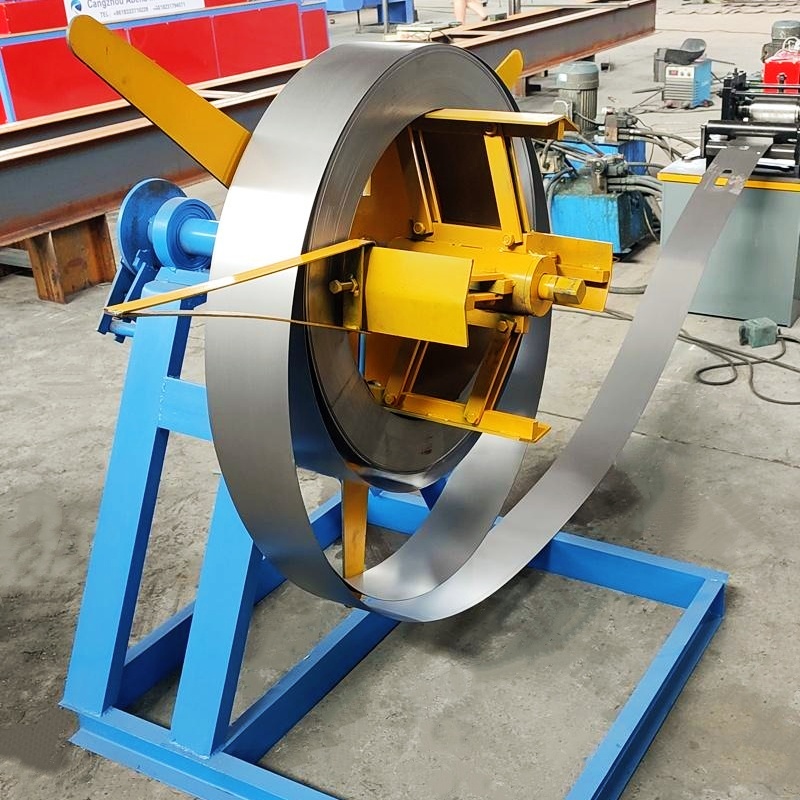

1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

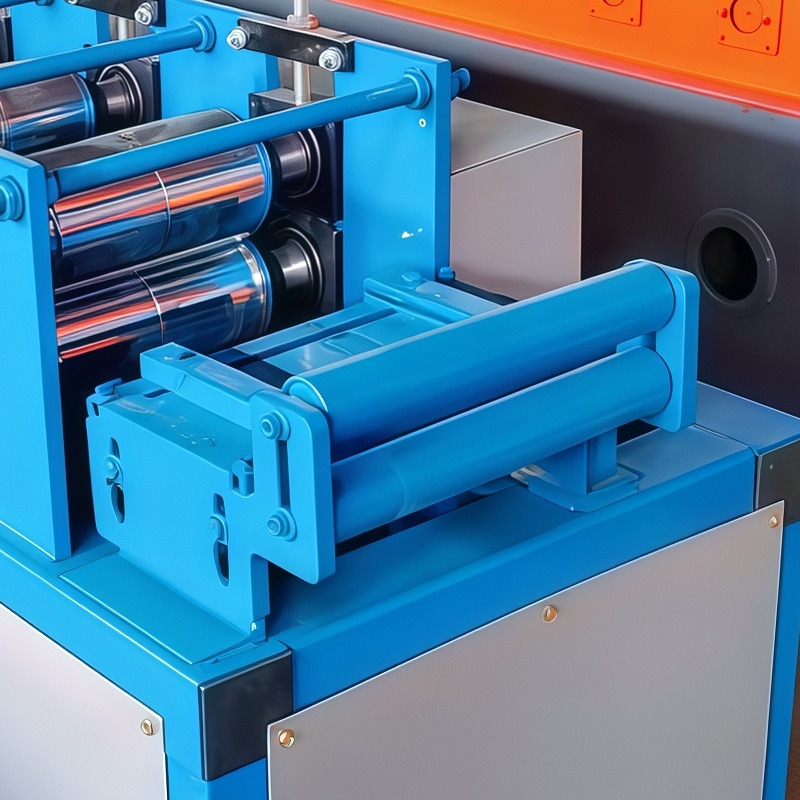

2.Sheet guide device:Leveling machine ensures the flatness of the raw material

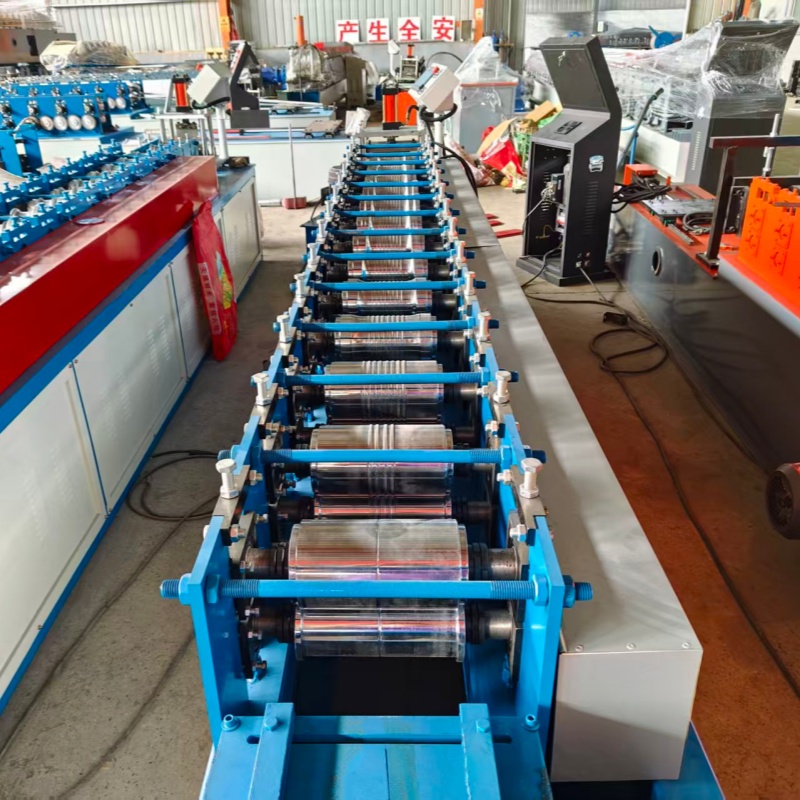

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
4.Main motor:The main motor provides power to the forming rollers through chains or gears

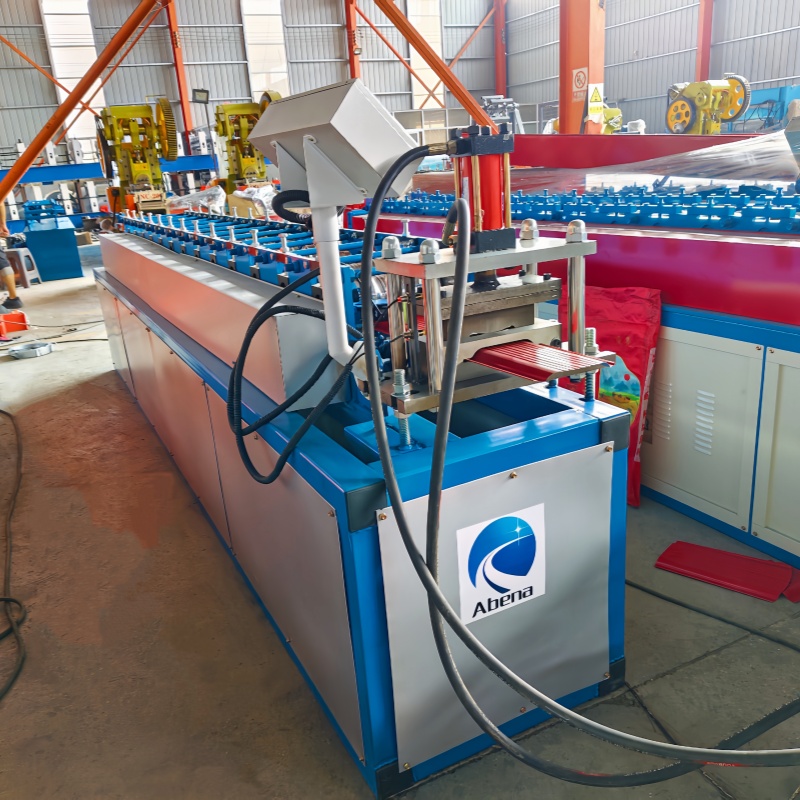

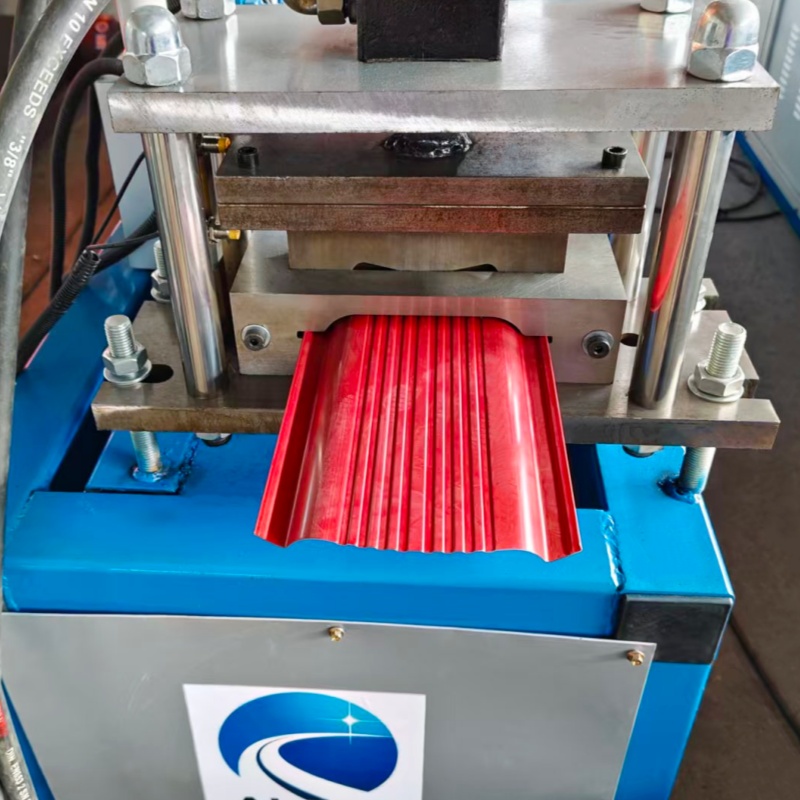

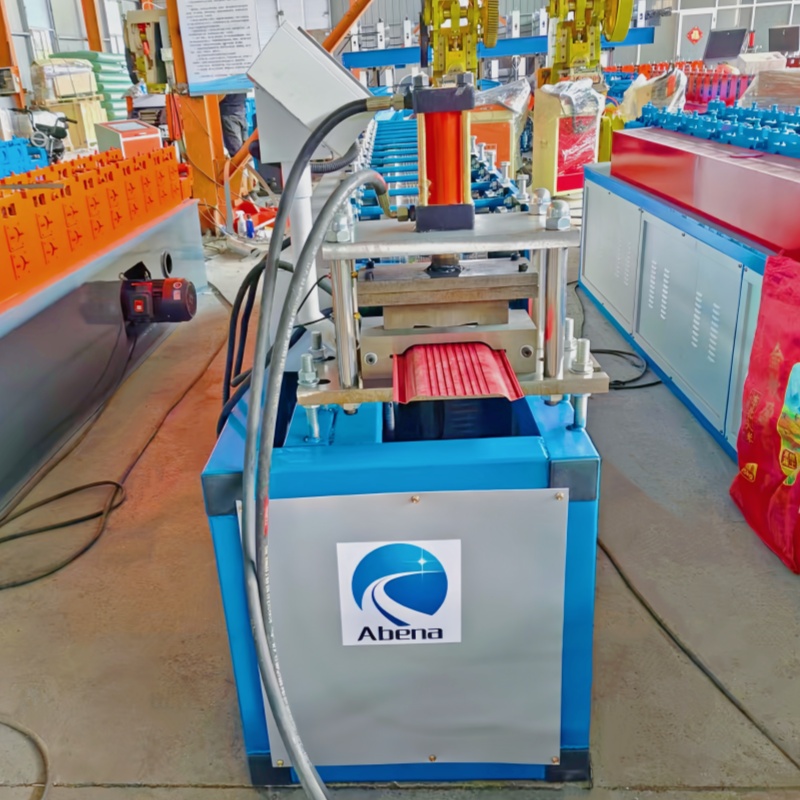

5.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available
6.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
7.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.
Below is product customization information for reference.
