Multifunctional cable tray machine

This Automatic Cable Tray Roll Forming Machine is engineered to deliver high-precision, high-efficiency, and fully automated production for modern electrical and construction industries.

• Smart Width Adjustment: Features an advanced motorized or PLC-controlled automatic sizing system. Change tray widths and heights via the touchscreen in seconds without manual roller swaps.
• Heavy-Duty Capacity: Seamlessly processes Galvanized Steel (GI), cold-rolled steel, and aluminum coils with thicknesses ranging from 1.0mm to 2.5mm.
• Continuous Precision: Integrates a heavy-duty decoiler, leveling mechanism, high-speed multi-station hydraulic punching unit, multi-stage precision forming rollers, and a non-stop hydraulic tracking cutter.
• Industrial Automation: Driven by a world-class PLC (Delta) control panel with a user-friendly HMI screen, ensuring millimeters-level cutting accuracy and consistent punch patterns.

Detailed description

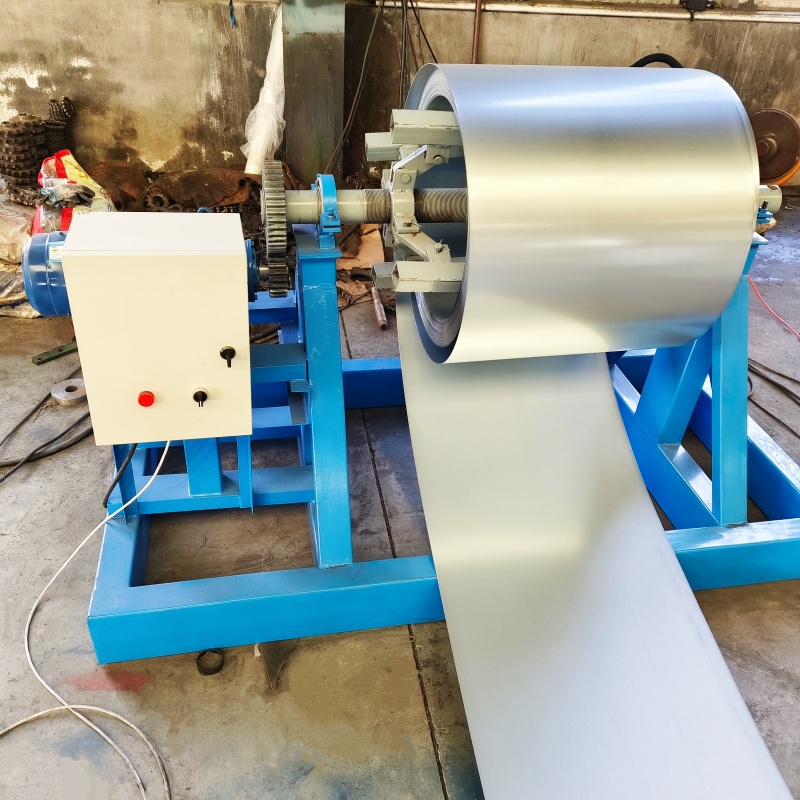

1.Ectric decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

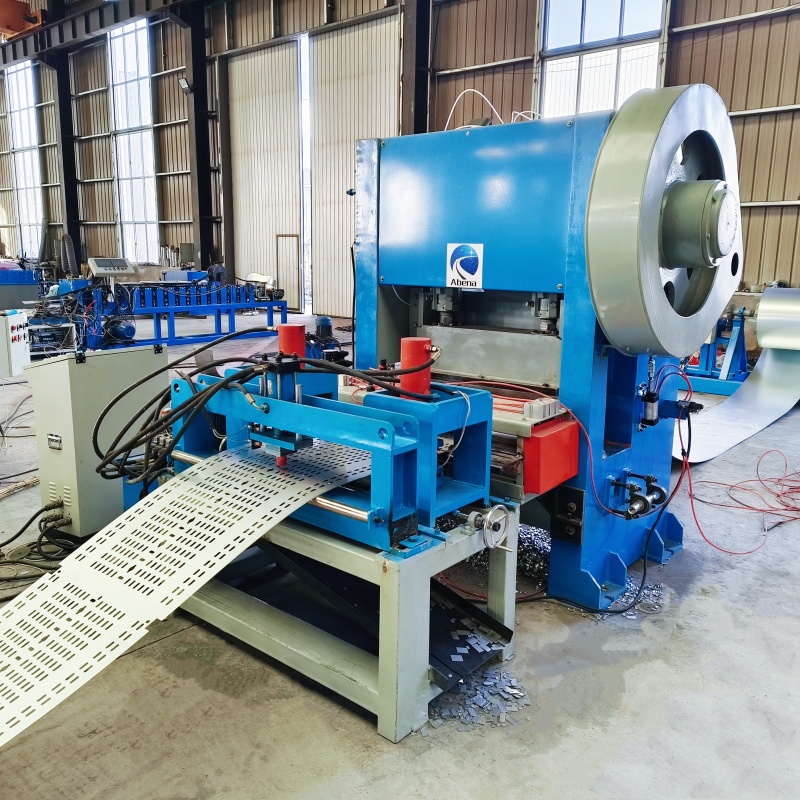

2.Punching machine with leveling ：Customized machine according to product punching requirements

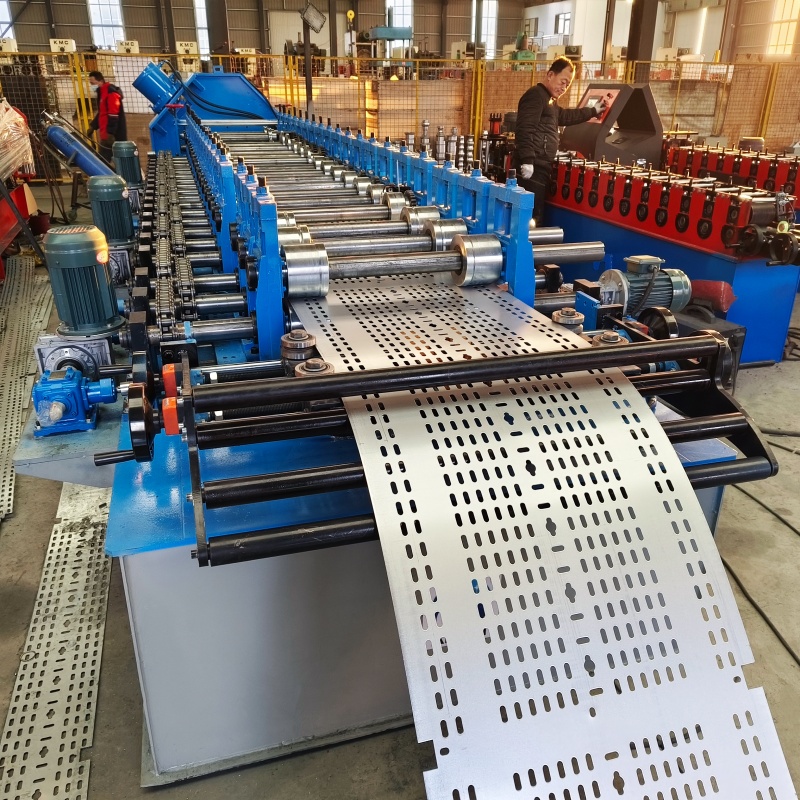

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

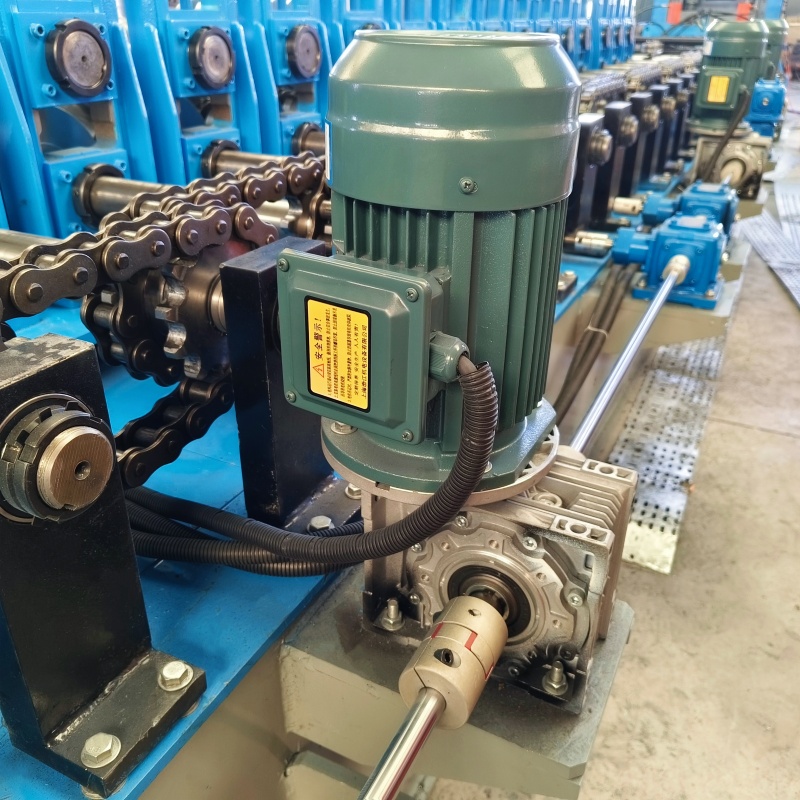

4.Main motor:The main motor provides power to the forming rollers through chains or gears

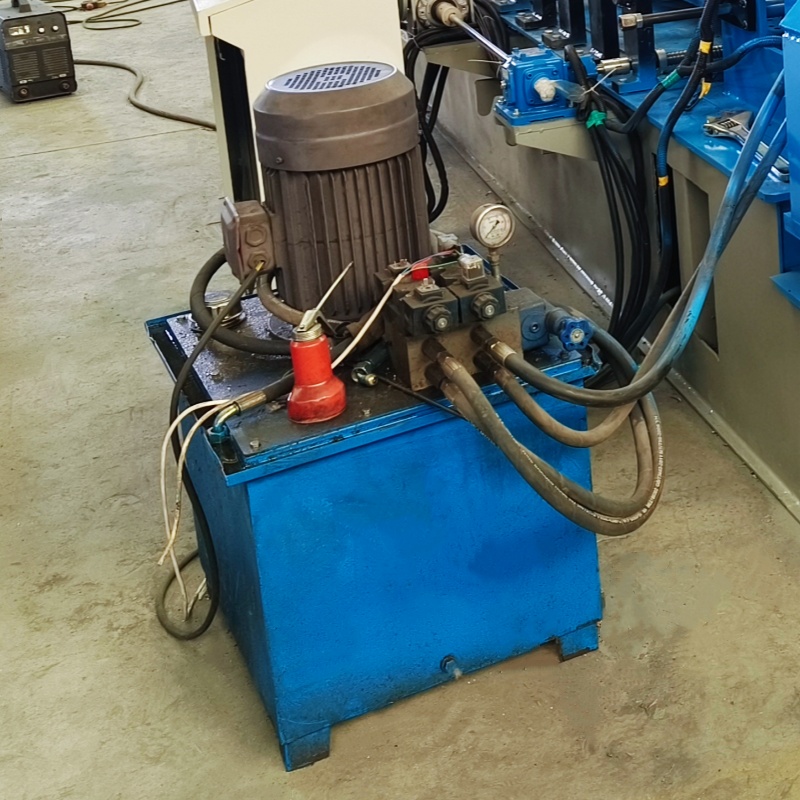

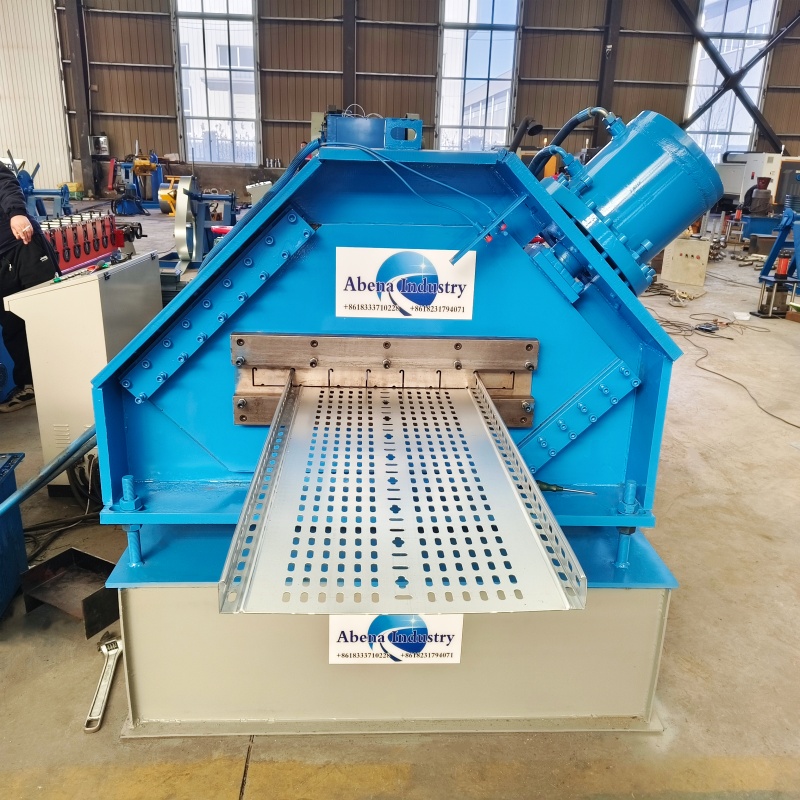

5.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available

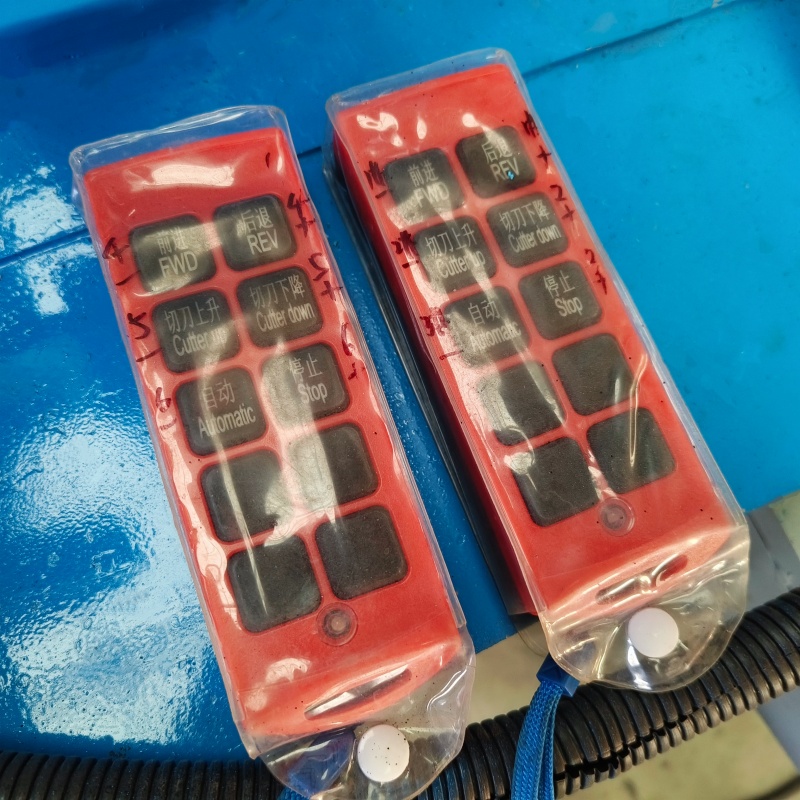

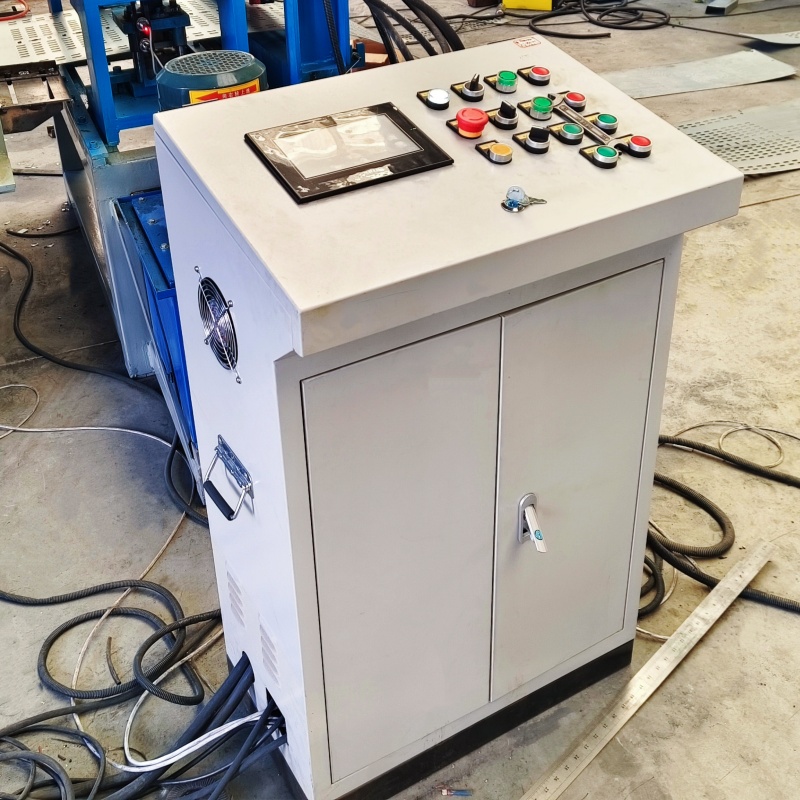

6.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily

We offer customization services for our clients’ various designs.

Below is product customization information for reference.
