Product Introduction

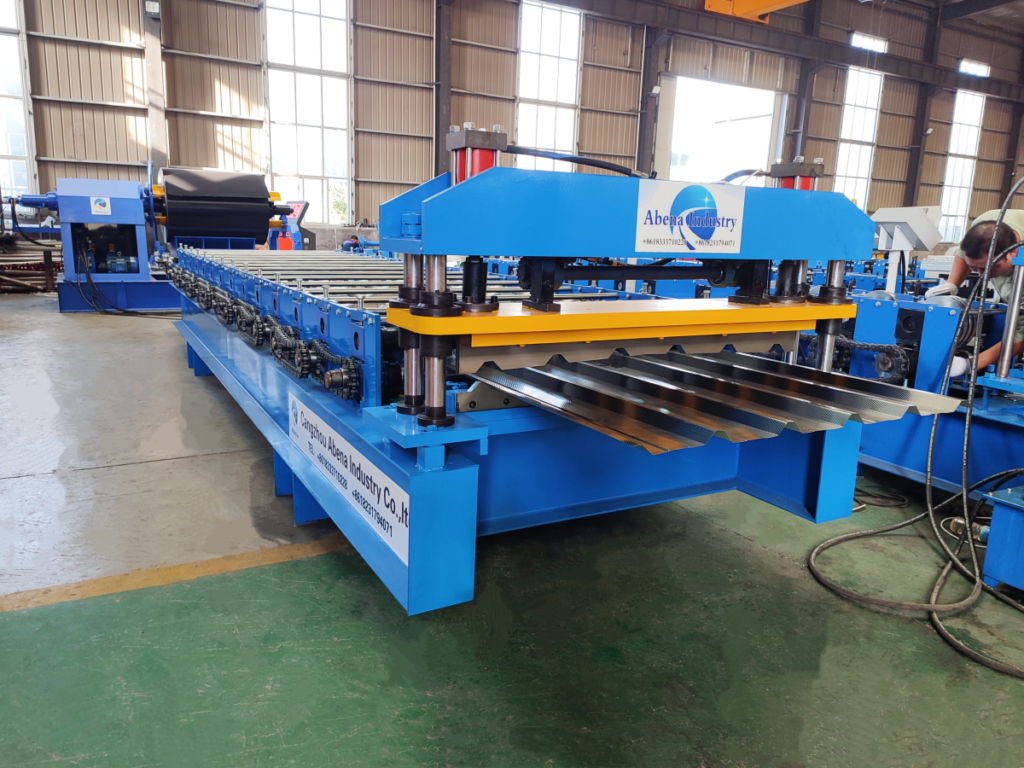

This automatic IBR roof sheet roll forming machine is engineered to deliver high-precision, high-efficiency, and fully automated production for modern construction industries.
Key Technical Advantages
- Heavy-Duty Construction: Built with a reinforced steel welded frame to minimize vibration and guarantee long service life under high-intensity operation.
- High-Precision Roll Forming: Features high-grade steel rollers treated with hard chrome plating for high wear resistance and a smooth surface finish on the panels.
- Automatic PLC Control: Equipped with an intuitive PLC touch-screen control system for accurate length measurement, automated cutting, and easy batch production management.
- Hydraulic Post-Cutting System: Utilizes a precise hydraulic cutter with profile-matched blades, ensuring clean, burr-free, and deformation-free cuts.
- Reliable Drive Mechanism: Driven by a robust chain transmission system that guarantees smooth power transfer and low maintenance costs.
- Complete Production Line: Integrates uncoiling, guidance, roll forming, hydraulic cutting, and run-out table into one seamless process.

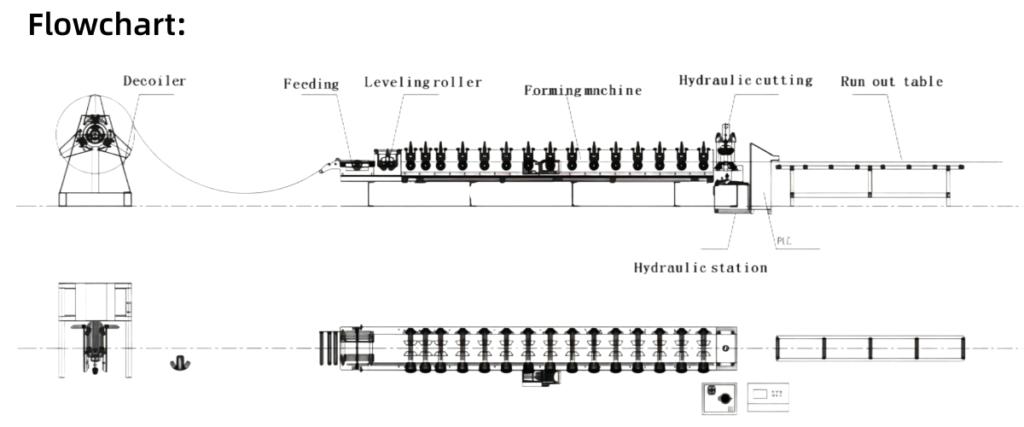

Production Workflow
Hydraulic Decoiler ➡️ Feeding table ➡️ Roll Forming ➡️ Hydraulic Cutting ➡️ Output Racks
Detailed description

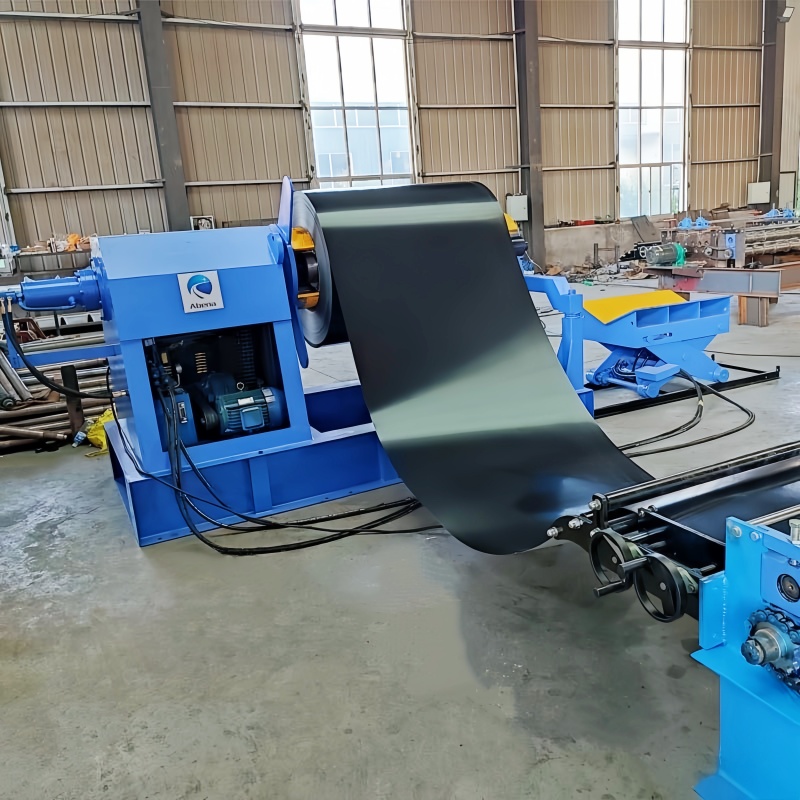

1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

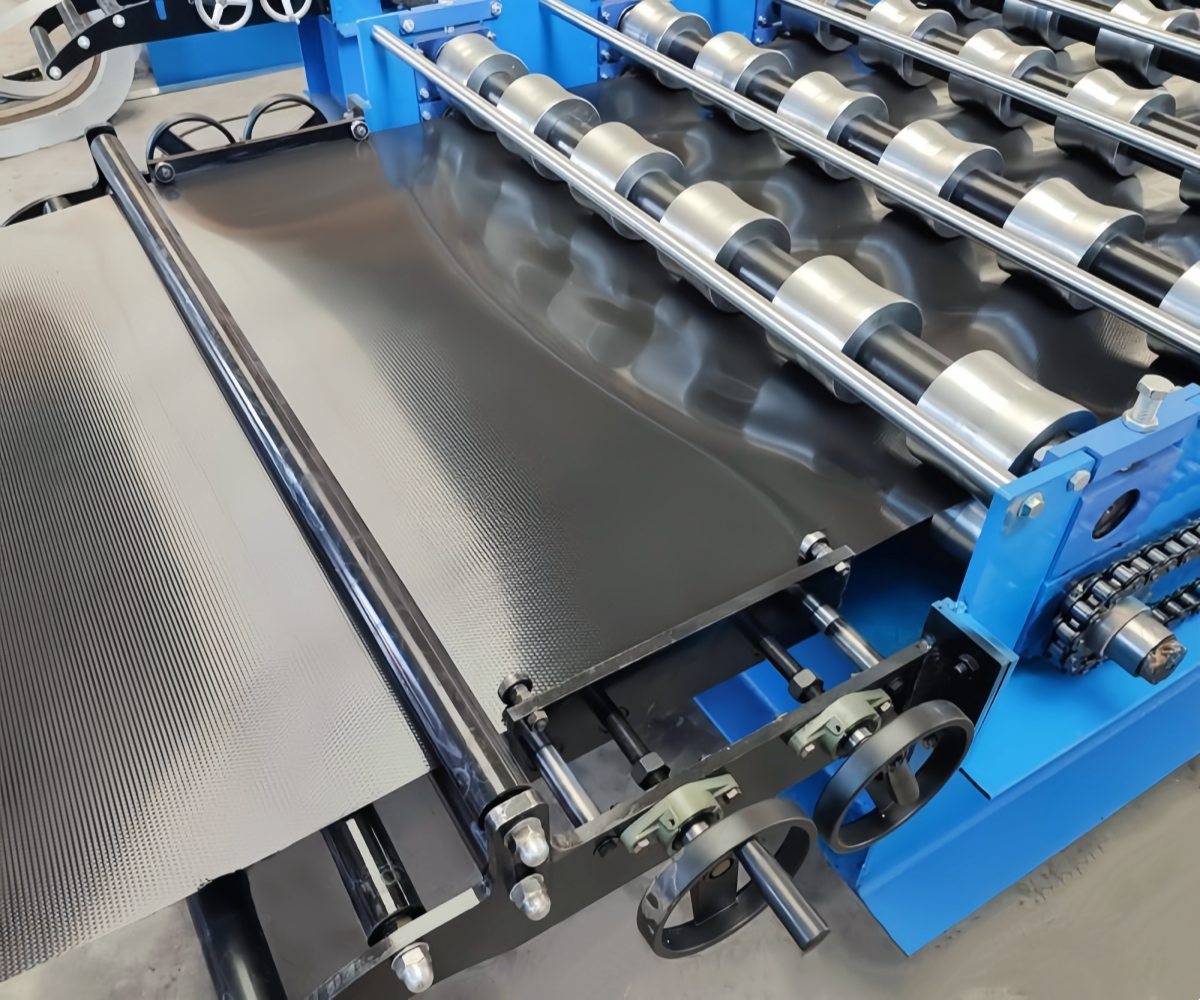

2.Sheet guide device:Leveling machine ensures the flatness of the raw material

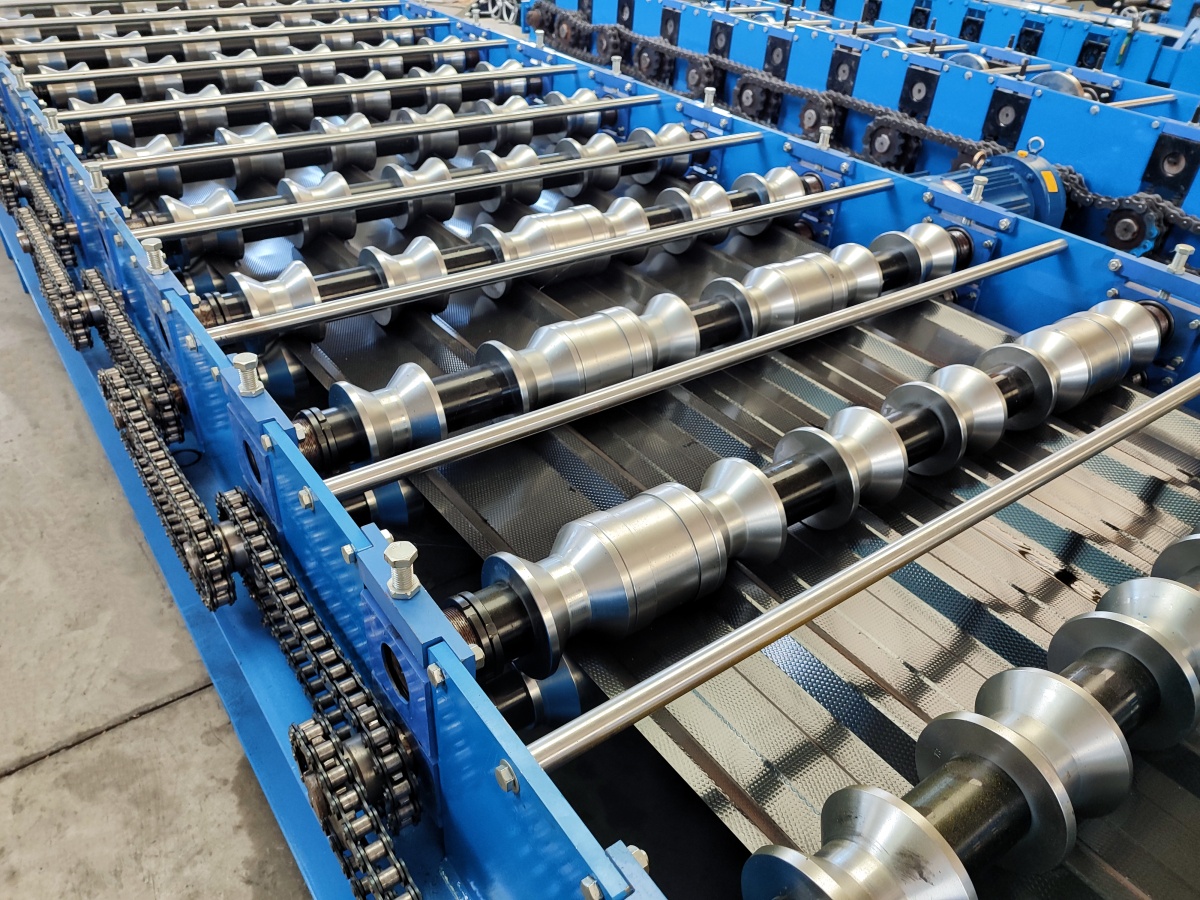

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

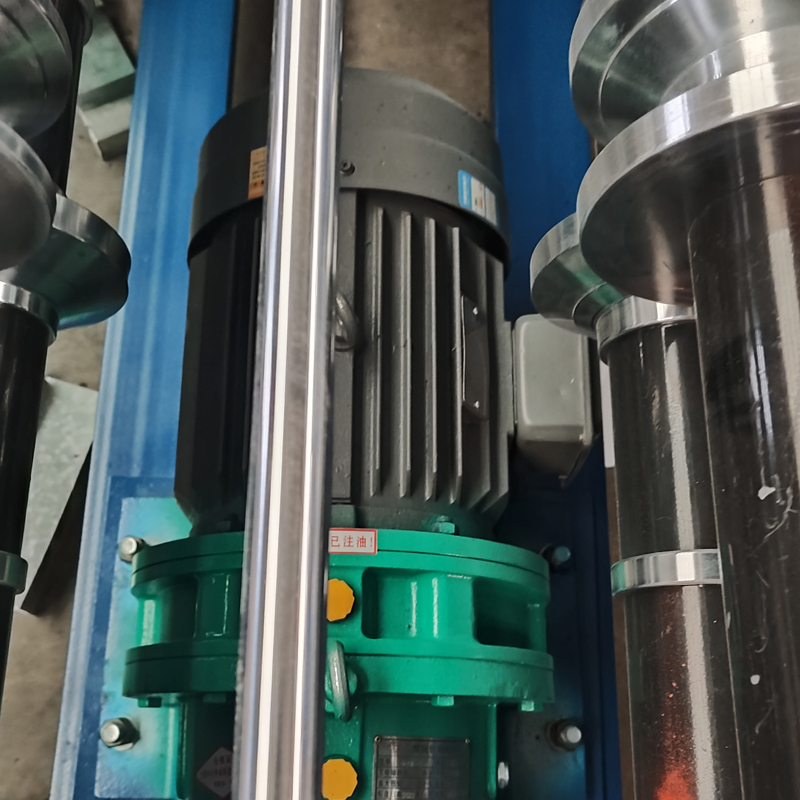

4.Main motor:The main motor provides power to the forming rollers through chains or gears

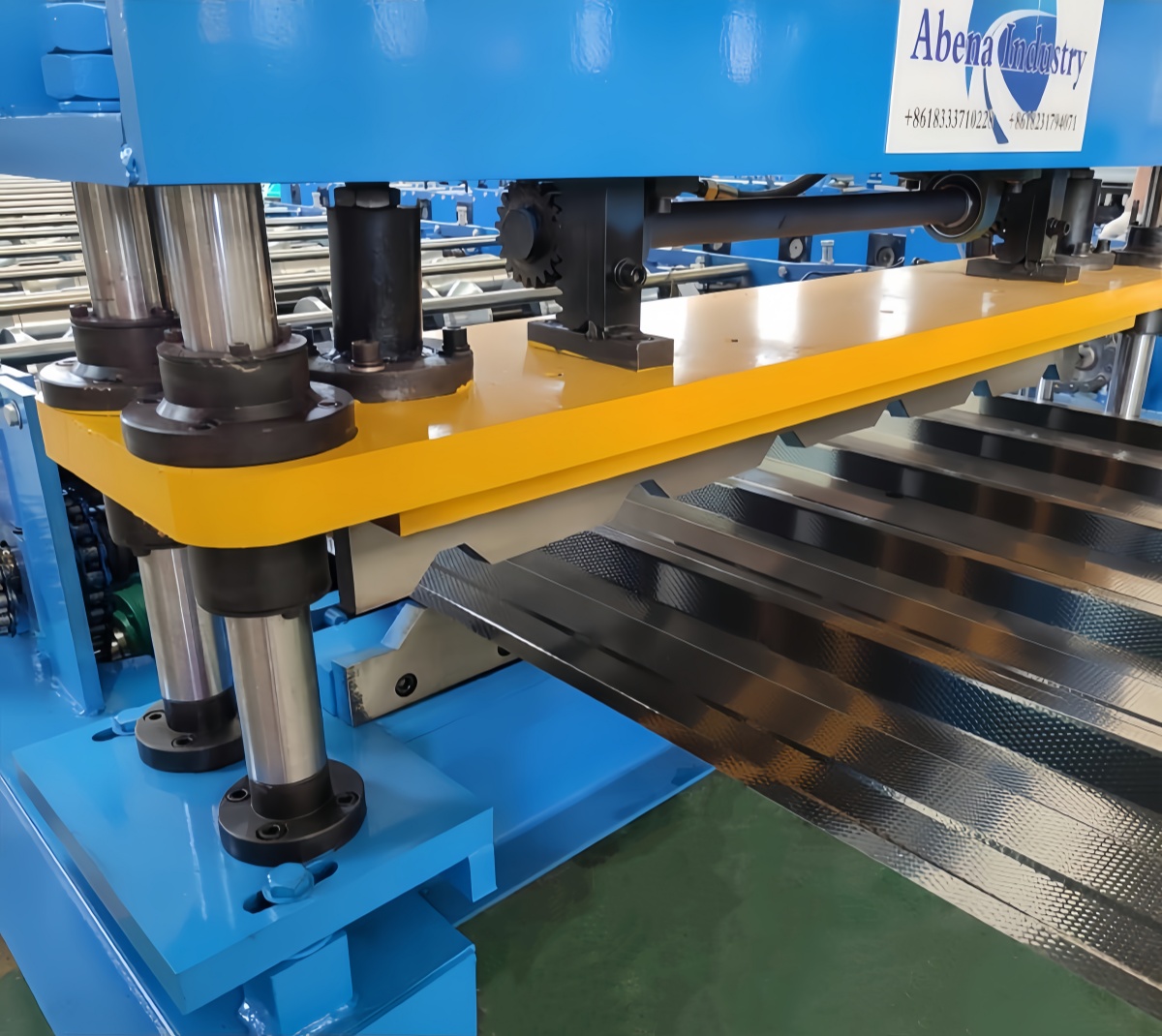

5.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available

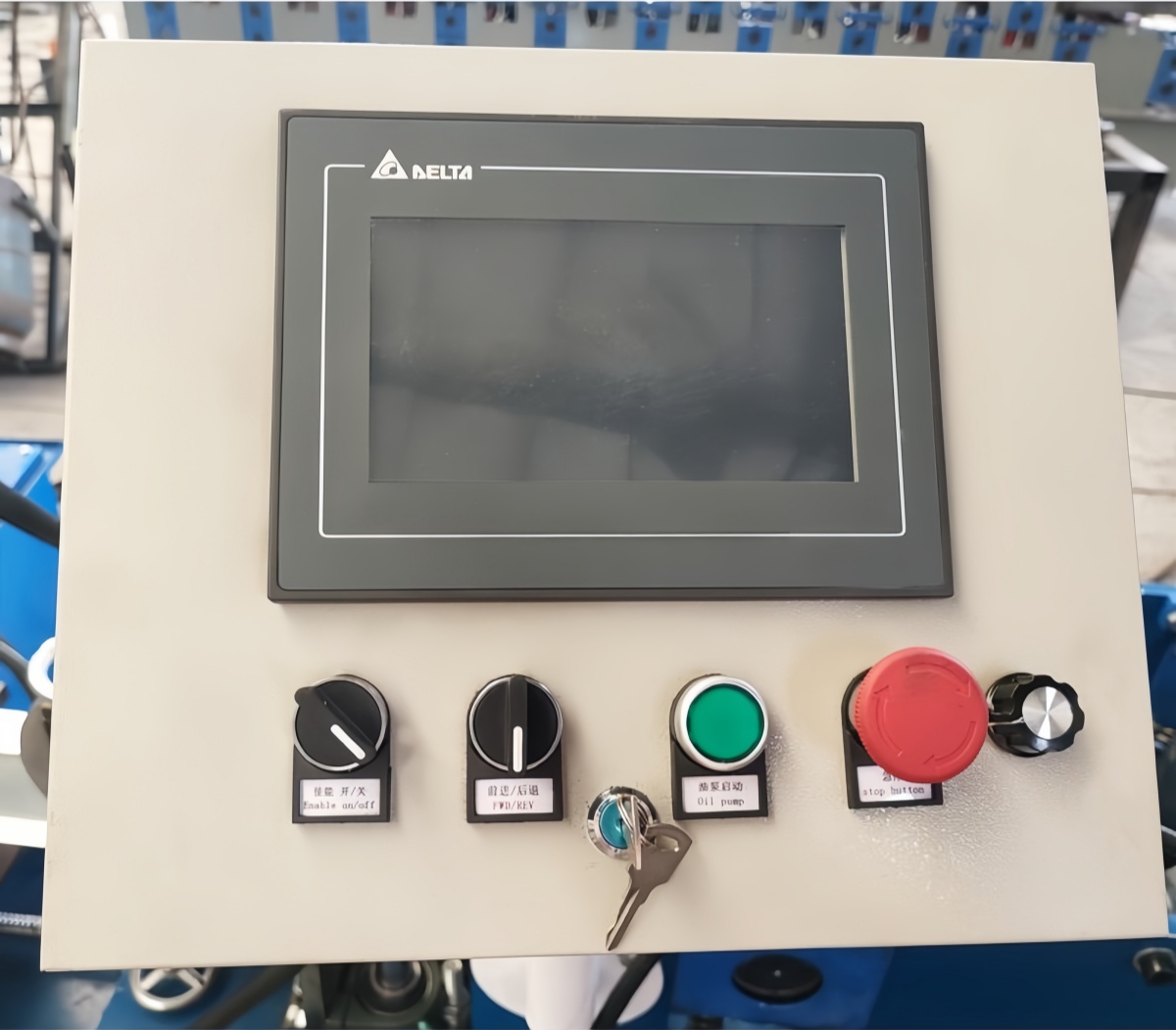

6.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
7.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.

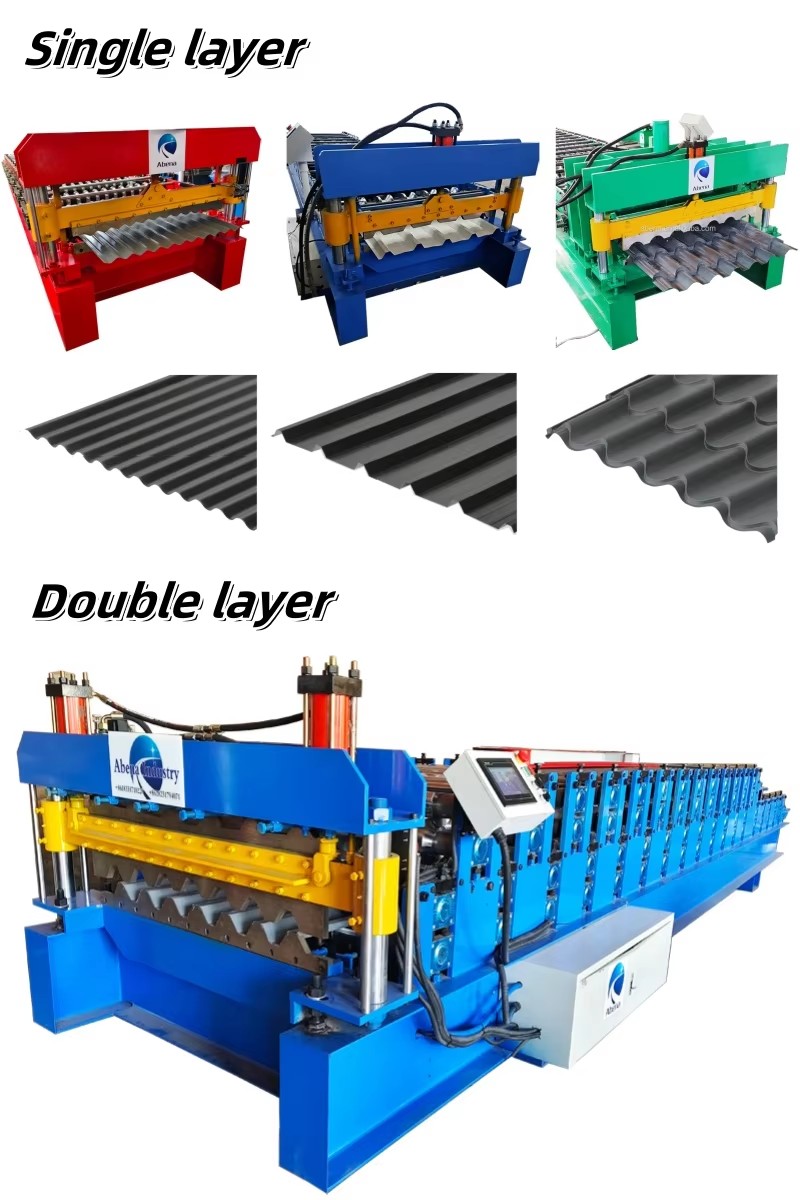

We offer customization services for our clients’ various designs.

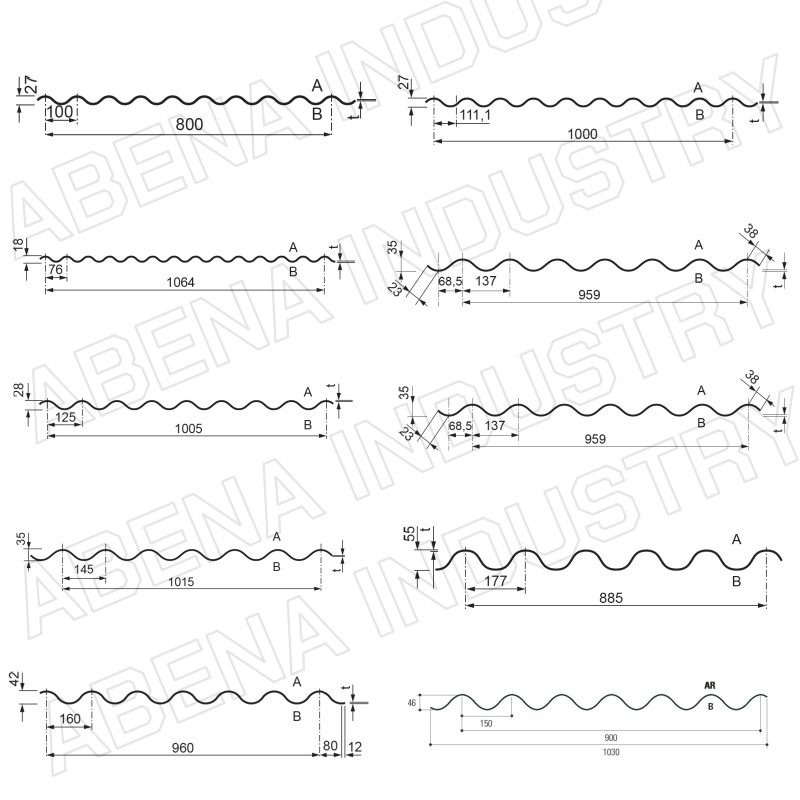

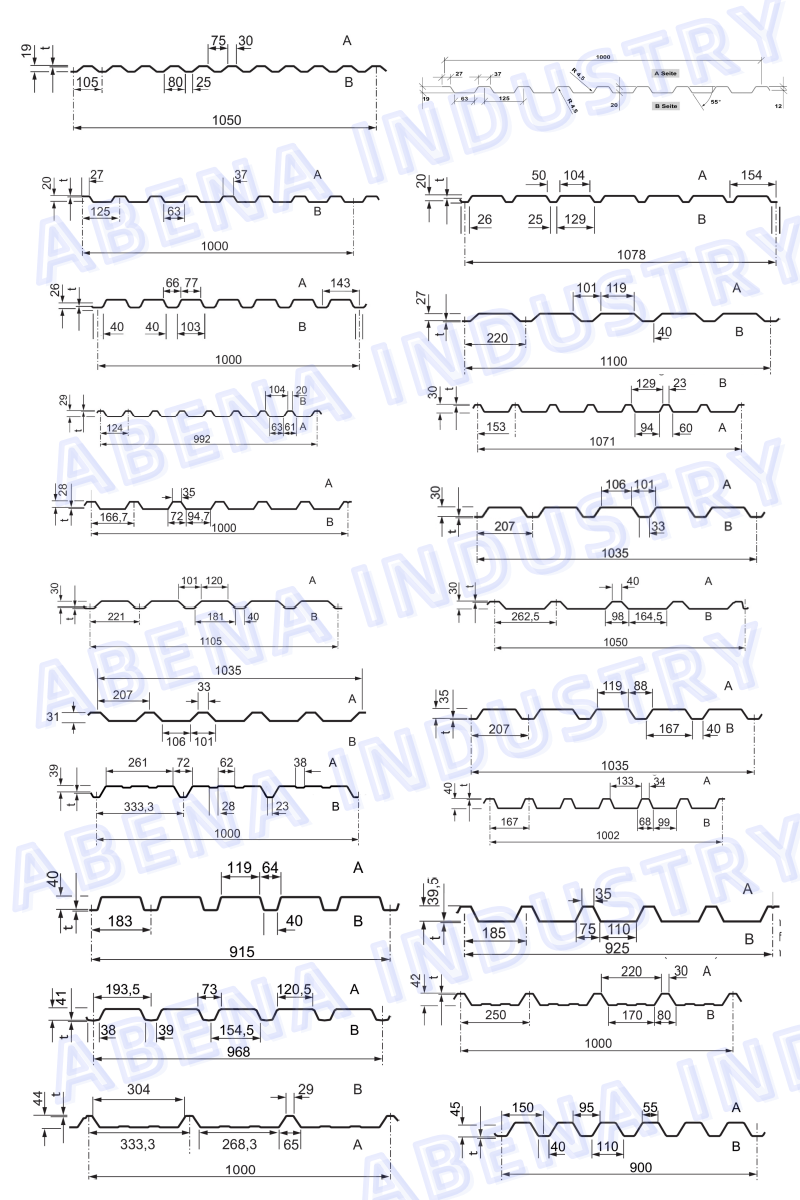

Below is product customization information for reference.
