We ship solor mount bracket roll forming machine all over the world like India, Thailand, Russia, Algeria, Qatar, Morocco, Saudi Arabia, Mexico etc. Common solor bracket rolling thickness from 1.5-2.5 mm, material use GI. Size can customize as customer’s need.

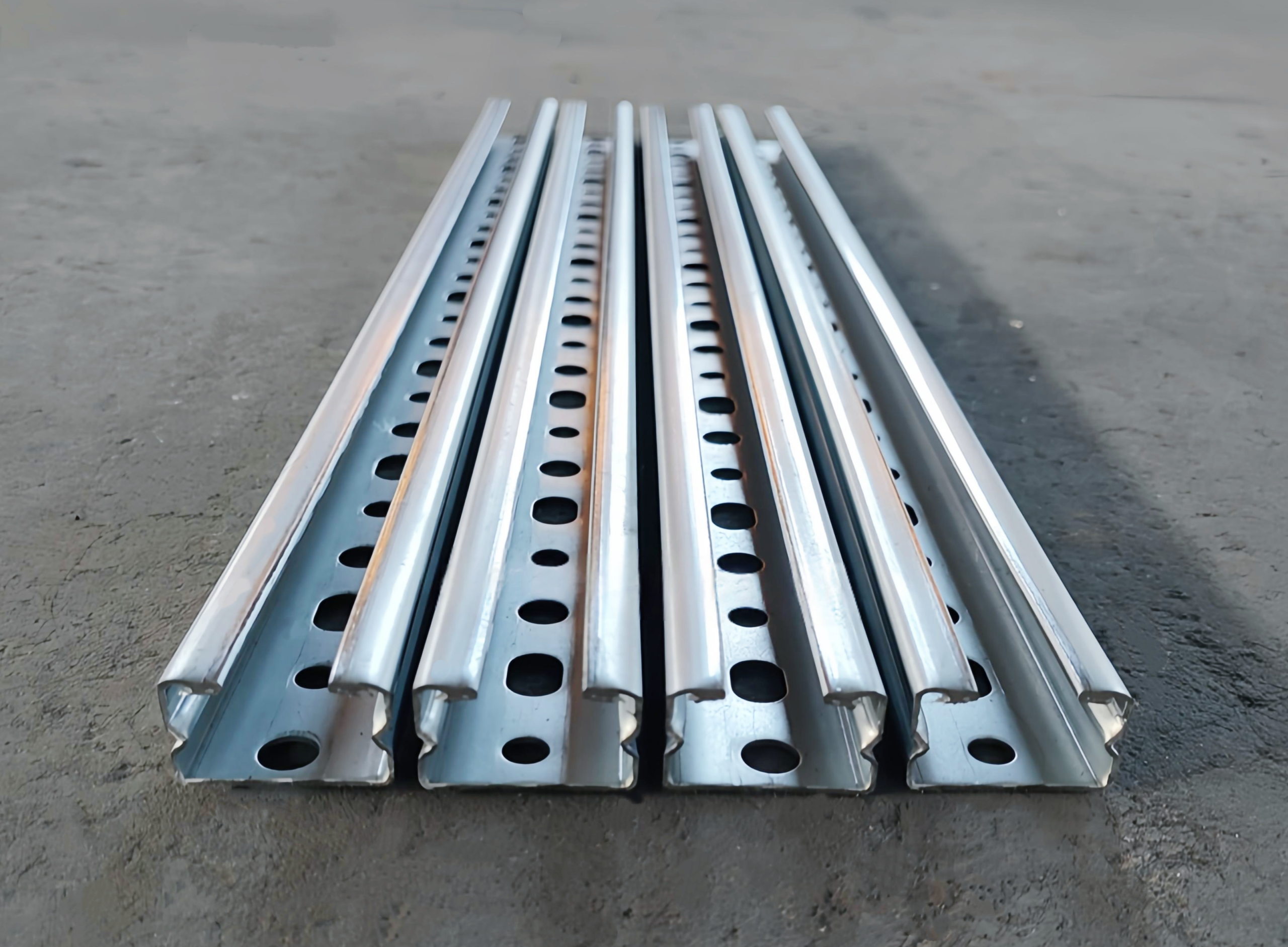

Solar Strut C Channel Making Machine Description
Solor bracket roll forming machine drawing （The following versions are for your reference, we can customize them according to your requirements）
Solar Panel Support Machine work flow
Decoiler-roll forming machine-PLC control box-hydraulic cutter-Run out table
Solar strut channel machine parameter
1.Suitable Plate Material：thickness 1.5-2.5mm, Galvanized steel and stainless steel
2.Working Speed：0-10meters /min adjustable
3.Material of Roller：Cr12mov, Quench HRC58-62 Plated Chrome
4.Material of Shaft：45# Advanced Steel (Diameter: 90mm), thermal refining

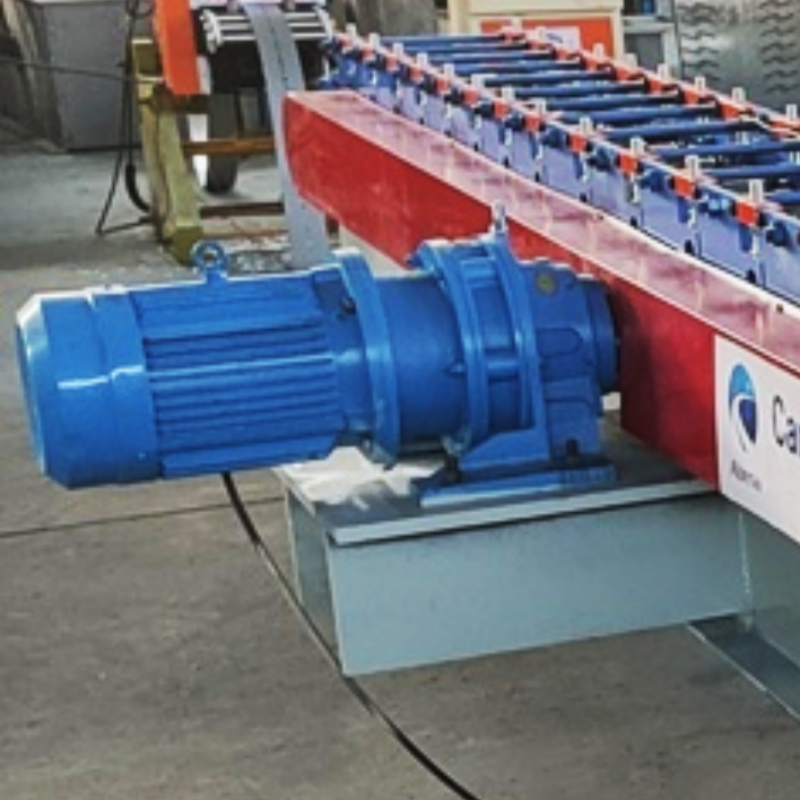

5.Main Power with reducer：18.5KW WH Chinese Famous
| Name | Quantity |
| hydraulic un-coiler | 1 set |
| Leveling device NC 300mm | 1 set |
| Servo feeding device 300mm | 1 unit |

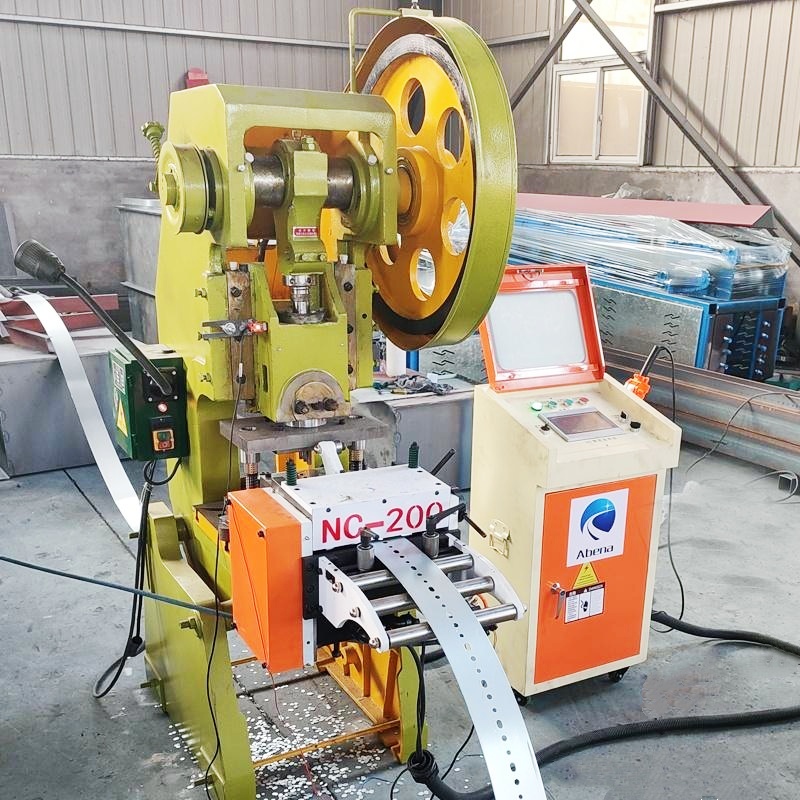

| Press machine JH21-63 | 1 set |

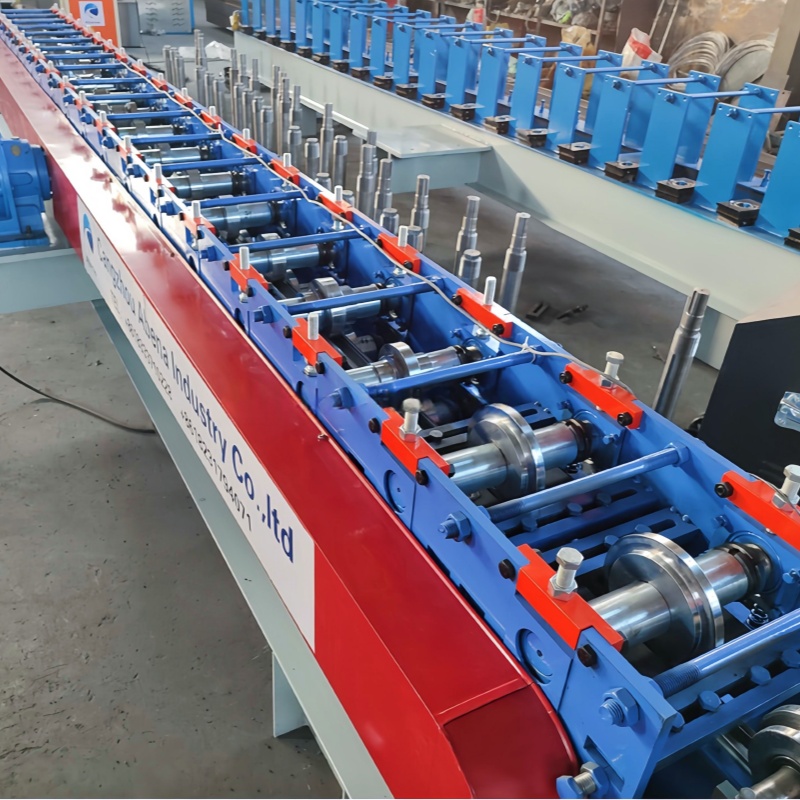

| Main roll forming machine | 1 set |

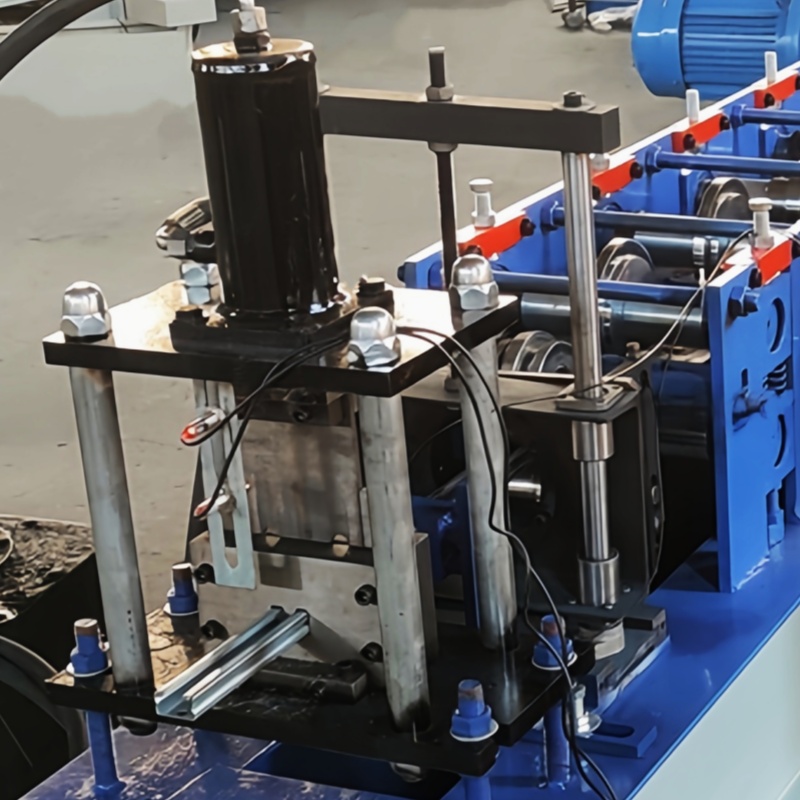

| Servo following cutting | 1 set |
| Control box | 1 set |
| Out tables | 2 units |
|
Punching die set
|
1 set |
|
Safety cover
|
1 set |
| Cutting blade | 1 set |

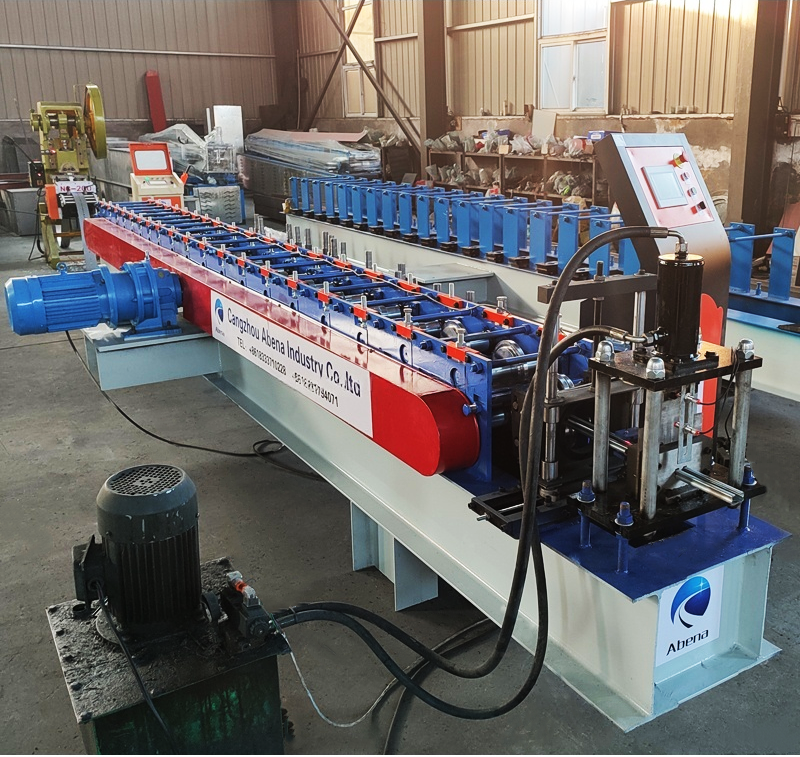

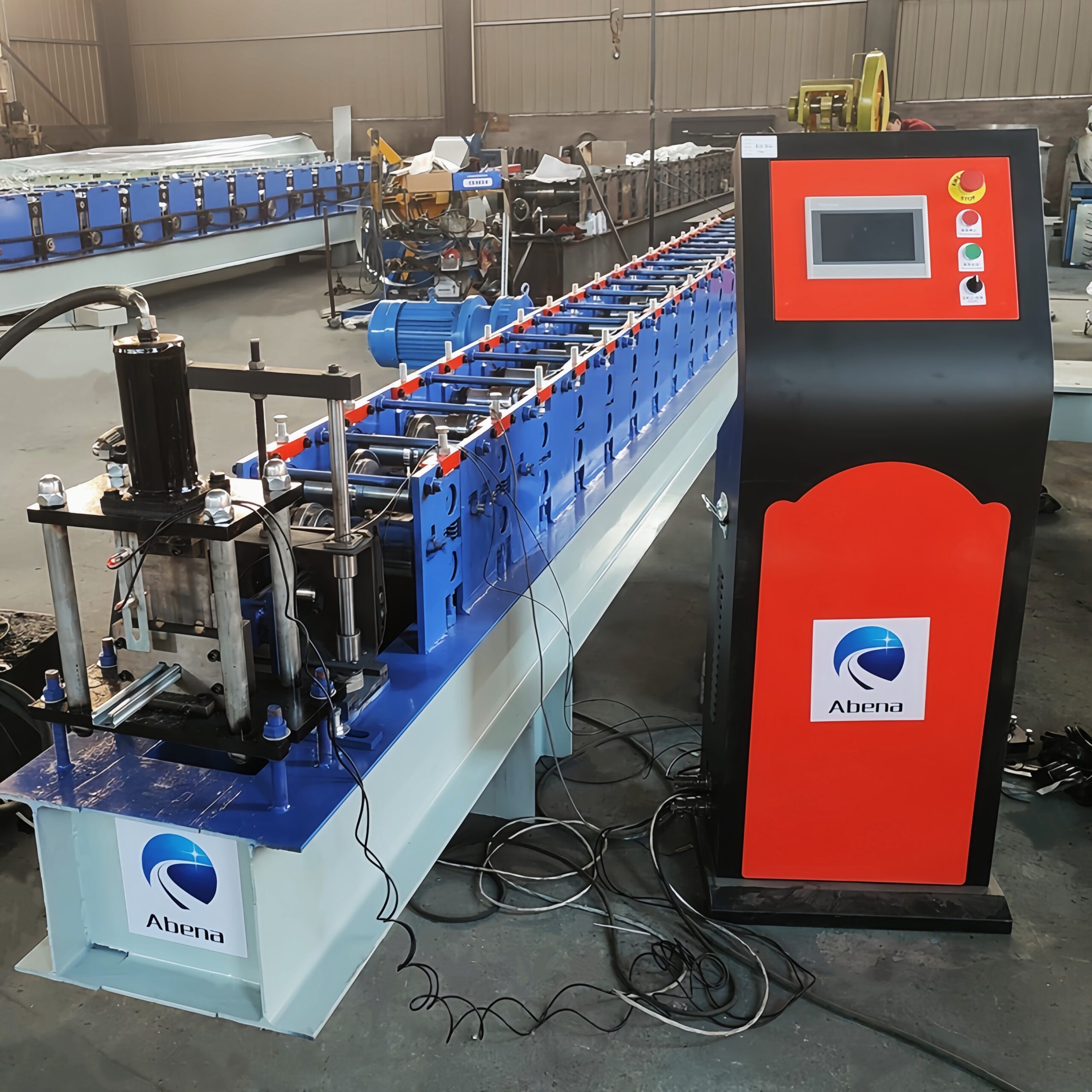

Solar Strut C Channel forming Machine display
