Product Overview

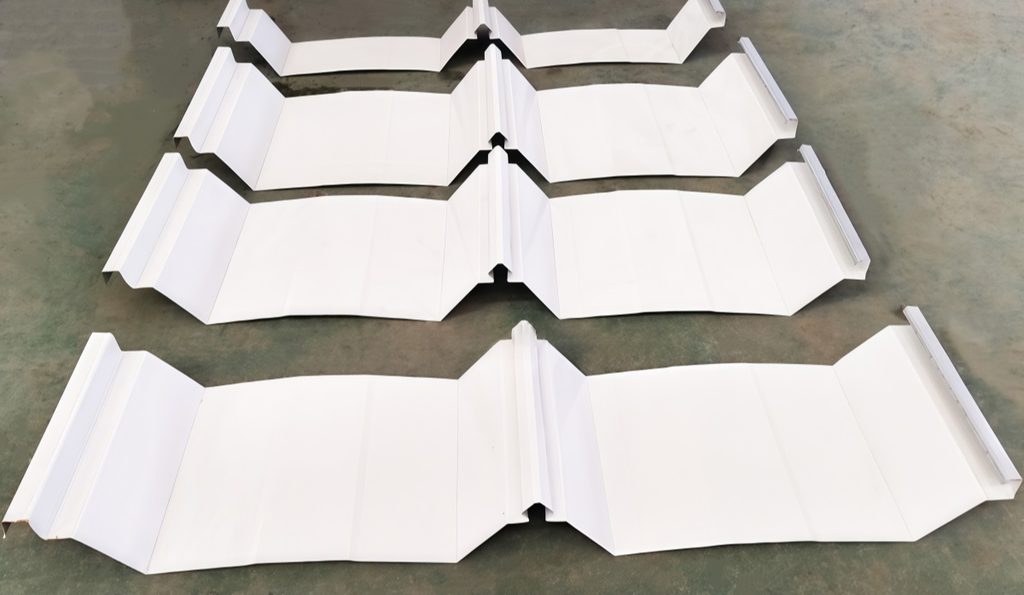

This standing seam roll forming machine fabricates high-performance interlocking standing seam metal roof panels. The finished panels adopt a concealed fastener clip-lock design, eliminating exposed screws to deliver superior waterproofing, wind resistance and long-term durability. Widely adopted for industrial buildings, warehouses, commercial premises, villas and agricultural roofing projects, it is a popular roofing solution for world.

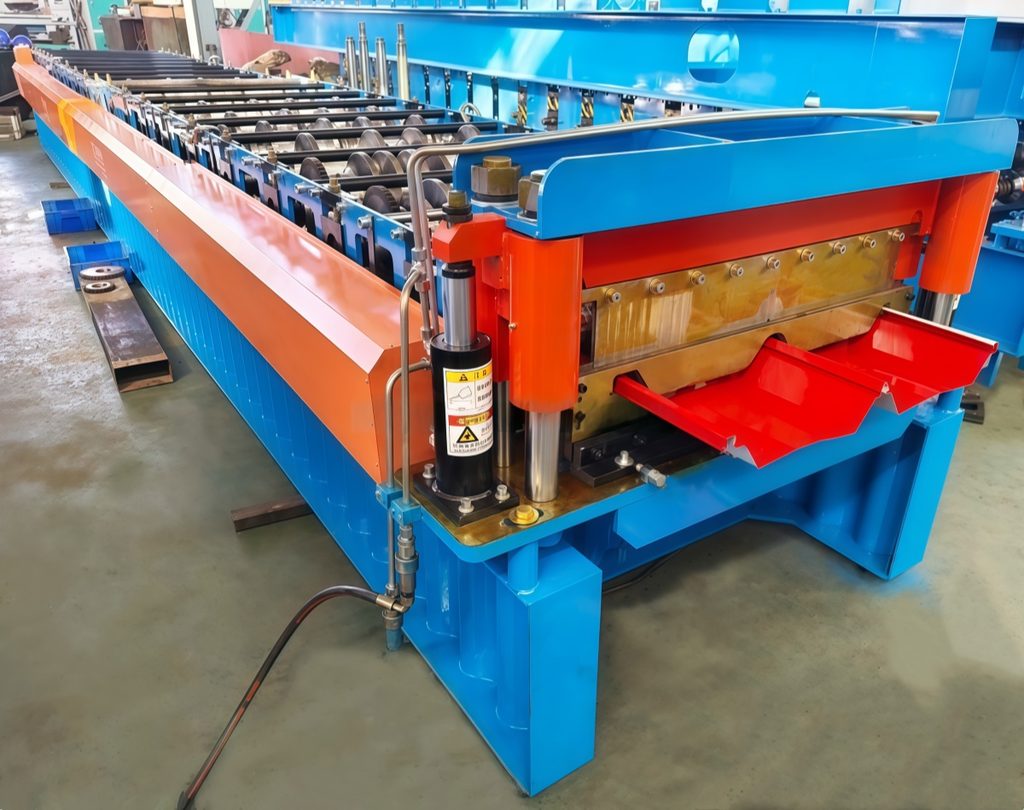

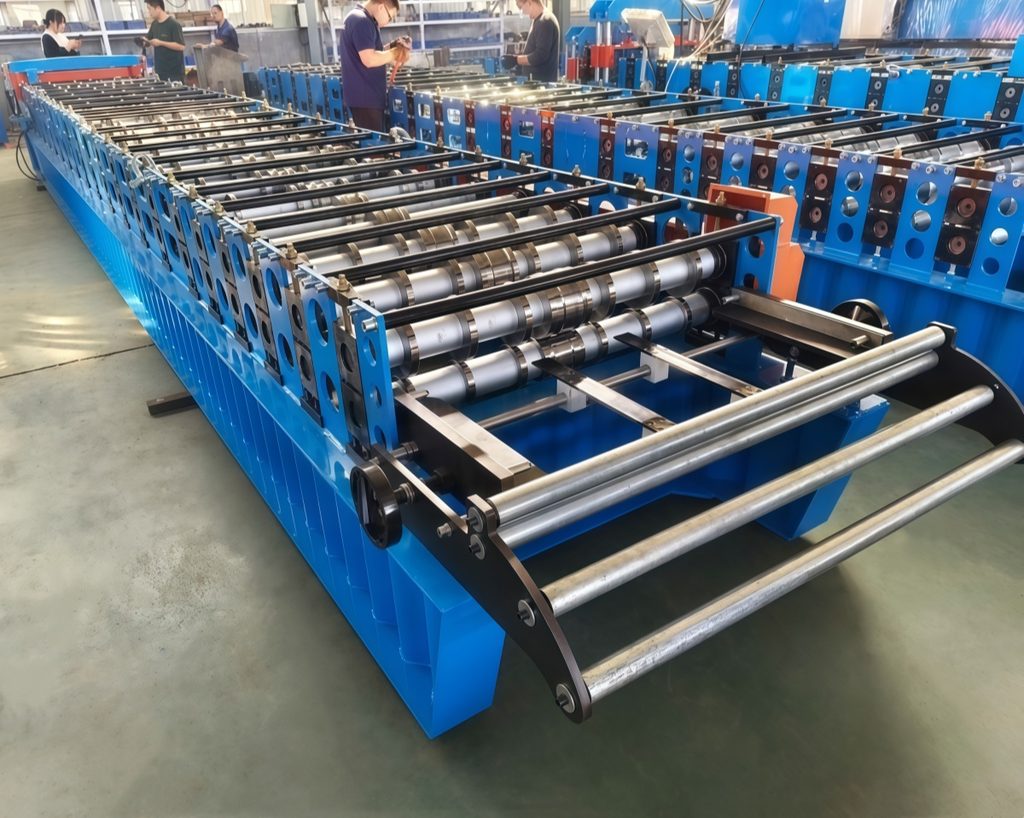

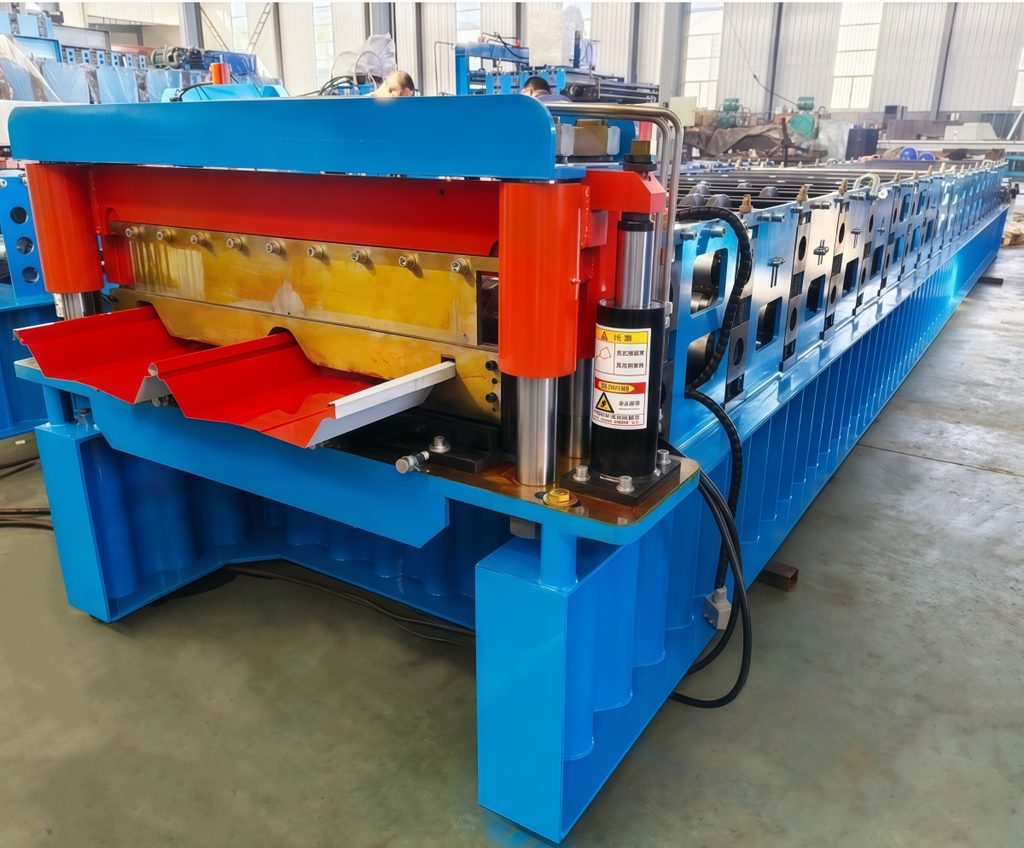

The fully automatic production line consists of a decoiler, multi-pass roll forming stations, hydraulic cutting unit and PLC control system. It processes PPGI color steel, galvanized steel and aluminum coils smoothly. With stable forming and precise fixed-length cutting, the machine ensures consistent panel quality and high production efficiency.
Key Features
✅ Heavy-Duty Welded Frame: Robust base structure to sustain long continuous running, low vibration during operation.
✅ Hard Chrome-Plated Forming Rollers: High hardness, wear-resistant, guarantee precise profile shaping and uniform panel dimensions.
✅ PLC & Touchscreen Control System: Easy parameter setup for panel length and production quantity; automatic counting, forming and cutting.
✅ Hydraulic Cutting System: Fast cutting action with clean, burr-free panel ends.
✅ Wide Material Adaptability: Compatible with color coated steel, galvanized steel and aluminum sheets.
✅ User-Friendly Operation & Maintenance: Standardized components, convenient spare parts replacement, remote technical support available.
Production Workflow
Decoiler ➡️ Feeding device ➡️ Roll Forming line ➡️ Hydraulic Cutting ➡️ Output Racks
Detailed description
1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

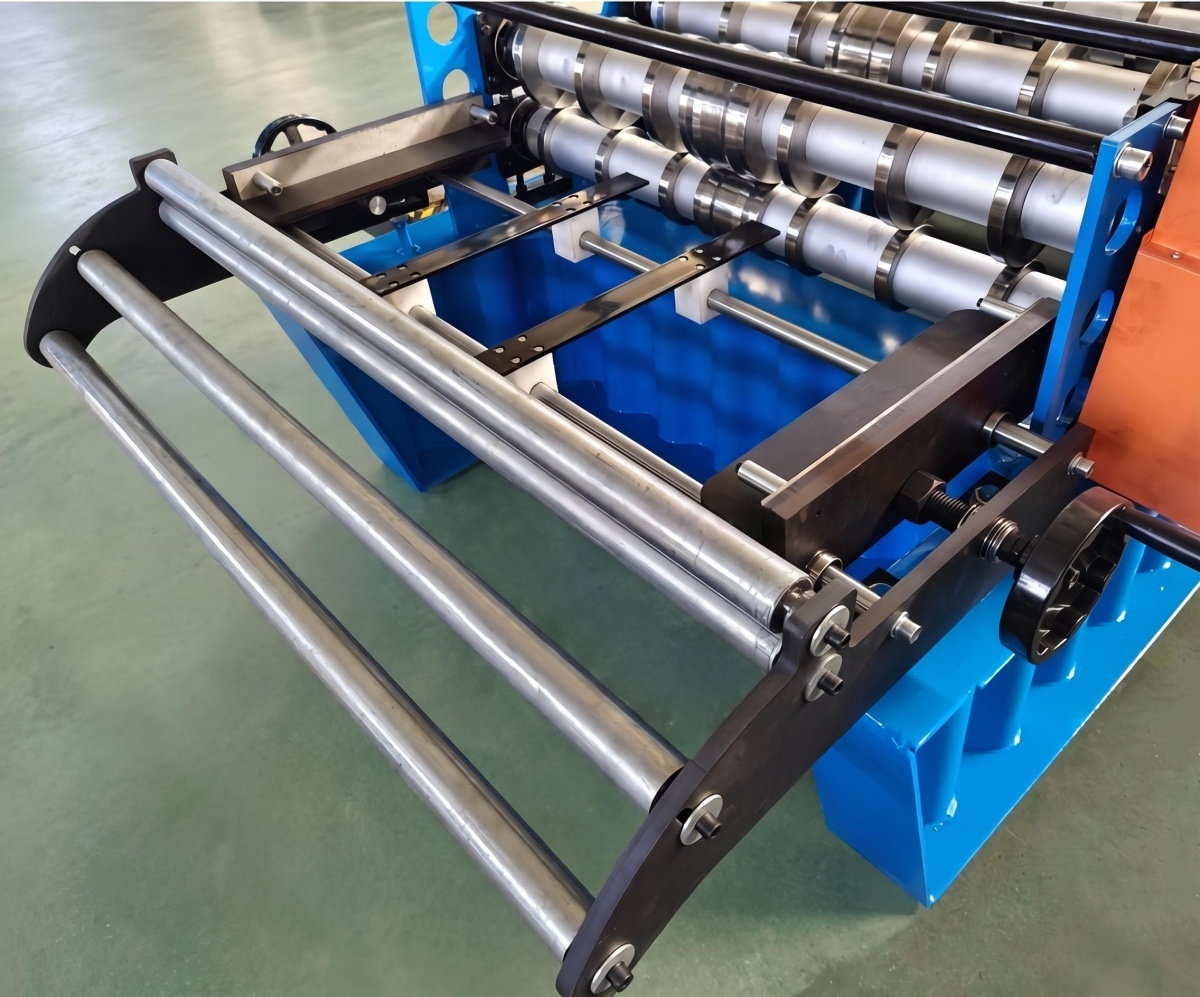

2.Sheet guide device:Leveling machine ensures the flatness of the raw material

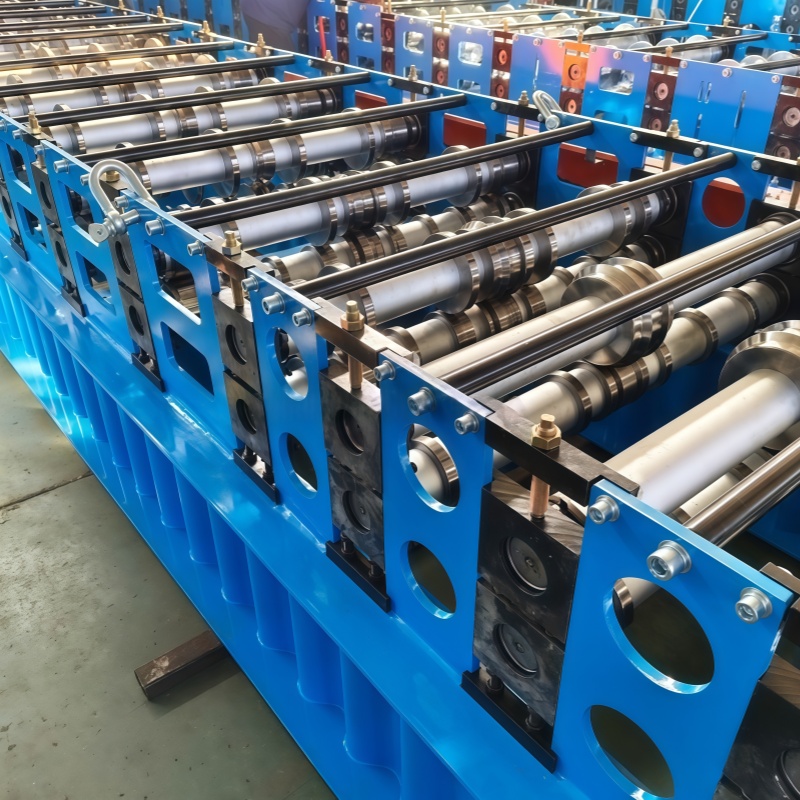

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped
4.Main motor:The main motor provides power to the forming rollers through chains or gears

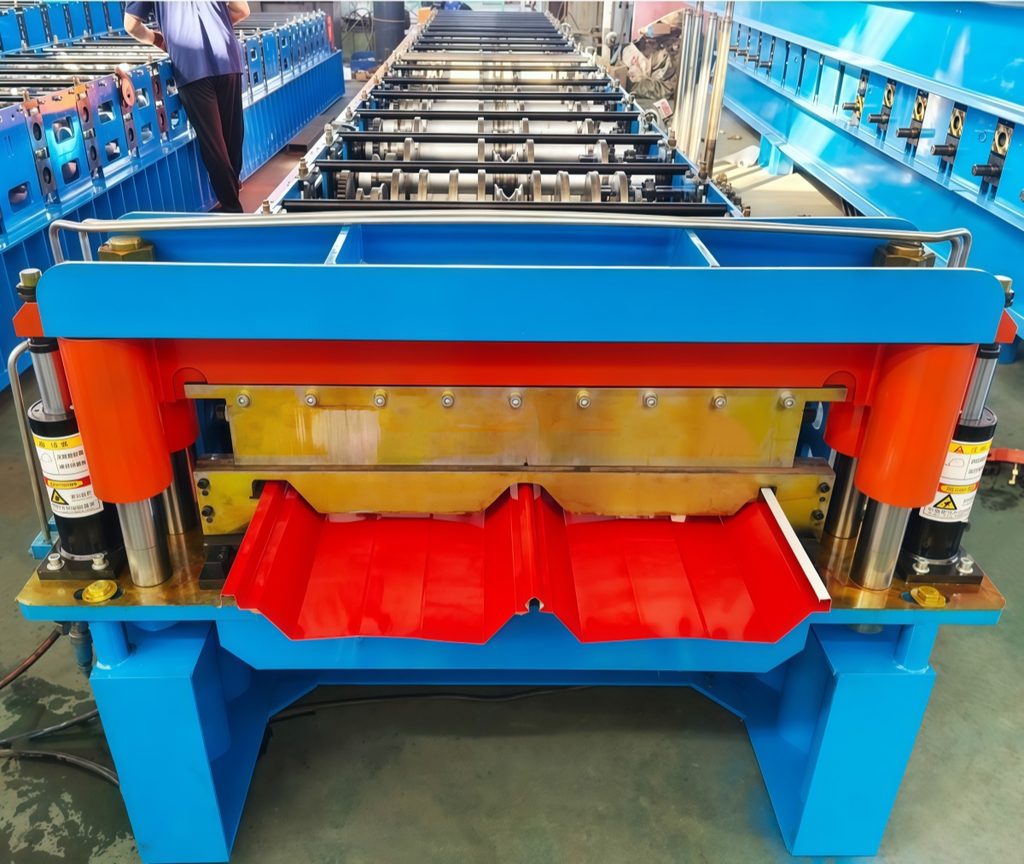

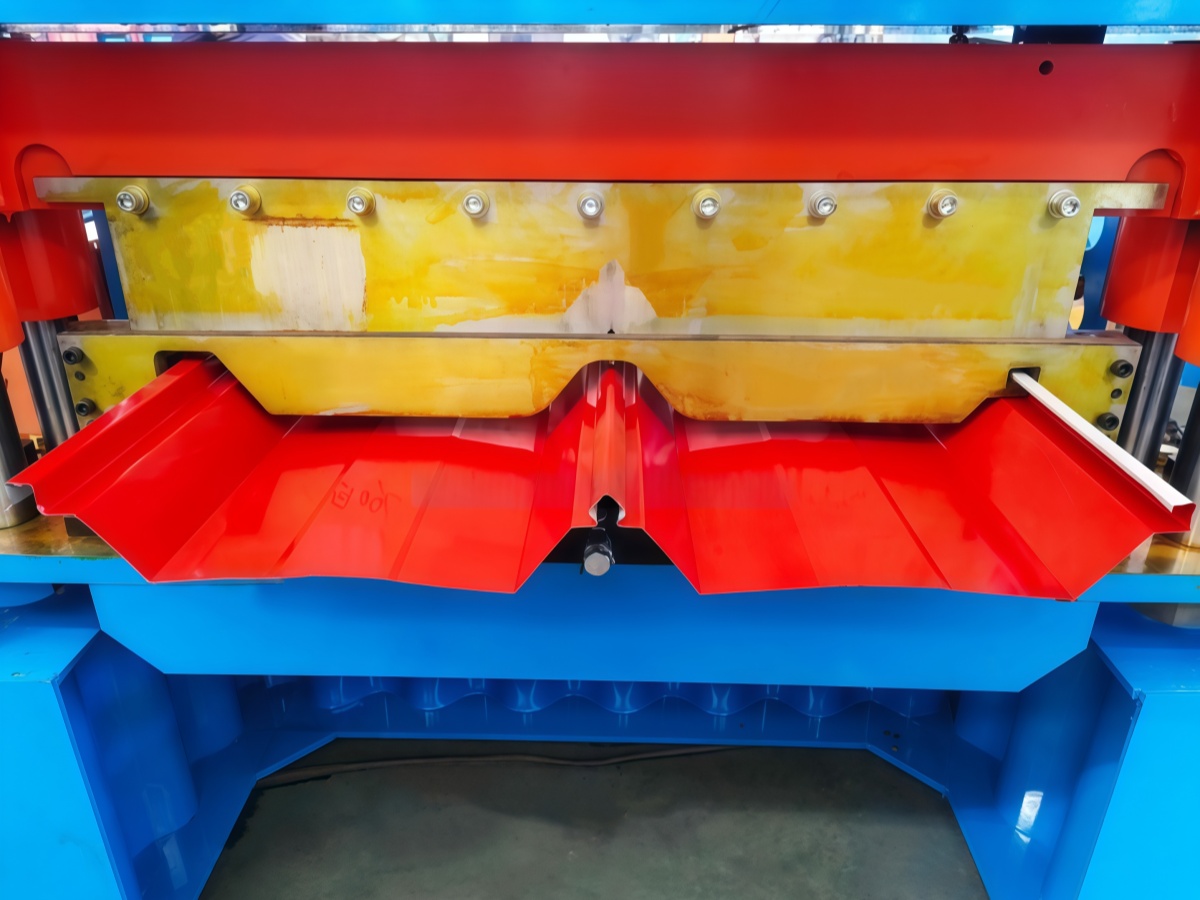

5.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available
6.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
7.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.

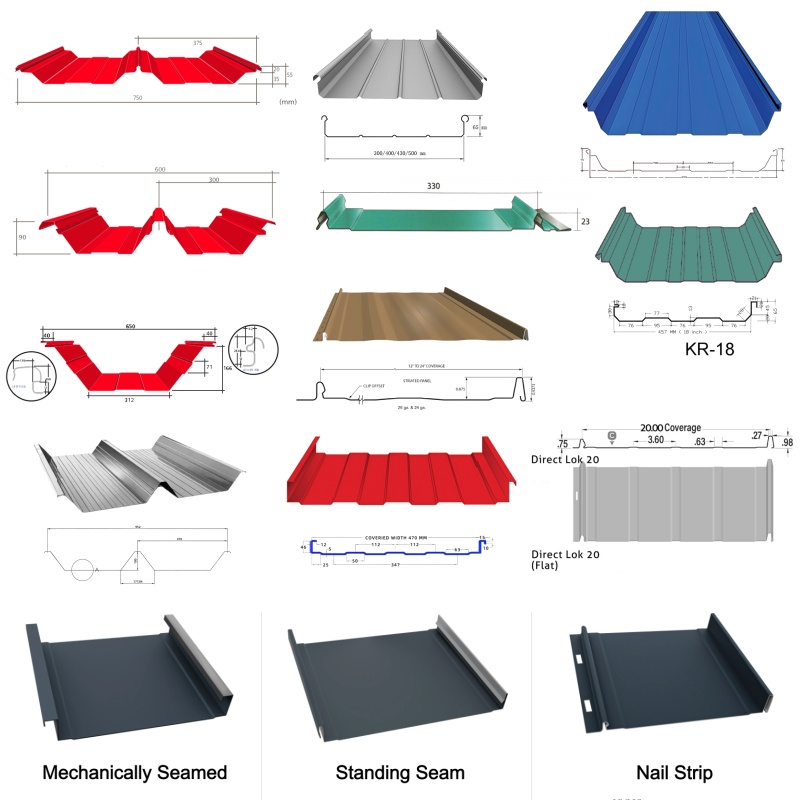

Below is product customization information for reference.
