Product Introduction
Product Overview

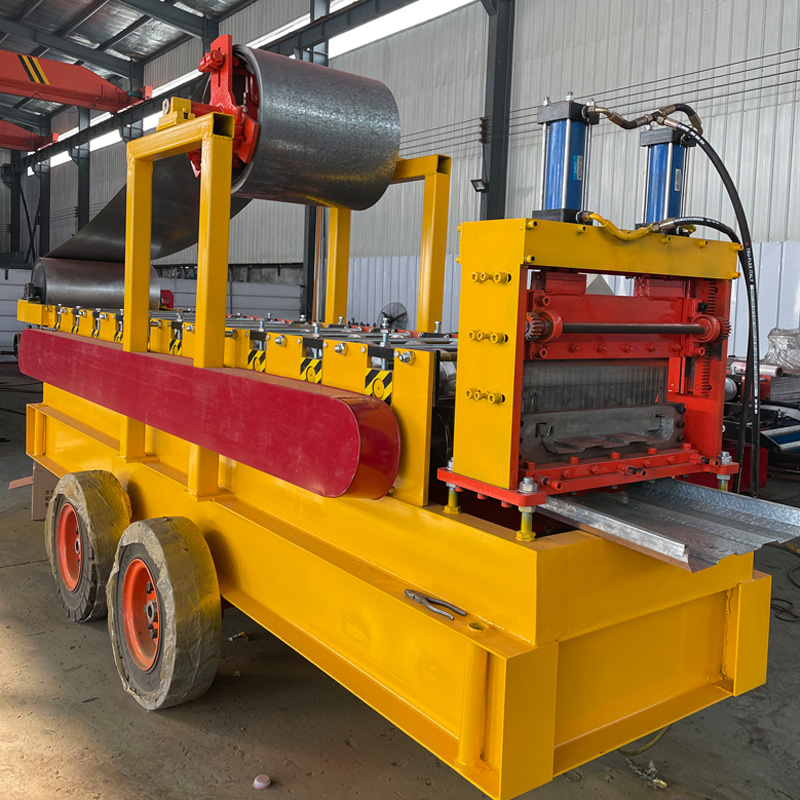

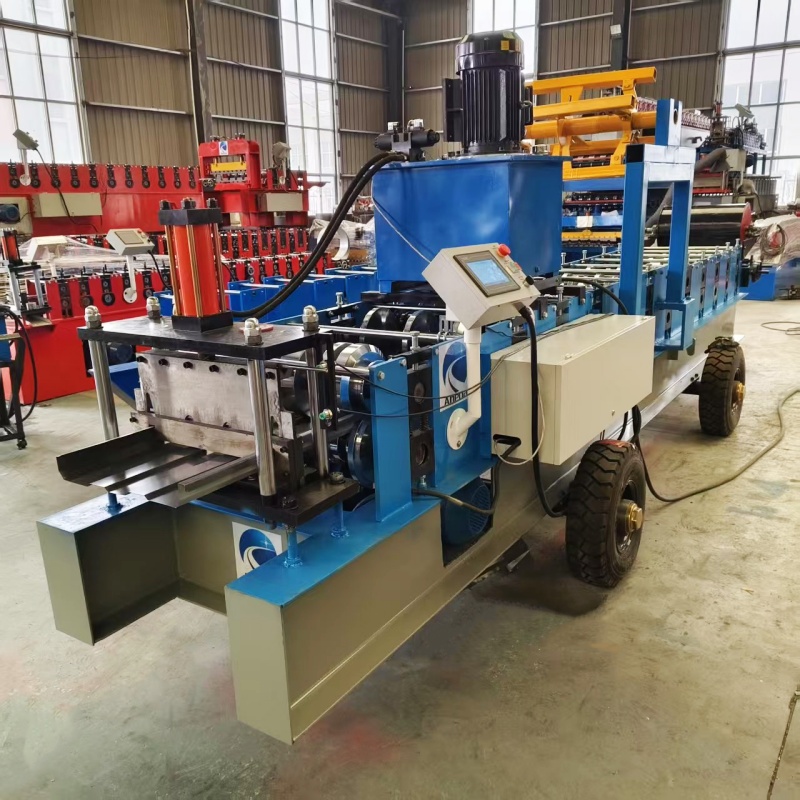

This Mobile Standing Seam Roof Panel Roll Forming Machine is an industrial-grade, on-site panel production system designed for architectural metal roofing projects. Built onto a heavy-duty dual-axle wheeled chassis, this machine can be towed directly to construction sites, allowing contractors to roll form custom-length standing seam panels on demand.

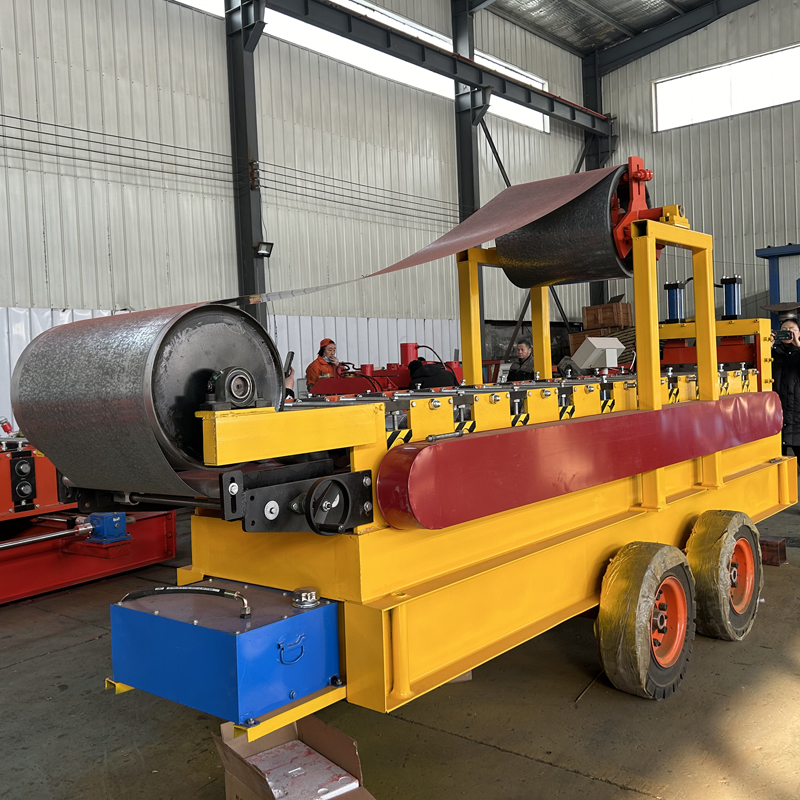

Featuring a space-saving top-mounted overhead uncoiler, heavy-duty side chain drive system, precision roller stations, and an integrated hydraulic post-cutting shear, this equipment eliminates transportation length restrictions, panel transit damage, and horizontal overlap leaks on long-span roofs.
Key Features & Highlights
-

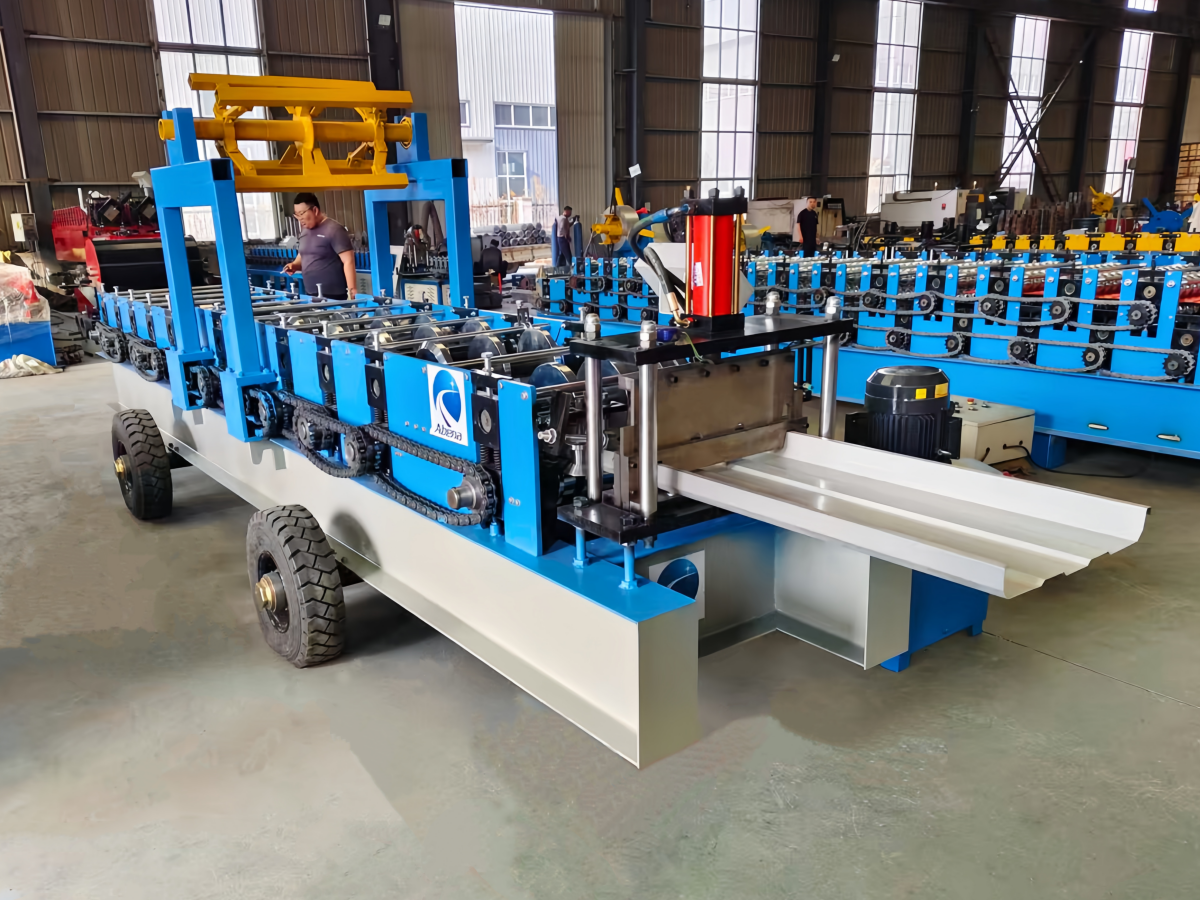

On-Site Mobility: Heavy-duty dual-axle chassis with pneumatic tires enables effortless transport between job sites and quick setup for field operations.
-
Overhead Integrated Decoiler: Top-mounted coil holder maximizes space efficiency, allowing continuous inline feeding directly into the forming stations.
-
Heavy-Duty Chain Drive: High-torque side chain transmission delivers smooth material feeding and uniform torque across all roller stations.
-

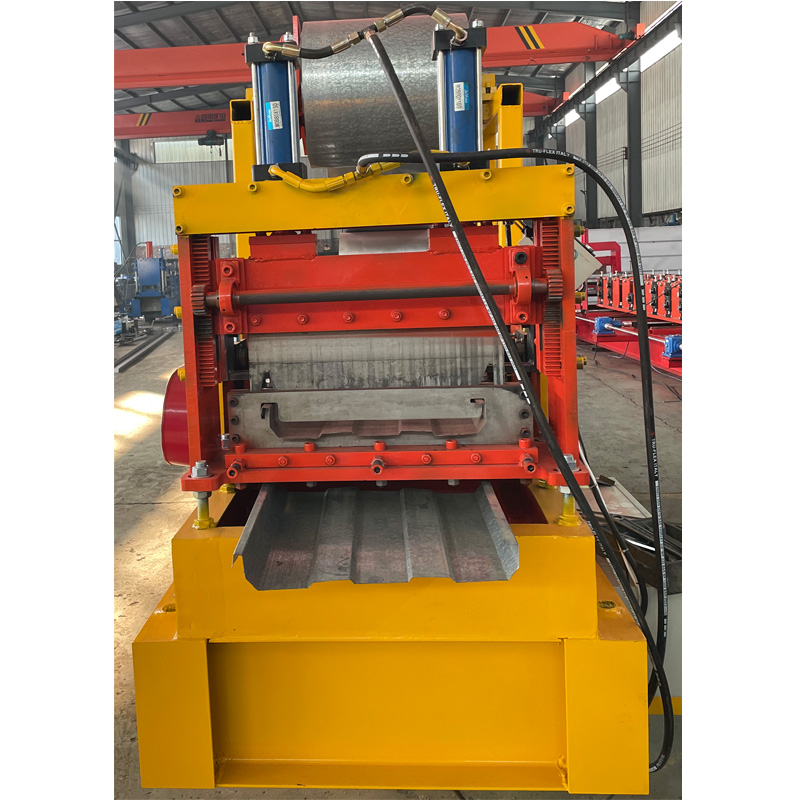

Hydraulic Post-Cut System: Powered by an upright hydraulic cylinder, the profile-matched shear blade produces clean, burr-free, square cuts without deforming the panel edges.
-

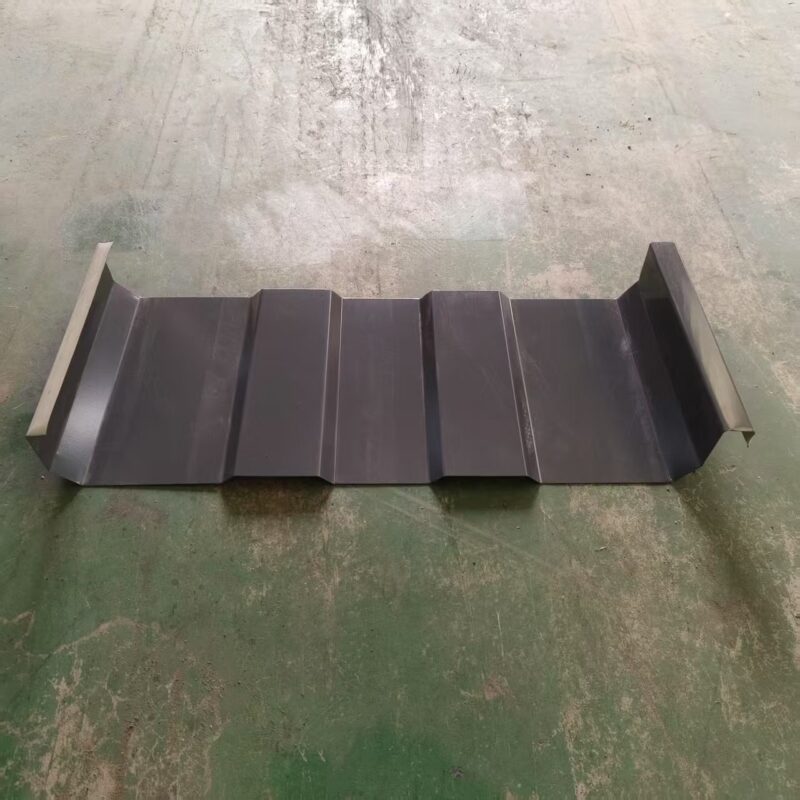

Zero-Leakage Panel Fabrication: Form continuous single-piece standing seam roof panels exceeding 30+ meters on site, eliminating horizontal lap seams and water leakage risks.
-
Rugged Steel Frame: Constructed with thick-walled structural steel tubing and solid side plates to ensure stability and accuracy under continuous operation.
Production Workflow
Decoiler ➡️ Feeding device ➡️ Roll Forming line ➡️ Hydraulic Cutting ➡️ Output Racks
Detailed description

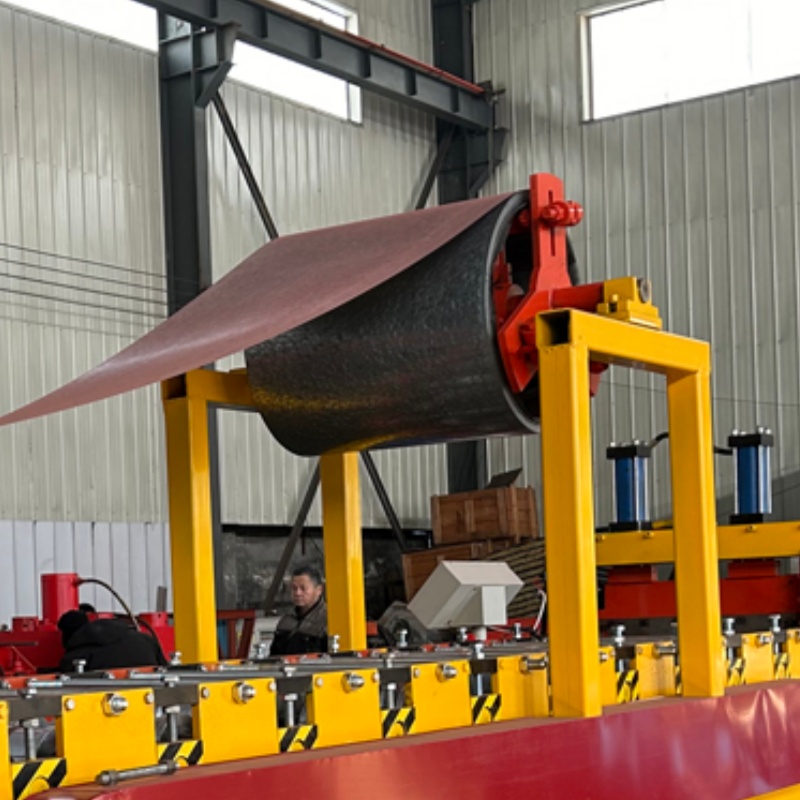

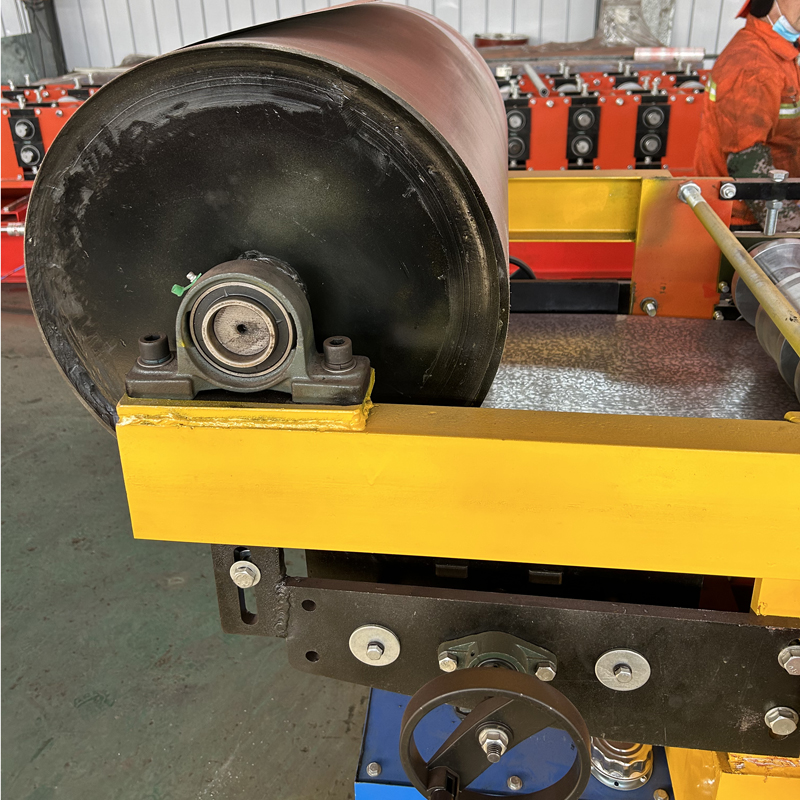

1.Decoiler:Located above the machine, uses a roller device to transfer the raw material to the end of the forming machine Driving method: follows the machine
2.Sheet guide device ：Through the roller device, the upper raw material is transferred to the end of the forming machine to ensure a smooth and steady supply of raw material

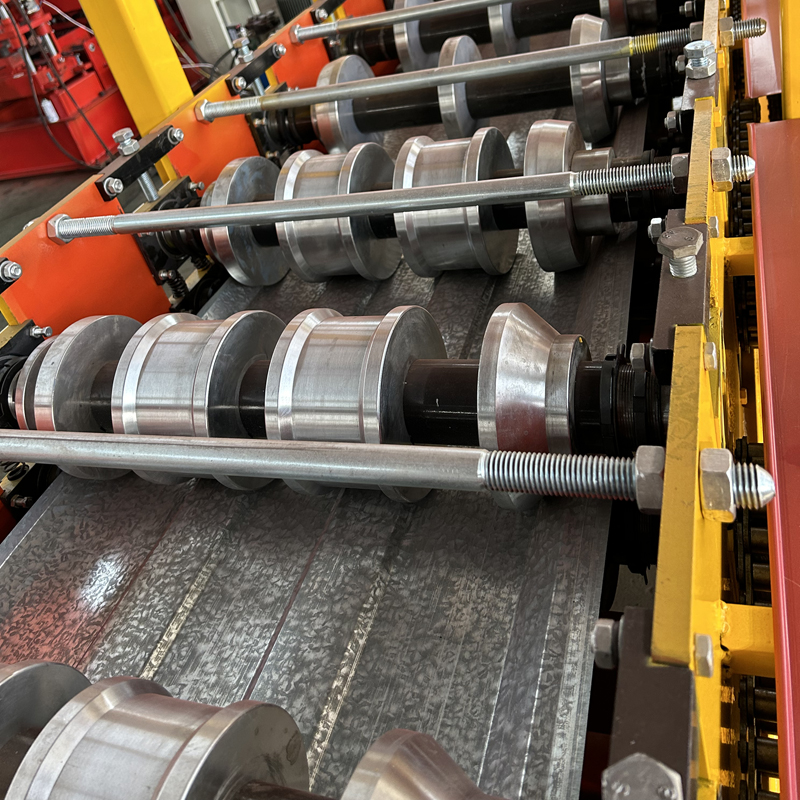

3.Roll forming system :Material Thickness:0.3mm-0.8mm PPGI and GI No.of Roller Stations:14 to 18 stepsMateral for Rollers:45# with 0.05mm chrome Material for Shaft:Cr 12
4.Main motor The main motor provides power to the forming rollers through chains or gears

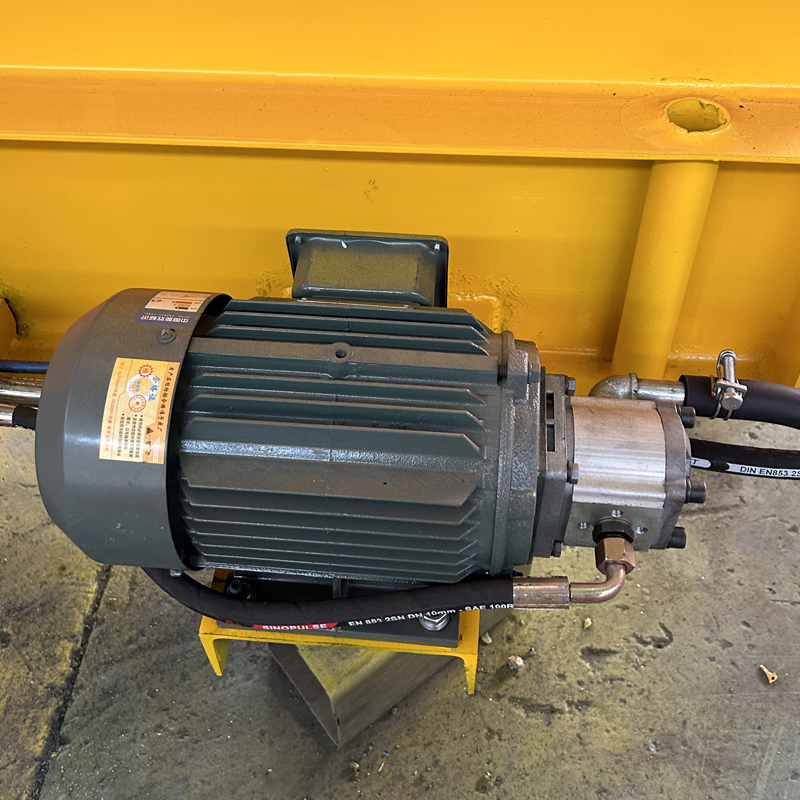

5.Hydraulic cutting Material for Cut-off Modular: Cr12 mov after treatment Hardness for Heat Treatment: HRC 60-62 Cut-off Type:Hydraulic Cut-off Motor for Hydraulic Stand: 2.2 KW

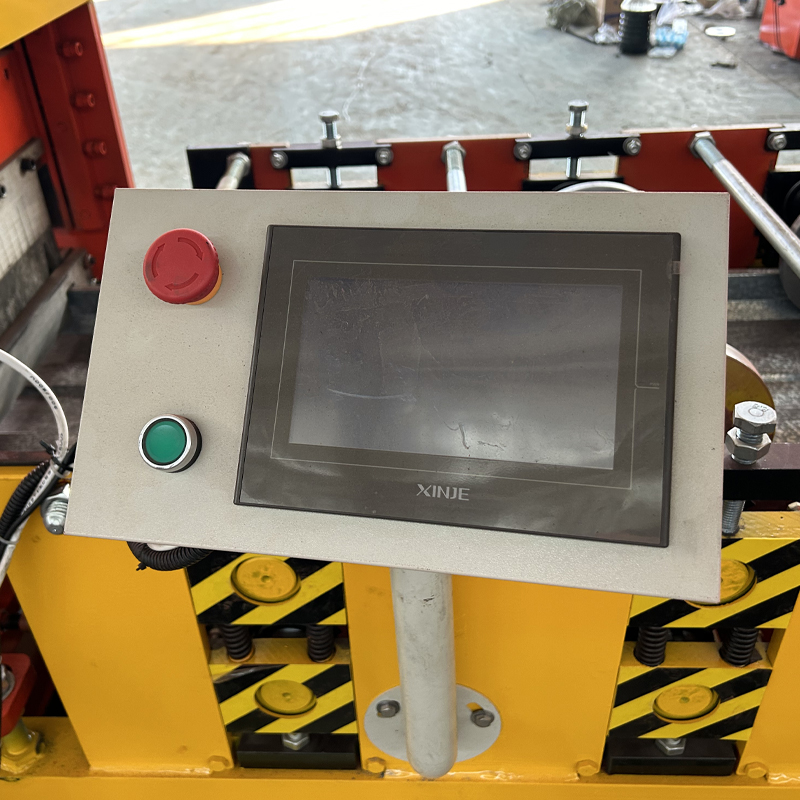

6.PLC control system Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily PLC Brand:Delta

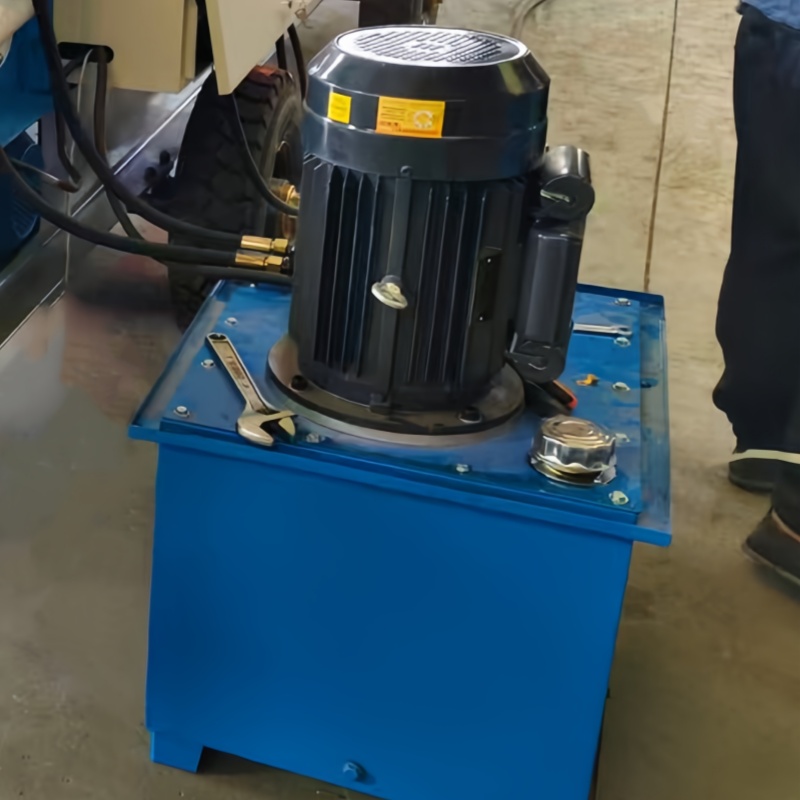

7.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.

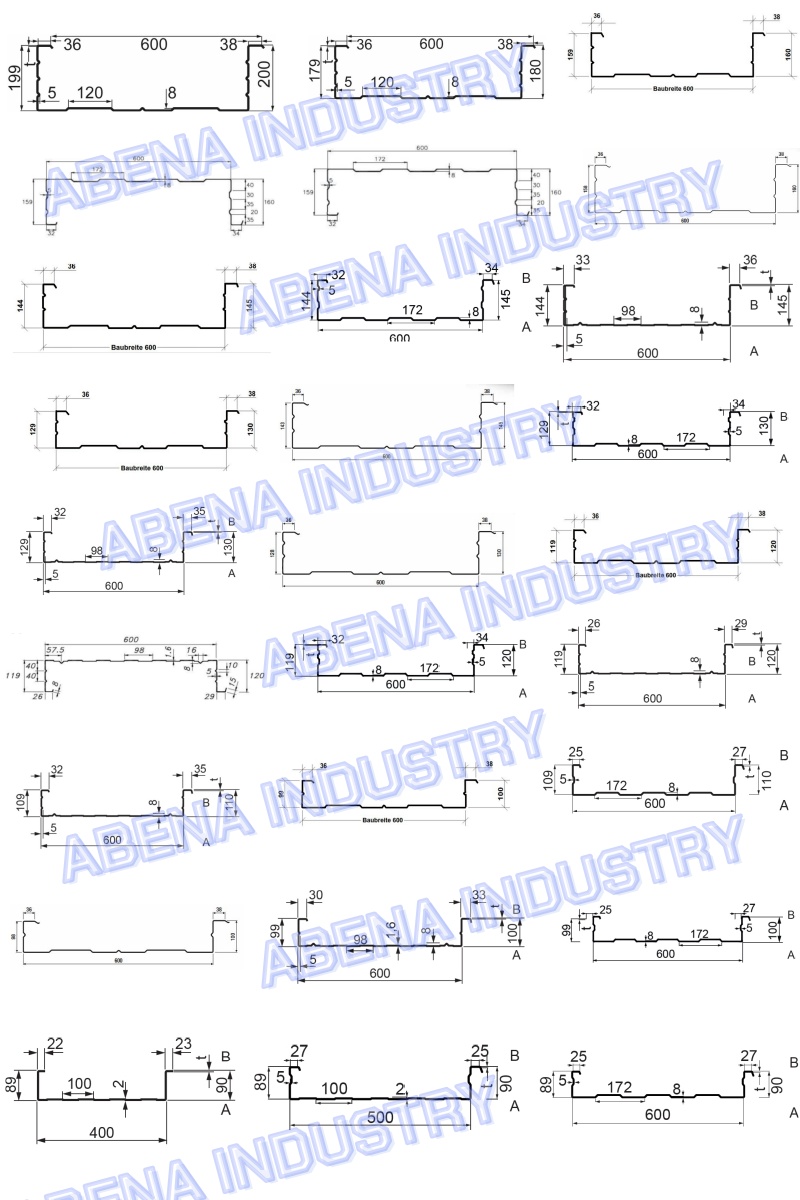

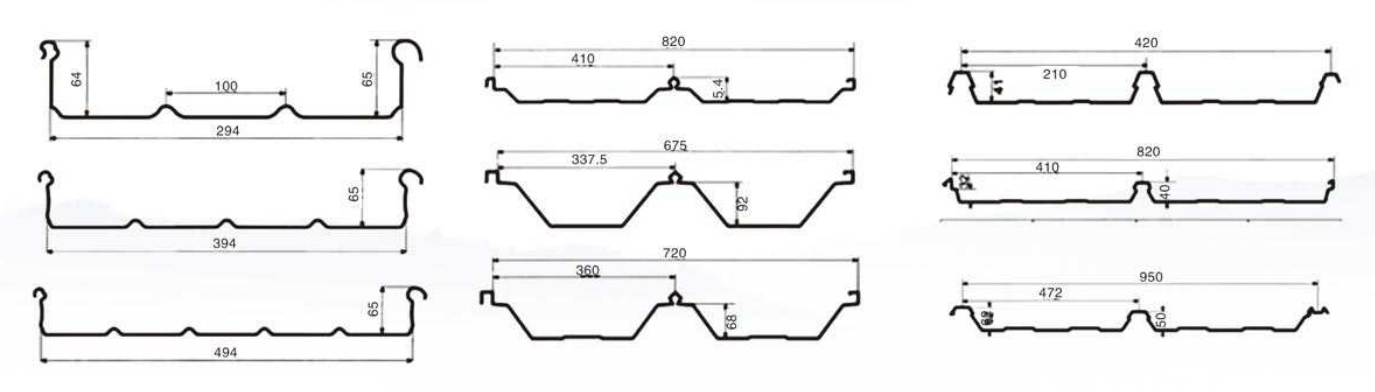

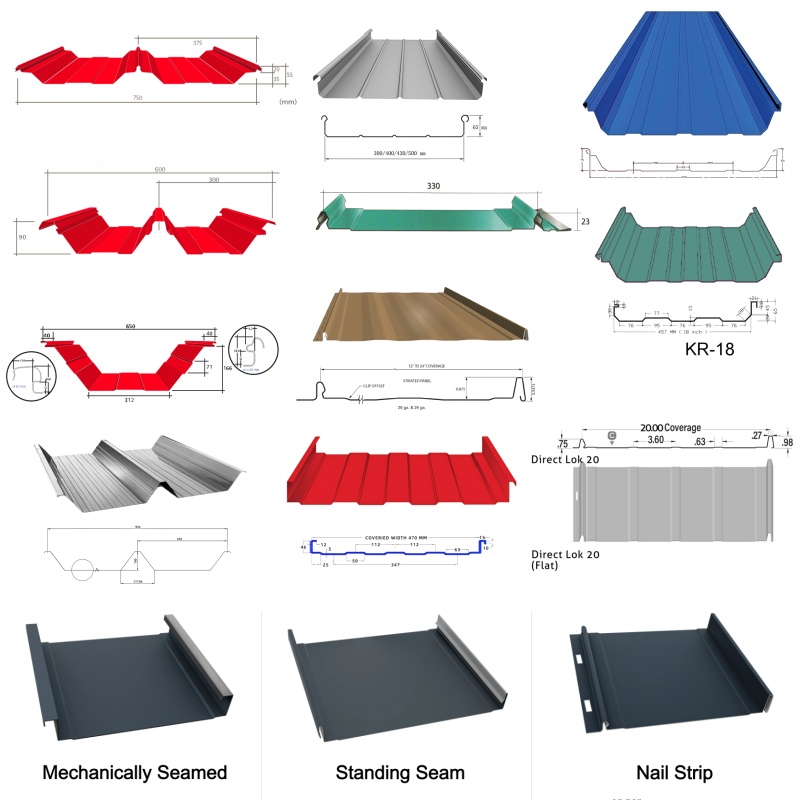

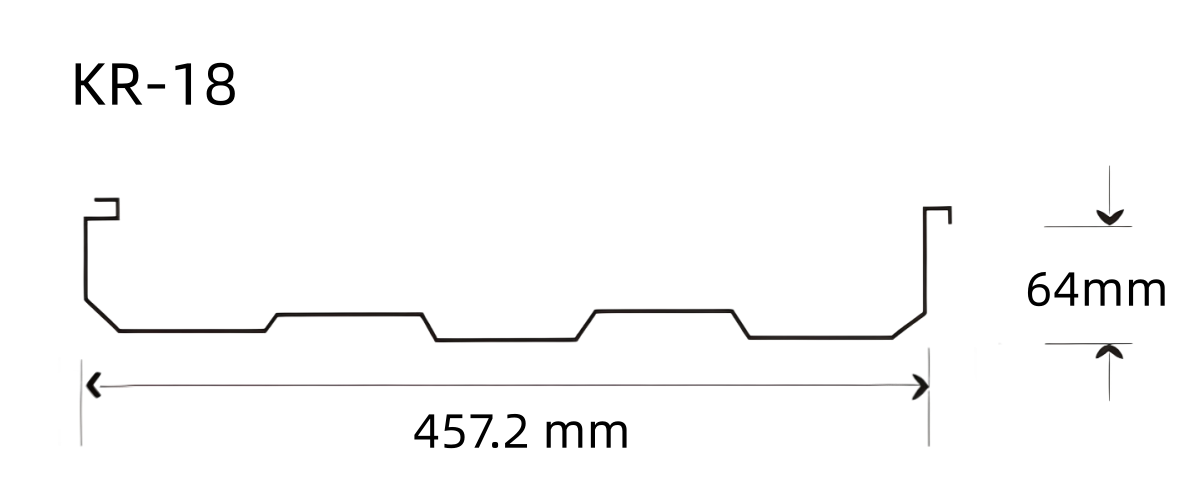

Below is product customization information for reference
