Product Overview

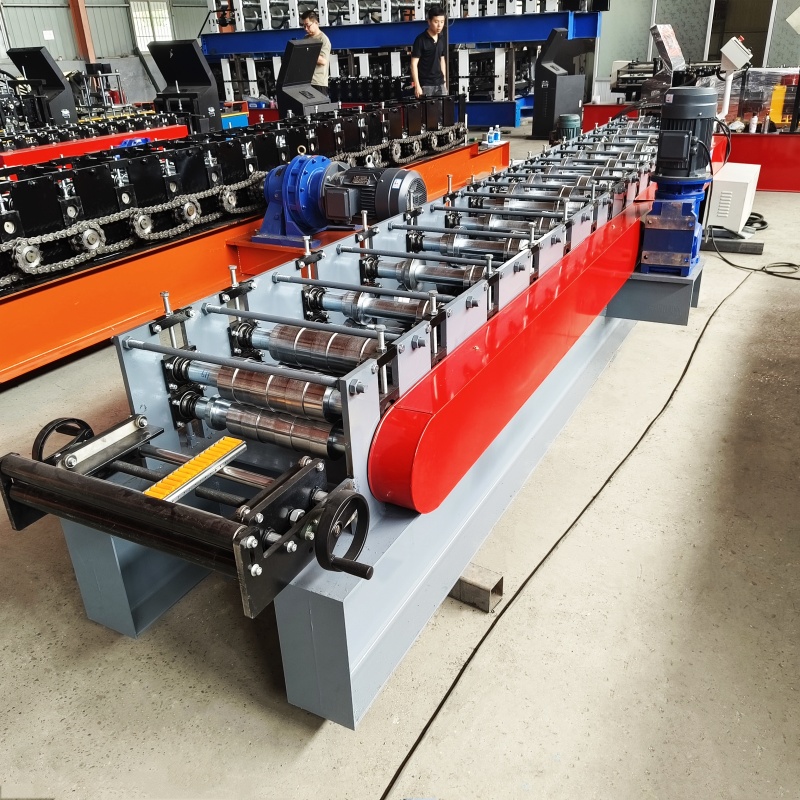

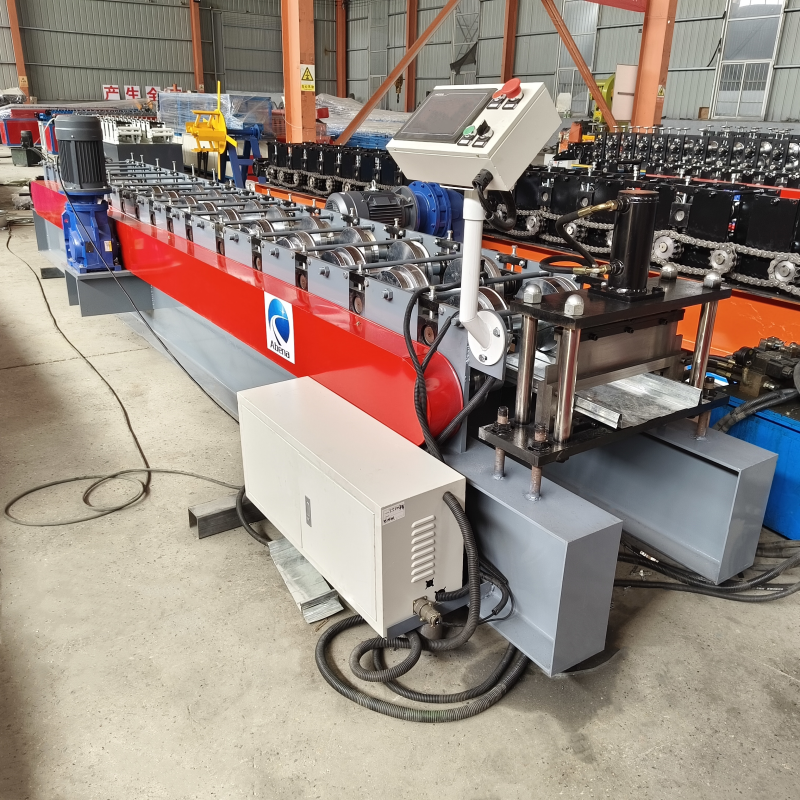

This standing seam roll forming machine is engineered to produce interlocking standing seam metal roof panels, widely used for commercial, industrial, agricultural and residential metal roofing projects. It works with galvanized steel, aluminum, and PPGI color coated coils, delivering watertight, wind-resistant roof profiles popular in North America and global markets. The full automatic line includes decoiler, roll forming station, hydraulic cutting unit and PLC control system. It runs stably with precise length cutting, low noise and easy operation. Panels feature concealed fastener design, no exposed screws, excellent weatherproof performance and long service life.
Key Features
✅ High Precision Forming: Solid alloy rollers with hard chrome plating, stable shaping, consistent panel dimension.
✅ PLC Automatic Control: Touch screen operation, set length & quantity automatically, auto stop & cut.
✅ Heavy Duty Structure: Thick welded machine frame, durable for long-time continuous production.
✅ Hydraulic Shearing: Smooth burr-free cutting surface, fast cutting speed.
✅ Wide Material Compatibility: Suitable for aluminum, galvanized steel, color steel, thickness adjustable.
✅ Easy Maintenance: Standard components, spare parts easy to source; support on-site installation guidance.
Production Workflow
Decoiler ➡️ Feeding device ➡️ Roll Forming line ➡️ Hydraulic Cutting ➡️ Output Racks
Detailed description
1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available

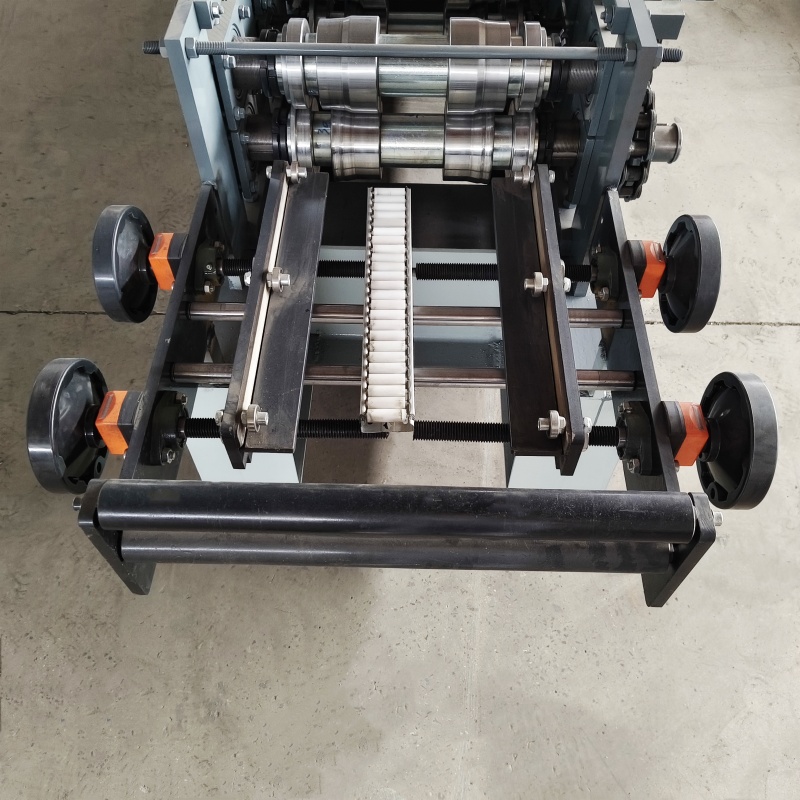

2.Sheet guide device:Leveling machine ensures the flatness of the raw material

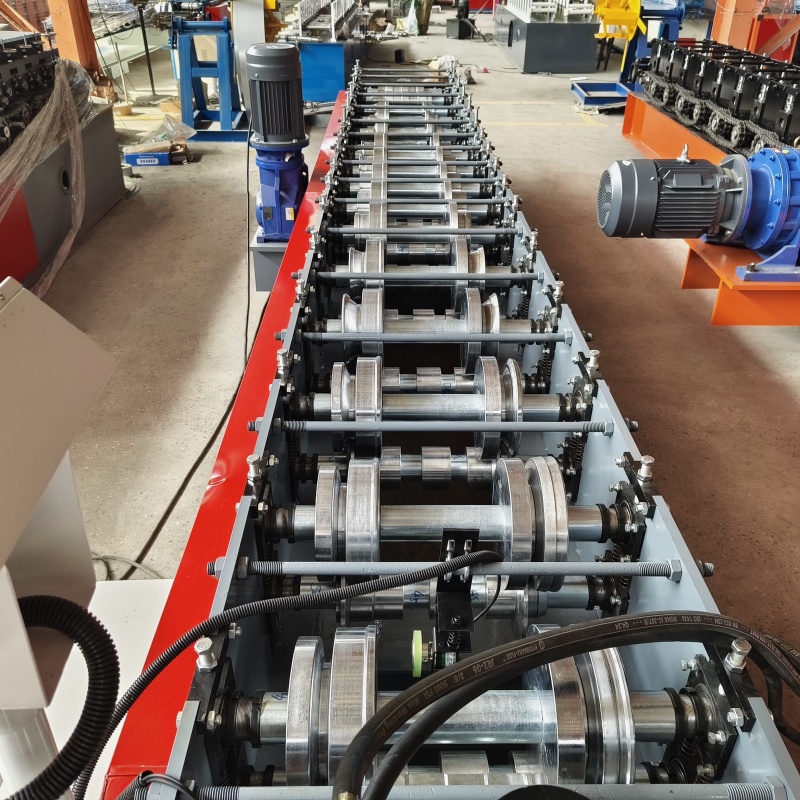

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

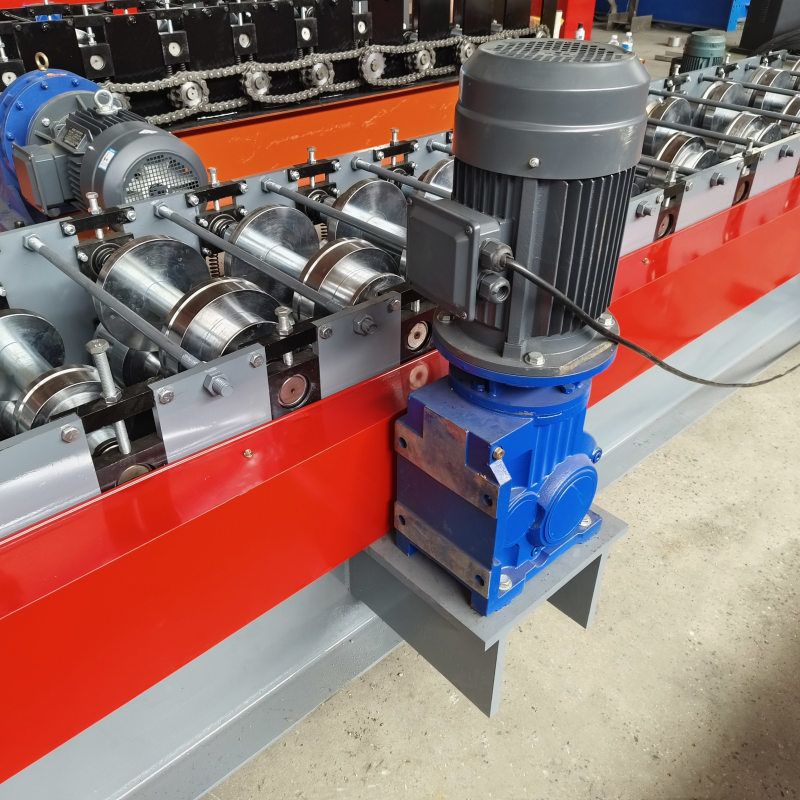

4.Main motor:The main motor provides power to the forming rollers through chains or gears

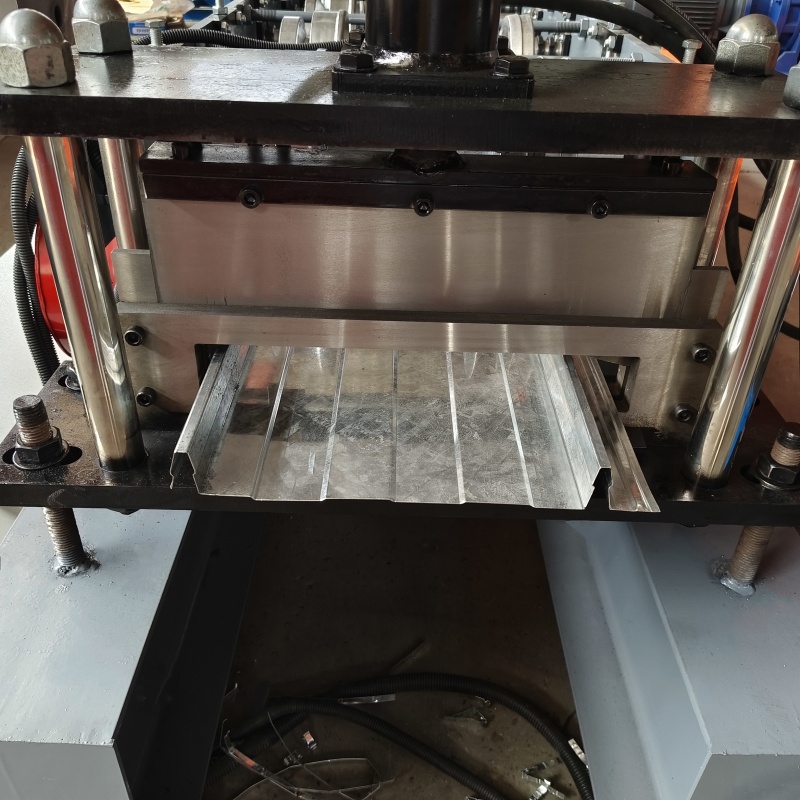

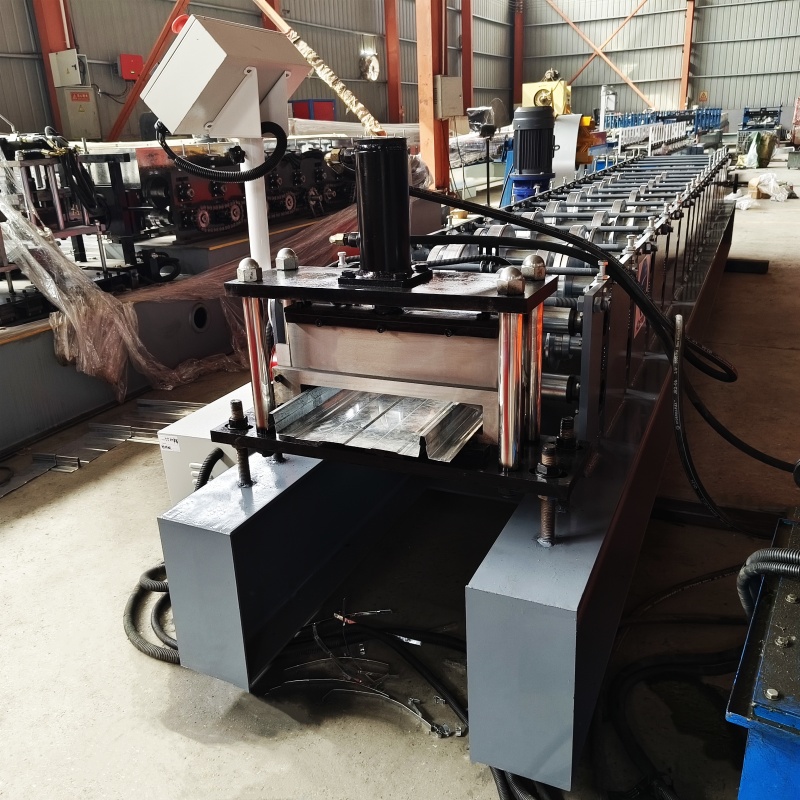

5.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available

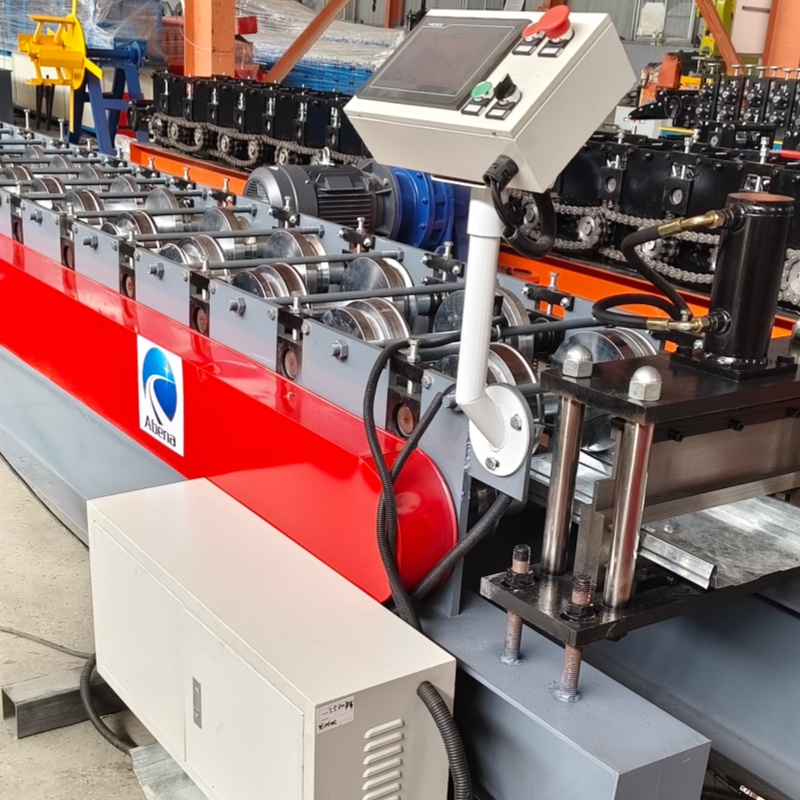

6.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
7.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa.
We offer customization services for our clients’ various designs.
Below is product customization information for reference.
