Uncompromising Power, Precision, and Reliability for All Your Sheet Metal Shearing Needs
Presenting our high-performance Hydraulic Guillotine Shear, a versatile and robust solution for modern sheet metal processing. Engineered for clean, accurate, and high-volume production, this machine is designed to tackle a wide variety of materials and thicknesses with ease, from mild steel to stainless steel and aluminum.
Key Features & Advantages
1. Robust, Heavy-Duty All-Steel Construction

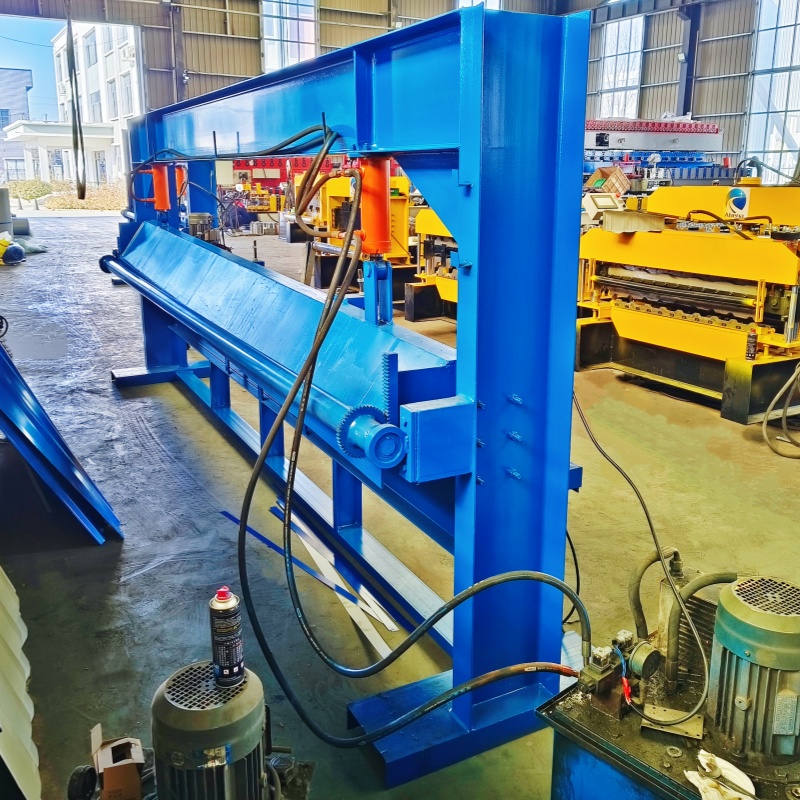

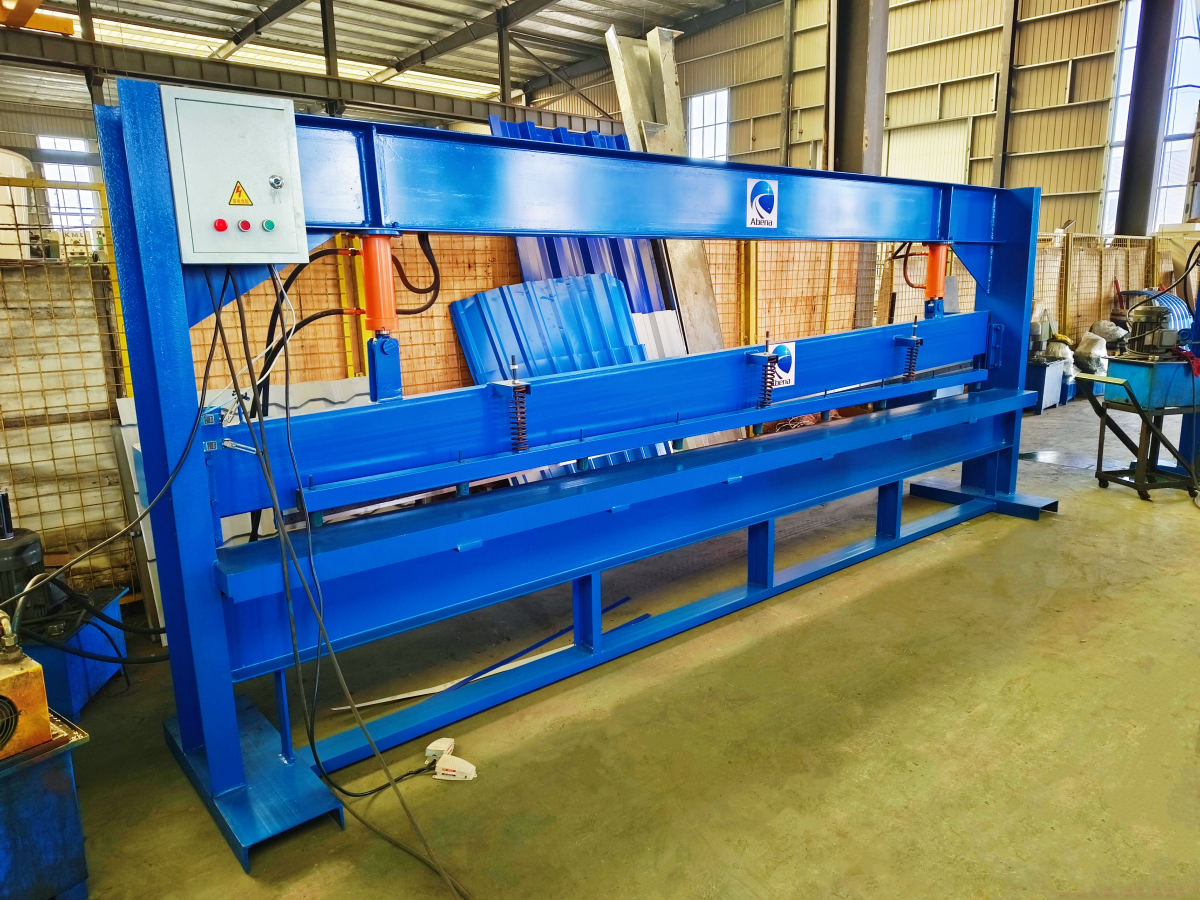

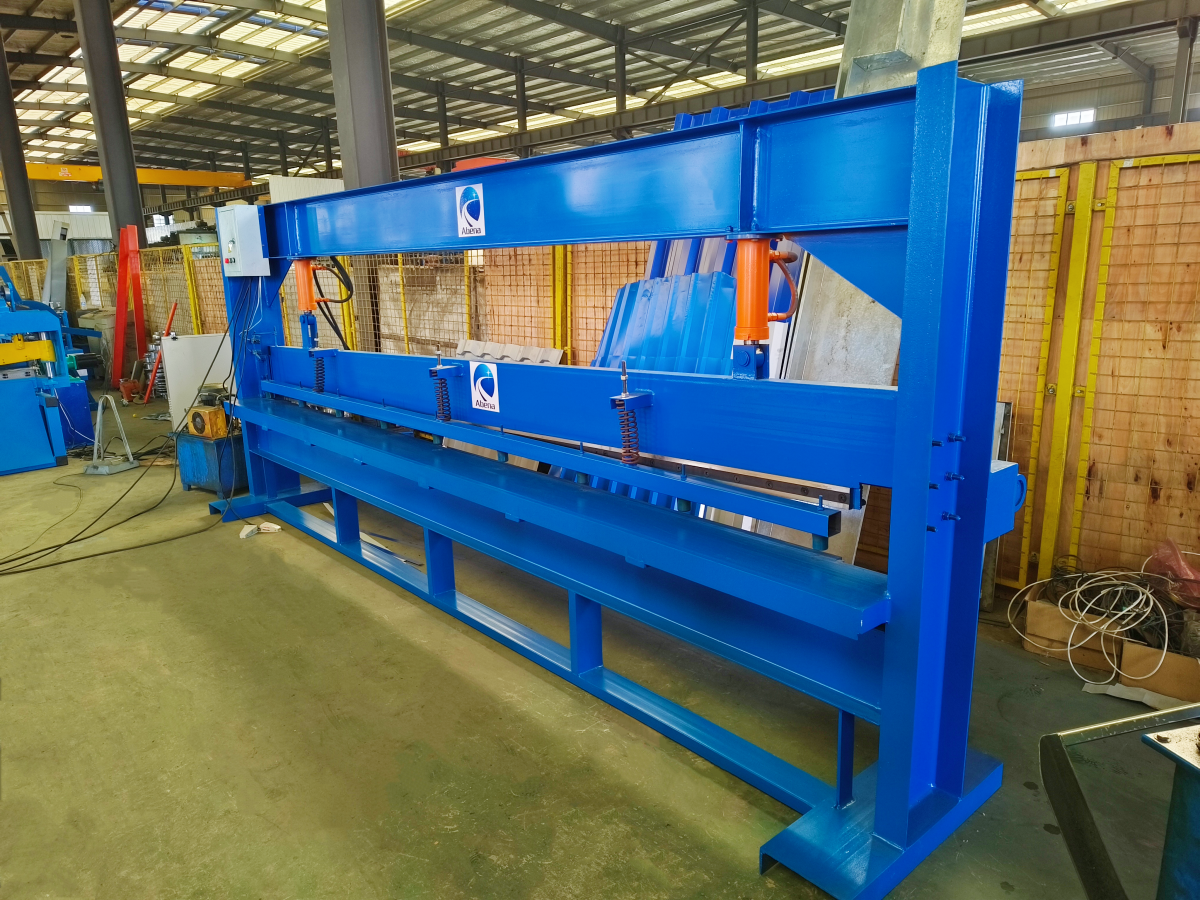

The entire machine is built on a high-rigidity, welded steel frame (prominently seen in the blue structure in the image). This robust construction ensures maximum stability, minimizes deflection under load, and guarantees consistent accuracy over decades of operation.
2. Precise Hydraulic Cutting Action
Powerful, synchronized hydraulic cylinders (the orange components) provide the high-tonnage force necessary for clean, fast shearing. The hydraulic system is optimized for smooth, controlled cuts and rapid cycle times.
3. Integrated Material Hold-Down System
A series of robust, synchronized pressure feet are located just in front of the shearing blade. These feet automatically descend to firmly secure the metal plate against the table before the upper blade engages, preventing material movement and ensuring superior squareness and edge quality.

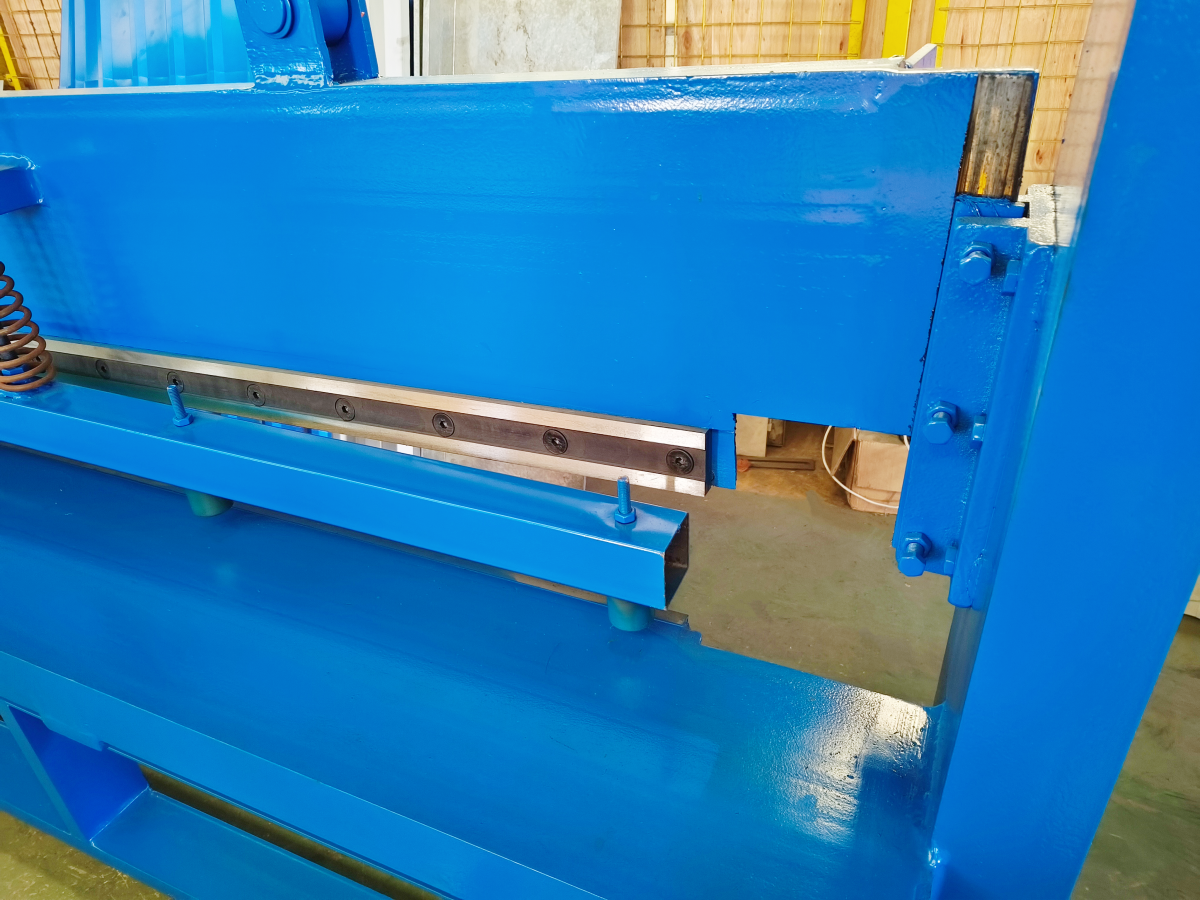

4. Optimized Upper Blade Beam
The heavy-duty upper blade beam is designed for maximum strength and accurate guidance. Precision-ground, high-quality blades are used for clean, durable cutting. Blade gap is often easily adjustable for optimal cutting of different material thicknesses.
5. Intuitive Operator Controls
The main electrical cabinet and control panel are conveniently located on the frame for easy access. The user-friendly interface allows for precise control over backgauge position, cutting length, and stroke frequency.
6. Versatile Material Handling
Suitable for shearing various metal types, including mild steel, stainless steel, galvanized sheet, aluminum alloys, and more. It handles various thicknesses, making it perfect for custom fabrication and production environments.
7. Optional Advanced Control Systems
For even greater efficiency, advanced models can be equipped with sophisticated CNC control units, providing programmable backgauges and blade gap adjustment for complex, high-mix production runs.
Typical Applications
-
Structural Steel & General Fabrication
-
Automotive Body Panel Manufacturing
-
Home Appliance Production (e.g., HVAC, appliances)
-
Shipbuilding and Marine Applications
-
Metal Cabinet and Enclosure Manufacturing
-
Construction Equipment Parts
Technical Specifications (Standard Range Overview)
Specifications vary by model and configuration. Please consult with our sales team for specific details.
-
Max. Shearing Length: 2,000 mm to 6,000 mm (Custom lengths available)
-
Max. Shearing Thickness (Mild Steel): 6 mm to 20 mm (Up to 30mm for special models)
-
Back Gauge Range: (Specify range, e.g., 600 mm to 1000 mm)
-
Main Motor Power: (Specify HP/kW range)
-
Stroke Rate (Empty): (Specify strokes per minute)
