Product Introduction

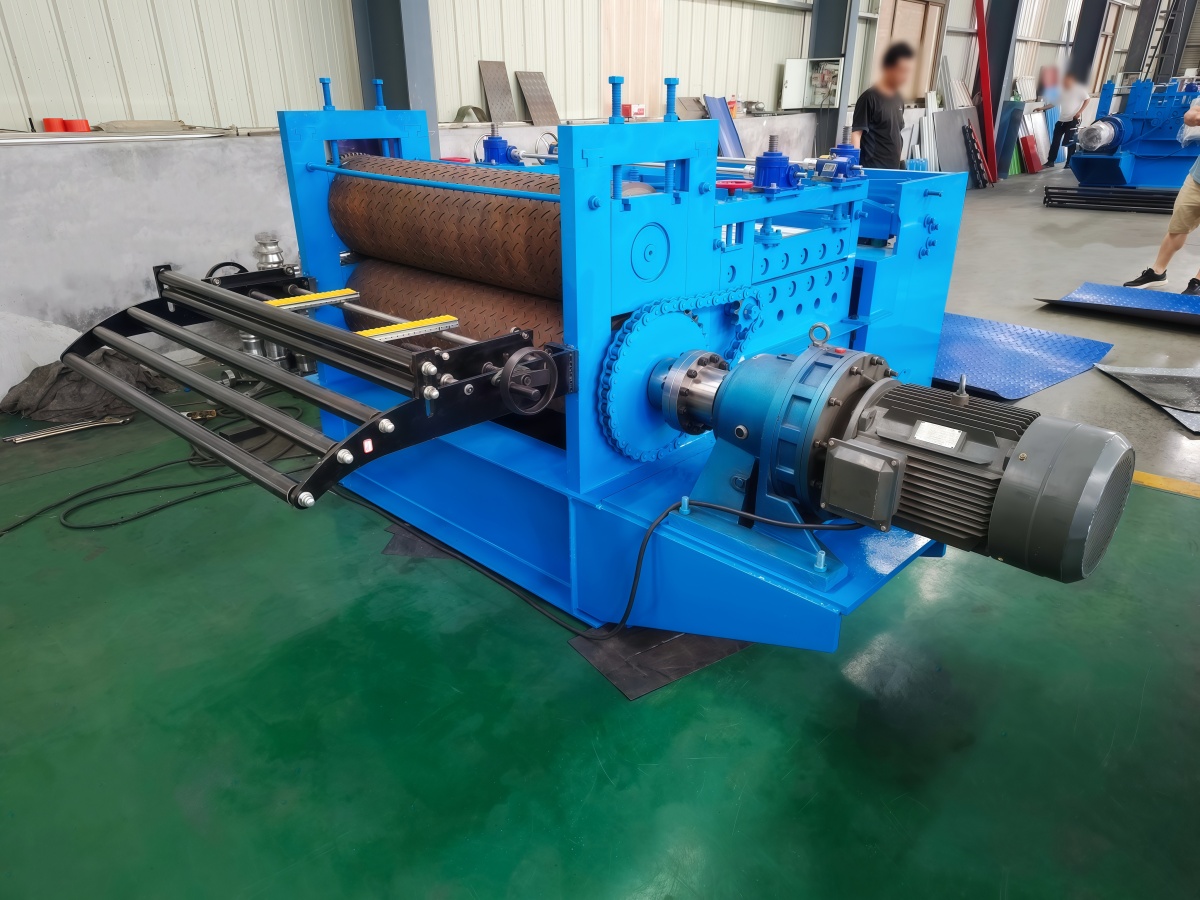

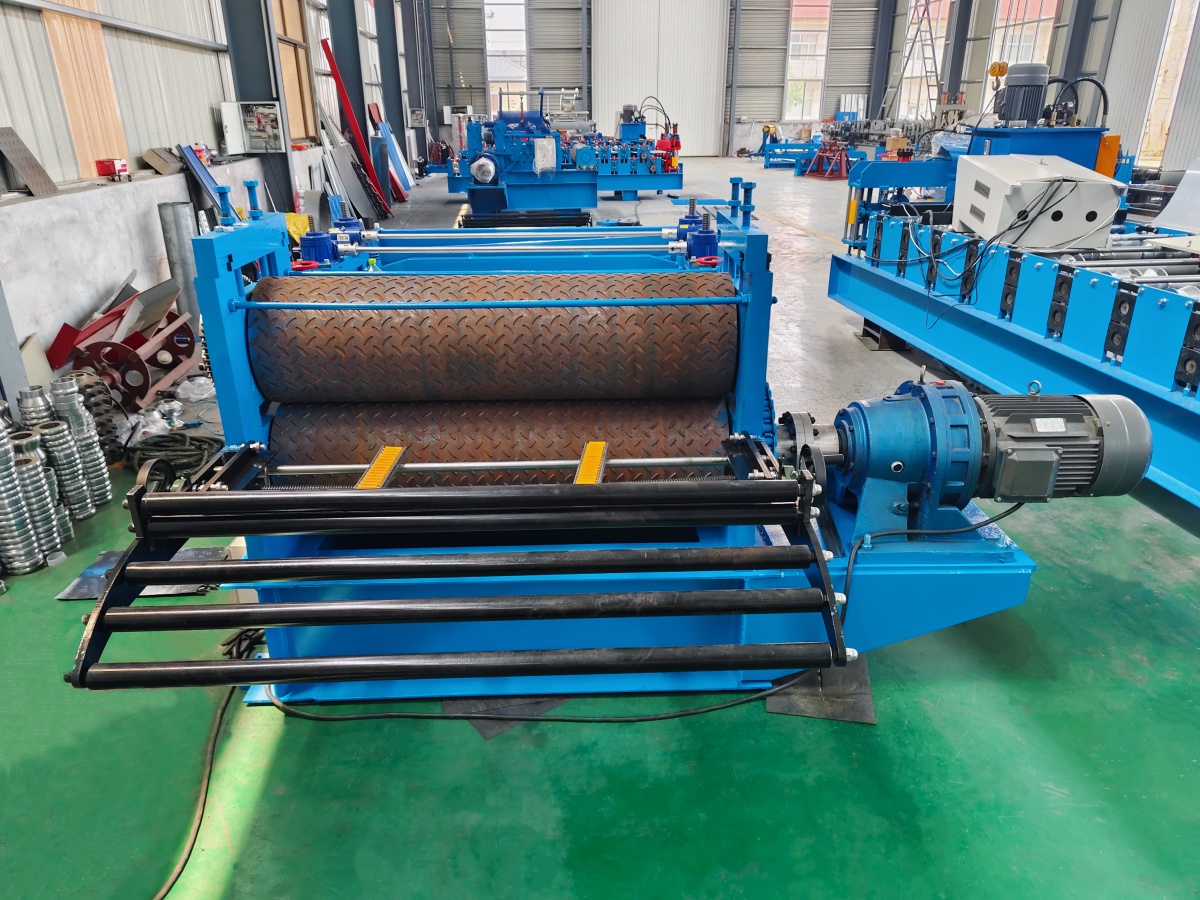

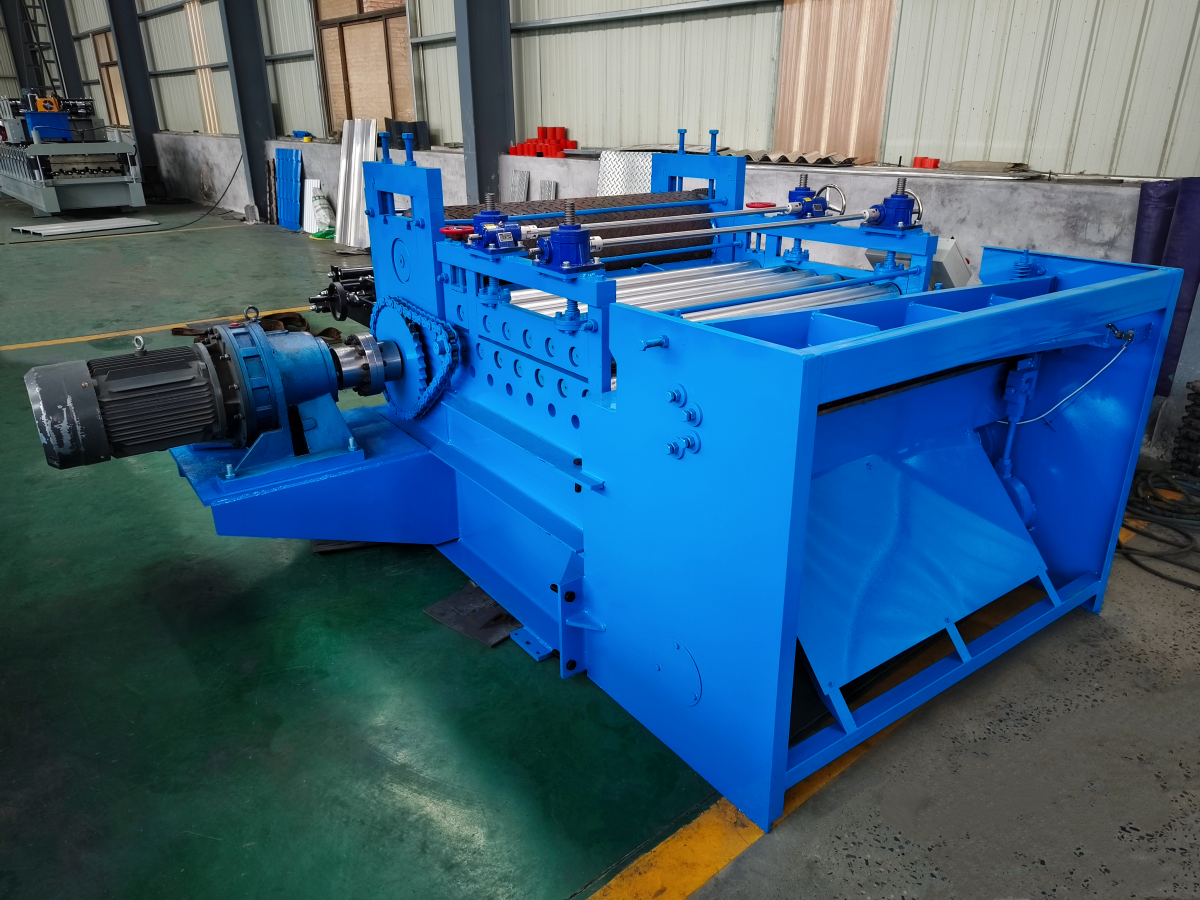

This is a roller-type industrial embossing machine with cutting function, integrating precision embossing and sheet cutting functions. It has a small footprint, contributing to compact and efficient production.
Key Features & Highlights
-
3-in-1 Multifunctional Integration
Integrates embossing ，leveling and shearing into a single continuous automated line, reducing equipment footprint and manual labor costs.
-
Forged Alloy Steel Rollers with Vacuum Heat Treatment
Embossing rollers are made of premium 42CrMo/60CrMoV alloy steel, precision CNC laser-engraved, and vacuum hardened to HRC 58–62. Ensures exceptional wear resistance, long service life, and deep, uniform pattern definition.
-

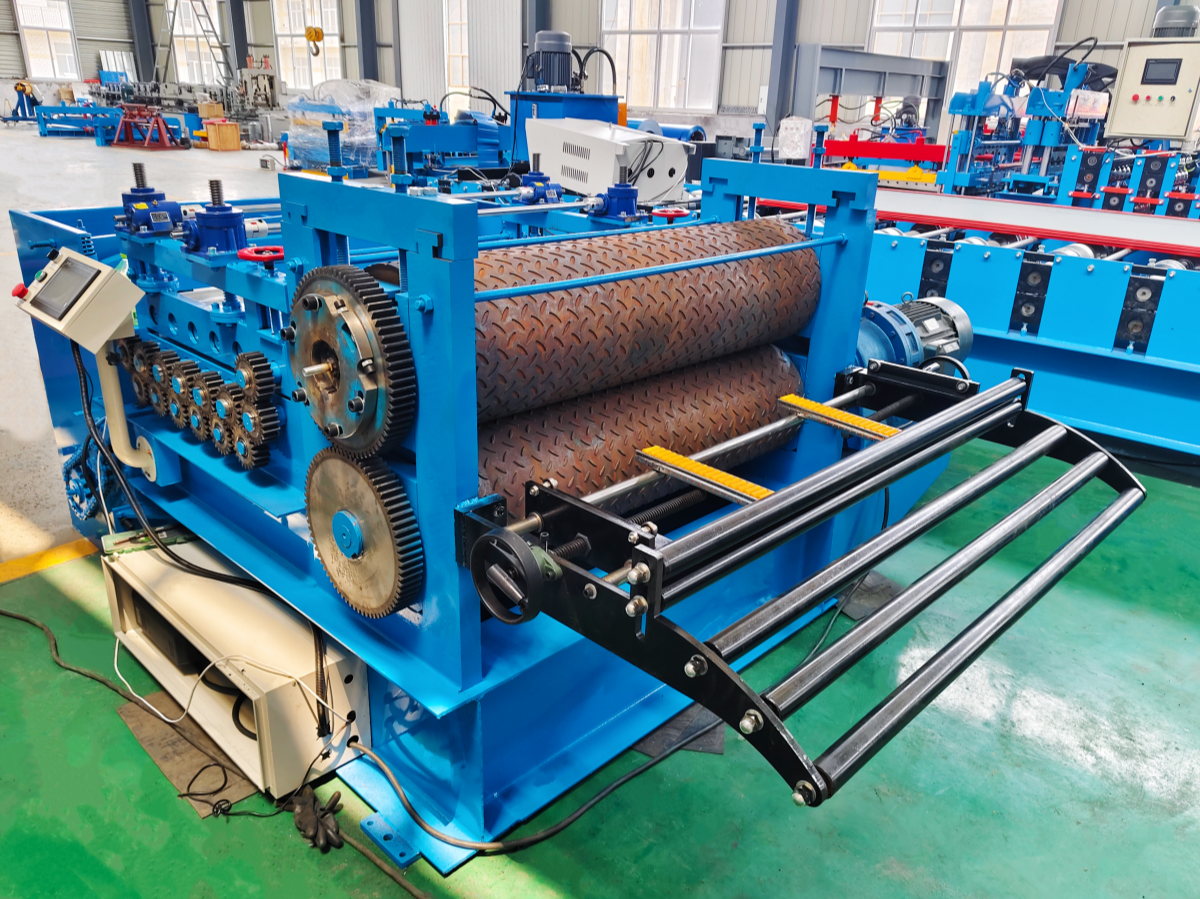

Heavy-Duty Synchronized Gear Transmission
Features precision-machined side drive spur gears to ensure 100% synchronized rotation between top and bottom rollers, preventing material slippage, surface scratch, or pattern double-stamping.
-
Smart PLC Touchscreen Interface

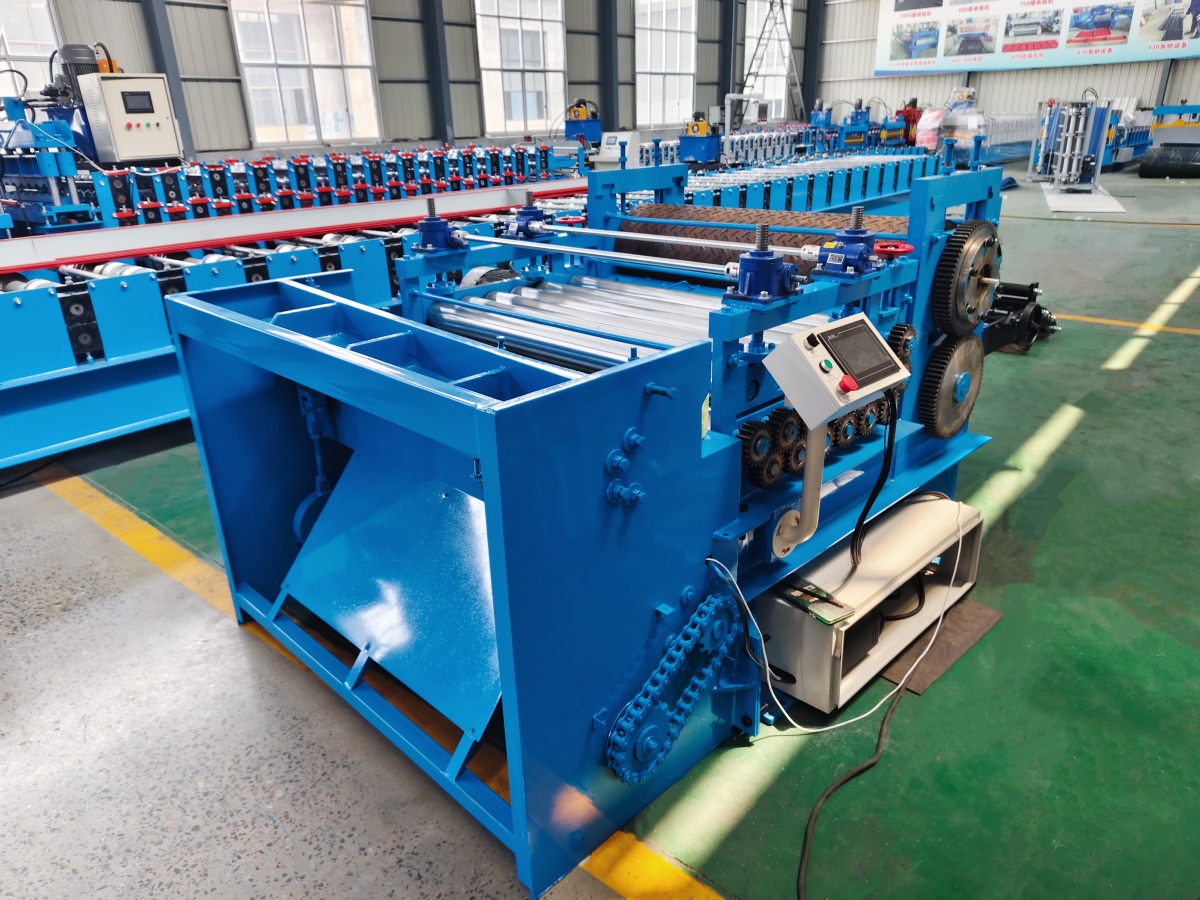

Equipped with a swing-arm mounted control panel featuring a user-friendly HMI touchscreen (Delta PLC). Allows flexible adjustments for sheet length, cutting quantity, speed control, and real-time operational diagnostics.
-
Ergonomic Infeed Support Table
Features heavy-duty entry guide rollers to support heavy metal sheets and coils, ensuring smooth feeding, preventing operator fatigue, and eliminating material surface scratches.
Technical Specifications
| Parameter / Item | Specification / Capability |
| Applicable Materials | Galvanized Steel, Cold-Rolled Steel, Aluminum Alloy, Stainless Steel |
| Material Thickness Range | 0.3 mm – 3.0 mm (Customizable up to 5.0 mm) |
| Effective Processing Width | 1,000 mm / 1,250 mm / 1,500 mm (Tailored to customer needs) |
| Pattern Types | Diamond Tread, 5-Bar Checker Plate, Teardrop, Stucco, Custom Logos |
| Roller Material & Hardness | Forged Alloy Steel 42CrMo / 60CrMoV (HRC 58 – 62) |
| Working Speed | 0 – 22 m/min (Frequency Inverter Speed Control) |
| Leveling Unit | Multi-roller precision flattening system (11–13 leveling shafts) |

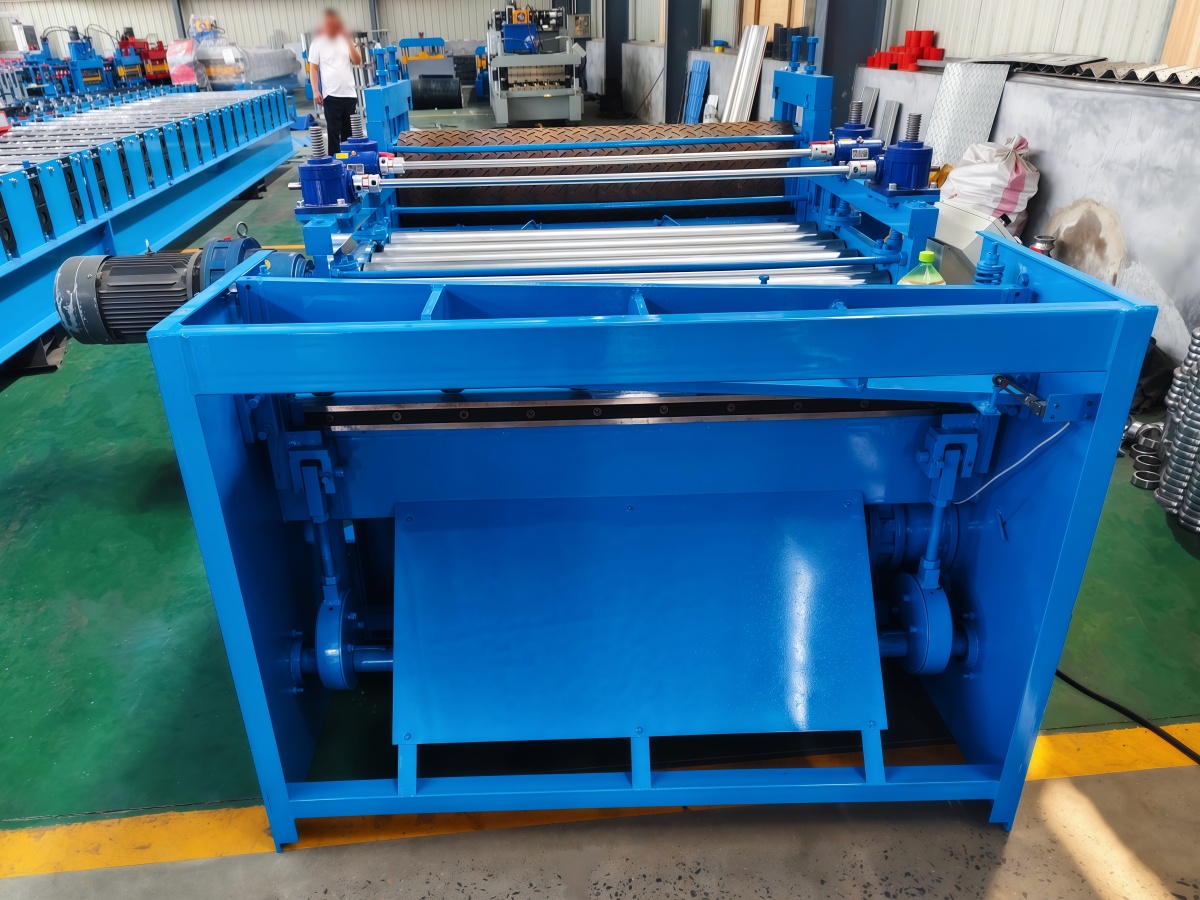

| Slitting & Cutting Unit | Adjustable rotary slitting knives + Hydraulic cut-to-length shear |
| Control System | Delta PLC + Touchscreen HMI |
| Main Motor Power | 15.0 kW – 22.0 kW (Depending on sheet thickness) |
| Total Weight | Approx. 7.5 – 9.5 Tons |
Applications & Industry Scope
This machine is widely used in metal processing, construction, and manufacturing industries, producing patterned anti-slip and decorative sheets for:
-
Anti-Slip Flooring & Stair Treads (Industrial platforms, walkways, fire escapes)
-
Automotive & Transportation (Bus flooring, truck bed liners, trailer decking)
-
Architectural & Decorative Panels (Elevator interiors, wall cladding, cold storage rooms)
-
Container & Enclosure Panels (Generator enclosures, electrical cabinet doors)
Customization & OEM Support
Custom Pattern Design: We offer custom engraved pattern designs including corporate logos, decorative textures, and specialized anti-slip designs.
-
Turnkey Solutions: Inline uncoiler, slitting, embossing, shearing, and stacking solutions available based on factory layout.
-
Global Technical Support: Video installation guide, and 3-year warranty
We offer customization services for our clients’ various designs.
Below is product customization information for reference.
