This producing line uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate. The products of it are used as the roof tile and wall panel outside of building, as well as decorative sheet and ceiling board inside of building, to increase the beauty and durability of the roof tile and wall panel. This line has no limit on processing length; you can set several different data on the computer control cabinet according to your own need. After pressing the button “Confirm”, the machine can produce the panel automatically according to the set data. The molding plate surface smooth and not easy to be marked when it is being stamped.
Angle Wall Light Keel Machine Product Description
video description

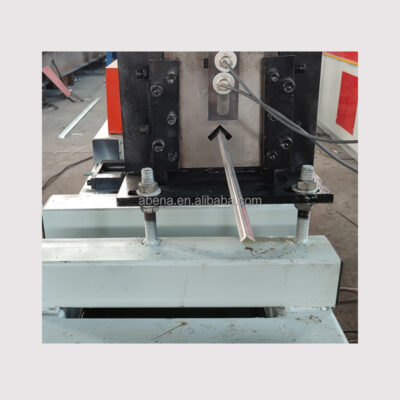

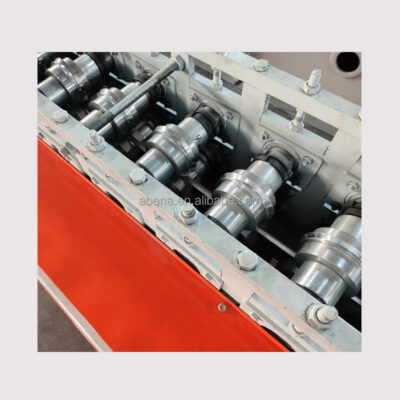

wall angle roll forming machine detail images
| Product name | wall angle roll forming machine |
| Cutting blade material | Cr12 Mould Steel |
| Shaft material | High Grade No.45 Steel |
| Roller stations | 14 Stations |
| Decoiler | 5T Manual Decoiler |
| Frame thickness | 16mm |
| thickness | 0.3-1.2mm |
| Working speed | 15-20m/minute |
| Main motor | 4kw |
| weight capacity | 3ton |
| Voltage | 380v 50hz |

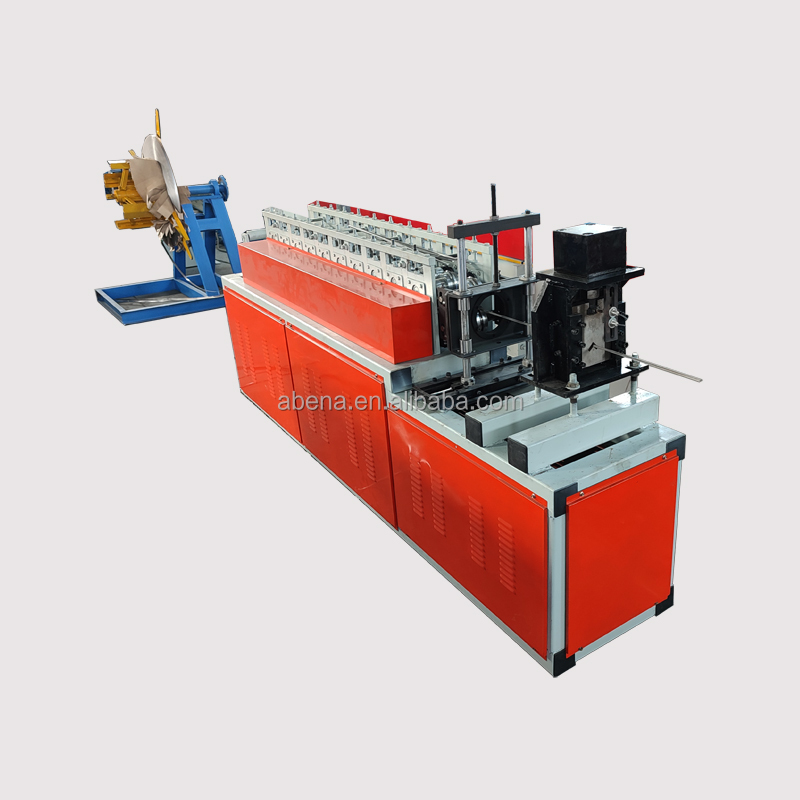

Wall Angle Machine Product Show
Abena L-Shape Profile Roll Forming Machine is design for making wall angle keel.
It can produce wall angle keel of various specific sizes using a computer-controlled precise mechanical system to improve efficiency. The corner edge keel forming machine can automatically perform forming and can be customized according to customer requirements.
