Product Introduction

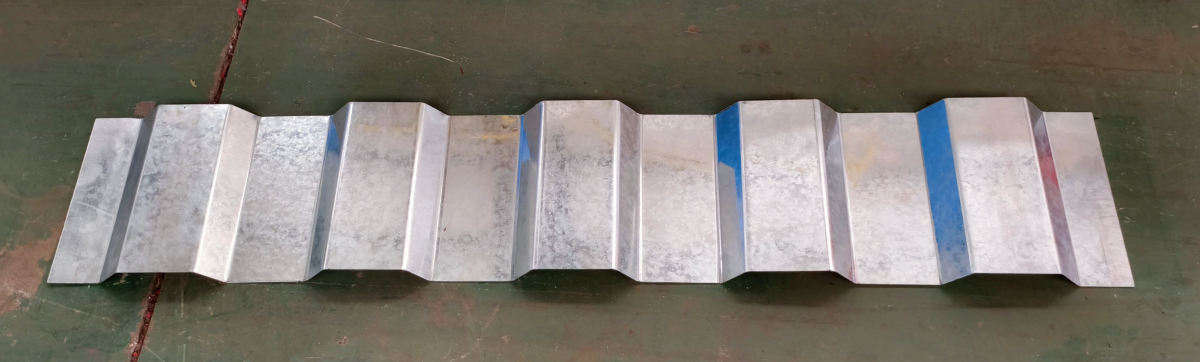

The High-Efficiency Metal Roof Deck Roll Forming Machine is engineered for continuous, high-speed production of structural steel deck sheets used in commercial, industrial, and residential roofing and flooring systems. Built on a heavy-duty H-beam base with high-precision forming stations, this machine delivers superior rigidity, smooth profile transitions, and exact dimensional accuracy. Equipped with an automated hydraulic post-cutting mechanism and a PLC control system, it streamlines production while minimizing material waste.
Key Features
-

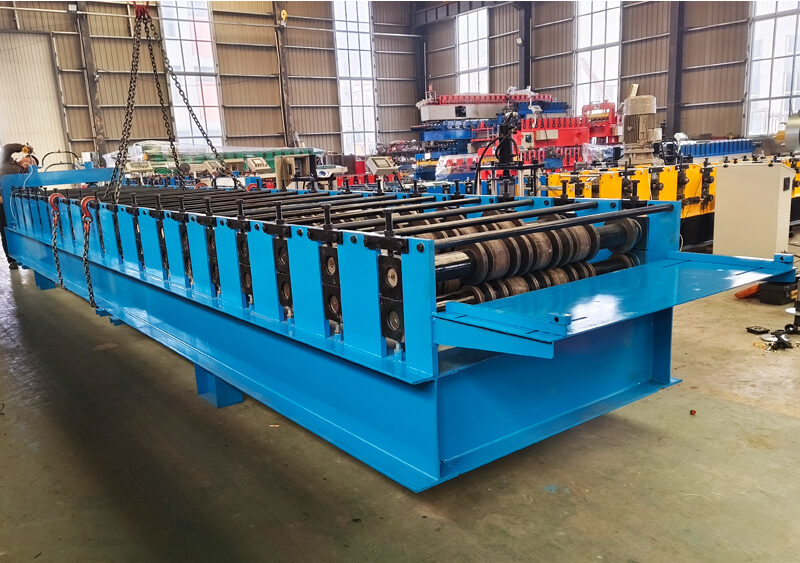

Heavy-Duty Welded Frame
Constructed from high-tensile H-beam and thick steel plates to prevent distortion and vibration during long, continuous production runs.
-

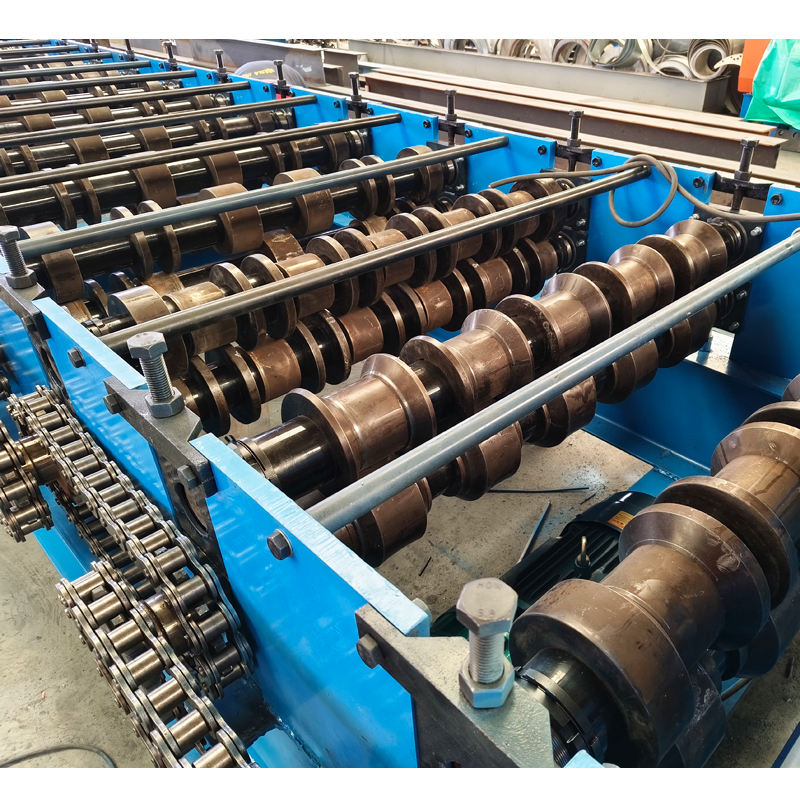

Precision Machined Rollers & Solid Shafts
Rollers are crafted from high-grade forged steel (45# steel / Cr12 mold steel) with hard chrome plating to minimize surface friction, prevent material scratching, and extend service life.
-

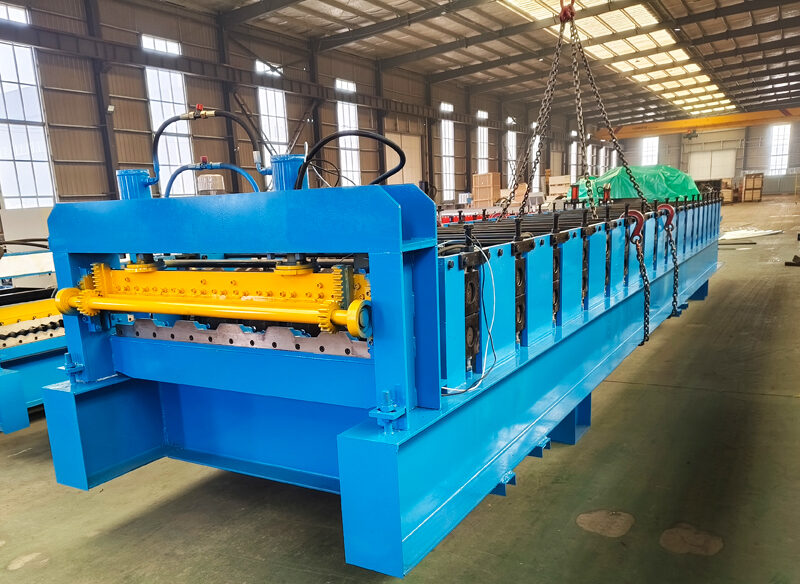

Hydraulic Post-Cutting Assembly
Features a heavy-duty hydraulic shearing unit with custom-profiled cutting blades. Ensures clean, burr-free cuts across complex deck profiles without edge deformation.
-
Fully Automated PLC Control
Integrated touch-screen interface (Siemens / Mitsubishi / Delta) allows operators to easily input sheet lengths, batch quantities, and monitor operational parameters in real time.
-
Multi-Station Gradual Forming
Engineered with multiple forming passes to gradually shape deep ribs and structural profiles without stressing or weakening the sheet metal.
Production Workflow

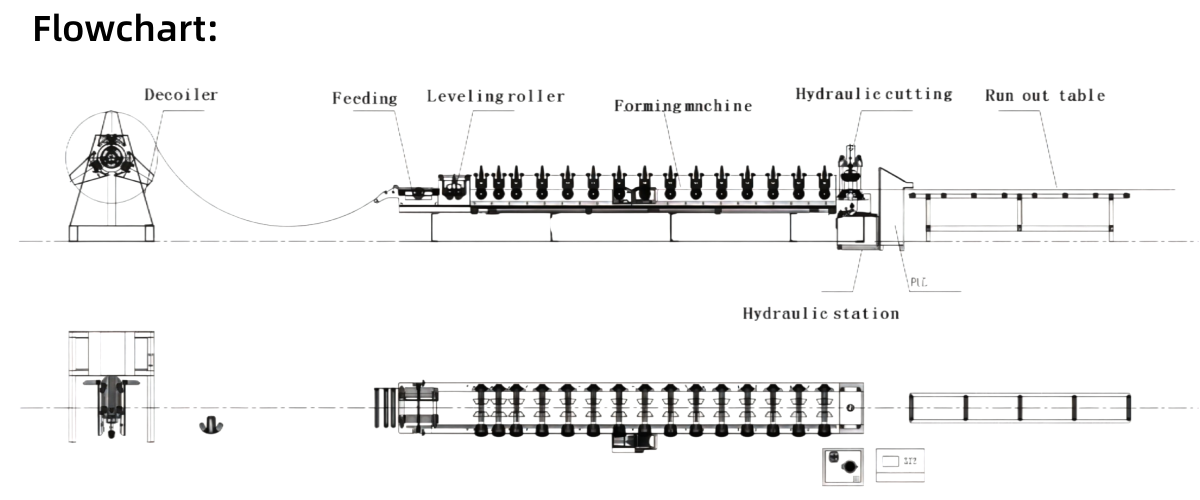

Decoiler ➡️ Feeding table ➡️ Roll Forming ➡️ Hydraulic Cutting ➡️ Output Racks
Detailed description

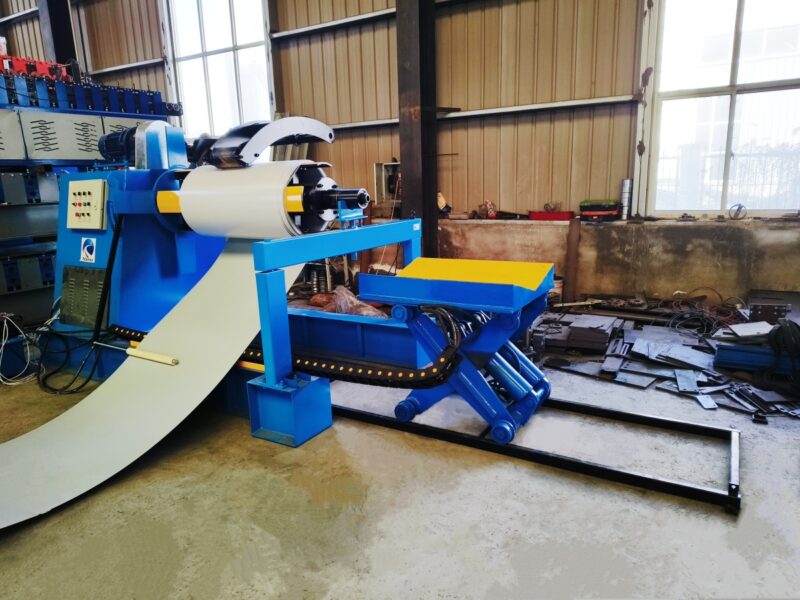

1.Decoiler:Used to stand the steel coil and uncoil, keep them working stably. Manual and automatic options available
2.Sheet guide device:Leveling machine ensures the flatness of the raw material

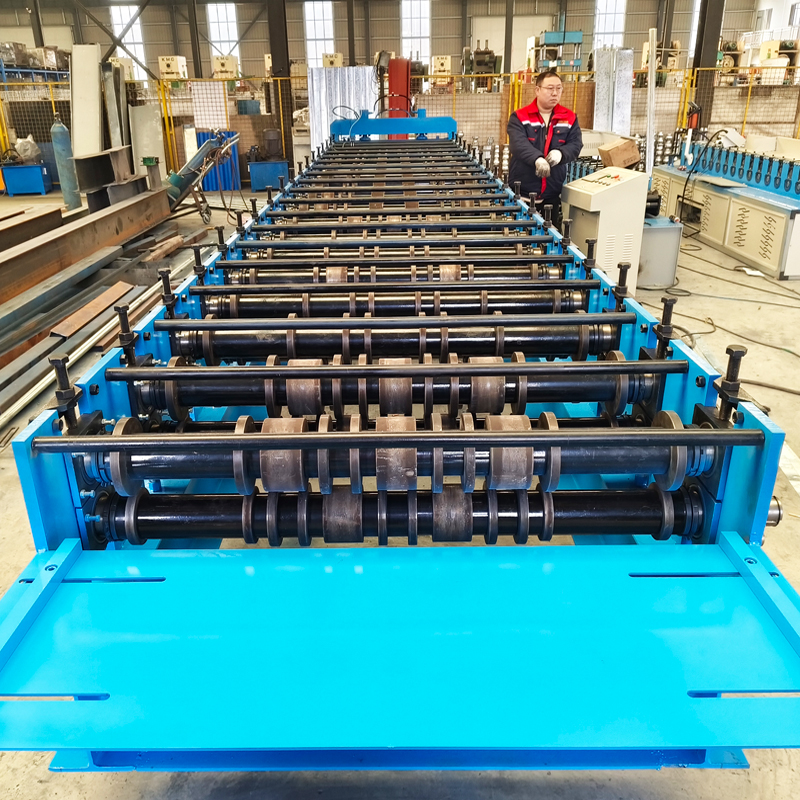

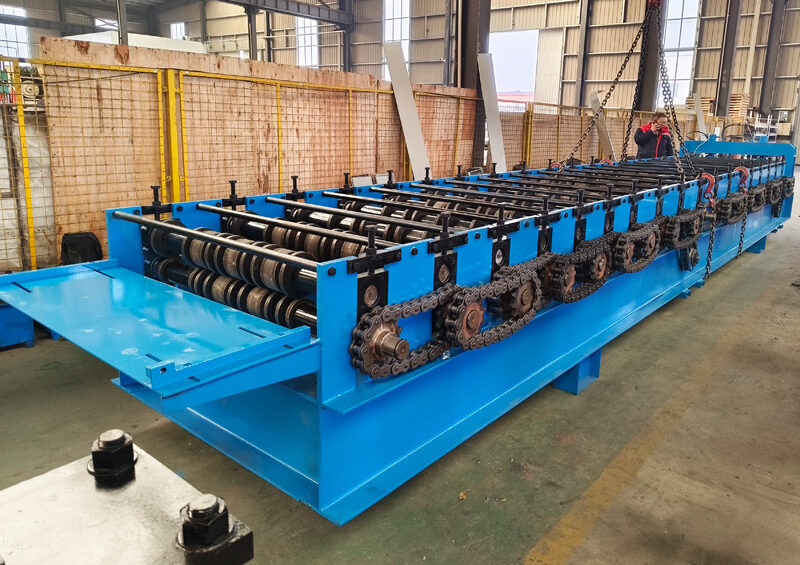

3.Roll forming system : Roller surfaces polish, hard plating dealing Polished surface and heat treatment towards molds can keep the molding plate surface smooth and not easy to be marked when it is being stamped

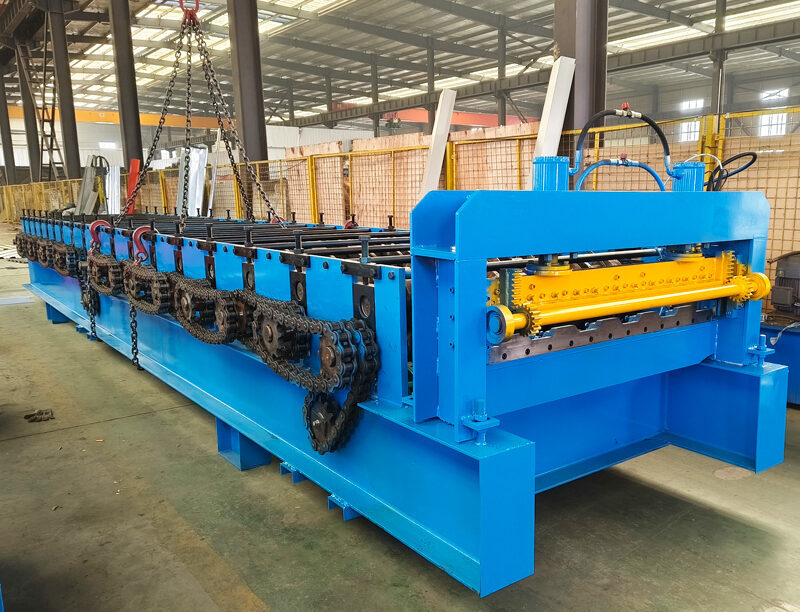

4.Main motor:The main motor provides power to the forming rollers through chains or gears

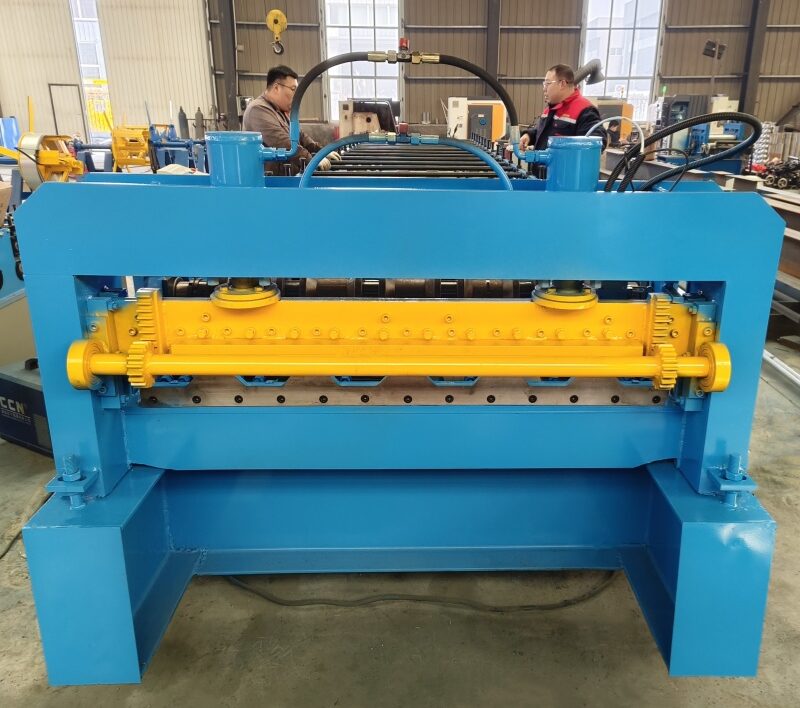

5.Hydraulic cutting : Automatic cutting as target products length Blade material: Cr12, quenching treatment Hydraulic cutting and electric cutting available
6.PLC control system : Button press and screen touch operate Target piece`s length is adjustable Work automatically The system operate easily
7.Pump station Hydraulic oil into the hydraulic oil tank, the pump drives the cutter work Hydraulic oil: 46# Oil add capacity: oil add 3/4 of box capacity Oil pressure: 8-10 MPa

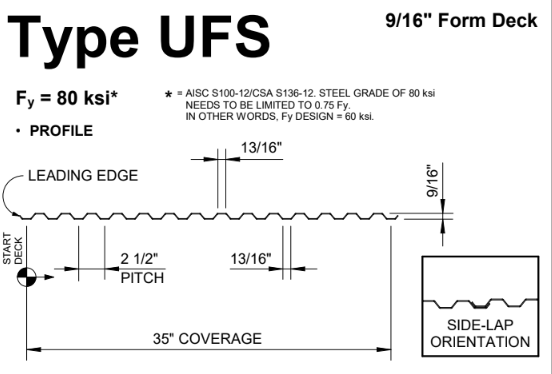

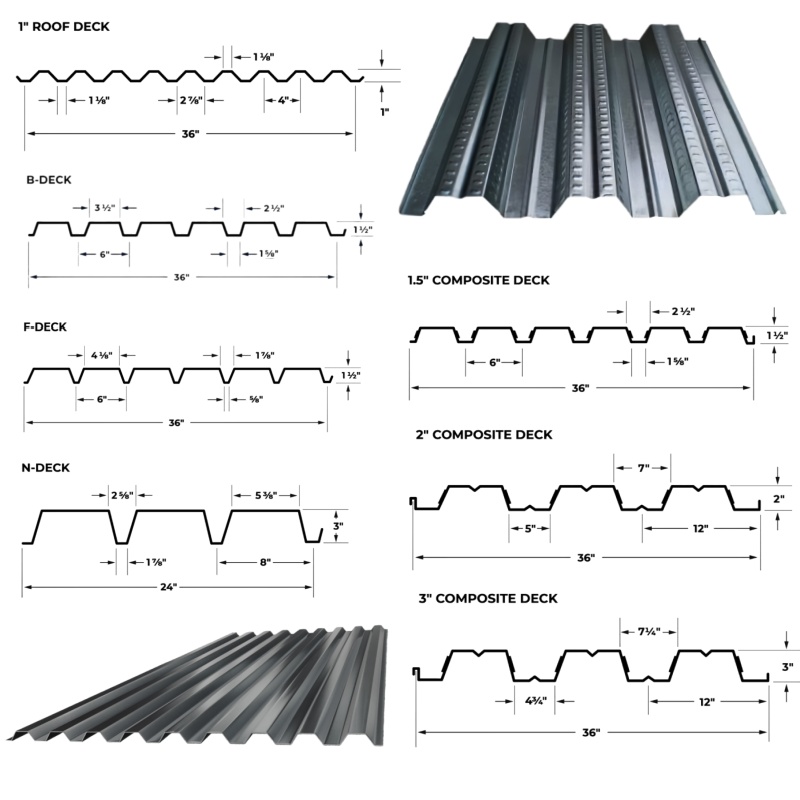

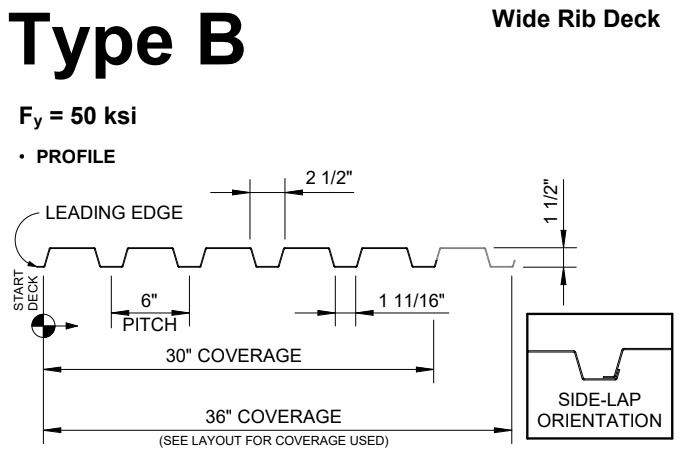

We offer customization services for our clients’ various designs.

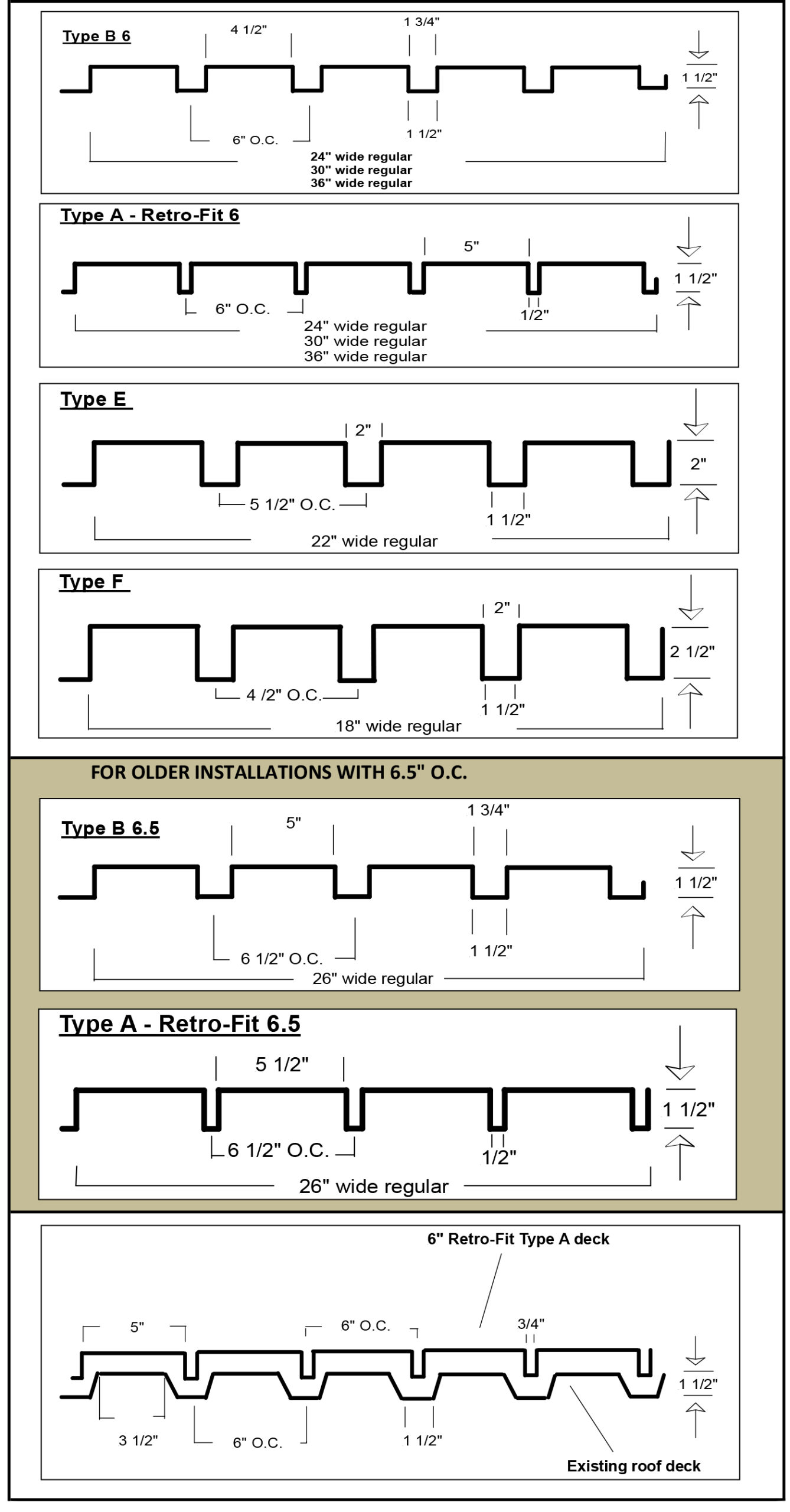

Below is product customization information for reference.
